Removing the fuel pump lines from a Volkswagen vehicle requires careful attention to safety and a variety of tools. The process varies depending on the model of the car, but there are some general steps that can be followed. First, it is important to check for an access panel to reach the pump without removing the tank. Next, the clamps from the fill lines should be removed, and the fill lines should be disconnected. It is important to be cautious when dealing with the fuel supply lines as they are under pressure. The tank should then be carefully lowered, and the pump assembly removed. Finally, the new pump can be installed, and the fuel lines and wire connectors can be reconnected.

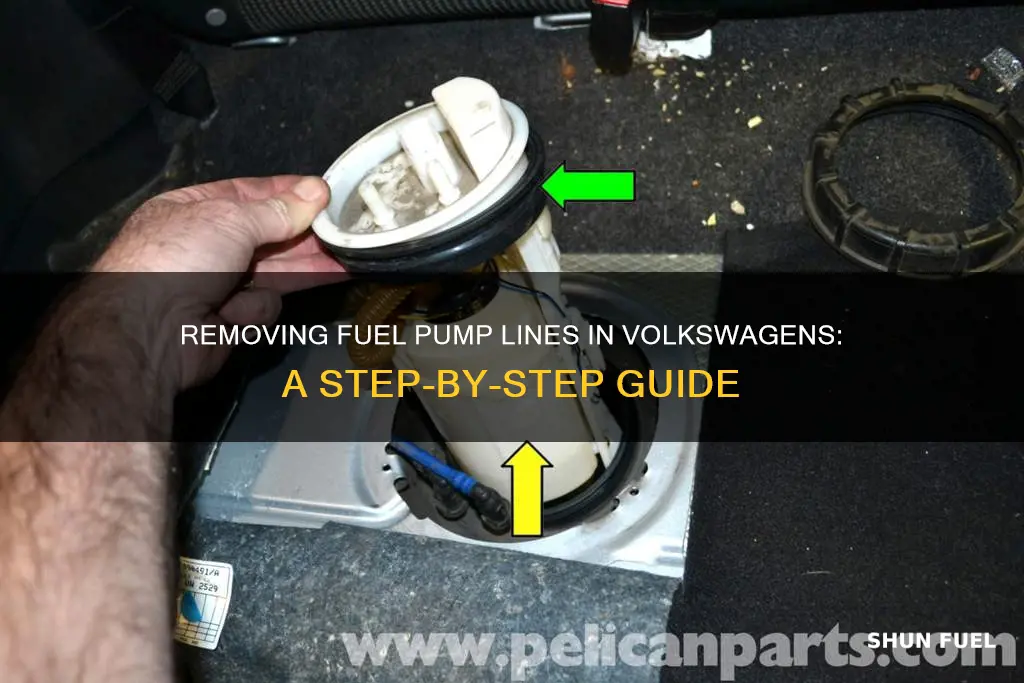

How to Remove Volkswagen Fuel Pump Lines
| Characteristics | Values |
|---|---|
| Vehicle Model | Passat (1998-2005), Jetta (2002) |
| Fuel Pump Location | Luggage compartment |
| Tools | Flat-head screwdriver, 3217 wrench, heavy-duty gloves, eye protection, cloth, hammer, pry bar, 15 mm wrench |
| Steps | 1. Remove rear seat backrest, luggage compartment carpet, and metal cover for fuel delivery unit. 2. Wrap a cloth around the hose connection and press down on fuel line connectors to release. 3. Remove union nut using a wrench. 4. Remove clamps from the fill lines and then remove the fill lines. 5. Drop the gas tank and remove the pump assembly. |
Explore related products
What You'll Learn
- For 1998-2005 Volkswagen Passat models, use VW's special tool to release the pump ring
- Remove the fill lines, clamps, and straps. Then, carefully lower the gas tank
- Wear protective gear, including heavy-duty gloves and eye protection
- Disconnect the sensor on the pump and run the car for 10 seconds
- Use a flat-head screwdriver to tap off the plastic collar in a counter-clockwise direction
For 1998-2005 Volkswagen Passat models, use VW's special tool to release the pump ring
For 1998-2005 Volkswagen Passat models, the fuel pump is located in the luggage compartment. To access it, you will need to remove the cover. Be careful not to damage the lines or your hand. If you are having trouble removing the fuel lines from the fuel pump, use a pair of pliers to give the lines a light squeeze and twist.
Once the lines are off, make sure to tuck them out of the way. Then, use a flat-head screwdriver to tap off the plastic collar. Start tapping in a counterclockwise direction until the collar comes completely off. Do not hit directly down on the collar; instead, hit at an angle.
VW has a special tool for removing the pump ring and releasing the pump from the bottom of the fuel tank. However, the job can be done without this special tool. A large plastic ring holds the pump in place and can be removed by turning it counter-clockwise.
Before beginning this process, be sure to disconnect the battery. Gas is highly flammable, so take the necessary safety precautions.
Removing Fuel Lines: A Guide to Fuel Filter Detachment
You may want to see also
Explore related products
Remove the fill lines, clamps, and straps. Then, carefully lower the gas tank
To remove the fill lines, clamps, and straps, and then carefully lower the gas tank of your Volkswagen, follow these steps:
First, locate the fuel pump. In most Volkswagen models, the fuel pump is located in the luggage compartment, which may be covered. Remove the cover, being careful not to damage the lines or your hand.
Next, you will need to remove the fill lines. For this step, it is important to note that the fuel supply lines are under pressure. Before removing any connections, wrap a cloth around the connection. Then, press down on the fuel line connectors to release them. A flat-head screwdriver can be used to tap off the plastic collar in a counterclockwise direction. Be sure to tuck the lines out of the way once they are off.
Now, you can remove the clamps and straps. Volkswagen clamps can be challenging to remove, and there is no easy trick to do so. Many people opt to cut them off with tools such as diagonal cutters or a cut-off wheel in a Dremel. However, if you want to keep your car as original as possible, you can purchase a starter kit with an assortment of clamps and the installation/removal tool.
Finally, with the fill lines, clamps, and straps removed, you can carefully lower the gas tank. Remember to keep dirt out of the fuel pump and fuel tank during this process. Refer to a Volkswagen-specific guide or video tutorial for detailed instructions on lowering the gas tank, as the procedure may vary depending on your Volkswagen model.
Fuel Pump Return Lines: Efficiency and Engine Life
You may want to see also
Explore related products
Wear protective gear, including heavy-duty gloves and eye protection
When removing the fuel pump lines of a Volkswagen, it is important to wear protective gear to shield yourself from potential spills or leaks. Gloves and eye protection are crucial components of this safety gear. Heavy-duty gloves will protect your hands from coming into direct contact with fuel, which can cause skin irritation or absorption. Additionally, eye protection, such as safety goggles or a face shield, will safeguard your eyes from any fuel splashes or debris that may occur during the removal process.
It is important to understand the risks associated with working on a fuel pump. Fuel is a hazardous substance, and spills or leaks can pose a serious risk to your health and safety. By wearing heavy-duty gloves, you create a protective barrier between your skin and any fuel or chemicals you may encounter. This prevents the fuel from coming into direct contact with your skin, reducing the risk of irritation or absorption. Gloves also provide a good grip and protect your hands from any sharp edges or debris that may be present.
Eye protection is equally vital. When removing fuel pump lines, there is always a risk of fuel splashing or leaking. Even a small amount of fuel coming into contact with your eyes can cause serious irritation or damage. By wearing safety goggles or a face shield, you create a physical barrier that protects your eyes from any potential hazards. This protective gear will shield your eyes from fuel splashes, as well as any debris or particles that may be dislodged during the removal process.
In addition to wearing heavy-duty gloves and eye protection, there are other safety precautions to consider when removing fuel pump lines. It is important to work in a well-ventilated area to prevent the buildup of flammable fuel vapors. Before starting, disconnect the battery to eliminate the risk of electrical sparks that could ignite these vapors. It is also crucial to allow the engine to cool down before beginning any work, as hot components can be dangerous.
By following these safety precautions and wearing the appropriate protective gear, including heavy-duty gloves and eye protection, you can help ensure your safety when removing the fuel pump lines of a Volkswagen. These measures are designed to protect you from potential hazards and create a safer working environment. Remember to also have a fire extinguisher nearby and wear protective clothing that covers your body to further enhance your safety during this task.
Fuel Tank Lines: Chevy's Intricate System Explored
You may want to see also
Explore related products
Disconnect the sensor on the pump and run the car for 10 seconds
To disconnect the sensor on the pump and run the car for 10 seconds, you'll need to follow a few important steps. Firstly, locate the fuel pump in the luggage compartment, which may be covered. Be cautious not to damage the lines or your hand during this process.
Next, you'll need to fold the rear seat backrest forward and remove or fold forward the luggage compartment carpet for better access. Now, you can remove the metal cover for the fuel delivery unit, but be extremely cautious as the fuel supply lines are under pressure. Before removing the lines from the hose connection, it is important to wrap a cloth around the connection to avoid any damage or leakage.
Now, you can proceed to press down on the fuel line connectors to release them. Use a 3217 wrench to remove the union nut. Once the lines are off, tuck them away safely. The fuel pump consists of two pieces, with one part at the top of the tank and the other mounted at the bottom. Use a flat-head screwdriver to tap off the plastic collar in a counterclockwise direction until it comes off. Ensure you don't hit directly down on the collar but instead, hit at an angle.
Finally, with the sensor disconnected, you can attempt to run the car for 10 seconds. This step is important for diagnostic purposes and can help identify issues with the fuel pump or injectors. It is worth noting that modern vehicles have safety protocols that prevent the fuel pump from emptying the tank, so the car may not run for long.
Fuel Line Fiasco: What Happens When Lines Are Reversed?
You may want to see also
Explore related products
Use a flat-head screwdriver to tap off the plastic collar in a counter-clockwise direction
To remove the fuel pump lines in a Volkswagen, you will need to use a flat-head screwdriver to tap off the plastic collar. This process should be done carefully and with precision to avoid any damage to the surrounding components. Here is a step-by-step guide:
Step 1: Prepare the Necessary Tools
Before beginning the process, ensure you have the required tools, including a flat-head screwdriver and a hammer. It is also recommended to have some duct tape or rubber bands, friction drops, and a pair of pliers handy in case you need additional grip or stability.
Step 2: Position the Screwdriver
Place the tip of the flat-head screwdriver on the top of the plastic collar. Do not place it directly in the centre but at an angle that is more rounded. This will help you apply the necessary force without damaging the collar.
Step 3: Tap Counter-Clockwise
Hold the screwdriver firmly and use the hammer to lightly tap the end of its handle. Apply 2-3 gentle taps to allow the screwdriver to dig into the plastic collar. While doing this, make sure you are tapping in a counter-clockwise direction. This is crucial for loosening the collar without causing damage.
Step 4: Continue Tapping and Adjusting
Keep tapping gently and adjust the angle of the screwdriver as needed to find the best position for removing the collar. Do not hit directly down on the collar, but maintain a slight angle to avoid applying force unevenly. Continue tapping counter-clockwise until the collar starts to loosen.
Step 5: Remove the Collar
Once the collar begins to turn and loosen, you can carefully apply more force to unscrew it completely. Keep turning the screwdriver counter-clockwise until the collar comes off entirely. Be cautious not to strip the screws or damage the surrounding components during this process.
Step 6: Proceed with Caution
With the plastic collar removed, you can now access the fuel pump. Remember that the fuel pump in Volkswagens has two pieces: one part is at the top of the tank, and the other is mounted at the bottom. Proceed with caution as you work on removing the fuel pump, as there may be residual fuel that could spill.
By following these steps and paying close attention to the details, you can safely and effectively remove the fuel pump lines in your Volkswagen. Remember always to work in a well-ventilated area and take the necessary precautions when handling fuel or any other potentially hazardous materials.
