Rajan Wilcox
If you want to remove the center fuel disconnect line from your 2001 Pontiac Aztek, you will first need to locate the source of the leak by checking for wet spots and smells. The fuel lines run from the top of the tank in the rear of the vehicle to the front, usually along the inside frame rail on the driver's side, and up into the engine compartment. You will need a collection of small plastic release tools to disassemble the GM Quick Disconnect fuel fittings. You can purchase a Lisle angled QD fuel-line kit or buy individual release tools. Be careful when removing the fuel line as it is under high pressure, and fuel will spray out at very high pressure. Make sure you cover the connector with a rag for protection.
| Characteristics | Values |
|---|---|
| Fuel line leak detection | Locate the approximate area of the leak, look for a wet spot, and smell for fuel |
| Fuel line location | From the top of the tank in the rear of the vehicle to the front along the inside frame rail on the driver's side and up into the engine compartment |
| Fuel line valve | Similar to a bicycle or car tire valve; should have a tag |
| Tools required for fuel line disconnection | Small plastic release tools, Lisle angled QD fuel-line kit (PN 39400), or individual release tools |
| Precautions when disconnecting the fuel line | Cover the connector with a rag to protect yourself from high-pressure fuel spray; wear safety glasses |
Explore related products
What You'll Learn
Locating the fuel leak
If the initial inspection does not reveal any obvious leaks, the next step is to trace the fuel lines from the rear of the vehicle, where the gas tank is located, to the front of the vehicle, usually along the driver's side and up into the engine compartment. Follow the steel line and inspect all connecting hoses and tanks, including the rubber hoses at the fuel tank area and those connected to the fuel fill tube. Check for any visual signs of damage, leaks, or corrosion, especially near the fuel fill tube as metal tubes can rust and cause leaks.
If the leak is still not located, a more comprehensive approach is to ""smoke-test" the system. This involves filling the system with smoke under slight pressure, which will allow you to see the smoke escaping from the leak's location. Additionally, you can try to locate the approximate area of the leak by running the vehicle in park with the emergency brake on and carefully tracing the fuel line from the engine compartment to the fuel tank.
In some cases, the fuel leak may be due to a defective weld on the fill spout located on the fuel tank, resulting in a strong gas smell and fuel dampening around the fill nozzle or inlet valve. This issue has been reported by other 2001 Pontiac Aztek owners and may be subject to a recall or covered by the manufacturer. It is important to note that attempting to repair or modify fuel system components can be dangerous, and it may be advisable to seek assistance from qualified technicians or mechanics.
The Importance of Double Flaring Fuel Lines in Vehicles
You may want to see also
Explore related products
Disconnecting the fuel line
Before beginning any work, ensure you are wearing the appropriate safety gear, including safety glasses and gloves. It is also recommended to have a flashlight on hand to better inspect the area. Once you have located the fuel line, you will need a set of small plastic release tools to disassemble the GM Quick Disconnect (QD) fuel fittings. You can purchase a Lisle angled QD fuel-line kit (PN 39400) from a tool outlet or eBay. Individual release tools are also available at a lower cost.
When disconnecting the fuel line, be cautious as it is under high pressure. Cover the connector with a rag to protect yourself from the high-pressure spray of fuel that may occur when the line is disconnected. If you are experiencing a leak at a joint, it may simply need to be tightened. Otherwise, remove the connector, clean it, and refit it. If the fuel line is cracked, it will need to be replaced.
Additionally, it is recommended to check the evap system/canister behind the driver's rear tire, as the brackets can rust and cause leaks. Also, inspect the front purge valve on top of the gas tank by reaching up at the end of the back door to see if there is any moisture present.
Fuel Dock Efficiency: Best Practices for Quick Service
You may want to see also
Explore related products
Tools required to disconnect the fuel line

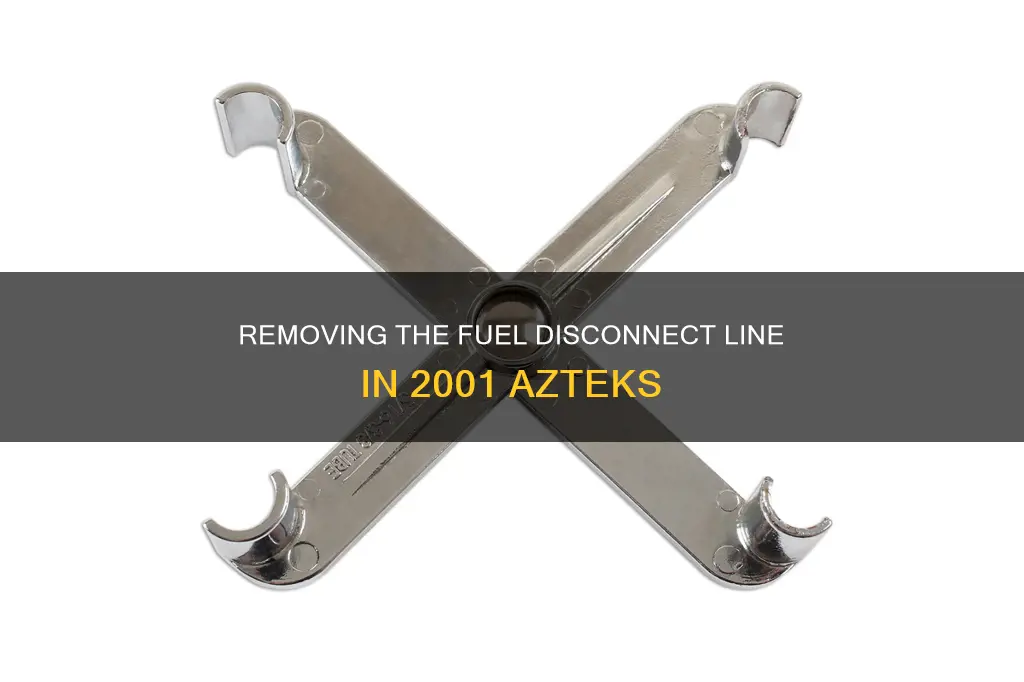

To disconnect the fuel line of a 2001 Pontiac Aztek, you will need a fuel line disconnect tool. This is a simple yet useful tool that allows you to quickly and effortlessly disengage modern fuel line connections without causing any damage.
There are different styles of fuel line disconnect tools, including the clothespin design, the scissor-like style, and the fuel line disconnect pliers. The standard version features a one-sided opening that allows it to snap around a fuel line. It also has a means to extend the opening when fitting it around the line. Once in place, the tool only requires pushing to one side to release the locking mechanism.
You can purchase a fuel line disconnect tool kit, which includes a collection of different styles and sizes of tools. This will enable you to disconnect different lines in various vehicles. These kits are available at local tool outlets or online through websites like eBay and Amazon. The price for these kits can range from $4 for individual tools to around $13 for a full kit.
While it is possible to disconnect a fuel line without the proper tool, it is not recommended. Some people have used plastic wraps or even a screwdriver to disconnect the fuel line, but this can be hazardous and may not always work.
Fuel Line Size for Alcohol: Choosing the Right Diameter
You may want to see also
Explore related products
Safety precautions when disconnecting the fuel line
Disconnecting the fuel line of a 2001 Pontiac Aztek can be a tricky and potentially dangerous job. Here are some safety precautions to follow when performing this task:
Firstly, it is important to relieve fuel pressure before beginning any work. This can be done by disconnecting the battery and referring to the repair manual to understand the specific procedure for your vehicle. Running the engine until it dies out will also help to release any residual pressure in the lines.
It is crucial to work in a well-ventilated area to avoid inhaling dangerous fumes. Always disconnect the battery before beginning any work on the fuel system to reduce the risk of fire or explosion. Be cautious, as fuel lines are often under pressure, and even if the vehicle has not been turned on for some time, fuel can spray out unexpectedly. This can be a safety hazard, causing burns or irritation if it comes into contact with skin or eyes.
When working on the fuel lines, it is important to use the correct tools. For the GM Quick Disconnect fuel fittings, small plastic release tools are required. These can be purchased as part of a Lisle angled QD fuel-line kit or individually. Ensure you have the necessary tools before beginning any work.
Always take great care when handling the fuel sender assembly. Do not handle it by the fuel pipes, as this can damage the joints. When reinstalling the assembly, remember to replace the fuel sender seal. It is also important to note that the assembly will spring up when the lock ring is removed, so take extra care during this step.
Finally, always be mindful of potential fuel leaks during and after the disconnection process. Have suitable absorbent materials and a safe means of disposal readily available. Ensure that the work area is well-ventilated and that any potential ignition sources are removed to reduce the risk of fire or explosion.
Fuel Line Diameter for 2003 Duramax: Sizing Up
You may want to see also
Explore related products
Refitting the fuel line
To refit the fuel line, first, identify the source of the leak by tracing the fuel line from the fuel tank to the engine compartment. Common areas for leaks include the "quick connect" connections, cracks in the line, or the fuel filter area. Once the leak is located, clean the area with a rag to remove any residue or debris. If the leak is coming from a join, tightening the connection may be sufficient. Otherwise, the connector may need to be removed, cleaned, and then refitted. It is important to cover the connector with a rag to protect yourself from high-pressure fuel spray.
If the fuel line is cracked, it will need to be replaced. When replacing the fuel line, it is necessary to feed the entire new line through the frame and components, which can be tricky. Ensure that you have the correct tools for disconnecting and reconnecting the fuel fittings, such as the Lisle angled QD fuel-line kit or individual release tools.
Finally, refer to your repair manual or seek advice from a qualified mechanic if you are unsure about any steps or procedures. Working on fuel lines can be dangerous, so it is important to prioritize safety and thoroughness throughout the process.
Fuel Line Size for Mercury 115 HP: The Right Fit
You may want to see also
Frequently asked questions
Check for a wet spot or smell fuel. The fuel lines run from the top of the tank in the rear of the vehicle to the front along the inside frame rail on the driver's side and up into the engine compartment (under the hood) to the back of the motor. You can also check the trunk to see if it smells of fuel.
Make sure you cover the connector with a rag to protect yourself from the high-pressure spray of fuel. It is also recommended that you wear safety glasses.
You will need a collection of small plastic release tools. This is a Lisle angled QD fuel-line kit (PN 39400). You can find this at your local tool outlet or online.
