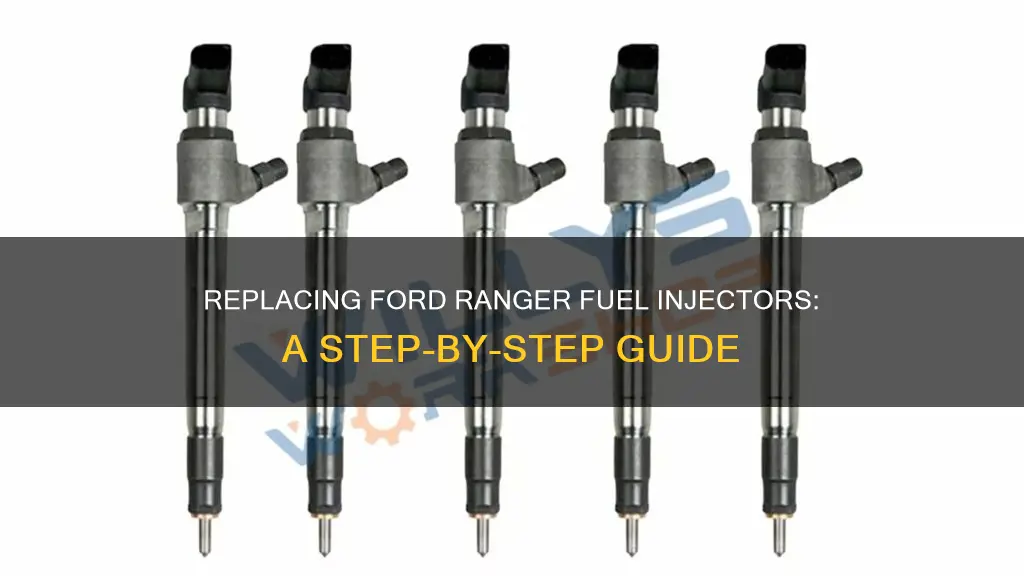

Ford Ranger Fuel Injector Replacement: A Step-By-Step Guide

Replacing the fuel injectors in a Ford Ranger can be a complex task, but with the right tools and knowledge, it is definitely achievable. This guide will provide a step-by-step process to safely and effectively remove and replace the fuel injectors, ensuring your vehicle runs smoothly and efficiently. It's important to follow the manufacturer's instructions and take necessary safety precautions to avoid any potential issues.

Preparation: Gather tools, disconnect battery, and locate the fuel injectors under the hood

Before you begin the process of replacing the fuel injectors on your Ford Ranger, it's crucial to prepare and gather the necessary tools and equipment. Start by ensuring you have a well-lit and spacious workspace, preferably in a garage or driveway, to facilitate the work. Gather the following tools: a socket set or wrench set, a fuel pump disconnect tool (if applicable), a new set of fuel injectors, and a fuel filter (if you plan to replace it). Additionally, have a jack and jack stands ready if you need to lift the vehicle for better access.

Next, locate the battery and disconnect it to prevent any accidental electrical discharges while working under the hood. This step is essential for safety. After disconnecting the battery, locate the fuel injectors, which are typically positioned along the top or side of the engine. They are often held in place by brackets or clips, so identify these retaining mechanisms. Carefully inspect the injectors to ensure they are the correct ones for your specific Ford Ranger model and year.

Once you have the tools and have located the fuel injectors, it's time to proceed with the removal process. This may vary slightly depending on your vehicle's make and model, so consult your Ford Ranger's service manual for specific instructions. Generally, you will need to remove the air intake manifold or any other components that are in the way to access the injectors. Carefully detach the electrical connections and fuel lines connected to the injectors, taking note of their positions for reinstallation later.

With the injectors now accessible, you can proceed to remove them by prying off the retaining clips or brackets. Be gentle to avoid damaging the surrounding components. Once the injectors are free, lift them out of their positions and set them aside. Ensure you have a clean and organized workspace to keep track of any small parts that may come loose during the process.

Remember, replacing fuel injectors can be a complex task, and it's essential to follow the manufacturer's guidelines and safety precautions. If you're unsure about any step, consider seeking assistance from a professional mechanic to ensure the job is done safely and correctly.

Fuel System Check: Ensure no fuel leaks and the system is safe to work on

Before you begin any work on the fuel injectors of your Ford Ranger, it is crucial to conduct a thorough fuel system check to ensure safety and prevent any potential hazards. This process involves inspecting the fuel system for any signs of leaks and verifying that the system is in a condition that allows for safe work. Here's a step-by-step guide to performing this essential check:

• Inspect for Fuel Leaks: Start by locating the fuel tank and the various fuel lines connected to it. Carefully examine the tank for any visible signs of corrosion or damage. Then, inspect each fuel line for cracks, brittleness, or any signs of leakage. You can use a soapy water solution to test for leaks. Apply the solution to the connections and look for bubbles, which indicate a fuel leak. If any leaks are found, it is imperative to repair or replace the affected components immediately to prevent fuel spills and potential fire hazards.
• Check Fuel Pump and Injectors: With the engine off, locate the fuel pump and inspect it for any visible damage or corrosion. Ensure that the pump is functioning correctly by listening for a steady humming sound when the ignition is turned on. If the pump is not operational, it may need to be replaced. Additionally, inspect the fuel injectors for any signs of clogging or damage. You can use a fuel pressure gauge to check the pressure and ensure it meets the manufacturer's specifications. Low fuel pressure could indicate a clogged filter or a faulty injector.
• Inspect the Fuel Filter: The fuel filter is a critical component in the fuel system, and its proper functioning is essential. Locate the fuel filter and inspect it for any signs of contamination or damage. If the filter appears clogged or dirty, replace it to ensure clean fuel delivery to the engine. Regularly checking and replacing the fuel filter can prevent fuel system issues and maintain optimal engine performance.
• Test the Ignition System: While checking the fuel system, it is also a good practice to inspect the ignition system. Ensure that the spark plugs and ignition coils are in good condition and properly seated. Check for any signs of corrosion or damage. A faulty ignition system can lead to poor engine performance and may affect the fuel injection process.
• Prepare the Vehicle for Work: Once you have confirmed that the fuel system is safe and leak-free, you can proceed with the replacement of the fuel injectors. Ensure that the vehicle is parked on a level surface, and engage the parking brake for added safety. Disconnect the negative battery terminal to prevent accidental electrical discharges during the work.

By following these steps, you can ensure that your Ford Ranger's fuel system is safe to work on, minimizing the risk of accidents and ensuring a successful fuel injector replacement process. Remember, regular maintenance and inspection of the fuel system are essential to keep your vehicle running smoothly and efficiently.

Injector Removal: Carefully remove the old injectors, noting their positions for reinstallation

When replacing the fuel injectors on a Ford Ranger, it's crucial to follow a systematic approach to ensure a successful installation. The removal process requires patience and attention to detail to avoid any potential issues. Here's a step-by-step guide to safely and effectively remove the old injectors:

Step 1: Prepare the Vehicle

Before beginning, ensure the engine is cool to prevent any accidents. Park the Ford Ranger on a level surface and engage the parking brake. This preparation step is essential for your safety and the longevity of the engine.

Step 2: Locate the Injectors

The fuel injectors are typically located along the top of the engine, positioned near the front of the vehicle. There are usually six injectors in a 3.0L engine and four in a 2.3L engine. Identify the correct positions of the injectors you plan to remove, as they may vary slightly depending on the engine variant.

Step 3: Disconnect Electrical Connections

Carefully inspect each injector and locate the electrical connector. Gently disconnect the connector by releasing the locking tab and carefully pulling it away from the injector. Take note of the connector's position relative to the injector for future reference during reinstallation.

Step 4: Remove the Injectors

Using the appropriate socket or wrench, loosen and remove the injector mounting bolts. Be cautious not to force the bolts out, as they may be stubborn due to corrosion. Once the bolts are removed, lift the injectors straight up to release them from the engine block. Set the old injectors aside, ensuring you don't lose any small components.

Step 5: Inspect and Note Positions

Carefully examine the removed injectors for any signs of damage or wear. Take this opportunity to compare their positions with the new injectors you will install. This step is crucial to ensure proper alignment during reinstallation. Note the orientation of the electrical connectors and the relative positions of the injectors to the engine block.

By following these detailed steps, you can ensure a smooth injector removal process, setting the stage for a successful replacement. Remember, taking your time and being meticulous will contribute to the overall success of the project.

Cleaning: Clean the injector ports and passages to ensure proper function

Cleaning the fuel injectors on a Ford Ranger is an important maintenance task to ensure optimal engine performance and longevity. Over time, fuel injectors can become clogged with deposits, debris, and carbon buildup, which can restrict fuel flow and lead to poor engine operation. Here's a step-by-step guide on how to clean the injector ports and passages:

Step 1: Gather the Necessary Tools and Materials:

You will need a few essential tools and cleaning solutions for this process. Firstly, acquire a fuel injector cleaner specifically designed for gasoline engines. These cleaners typically come in a concentrated liquid form and are safe for use with rubber and plastic components. Additionally, you'll require a fuel pressure tester, a fuel pressure gauge, and a set of injector cleaning brushes or needles. These brushes are useful for manually cleaning the injectors.

Step 2: Disconnect the Battery and Fuel Supply:

Before beginning the cleaning process, it is crucial to ensure your safety and that of the vehicle. Start by disconnecting the negative battery terminal to prevent any electrical interference during the cleaning process. Then, locate the fuel rail and disconnect the fuel supply line. This step is essential to prevent any accidental fuel release while working on the injectors.

Step 3: Test the Fuel Pressure:

Using the fuel pressure tester, measure the fuel pressure in the system. This reading will serve as a baseline to compare after the cleaning process. Note any abnormalities or significant changes in pressure.

Step 4: Cleaning the Injector Ports:

Now, you can begin the cleaning process. Start by removing the fuel injectors from the engine one by one. Take note of their positions to ensure proper reinstallation. Once removed, inspect the injectors for any visible signs of contamination or damage. Use the cleaning brushes to gently scrub the injector ports and passages, removing any debris or buildup. Be thorough but gentle to avoid damaging the delicate components.

Step 5: Cleaning Solution Application:

After mechanical cleaning, it's time to use the fuel injector cleaner. Follow the instructions on the cleaner's packaging for the correct application method. Typically, you'll spray or pour the cleaner into the fuel tank, allowing it to circulate through the system. This step helps dissolve and remove any stubborn deposits. Run the engine for a few minutes to ensure the cleaner reaches all parts of the fuel system.

Step 6: Reassembly and Testing:

Once the cleaning process is complete, carefully reassemble the fuel injectors and reconnect the fuel supply. Start the engine and monitor its performance. Check for any unusual noises or vibrations, and ensure the engine runs smoothly. Re-test the fuel pressure to verify that it has returned to its normal level. If the pressure is significantly lower or higher than the initial reading, further investigation may be required.

By following these steps, you can effectively clean the injector ports and passages, ensuring the Ford Ranger's fuel injectors function optimally. Regular maintenance and cleaning can help prevent costly engine repairs and maintain the vehicle's overall performance.

Installation: Insert new injectors, securing them and reconnecting the fuel lines

To replace the fuel injectors on your Ford Ranger, you'll need to follow a series of steps to ensure a proper installation. Here's a detailed guide on how to insert the new injectors, secure them, and reconnect the fuel lines:

Inserting the New Injectors:

• Locate the existing fuel injectors, which are typically mounted on the engine block near the intake manifold. Carefully remove any clips or fasteners holding the old injectors in place.
• Carefully lift the old injectors out of their mounting positions. Take note of the orientation and position of the wiring harnesses and fuel lines connected to them.
• Prepare the new fuel injectors by inspecting them for any damage or defects. Ensure they are the correct type and specifications for your Ford Ranger model.
• Align the new injectors with the mounting holes on the engine block. Push them gently into place until they are fully seated. Secure the injectors using the appropriate fasteners or clips, tightening them according to the manufacturer's specifications.

Securing the Injectors:

• Once the new injectors are in place, ensure they are firmly attached and won't come loose during operation. Tighten the fasteners securely, but be careful not to overtighten, as it may damage the injectors or surrounding components.
• Check for any leaks around the injectors by applying a small amount of diesel fuel or a suitable sealant to the mounting surfaces. If any leaks occur, tighten the fasteners further or inspect the seals for damage.

Reconnecting Fuel Lines:

• Locate the fuel lines that were connected to the old injectors. These lines typically run from the fuel rail or pump to each individual injector.
• Carefully disconnect the fuel lines from the old injectors, taking note of the connections and their positions.
• Now, connect the fuel lines to the new injectors. Ensure that the connections are secure and aligned correctly. Tighten any fittings or clamps as specified by the manufacturer.
• Double-check all fuel line connections to ensure there are no leaks. You can use a fuel line inspection tool or soapy water to identify any potential leaks.

After completing these steps, your Ford Ranger's fuel injectors should be properly installed and ready for operation. Remember to refer to your vehicle's manual or seek professional assistance if you encounter any specific challenges during the installation process.
