Removing the screen in a fuel injector is a process that can be done using a variety of tools, such as a funnel, a fuel injector tester cleaner tool kit, or a fuel injector micro filter removal tool. This is often done to clean the injector, as dirty screens can cause the injector to flow less efficiently. Some people choose to send their injectors to professionals for cleaning and testing, while others attempt to do it themselves. The process of removing the screen involves unscrewing the basket filter and turning the tool knob to release the screen. It is important to note that not all injectors have screens, and that some screens may be difficult to identify.
Explore related products
What You'll Learn
Using a funnel to remove the screen

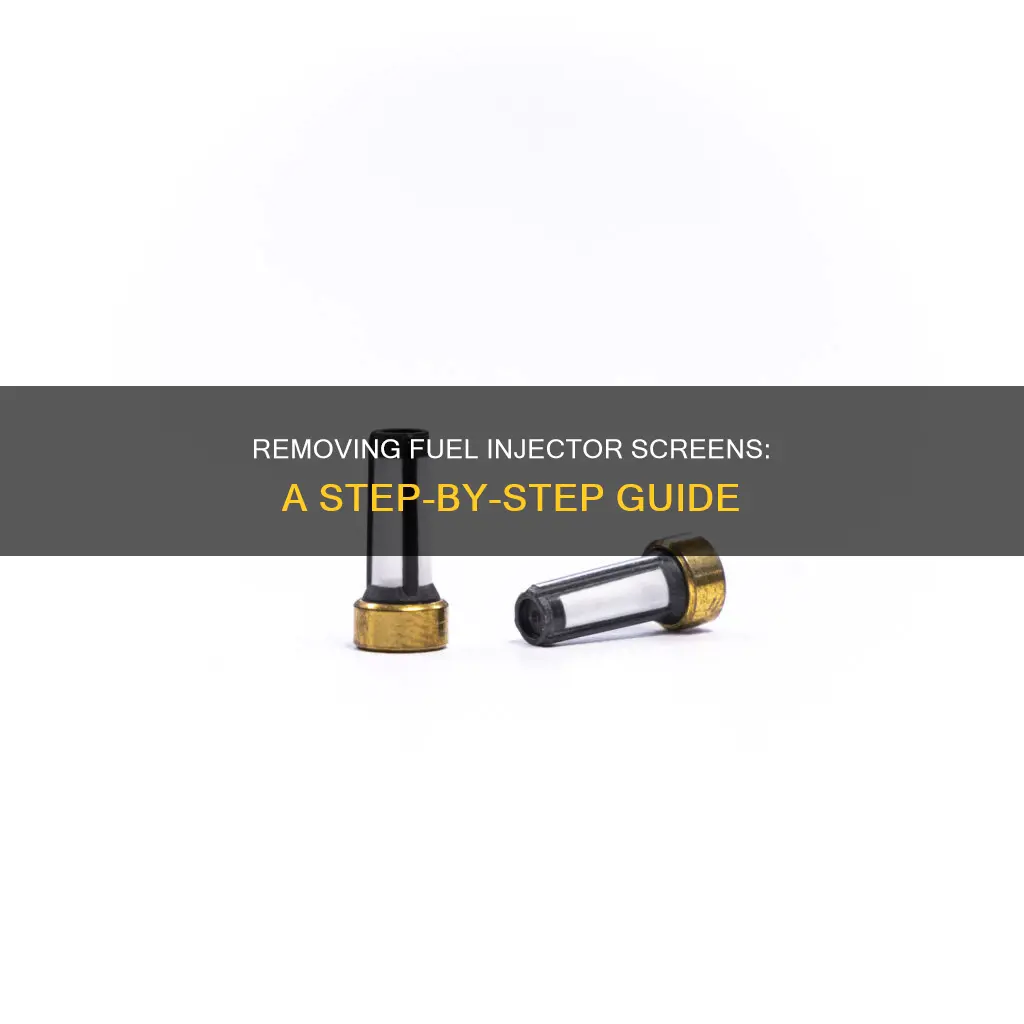

First, locate the fuel injector and identify the type of screen it has. There are two common types of screens: a brass screen that presses inside the bore and a plastic screen with a thin flange that sits close to the O-ring. Knowing the type of screen will help you determine the best approach for removal.
Next, gather the necessary tools. A fuel injector filter removal tool, which resembles a funnel, can be purchased online or at an automotive store. This tool is specifically designed for removing and installing injector filters efficiently. Alternatively, some people have had success using a dental pick or a small sheet metal screw to gently remove the screen.
Once you have the appropriate tool, follow these steps:
- Place the funnel over the fuel injector, ensuring it is securely in place.
- Gently twist or turn the funnel to grip the screen. The funnel's design will allow it to engage with the screen, making it easy to remove.
- With the funnel securely gripping the screen, slowly pull it out of the fuel injector. Be careful not to damage any other components during this process.
- Once the screen is removed, inspect it for any debris or buildup. If necessary, clean or replace the screen before reinstalling it.
It is important to note that removing the screen from a fuel injector should be done with caution. Always refer to the manufacturer's instructions or seek advice from a qualified mechanic if you are unsure about the process. Additionally, wearing appropriate safety gear, such as gloves and eye protection, is recommended when handling fuel system components.
By following these steps and using a funnel-like tool, you can effectively remove the screen from a fuel injector, making maintenance and cleaning more accessible. Remember to take your time, use the correct tools, and prioritize your safety throughout the process.
What Fuel Volume Do 40-Pound Injectors Require?
You may want to see also
Explore related products
$11.77
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
![Fuel Injector Micro Filter Removal Tool Kit, with Optional Basket Screens (6mm × 13.8mm) — [4] Filters + Extractor Tool — Fits Most EFI Injectors](https://m.media-amazon.com/images/I/41-BH1jgj7L._AC_UY218_.jpg)
Using a tool to remove the screen
There are several tools available on the market designed for this purpose, such as the Fuel Injector Basket Filter Removal Tool, which can be purchased on Amazon. This tool is designed to efficiently remove and install filter baskets in fuel injectors. It is compatible with any type of Top or Side Feed Fuel Injector Filter and comes with eight basket filters. The tool easily screws into the basket filter and removes it by turning the tool knob. It also features a rotary mechanism at the bottom to ensure the easy removal of filters and baskets.
Another option is the Fuel Injector Screen Remover, which can be found on hyperracing.com. This tool is designed to remove the screens from injector nozzles so that they can be back-flushed and cleared of debris.
Additionally, there are cleaning tools available, such as the Fuel Injector Tester & Adapter DIY Cleaning Tool Kit, which can be used to clean fuel injectors without having to remove them. This kit includes a fuel injector tester, adapter, power cord, injector cleaner adapters, and short circuit protection.
When using these tools, it is important to follow the manufacturer's instructions and take appropriate safety precautions, such as working in a well-ventilated area and ensuring the engine is cool before beginning the removal or cleaning process.
Fuel Injectors: Powertrain's Heart and Soul?
You may want to see also
Explore related products
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [20 Pcs]](https://m.media-amazon.com/images/I/61cmuoRfZuS._AC_UL320_.jpg)
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [50 Pcs]](https://m.media-amazon.com/images/I/61h9YdXmkxL._AC_UL320_.jpg)
Removing the screen by hand
Removing the screen in a fuel injector by hand is a delicate task that requires careful attention to avoid damage. Here is a step-by-step guide to help you through the process:
Firstly, ensure you have the necessary tools and prepare your work area. You will need common tools like a screwdriver, pliers, and a lubricant. It is recommended to work on a cold engine, so make sure the vehicle has been turned off for some time. Additionally, disconnect the battery to prevent any accidental electrical shocks during the process.
Now, locate the fuel injector and gain access to it by removing any coverings, such as a plastic shroud, that might be present in modern cars. Once you have clear access to the injector, identify the Phillips head screws on the injector cap. These screws might be seized, so be prepared to use some force or alternative tools like vice grips if needed.
With the screws removed, it's time to carefully pry open the injector. This step requires caution to avoid damaging the plastic components. Using a flathead screwdriver, gently pry under the connector while twisting and applying more lubricant if necessary. The injector should start to come loose, and you can use soft-jaw pliers to carefully pull it out.
At this point, you will have access to the internal components of the injector. Locate the screen, which might be a small plastic or metal component. Using a dental pick or a similar thin tool, gently pry or pull out the screen. Alternatively, you can try gently turning a small sheet metal screw into the screen and then pulling it out. Be extremely careful not to damage any other parts of the injector during this process.
Finally, once the screen is removed, you can choose to clean it or replace it with a new one. Reassembling the injector and ensuring all components are properly secured is the next step, but this may vary depending on your specific injector model.
Remember to take your time, work carefully, and if you're unsure about any steps, seek advice from a professional or a detailed guide specific to your vehicle's make and model.
Removing Fuel Injector Filter Basket: Step-by-Step Guide
You may want to see also
Explore related products
![50PCS Fuel Injector Baskets Filter Kits 101 Micron Universal Repair Seal [6mm x 3mm x12mm]](https://m.media-amazon.com/images/I/81hKMfqsnfL._AC_UL320_.jpg)
![HiSport Fuel Injector Seal Kits Filter Baskets Repair Set CF-106A [10.5mm x 6mm x 13mm] Compatible with Honda[50 Set]](https://m.media-amazon.com/images/I/71R1wfW6r3L._AC_UL320_.jpg)
![Fuel Injector Repair Kit 101 Micro Filter Basket Filter for multiple brands [6mm x 3mm x10.7mm] Haneex Repair Seal Kits [50 Pcs]](https://m.media-amazon.com/images/I/51MtkA7sghL._AC_UL320_.jpg)
Cleaning the screen
Prepare the Work Area and Your Fuel Injector:
- Park your vehicle in a well-ventilated area away from direct sunlight or any open flames.
- Put on protective goggles and gloves to ensure your safety during the cleaning process.
- Consult your vehicle's owner manual to locate the fuel injectors, which are typically found near the engine intake manifold.
- Disconnect the fuel pump from the fuel injectors by removing the fuse or relay.
- Start your car and let it run until the engine dies. This depressurizes the fuel system, making it safe to work on the fuel injectors.
Clean the Screen:
- Use a dental pick-type instrument to carefully remove the small plastic screen from the fuel injector. You can also use a small sheet metal screw; gently turn it into the screen and then pull it out. Be gentle and careful to avoid damaging any parts.
- Clean the screen with a suitable cleaning solution or fuel injector cleaner fluid. Ultrasonic cleaning is an effective method to remove any built-up crud, oil, carbon, sludge, or resin.
- If the injector is heavily clogged, you may need to soak it in a dedicated injector cleaner fluid and then use compressed air to blow through the injector to remove any remaining debris.
Reassemble and Test:
- Reinstall the cleaned screen back into the fuel injector, ensuring it is secure and properly aligned.
- Reconnect the fuel pump by replacing the previously removed fuse or relay.
- Turn on the ignition to the "on" position for a few seconds and then turn it off again to re-pressurize the fuel system.
- Start the engine and let it idle, checking for any leaks around the injectors and fuel rail. Observe if the engine's performance has improved.
- Take the vehicle for a test drive to ensure the injectors are functioning correctly after the cleaning process.
It is important to note that you cannot buy replacement filter screens separately. If you choose to send your injectors for professional cleaning, they will typically install new screens as part of the service. Additionally, some injectors may have screens that are pressed or screwed into place, so be sure to check your injector's design before attempting to remove the screen.
Fixing N54 Fuel Injector: Step-by-Step Guide to Repairing Yours
You may want to see also
Explore related products
Replacing the screen
When replacing the screen in a fuel injector, you will need to remove the old screen first. This can be done using a variety of tools, including a long drywall screw, a filter removal tool, or a fuel injector tester cleaner tool kit.
The filter removal tool is designed to make the process of removing and installing filter baskets in fuel injectors easy and efficient. It screws into the basket filter and removes it by turning the tool knob. This tool is versatile and can be used on any type of top or side feed fuel injector filter.
The fuel injector tester cleaner tool kit allows you to test and clean the fuel injectors, and it comes with various adapters and short circuit protection.
Once the old screen has been removed, you can install the new screen. The new screen should be clean and free of any debris. It is important to ensure that the new screen is the correct size and type for your specific fuel injector.
After installing the new screen, it is a good idea to test the fuel injector to ensure it is functioning properly. This can be done by flow testing the injector at different pulse widths and weighing the results using a laboratory digital gram scale.
Premium Gas: Cleaning Fuel Injectors or Costly Myth?
You may want to see also
Frequently asked questions
You can use a funnel, a fuel injector tester cleaner tool kit, or a fuel injector micro filter removal tool.
The best tool to use is the Fuel Injector Filter Removal Tool, which is designed to make the process of removing and installing filter baskets in fuel injectors effortless and efficient.
The Fuel Injector Filter Removal Tool easily screws into the basket filter and removes it by turning the tool knob. It has a rotary mechanism at the bottom that ensures the easy removal of your filters/baskets from your injectors.
Removing the screen in a fuel injector can improve the performance of your vehicle, as clean screens flow test almost identical to injectors without screens.
There is a risk that removing the screen in a fuel injector may void your warranty. Additionally, without the screen in place, there is a risk of dirt and debris entering the fuel injector, which can cause performance issues and damage to the engine.
