Removing side fuel injector filters can be a tricky task, and it is important to proceed with caution to avoid causing damage. In most cars, there is an injector for each cylinder, and these are usually held in place with bolts, brackets, or small clips. Before attempting to remove the injector, it is recommended to remove the fuel pump fuse and crank a few times to ensure that all the fuel is drained from the rail system. This will help prevent spills and create a safer working environment. Once the injector is accessed, the electrical connectors can be gently removed, and the injector can be carefully pulled out. It is important to note that some injector filters may not be intended for removal or cleaning, and attempting to do so may result in damage. Specialized tools, such as the ARD fuel injector filter removing tool, are available for this purpose, and it is always a good idea to consult a professional or refer to manufacturer guidelines for specific instructions.
How to Remove Side Fuel Injectors Filter
| Characteristics | Values |
|---|---|
| Tools | Fuel Injector Micro Filter Removal Tool, knife, flathead screwdriver, deck screw, plyers, flashlight, soft jaw pliers |
| Steps | Remove bolts, brackets, fuel line, electrical connectors, and injector caps. Pry upwards under the connector. Pull injectors out carefully. |
| Tips | Use a flashlight to check for clogs. Be careful not to drop pointy ends or break o-rings. |
Explore related products
What You'll Learn
Removing side fuel injectors without a tool
It is important to keep your fuel injectors clean and well-maintained to ensure your engine runs smoothly. While there are tools available to help with the removal of the basket filters from fuel injectors, it is possible to remove them without a tool.
Before attempting to remove the basket filters, it is important to ensure you are working in a well-ventilated area, as you will be using solvents. Your car engine should be turned off and completely cool. It is also recommended to wear long trousers and sleeves to protect your skin from any burns.
The fuel rail supplies the fuel injectors with fuel and is one of the most important parts of your fuel injector system. The location of the fuel rail can vary between cars, so you may need to refer to your car manual. Once you have located the fuel rail, disconnect it from the injectors, being careful not to damage the rail or leak any fuel. After disconnecting the fuel rail, there will be an exposed hose.

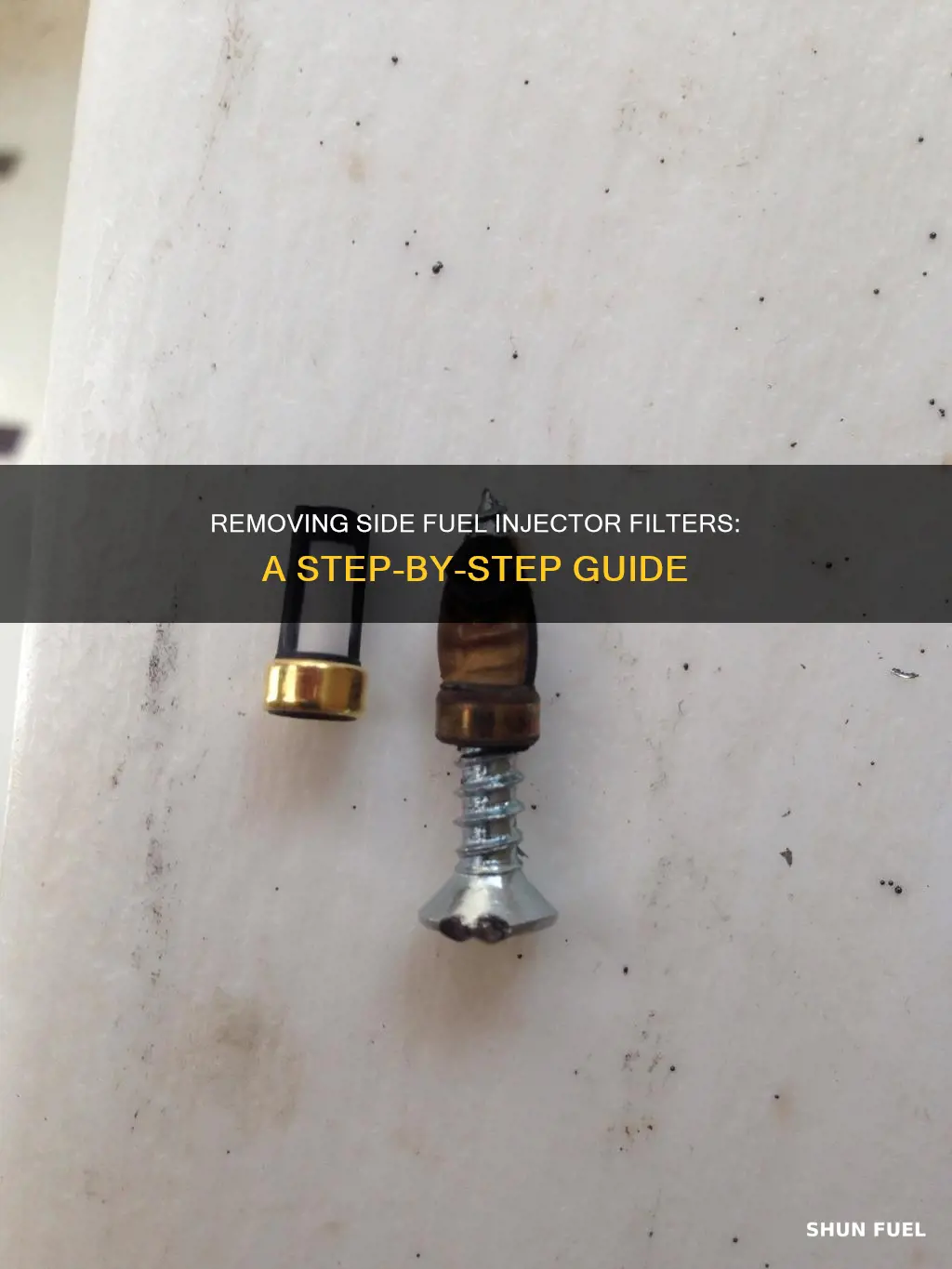

To remove the basket filter without a tool, you can use a thin, flat-head screwdriver to carefully get under the plastic, being cautious not to bend or scratch the injector opening. Create some separation between the injector and the basket filter, then get ahold of the basket and remove it. Alternatively, you can use a deck screw. Screw it in, and once it grabs the injector, pull the screw with pliers. Be careful not to use a screw that is too big, as it may scratch the inside of the injector.
Mystery Oil's Power: Cleaning Fuel Injectors?
You may want to see also
Explore related products
Using a fuel injector removal tool
This tool easily screws into the basket filter and allows for simple removal by turning the tool knob. It features a rotary mechanism at the bottom, ensuring filters and baskets can be effortlessly extracted from injectors. The tool also serves as an installation surface, allowing for the safe installation of new filters.
To use this type of fuel injector removal tool, first, ensure you are wearing protective gear and have a cloth handy, as there may be residual fuel spillage. Locate the fuel rail running along the top of the engine, which is held in place by bolts or brackets. In some cases, you may need to remove the fuel line and the fuel rail to access the injectors.
Once you have located the injectors, carefully remove the electrical connectors and gently pull out each injector. With the injectors removed, you can now use the fuel injector removal tool. Simply screw the tool into the basket filter, turn the knob, and easily extract the filter basket using the tool's rotary mechanism. Remember to refer to the tool's instructions for proper usage.
Motorcycle Fuel Injector: Signs of Malfunction and Bad Performance
You may want to see also
Explore related products
Removing Suzuki GSX-R motorcycle injectors
Firstly, it is important to identify the potential issue that has led you to consider removing the injectors. Common symptoms of clogged injectors include restricted fuel flow, rough idle, engine hesitation, reduced engine power, poor gas mileage, and increased emissions. If you are experiencing any of these issues, it may be necessary to remove and clean the injectors.
Before beginning the removal process, ensure you have the necessary tools and equipment. A thin flathead screwdriver or a similar tool will be needed to carefully pry under the plastic lip of the injector without bending or scratching the opening. Additionally, a "corkscrew" tool or a deck screw and pliers can be used to remove the filter basket, as described in the following steps.
Now, let's move on to the removal process:
- Using your thin flathead screwdriver, carefully insert it under the plastic lip of the injector, being cautious not to damage the injector opening.
- Gently pry upwards to create some separation between the injector and the basket filter. This step may require some patience and finesse to avoid any scratching or bending.
- Once you have created enough separation, carefully grasp the basket filter and remove it. Alternatively, you can use the "corkscrew" tool specifically designed for this purpose, or follow the method described in the next paragraph.
- Another method involves using a deck screw. Screw it into the injector, and once it has a good grip, use pliers to pull the screw and injector out together. Be cautious not to screw it too deeply or use a screw that is too large, as you risk scratching the inside of the injector.
It is important to note that some dealers may advise against removing the filters, as they are not intended to be replaced or cleaned. There is a risk of destroying the filters during the removal process, so proceed with caution and ensure you have replacement parts available if needed.
Additionally, consider using an injector cleaner or a fuel cleaning product to maintain your injectors and prevent future issues. Products such as Lucas injector cleaner or Polyether amine fuel cleaning products like BG 44K or Techron can be beneficial. However, always exercise caution when using any chemical cleaners and follow the recommended procedures.
Finding and Fixing Stuck Open Fuel Injectors
You may want to see also
Explore related products
Removing injectors with Phillips head screws
Removing fuel injectors with Phillips head screws can be a tricky task, especially if the screws have become frozen or seized over time. Here is a step-by-step guide on how to safely remove the injectors:
Locate the injector caps: There are usually four caps, each secured by two Phillips head screws. Spray the screws with a suitable lubricant and let it soak for a few minutes to help loosen them. Carefully use a Phillips head screwdriver to remove the screws, being cautious not to strip them. If the screws are stubborn, use vice grips to get a firm grip and turn them.
Remove the injector caps: Once the screws are removed, set the caps aside. Keep the screws close by as you will need them later. With the caps removed, the injectors are now exposed. Spray lubricant on the edges of the injectors to help loosen the seal, making them easier to pull from the fuel rail.
Use the screws for leverage: Screw the Phillips head screws back into the fuel rail halfway. You can now use these screws as a pivot point to help lift the injectors. Gently pry upward using a small screwdriver or similar tool. It is important to be careful during this step to avoid damaging the injectors.
Pop the injectors out: With gentle upward prying, you will feel the injectors start to lift out. Continue until you hear a popping sound, indicating that the seal has broken and the injector has come free. Now is a good time to replace the O-rings if needed.
It is important to note that removing fuel injectors requires patience and caution. If you rush the process, you may damage the injectors or the surrounding components. Always refer to manufacturer guidelines and seek professional assistance if you are unsure about any steps.
Heet Cleaner: Does It Clean Fuel Injectors?
You may want to see also
Explore related products
Cleaning injectors without removing them
Fuel injectors are essential for a smooth-running engine, but they can get clogged with dirt, debris, grease, and carbon deposits over time, leading to issues like rough idling, reduced efficiency, and power loss. It is recommended that you clean your fuel injectors every 30,000 miles or so, depending on the condition of your vehicle, to keep them in good working order.
You can clean your fuel injectors without removing them by using a fuel injector cleaning kit that attaches to the fuel rail. Here is a general step-by-step guide on how to do this:
- Park your car in a well-ventilated area and ensure that the engine is turned off and cool.
- Open your car hood and locate the fuel injector. Refer to your vehicle's manual or look up your vehicle online to determine its exact location, as it may vary between different types of engines and models.
- Disconnect the fuel pump from the fuel injectors. Brace the fuel pump, which should be located on the side of the engine, and gently pull out the fuel injectors to detach them from the pump.
- Disconnect the pressure regulator vacuum line.
- Start your car and let it run until the engine dies. This will depressurize the fuel system, making it safe to work on the fuel injectors.
- Prepare your fuel injector cleaning kit. Ensure that your kit is compatible with your vehicle's engine type. It should include a cleaning solution and a fuel injector cleaner canister.
- Pour your cleaning solution into the cleaner canister until it is full. Carefully hang the canister on the open hood.
- Connect the exposed hose of the fuel injector to the cleaner canister.
- Turn on the vehicle to let the cleaning fluid into your injectors. Double-check that your fuel pump is turned off.
- Start the engine and let it run. The motor will stop running on its own once the cleaning fluid is all used up, usually within 5 to 10 minutes.
- Remove the cleaning kit and reattach your pump and injectors.
It is important to note that while cleaning your fuel injectors without removing them is generally safe, it is crucial to use reputable cleaning products and follow the proper method to avoid damaging the injectors or engine components. Additionally, some sources suggest that the best results are obtained by disassembling the injectors and cleaning them professionally in a dedicated machine.
Fuel Injector Issues: A Common Concern for Elantra Owners?
You may want to see also
Frequently asked questions
Removing a side fuel injector filter can be done by following these general steps:
- Remove the fuel pump fuse and crank the engine to ensure no fuel remains in the rail system.
- Disconnect the electrical connectors and carefully pull out each injector.
- Use a flat-head screwdriver to gently pry under the plastic of the injector filter, being careful not to bend or scratch the injector opening.
- Separate the injector from the basket filter and remove the filter.
- Clean or replace the filter as needed.
It is important to note that the specific steps may vary depending on the vehicle's make and model.
Yes, there are specialized tools available, such as the "ARD fuel injector filter removing tool" or the "Fuel Injector Micro Filter Removal Tool." These tools can make the process easier and help prevent damage to the injector or filter.
It is important to wear protective gear and have a cloth handy to catch any residual fuel that may spill out. Additionally, be careful not to break the top o-rings on the injectors, as this can cause an annoying mess. It is also recommended to have replacement parts readily available in case of any damage during the removal process.
