Katerina Swanson

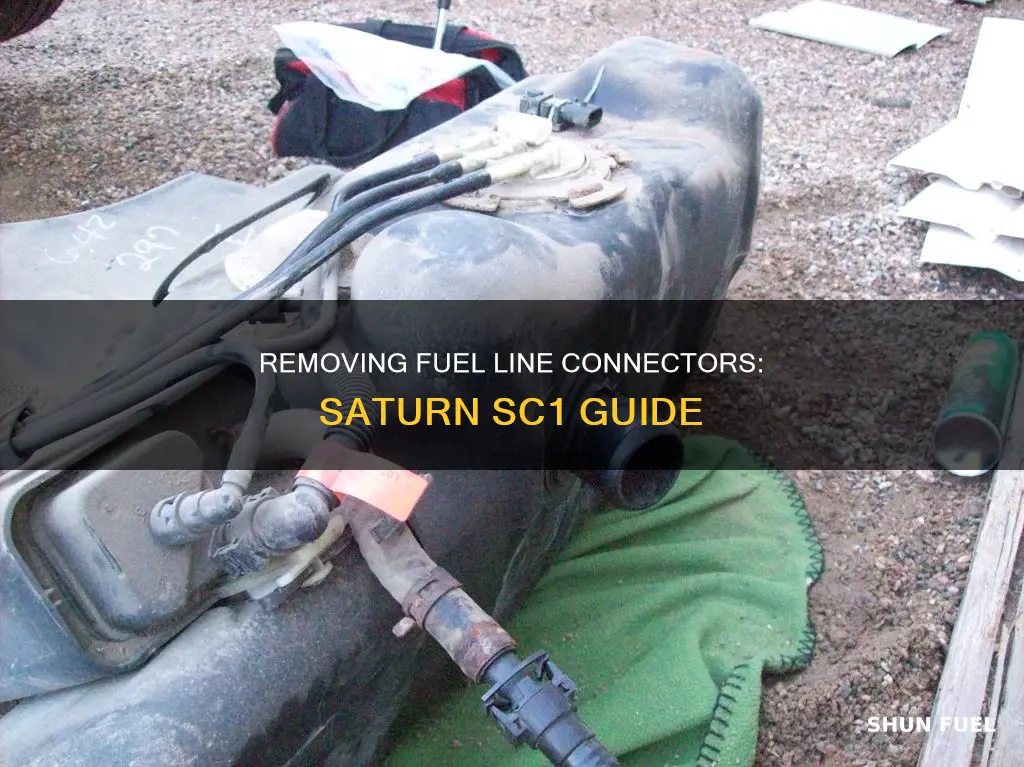

The fuel line connector in a Saturn SC1 is an essential component, but it may need to be removed or replaced if there are issues with the fuel system. Some common problems include fuel leaks, a lack of power, and stalling. To address these issues, it may be necessary to disconnect and reconnect the fuel line connector, replace the fuel pump, or perform other repairs. This process can be complex, involving multiple steps such as disconnecting the fuel feed and return lines, capping or plugging pipes to prevent fuel loss, and removing fuel tank straps.
Explore related products
What You'll Learn
Disconnect the fuel feed and return lines from the fuel filter
Disconnecting the fuel feed and return lines from the fuel filter is a crucial step when working on the fuel system of a Saturn SC1. Here is a detailed, step-by-step guide on how to safely and effectively perform this task:
Firstly, before beginning any work on the fuel system, it is essential to ensure your safety. Make sure you are wearing appropriate protective gear, including gloves and eye protection, and that you are working in a well-ventilated area to prevent the buildup of flammable fumes.
Now, to begin the process:
- Cap or plug the fuel tank feed and return pipes. This step is important to prevent fuel loss and contamination.
- Disconnect the EVAP purge pipe from the EVAP canister. This step will involve carefully detaching the pipe from the canister, ensuring not to damage any components.
- Disconnect the fuel tank EVAP vapor pipe from the EVAP canister. Similar to the previous step, carefully detach this pipe to prevent any damage to the surrounding components.
- Cap or plug the EVAP purge and vapor pipes. Again, this step is to prevent any contamination during the process.
- Loosen the fuel filler hose clamp at the fuel tank. You will need to loosen this clamp to be able to disconnect the hose in the next step.
- Disconnect the fuel filler hose from the fuel tank. With the clamp loosened, you should now be able to carefully detach the hose from the fuel tank.
By following these steps, you will have successfully disconnected the fuel feed and return lines from the fuel filter of your Saturn SC1. Remember to perform these tasks with care and always prioritize your safety when working on any automotive system.
Fuel Pump Lines: What You Need to Know
You may want to see also
Explore related products
Cap or plug the fuel tank feed and return pipes
To cap or plug the fuel tank feed and return pipes of a Saturn SC1, you will need to perform the following steps:
Firstly, locate the fuel tank and identify the feed and return pipes. The Saturn SC1 has three lines leading to the top of the fuel tank. Two of these lines are likely the fuel supply and return lines, and they are usually larger and made of stiff nylon. They will have a male end piece with two plastic tangs inserted into the end of the lines.
Once you have identified the correct pipes, you will need to disconnect the fuel feed and return lines from the fuel filter. This will involve using tools such as a Sending Unit Wrench and Clamp Pliers. Be sure to have a container or cloth ready to catch any spilled fuel.
After disconnecting the lines, you must cap or plug the fuel tank feed and return pipes to prevent fuel loss and contamination. You can use suitable caps or plugs available at most auto parts stores. Ensure they fit securely to avoid any leaks.
If you are replacing the fuel pump, you will also need to disconnect the EVAP purge pipe and vapor pipes, as well as the electrical connectors. Additionally, you may need to remove the fuel tank straps and have an assistant support the fuel tank during this process.
It is important to work cautiously and refer to a repair manual specific to your vehicle for detailed instructions. Working on fuel systems can be dangerous, so ensure you have the necessary skills and knowledge before proceeding.
Fuel Line Sizing for Buick Rendezvous: A Comprehensive Guide
You may want to see also
Explore related products
$19.99
Disconnect the EVAP purge pipe from the EVAP canister
Disconnecting the EVAP purge pipe from the EVAP canister is a complex process and should be done with caution. Here is a detailed, step-by-step guide on how to do it for a Saturn SC1:
Firstly, locate the EVAP canister purge valve. It is usually found near the gas tank and has an electric connector. You can identify it by the plastic clip attached to it. Before you begin any work on the EVAP system, make sure you have engaged the parking brake. If you need more space to work, you can remove the spare tire.
Now, disconnect the EVAP canister purge valve harness connector. You can do this by releasing the plastic clip and pulling the connector out. Next, disconnect the vacuum pipe from the EVAP canister purge valve. This will involve removing the purge pipe from the valve as well.
After this, you will need to remove the EVAP canister purge valve mounting bracket attaching bolt. Once this is done, you can remove the purge valve itself, along with the mounting bracket. Be sure to check the EVAP canister for any loose carbon particles, as these could cause damage to other components.
Finally, to prevent any contamination, cap or plug the EVAP purge and vapor pipes. It is important to be cautious when working with fuel systems, and always refer to a professional mechanic if you are unsure about any part of the process.
Yellow Fuel Line: NAPA's Distinctive Feature Explained
You may want to see also
Explore related products
Disconnect the fuel filler hose from the fuel tank
To disconnect the fuel filler hose from the fuel tank of a 2002 Saturn SC1, follow these steps:
First, ensure that the vehicle has a quarter tank of fuel or less. Detach the negative battery terminal with an 8mm wrench. Place a folded magazine or a piece of cardboard between the wire and the terminal to prevent them from touching. De-pressurize the fuel system by opening the filler cap and locating the relay in the interior fuse panel. Unplug the grey fuse marked with question marks by wiggling it out. There is also a "bleed valve" located under the intake manifold, which can be found by following the air filter hose to where it meets the metal.
Next, remove the wheel liner to access the rubber hose coming from the filler cap area. The fuel filter has three hoses running into it: two from the fuel tank and one from the engine. Use a flat-head screwdriver to pry apart the clips holding the hoses in place about 5 inches away from the filter. To undo the hoses, squeeze the clips with pliers and pull the hoses off simultaneously. There is also a plastic holder with a hose that can be wiggled off. Spray the bolts holding the fuel tank with WD-40.
Now, you can focus on the fuel filler hose. Remove the fuel cap with the safety strap from the filler pocket. Remove the fuel tank straps and mounting bolts to the fuel filler neck. Open the fuel neck door; you should see these bolts. Lower the fuel tank enough to access the rubber fuel hose. Place a drip pan under the fuel tank to catch any leaking fuel. Remove the hose clamp that holds the fuel hose in place. Now, you can disconnect the fuel filler hose from the fuel pump and remove it from the fuel line.
It is important to note that if your vehicle is a 1996 model or newer, there may be a return fuel charcoal canister attached to the vent hose, so take care when detaching the hose. Additionally, if you have rubber or flex hoses on the supply, return, and vapor lines, it is recommended to replace all three hoses if only one is damaged.
Animals Chewing Fuel Lines: Understanding the Risks and Dangers
You may want to see also
Explore related products
$13.59
Remove the fuel pump cover lockring
To remove the fuel pump cover lockring of a Saturn SC1, you will need to first remove or disconnect several components:
- Negative battery cable
- Fuel tank
- Fuel lines from the fuel pump module cover
- Fuel pump module retaining ring with a Sending Unit Wrench, J43827—pull the retaining clip toward the float arm and lift up
- Fuel pump—remove by lifting straight up from the fuel tank
- Fuel pump tank seal—this should be discarded
- Fuel feed line from the bottom of the fuel pump cover with Clamp Pliers J43914
- Fuel pump electrical connector
Once these components have been removed or disconnected, you can then remove the fuel pump cover lockring. This is done using Tool J-43827.
It is important to note that when removing the fuel pump cover lockring and other components, fuel may leak. Take the necessary precautions and cover the surrounding area with rags to absorb any leaking fuel.
Additionally, before servicing the vehicle, be sure to refer to the Precautions Section in the appropriate manual.
Fuel Line Freeze: What, Why, and How to Prevent It
You may want to see also
Frequently asked questions
First, check if there is fuel on the fuel line. Then, disconnect the fuel feed and return lines from the fuel filter. Disconnect the EVAP purge pipe from the EVAP canister and the fuel tank EVAP vapor pipe from the EVAP canister. Remove the fuel pump cover lock ring, the fuel pump electrical connector, and the fuel pump.
You will need a Sending Unit Wrench, J43827, and Clamp Pliers J43914.
Before starting, cap or plug the fuel tank feed and return pipes to prevent fuel loss and/or contamination. You should also cap or plug the EVAP purge and vapor pipes to prevent contamination.
A faulty fuel line connector may cause issues with the engine starting or cause the engine to stall. It may also cause a gas leak, which can be identified by a fine spray of gas.
Some common issues include a broken fitting, a leak, or no power to the fuel pump.
