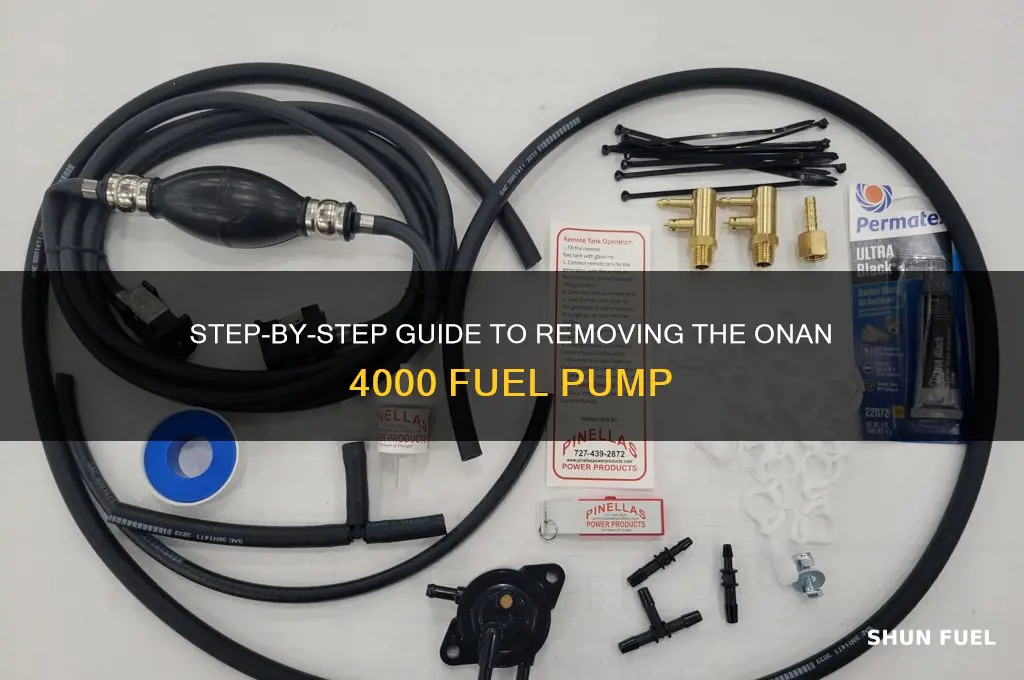

Removing the Onan 4000 fuel pump requires careful preparation and attention to detail to ensure a smooth and safe process. Begin by disconnecting the generator’s power supply to prevent accidents, then locate the fuel pump, typically found near the fuel tank or carburetor. Relieve the fuel system pressure by loosening the fuel line at the pump or using a pressure release valve if available. Disconnect the electrical connector and fuel lines, taking note of their positions for reassembly. Use appropriate tools to remove the mounting bolts securing the pump, then carefully lift it out, ensuring no debris enters the fuel system. Always refer to the Onan 4000 service manual for model-specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Tools Required | Wrench set, screwdriver, pliers, fuel line disconnect tool, safety gloves |
| Safety Precautions | Turn off generator, allow engine to cool, wear safety gloves |
| Fuel Pump Location | Typically mounted on the engine near the fuel tank |
| Fuel Line Disconnection | Use a fuel line disconnect tool to detach lines from the pump |
| Electrical Connection Removal | Disconnect wiring harness from the fuel pump |
| Mounting Bolts | Remove bolts securing the fuel pump to the engine block |
| Replacement Procedure | Install new fuel pump, reconnect fuel lines and electrical connections |
| Testing After Installation | Check for leaks, ensure proper fuel flow, and test generator operation |
| Common Issues | Clogged fuel lines, electrical faults, pump failure |
| Maintenance Tips | Regularly clean fuel lines, inspect for leaks, replace fuel filter |
| Compatibility | Specific to Onan 4000 generator models |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, gloves, safety goggles, and a drain pan
- Locate Fuel Pump: Identify pump position near engine, typically mounted on the fuel tank or nearby
- Disconnect Fuel Lines: Relieve pressure, disconnect lines using wrenches, and catch fuel in drain pan
- Remove Mounting Bolts: Use socket set to remove bolts securing the pump to the tank or bracket
- Install New Pump: Attach new pump, reconnect fuel lines, secure bolts, and test for leaks
Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, gloves, safety goggles, and a drain pan
Before diving into the removal of the Onan 4000 fuel pump, it's essential to assemble the necessary tools and materials to ensure a smooth and efficient process. A well-prepared workspace not only saves time but also minimizes the risk of errors or accidents. The required items include a socket set, wrenches, a screwdriver, a new fuel pump, gloves, safety goggles, and a drain pan. Each of these components plays a critical role in the removal and replacement process, and their selection should be guided by the specific needs of the Onan 4000 generator.
Analyzing the Tool Selection
The socket set and wrenches are indispensable for loosening and tightening bolts and nuts that secure the fuel pump and associated components. Opt for metric sockets and wrenches, as the Onan 4000 typically uses metric fasteners. A standard screwdriver, preferably flathead and Phillips, is necessary for removing any screws or panels that may obstruct access to the fuel pump. When choosing these tools, prioritize quality to avoid stripping fasteners or damaging components. For instance, a 10-millimeter socket is commonly used for fuel line fittings, so ensure this size is included in your set.
Safety and Practical Considerations
Safety should never be an afterthought. Gloves protect your hands from sharp edges, fuel spills, and chemical exposure, while safety goggles shield your eyes from debris or accidental splashes. Nitrile gloves are recommended for their resistance to fuel and oils. The drain pan is crucial for catching any residual fuel that may leak during the removal process, preventing spills and ensuring a clean workspace. Position the drain pan strategically under the fuel pump before beginning any disassembly to avoid contamination.
The Role of the New Fuel Pump
While the primary focus is on removing the old fuel pump, having the new one ready is equally important. Ensure the replacement fuel pump is compatible with the Onan 4000 model to avoid installation issues. Inspect the new pump for any defects or damage before starting the process. This proactive step prevents the frustration of discovering a faulty part midway through the replacement. Additionally, compare the old and new pumps to confirm they have the same fittings and connections, as discrepancies can lead to leaks or improper function.
Practical Tips for Efficiency
Organize your tools and materials within arm’s reach to maintain workflow efficiency. Lay out the socket set, wrenches, and screwdriver in a logical order based on the sequence of tasks. Label the drain pan with a clear marker to avoid confusion if you’re working on multiple projects. If you’re unsure about the size of a fastener, use a thread pitch gauge to identify the correct tool. Finally, keep a clean cloth nearby to wipe away any fuel residue or grease, ensuring a secure grip on tools and components. By meticulously gathering and preparing these items, you set the stage for a successful fuel pump removal and replacement.
