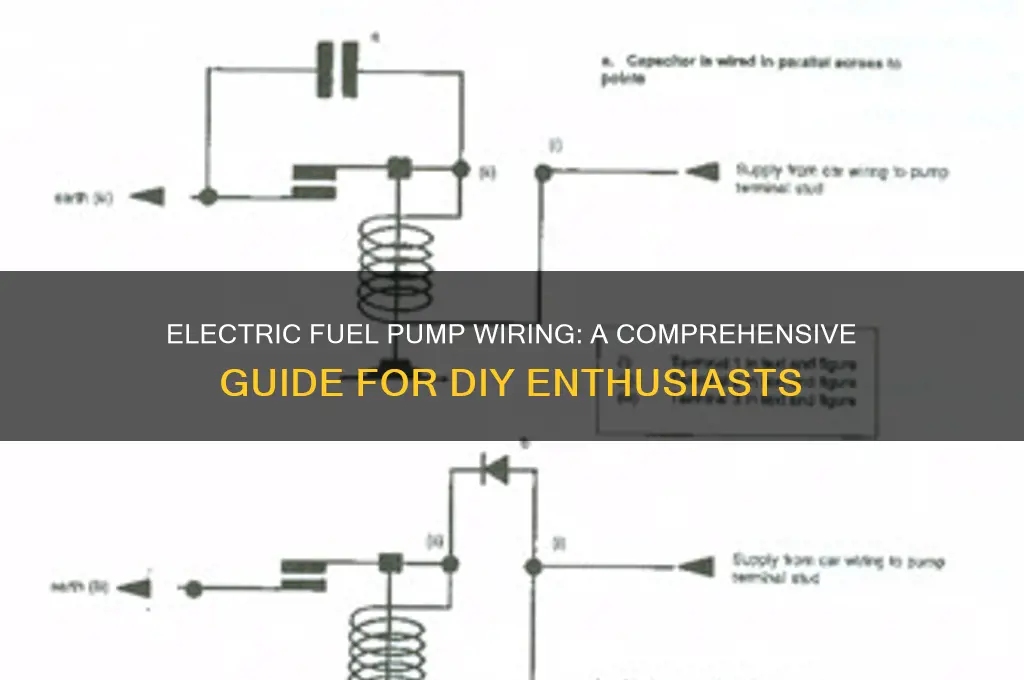

Electric fuel pump wiring is a critical component in modern vehicle fuel systems, responsible for delivering fuel from the tank to the engine efficiently. This system typically consists of a fuel pump, relay, fuse, and associated wiring, all working together to ensure a consistent fuel supply under varying engine demands. Understanding the wiring setup is essential for proper installation, troubleshooting, and maintenance, as issues like voltage drops, short circuits, or faulty connections can lead to pump failure or poor engine performance. Proper wiring also ensures safety by preventing overheating or fuel leaks, making it a vital aspect of automotive functionality and reliability.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC (from vehicle battery) |
| Wiring Components | Power wire (usually red), ground wire (black), and relay wire |
| Fuse Protection | Inline fuse (typically 10-20 amps) to protect against short circuits |
| Relay Usage | Relay is used to switch high current load and prevent wire overheating |
| Ground Connection | Securely grounded to the vehicle chassis for proper operation |
| Wire Gauge | Typically 14-16 AWG for power and ground wires |
| Pump Activation | Activated by the ignition switch or ECU (Engine Control Unit) |
| Pressure Regulation | Regulated by a fuel pressure regulator to maintain optimal pressure |
| Safety Features | Inertia switch (in some vehicles) to cut power in case of an accident |
| Location | Usually located in the fuel tank (in-tank pump) or near the fuel tank |
| Polarity | Positive polarity for power wire, negative for ground |
| Resistance | Low resistance in wiring to ensure efficient power delivery |
| Compatibility | Must match vehicle's electrical system and fuel pump specifications |
| Diagnostic Connector | May include a diagnostic connector for troubleshooting |
| Waterproofing | Wiring and connectors are often waterproofed for durability |
| Voltage Drop | Minimal voltage drop to ensure consistent pump performance |
Explore related products
What You'll Learn
- Power Source Connection: Locate and connect the pump to the vehicle’s battery or fuse box
- Relay Installation: Use a relay to protect the wiring and control power flow efficiently
- Grounding the Pump: Ensure a secure ground connection to prevent electrical issues and ensure reliability
- Wiring Harness Setup: Install the correct gauge wires and connectors for safe and efficient operation
- Testing and Troubleshooting: Verify connections, check for voltage, and diagnose common wiring faults
Power Source Connection: Locate and connect the pump to the vehicle’s battery or fuse box
The electric fuel pump's performance hinges on a reliable power source connection. This critical link ensures consistent fuel delivery, directly impacting engine efficiency and vehicle reliability. The primary power sources in most vehicles are the battery or the fuse box, each offering distinct advantages and considerations for connection.
Locate the Power Source: Begin by identifying the most suitable power source for your electric fuel pump. The vehicle's battery provides a direct and constant power supply, ideal for high-performance applications or systems requiring uninterrupted fuel delivery. However, connecting directly to the battery may require additional safety measures, such as an inline fuse, to prevent electrical hazards. Alternatively, the fuse box offers a more regulated power source, often with dedicated circuits for fuel system components. This option is generally safer and more straightforward, as it integrates with the vehicle's existing electrical system.
Connection Techniques: When connecting to the battery, use a heavy-duty wire (10-12 gauge) to handle the current demands of the fuel pump. Ensure the wire is long enough to reach the pump without tension, and secure it away from moving parts and heat sources. For fuse box connections, locate an appropriate fuse slot with the correct amperage rating, typically 10-15 amps for fuel pumps. Use a fuse tap or add-a-circuit adapter to connect the pump's wiring without compromising existing circuits. This method maintains the vehicle's electrical integrity and simplifies troubleshooting.
Safety and Efficiency Considerations: Regardless of the power source, always incorporate a relay into the wiring setup. A relay acts as a switch, allowing the pump to draw power directly from the battery while being controlled by a low-current signal from the vehicle's ignition system. This setup prevents excessive current draw through the ignition switch and ensures the pump operates only when needed. Additionally, use heat-shrink tubing or electrical tape to insulate connections, protecting them from moisture and corrosion, which can lead to intermittent pump operation or failure.
Practical Tips for Success: Before finalizing the connection, test the circuit with a multimeter to verify voltage and continuity. Ensure the pump operates smoothly across different engine speeds and loads. For aftermarket fuel pump installations, consult the manufacturer's wiring diagram for specific requirements, such as additional grounding points or capacitor usage. Proper grounding is essential to prevent voltage drops and ensure the pump receives the full power it needs. Regularly inspect the wiring for signs of wear or damage, especially in high-vibration areas, to maintain long-term reliability.
By carefully selecting and connecting the power source, you can optimize the electric fuel pump's performance, enhance vehicle safety, and avoid common electrical issues. Whether choosing the battery or fuse box, each connection method requires attention to detail and adherence to best practices for a seamless and efficient fuel delivery system.
Chevy Impala Fuel Pump Access Cover: Fact or Fiction?
You may want to see also
Explore related products
Relay Installation: Use a relay to protect the wiring and control power flow efficiently
Electric fuel pump wiring demands careful consideration to ensure safety, efficiency, and longevity. One critical component often overlooked is the relay, a small but mighty device that acts as a gatekeeper for power flow. By installing a relay, you protect the wiring harness from excessive current draw and prevent the fuel pump circuit from overloading the switch or ECU. This setup not only safeguards your vehicle’s electrical system but also ensures the fuel pump operates reliably under all conditions.
To install a relay effectively, begin by identifying the appropriate relay type for your fuel pump’s amperage requirements. Most electric fuel pumps draw between 10 and 20 amps, so select a relay rated for at least 30 amps to provide a safety margin. Next, locate a suitable mounting point near the battery or fuse box to minimize voltage drop. Connect the relay’s power input (pin 30) directly to the battery’s positive terminal using a fused wire—typically a 15-20 amp inline fuse—to protect against short circuits. The fuel pump’s power wire then connects to the relay’s output (pin 87), ensuring the pump receives power only when the relay is activated.
A common mistake in relay installation is neglecting the ground connection. Ensure both the relay and fuel pump have clean, secure grounds to prevent voltage fluctuations and erratic operation. Use a multimeter to verify continuity between the ground points and the vehicle chassis. Additionally, route all wires away from hot surfaces or moving parts to avoid damage. Proper wire management not only enhances safety but also simplifies troubleshooting if issues arise.
The control side of the relay (pins 85 and 86) is where efficiency shines. Instead of running the fuel pump’s high-current circuit through the ECU or a switch, the relay uses a low-current signal to activate the pump. Connect pin 85 to a switched 12V source, such as the ignition switch, and pin 86 to ground via a normally open (NO) wire from the ECU or a manual switch. This configuration ensures the fuel pump operates only when the engine is running or the switch is engaged, conserving energy and reducing wear on the pump.
In conclusion, relay installation is a straightforward yet essential upgrade for electric fuel pump wiring. By acting as a buffer between the power source and the pump, the relay protects the wiring, optimizes power flow, and enhances system reliability. With careful selection, proper grounding, and strategic wiring, you can ensure your fuel pump operates efficiently and safely, even under demanding conditions. This small investment in time and components pays dividends in performance and peace of mind.
Choosing the Right LPH Fuel Pump for 600 FWHP Builds
You may want to see also
Explore related products
Grounding the Pump: Ensure a secure ground connection to prevent electrical issues and ensure reliability
A poor ground connection is the silent saboteur of electric fuel pump systems, often manifesting as erratic performance, intermittent starting, or even complete failure. Voltage drops across a high-resistance ground path starve the pump of the full 12-12.6 volts it requires, leading to inadequate fuel pressure and potential engine stalling. This issue is particularly insidious because it mimics symptoms of pump failure, relay malfunction, or clogged filters, making diagnosis challenging without systematic testing.
Diagnosis and Verification:
To confirm a grounding issue, measure voltage drop across the pump’s ground circuit under load using a multimeter. Connect one lead to the battery negative terminal and the other to the pump’s ground point. A drop exceeding 0.1 volt indicates excessive resistance. Alternatively, bypass the existing ground by temporarily connecting a jumper wire directly from the pump’s ground terminal to the battery negative post. If performance improves, the original ground path is compromised.
Remediation Steps:
- Inspect the Ground Path: Start by examining the ground wire for corrosion, fraying, or loose connections. Clean terminals with a wire brush and dielectric grease to prevent moisture intrusion.
- Upgrade Wire Gauge: If the original ground wire is thinner than 14 AWG, replace it with a heavier gauge to reduce resistance. For high-current pumps (e.g., in performance applications), 10-12 AWG is recommended.
- Direct Chassis Ground: Ensure the ground connects directly to a clean, unpainted metal surface on the vehicle chassis. Sand the contact area to bare metal and secure the connection with a star washer to maintain conductivity.
Preventive Measures:
Incorporated a dedicated ground stud for the fuel pump, separate from other components, to avoid shared ground issues. Periodically check the ground connection during routine maintenance, especially in vehicles exposed to road salt or moisture. For off-road or racing applications, consider adding a secondary ground wire to enhance reliability under extreme conditions.
Takeaway:
A robust ground connection is as critical as the power supply itself in electric fuel pump wiring. Neglecting this aspect invites unpredictable failures and costly diagnostics. By prioritizing ground integrity through inspection, proper materials, and strategic placement, you safeguard the pump’s performance and extend its service life.
Diagnosing a Failing Fuel Pump in Your 2004 Honda Accord
You may want to see also
Explore related products
Wiring Harness Setup: Install the correct gauge wires and connectors for safe and efficient operation
Selecting the correct wire gauge is critical for electric fuel pump wiring, as it directly impacts safety and performance. A wire gauge that’s too thin can overheat under load, leading to potential fire hazards or pump failure. Conversely, overly thick wires waste space and add unnecessary weight. For most automotive fuel pumps, 12- to 14-gauge wire is standard, balancing current capacity with flexibility. Always refer to the pump’s amperage draw and the length of the wire run to determine the appropriate gauge using a wire size calculator or chart.
Connectors are equally vital in a wiring harness setup, ensuring reliable power delivery and grounding. Use high-temperature, automotive-grade connectors rated for fuel system environments to prevent corrosion or melting. Soldering connections instead of crimping enhances durability, but if crimping is necessary, use a proper crimping tool and insulate terminals with heat-shrink tubing. Ground connections should be made directly to the chassis or engine block, avoiding painted or rusty surfaces that increase resistance.
Efficiency in fuel pump wiring also depends on minimizing voltage drop, which can cause the pump to operate below optimal pressure. Keep wire lengths as short as practical and avoid sharp bends that could damage insulation. Routing wires away from heat sources like exhaust manifolds and securing them with loom or zip ties prevents abrasion and insulation breakdown. Incorporating an inline fuse or relay near the battery protects the circuit and simplifies troubleshooting.
A well-executed wiring harness setup not only ensures the fuel pump operates reliably but also contributes to the overall longevity of the vehicle’s electrical system. By prioritizing correct gauge selection, robust connectors, and thoughtful installation practices, you mitigate risks associated with electrical failures. This attention to detail is particularly crucial in high-performance or modified vehicles, where fuel demands are greater and margins for error are slim.
Finally, test the wiring harness before finalizing installation. Use a multimeter to verify continuity, check for proper grounding, and confirm the pump operates at the correct pressure. Simulate load conditions by running the engine and monitoring voltage drop across the wires. Address any issues immediately—loose connections, incorrect gauge, or poor routing—to avoid future complications. A thorough initial setup saves time, money, and potential safety hazards down the road.
Understanding the Fuel Pump System in a 1990 Ford F150
You may want to see also
Explore related products
Testing and Troubleshooting: Verify connections, check for voltage, and diagnose common wiring faults
Electric fuel pump wiring is a critical component of modern vehicles, ensuring a steady supply of fuel to the engine. When issues arise, the first step in troubleshooting is to verify connections. Loose or corroded connections can disrupt the electrical circuit, leading to pump failure. Start by inspecting the wiring harness at the fuel pump and the relay. Look for frayed wires, exposed conductors, or signs of moisture. Use a multimeter to check for continuity in the wires, ensuring there are no breaks. Tighten any loose connections and clean corrosion with a wire brush and dielectric grease to restore conductivity.
Once connections are secure, check for voltage at the pump’s terminals. With the ignition on, measure the voltage at the pump’s power and ground wires using a multimeter. The voltage should match the vehicle’s battery voltage (typically 12V). If voltage is absent, trace the circuit back to the fuse box and relay. A blown fuse or faulty relay is a common culprit. Replace the fuse if necessary and test the relay by swapping it with a similar one in the fuse box. If voltage is present but the pump doesn’t operate, the issue may lie with the pump itself or the wiring between the relay and pump.
Diagnosing common wiring faults requires a systematic approach. Start with the simplest issues: check for blown fuses or tripped circuit breakers. Next, inspect the wiring for damage, such as chafing or rodent bites, especially in areas prone to movement or heat. Use a wiring diagram to identify the pump’s control circuit, including the inertia switch (if equipped), which cuts power during collisions. Test the inertia switch by pressing its reset button and checking for power restoration. If the pump still doesn’t operate, isolate the issue by bypassing the relay with a fused jumper wire. If the pump runs, the fault lies in the relay or control circuit; if not, the pump itself is likely defective.
A practical tip for advanced troubleshooting is to use a test light or multimeter to verify signal voltage at the pump’s control wire. This wire activates the pump when the ignition is turned on or the engine is cranking. If the signal is absent, inspect the wiring between the fuel pump relay and the control module or oil pressure switch (in older vehicles). Ensure the control module is functioning by checking for diagnostic trouble codes (DTCs) using an OBD-II scanner. Addressing these faults methodically not only saves time but also prevents unnecessary part replacements.
In conclusion, testing and troubleshooting electric fuel pump wiring demands a blend of inspection, measurement, and logical deduction. By verifying connections, checking voltage, and diagnosing common faults, you can pinpoint issues efficiently. Always prioritize safety by working on a cold engine and disconnecting the battery when handling wiring. With patience and the right tools, even complex wiring problems can be resolved, restoring your vehicle’s fuel system to optimal performance.
Does the Duramax Have Two Fuel Pumps? A Detailed Explanation
You may want to see also
Frequently asked questions
The electric fuel pump wiring delivers power from the vehicle’s electrical system to the fuel pump, ensuring it operates correctly to supply fuel to the engine.
The correct wires are typically labeled in the vehicle’s wiring diagram. Look for the power wire (usually 12V), ground wire, and a signal wire (if applicable) connected to the pump.
While it’s possible, it’s not recommended. A relay protects the wiring and switch by handling the high current draw of the fuel pump, reducing the risk of overheating or damage.
Common causes include corrosion, loose connections, damaged wires, blown fuses, or a faulty relay. Overloading the circuit can also lead to wiring failure.
Use a multimeter to check for voltage at the pump’s connector. Ensure power is reaching the pump and that the ground connection is secure. Also, test the relay and fuse for continuity.
