Regan Brown

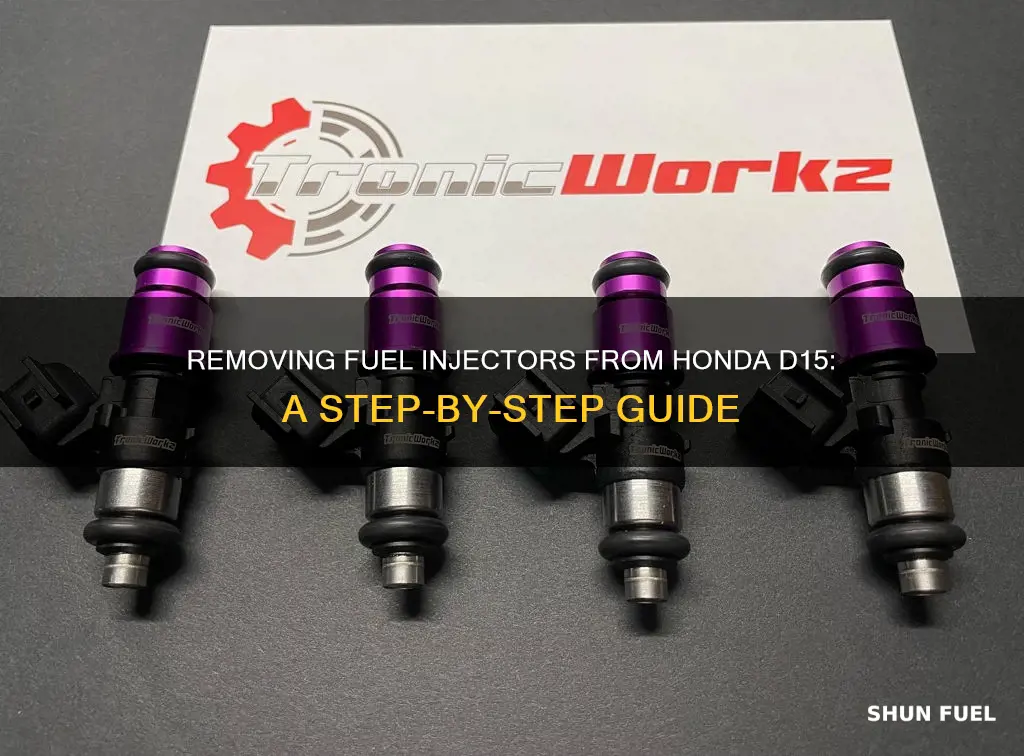

Removing the fuel injectors from a Honda D15 engine is a delicate task that requires careful attention to avoid damaging the injectors or spraying fuel over the engine. Before beginning the removal process, it is essential to park your Honda on a level surface to ensure stability. The first step is to disconnect the fuel line from the fuel rail by using an open box wrench to turn the fitting counterclockwise and pulling it free. Alternatively, if your Honda uses a hose clamp connection, loosen the screw on the clamp with a flat-head screwdriver and pull the hose off. Next, remove the bolts holding the fuel rail in place, located at either end, by turning them counterclockwise with a socket wrench. With the rail removed, carefully disconnect each plug on the injector using a small flat head to lift the chrome clip upwards. Finally, remove the rail and the injectors together. It is recommended to have new injector O-ring seals on hand as the old seals may not reseal properly.
Explore related products
$32.99
What You'll Learn
Disconnect the fuel line from the fuel rail
Disconnecting the fuel line from the fuel rail is a critical step in removing the fuel injectors from a Honda D15 engine. Here is a detailed, step-by-step guide on how to safely and effectively perform this task:
Prepare the Work Area:
Before beginning any work, ensure your Honda is parked on a level surface. This will help prevent any accidental spillage of fuel during the process. Open the gas cap to relieve pressure in the fuel system. Additionally, it is recommended to have a shop towel or a similar absorbent material nearby to catch any excess fuel that may drip during the disconnection process.
Locate the Fuel Line and Fuel Rail:
Trace the fuel line from the fuel tank to the engine, where it connects to the fuel rail of the injectors. The fuel rail is typically held in place by a couple of bolts, and the fuel line may be connected using a fitting or a hose clamp connection.
Disconnect the Fuel Line:
If your Honda has a fitting connecting the fuel line to the fuel rail, use an open box wrench to turn the fitting counterclockwise and then pull it free. If your vehicle uses a hose clamp connection, use a flat-head screwdriver to loosen the screw on the clamp, and then pull the hose off. Be careful not to damage the hose during this process.
Handle Remaining Fuel:
Even after disconnecting the fuel line, there may still be some fuel remaining in the injector head. To safely manage this, hold the fuel rail so that the injector you are removing is positioned over a glass jar. This will allow any residual fuel to drain into the jar instead of spilling onto you or the engine.
Remove the Fuel Rail:
With the fuel line successfully disconnected, you can now remove the fuel rail itself. Typically, there are two bolts holding the rail in place, one at each end. Use a socket wrench to turn these bolts counterclockwise until you can pull them out of their respective bolt holes. Once the bolts are removed, carefully lift the fuel rail away from the engine.
Remember to work carefully and patiently throughout this process, ensuring that no debris or oil contaminates the fuel system or the threads of the fittings. By following these steps, you can effectively disconnect the fuel line from the fuel rail, setting you up for the next steps in removing or servicing your Honda D15 fuel injectors.
Testing Fuel Injectors: An Individual Approach to Diagnosis
You may want to see also
Explore related products
Remove the two bolts holding the rail in place
To remove the two bolts holding the rail in place, you will need a socket wrench. There is one bolt at either end of the fuel rail. Turn each bolt counterclockwise with your socket wrench until you can pull it from the bolt hole. You can then lift the fuel rail from the engine.
Before removing the bolts, trace the fuel line to where it connects to the fuel rail of the injectors. Disconnect the fuel line from the fuel rail by turning the fitting counterclockwise and pulling it free with an open box wrench. If your Honda uses a hose clamp connection, use a flat-head screwdriver to loosen the screw on the clamp and pull the hose off.
Removing the fuel injectors is a high-risk job, and you may need specialist equipment, such as a slide hammer or hydraulic puller. It is easy to damage the injector and/or the cam cover, so be sure to work carefully. You may also want to take your Honda to a specialist, who will have the right tools to get the injector out without causing any damage.
Once you have removed the fuel rail, you can remove the Honda fuel injector heads using a box wrench. Turn the locknut of the pressure fitting counterclockwise to loosen it, and then unscrew it the rest of the way by hand.
Cleaning Audi A3 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Lift the fuel rail from the engine
To lift the fuel rail from the engine of a Honda D15, you must first identify the fuel rail. This is the metal bar that the injectors are attached to. It is located near the intake manifold and is held in place by two bolts, one at either end.
Before lifting the fuel rail, you must disconnect the fuel line from the fuel rail. To do this, use an open box wrench to turn the fitting counterclockwise and pull it free. Alternatively, if your Honda uses a hose clamp connection, loosen the screw on the clamp with a flat-head screwdriver and pull the hose off.
Now, locate the two bolts holding the fuel rail in place. Use a socket wrench to turn each bolt counterclockwise until you can pull them from their bolt holes. Be careful, as there may be excess fuel that spills out. It is recommended to have a shop towel on hand to catch any spills.
With the bolts removed, you can now lift the fuel rail from the engine. Gently lift the rail upwards and away from the engine. Be cautious not to damage the injectors or any other components nearby.
Once the fuel rail is lifted, you can proceed to remove the fuel injector heads. This is done by using a box wrench to turn the locknut of the pressure fitting counterclockwise and then unscrewing it the rest of the way by hand. Remember to hold the fuel rail over a glass jar to catch any remaining fuel inside the injector.
Fuel Injectors in 05 Grand Am: How Many?
You may want to see also
Explore related products
Remove the injector heads
To remove the injector heads of a Honda D15, you must first park your car on a level surface. This is important for safety and to ensure that the process runs smoothly. Next, trace the fuel line to where it connects to the fuel rail of the injectors. Honda fuel injectors are typically mounted in a rail system.
Now, carefully disconnect the fuel line from the fuel rail. You can do this by using an open box wrench to turn the fitting counterclockwise and then pulling it free. Alternatively, some Hondas use a hose clamp connection. In this case, use a flat-head screwdriver to loosen the screw on the clamp, and then pull the hose off.
Once the fuel line is disconnected, you can remove the fuel rail by taking out the bolts holding it in place. There should be one bolt at each end of the fuel rail. Turn these bolts counterclockwise with a socket wrench until they come out, and then lift the fuel rail away from the engine.
At this stage, you will be able to access the injector heads. To remove them, use a box wrench to loosen the locknut of the pressure fitting by turning it counterclockwise. Once it is loose, you can finish unscrewing it by hand. As you do this, hold the fuel rail so that the injector head is over a glass jar. This will catch any remaining fuel and prevent it from spilling onto you or the engine.
Be careful throughout this process to ensure that no debris or oil gets into the system or onto the threads of the fitting. Additionally, consider having new injector O-ring seals on hand, as the old seals may not reseal properly when you reassemble the injectors.
Unclogging Fuel Injectors: DIY Cleaning or Professional Help?
You may want to see also
Explore related products
Clean the injector seats
To clean the injector seats of a Honda D15 fuel injector, you will need to remove the fuel injectors from the cylinder. This is a manual cleaning process and is necessary when the injectors are completely clogged.
Firstly, disable the fuel pump by removing the fuse. Then, locate the fuel inlet of the fuel injector rail and connect a pressurized system with cleaning fluid, instead of the fuel line. Set the pressure to 40 PSI and start the engine. Repeat this process, increasing the pressure in increments of 5 PSI up to 55 PSI.
For the cleaning fluid, you can use a liquid fuel system cleaner or fuel injector cleaner. These can be purchased from auto parts stores or gas stations. Follow the instructions on the bottle, but generally, one bottle treats 8-25 gallons, so do not add more than half a bottle to a full tank.
You can also try a DIY cleaning solution with a bottle of 'Seafoam', which can be added to the gas tank. Be careful not to add too much, and only add half a bottle at most.
If you are experiencing issues with your fuel injectors, it may be necessary to replace them.
Fuel Injector Refurbishing: Is It Possible?
You may want to see also
Frequently asked questions
Honda D15 fuel injectors are mounted in a rail system. First, park your car on a level surface. Then, trace the fuel line to where it connects to the fuel rail of the injectors. Disconnect the fuel line from the fuel rail by turning the fitting counterclockwise and pulling it free. Next, remove the bolts holding the rail in place and lift the rail from the engine. Finally, remove the Honda fuel injector heads.
You may need specialist equipment such as a slide hammer or hydraulic puller.
Make sure no debris or oil is introduced into the system or gets on the threads of the fitting. You should also be careful not to damage the injector or the cam cover.
You can reuse the current injector with no need to code it to the ECU.
You can test for excessive leak-back/leak-off without removing the injectors. Some degree of injector calibration is also possible using a Honda Diagnostic System.
