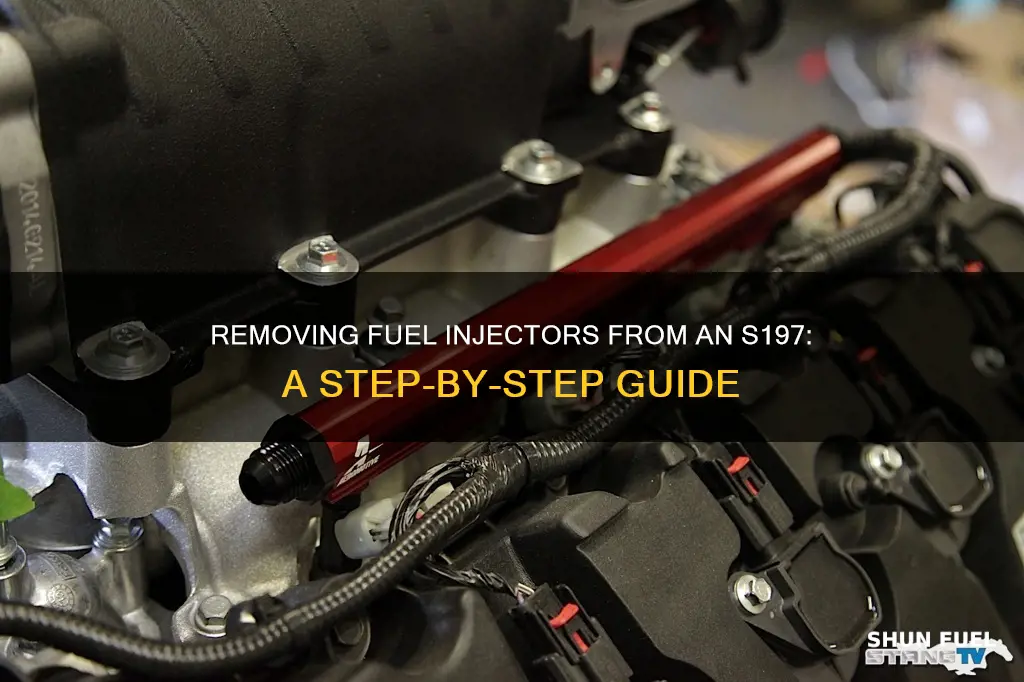

Removing S197 fuel injectors can be a challenging task. While it is possible to do it yourself, it is important to proceed with caution to avoid any damage to the engine or fuel system. Before beginning the removal process, it is recommended to relieve fuel pressure by cranking the engine with the pump unplugged to prevent fuel spray. Additionally, having rags or cloths on hand is essential as there may be residual fuel that can leak out during the process. Once the necessary precautions are taken, the removal procedure involves unplugging the injectors, removing the intake cover, disconnecting the fuel line, and unbolting the rail before carefully pulling out the injectors. It is also advised to blow away any dirt or debris from the injectors before their removal.
Table showing the characteristics of removing S197 fuel injectors
| Characteristics | Values |
|---|---|
| Difficulty | Straightforward process |
| Cost | Not a $500 job |
| Fuel mess | Inevitable |
| Fuel pressure | Should be relieved by cranking with the pump unplugged |
| Fuel rail | Should be unbolted and wiggled, then pulled up |
| Dirt | Should be blown away from around the injectors |
| Injector order | Should be swapped on the bench |
| Installation | Reverse of removal |
| O-rings | Should be lubricated with Vaseline |
| Bigger injectors | Require a tune |
| Fuel leaks | Should be checked by removing the fuel pump relay and letting the car sit |
Explore related products
What You'll Learn
Removing the fuel rails/injectors
Before beginning, ensure you have the necessary tools and safety gear, including wrenches, rags, and protective gloves and eyewear. It is also recommended to have spare O-rings and silicone lubricant on hand for reinstallation.
Start by unplugging the fuel pump relay and cranking the engine two to three times to relieve fuel pressure and prevent fuel spray during the removal process. You can then proceed to unhook the fuel line, which will likely still contain some fuel, so be cautious to avoid spills.
Next, locate the bolts holding the fuel rail in place. There should be four bolts in total. Use a wrench to carefully unbolt them, ensuring that you have access to the bolts underneath the fuel rails if necessary. Once the bolts are removed, gently wiggle and pull the rail to detach it from the injectors. It may require some force, but be careful not to damage the plastic injectors or bend the thin aluminium rail.
If the fuel rail is stubborn and difficult to remove, it could be due to residual fuel or glue from years of use. In such cases, consider using a penetrant or spraying penetrating oil to help loosen the connection. Additionally, removing the rail pressure sensor on the driver's side can release pressure, but this should be done with caution as it may create another opportunity for something to break.
Once the fuel rail is removed, carefully handle the injectors as they are also made of plastic. Gently remove the electrical connectors from the injectors and pull them out. It is recommended to blow away any dirt or debris from the injectors and the engine before removing them to prevent any contamination.
Now that the fuel rails and injectors have been successfully removed, you can proceed with any necessary repairs, replacements, or maintenance. Remember to have plenty of rags on hand, as fuel may spill during the process. Always exercise caution when working with fuel systems and follow appropriate safety procedures.
Port Fuel Injectors: Carbon Buildup and Maintenance
You may want to see also
Explore related products
Disconnecting the fuel line
First, unplug all the injectors. This will relieve the fuel pressure and prevent fuel from spraying out. Then, remove the intake cover if your vehicle has one. Next, disconnect the fuel line. This step will leave some fuel in the line, so be cautious to avoid spills.
If your car was running in the last 24 hours, you can try releasing some pressure by removing the rail pressure sensor on the driver's side. However, this step is optional and should be done with caution as it increases the risk of breaking something.
Additionally, you can relieve fuel pressure by cranking with the pump unplugged. This will prevent fuel from spraying when you disconnect the fuel line. You can do this by removing the fuse for the fuel pump module and letting the engine stall.
Once the fuel line is disconnected, you can move on to the next steps of removing the fuel injectors, such as unbolting the rail and removing the injectors themselves.
Signs of AFD Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
Cleaning the injectors
Before beginning the cleaning process, it is essential to gather the necessary tools and materials. You will need a fuel injector cleaning kit, such as the one offered by 3M, which includes a bottle of injector cleaner and the required connectors. Additionally, have some rags, penetrating oil or lubricant, and new O-rings on hand.
Start by relieving the fuel pressure in the system. Disconnect the fuel supply line from the fuel rail and pull the fuel pump fuse to ensure no fuel pressure remains. This step is crucial for your safety and to prevent fuel spray during the cleaning process.
Once the pressure is released, you can proceed to remove the fuel injectors. To do this, unplug all the injectors and, if present, remove the intake cover. Then, disconnect the fuel line, which will still have some fuel in it, so be prepared to handle this carefully. With the fuel line disconnected, you will notice four bolts holding the rail down. Unbolt these and wiggle the rail to pull it up.
Now, with the injectors accessible, it is good to blow away any dirt or debris from around them before cleaning. This step ensures that no foreign particles enter the injectors during the cleaning process.
For the cleaning process itself, follow the instructions provided with your chosen injector cleaning kit. Typically, this involves connecting the line from the bottle of injector cleaner directly to the fuel rail, where it can work to dissolve and remove any built-up deposits or contaminants.
After cleaning, it is important to reinstall the fuel injectors carefully. Swap the injectors on the bench and reverse the removal procedure. Remember to use a small amount of Vaseline on the O-rings to ensure a smooth installation and prevent tearing.
Finally, if you are installing bigger injectors, you will need to retune your engine to avoid running too rich. This step concludes the fuel injector cleaning and reassembly process for your S197 Mustang.
Cleaning Fuel Injectors in Your Acura 2000 TL: Step-by-Step Guide
You may want to see also
Explore related products
Replacing the O-rings
When removing the S197 fuel injectors, be prepared to replace the O-rings. The O-rings are small, round, rubber seals that can be found on the fuel injectors. They are responsible for creating a tight seal between the fuel injectors and the fuel rail. Over time, the O-rings can become worn out, brittle, or damaged, leading to fuel leaks.
To replace the O-rings, first, acquire suitable replacement O-rings. Ensure they are the correct size and made of a compatible material, typically rubber or silicone. Next, carefully inspect the old O-rings to identify any damage or degradation. Note their position and orientation for correct installation of the new O-rings.
Using a clean cloth or towel, wipe down the area around the O-rings to remove any dirt, grease, or debris. This step is crucial to prevent contaminants from entering the fuel system. Then, gently pry or lift the old O-rings out of their grooves using a flat-head screwdriver or a similar tool. Be cautious not to scratch or damage the surrounding components.
Before installing the new O-rings, lightly lubricate them with a small amount of silicone or Vaseline. This lubrication will aid in a smooth installation and help prevent the O-rings from tearing. Carefully place the new O-rings into the grooves, ensuring they are seated correctly and fully engaged.
Finally, reassemble the fuel injectors and the fuel rail, ensuring that all components are securely fastened and connected. It is important to be cautious and avoid overtightening any connections, as this can damage the new O-rings or other components.
Selecting the Right Fuel Injector for Your Vehicle's Performance
You may want to see also
Explore related products
Removing the intake manifold
First, it is important to relieve any residual fuel pressure in the system. This can be done by cranking the engine with the fuel pump unplugged or, as one source suggests, by removing the rail pressure sensor on the driver's side. However, this should be done with caution as it can create another opportunity for something to go wrong.
Next, you will need to unhook the fuel line. This will leave some fuel in the system, so be prepared for this by having rags or cloths handy, as well as protective gear.
Once the fuel line is disconnected, you can access the bolts holding the intake manifold in place. There are four bolts that hold the rail down, which should be removed. Additionally, there are two more bolts, one on each side, on the inside centre of the manifold, which can be harder to see.
After all the bolts are removed, you should be able to carefully flip the manifold towards the driver's side. It is important to note that you do not need to mess with taking the injectors out at this stage, as the manifold can be removed with the injectors still in place.
Finally, when removing the manifold, be cautious of the fuel injectors. They may pop out of the rail and spray fuel, so having rags or cloths nearby is essential to quickly soak up any spills.
Fuel Injector Failure: How Long Can You Drive?
You may want to see also
Frequently asked questions
First, unplug all the injectors and remove the intake cover. Then, disconnect the fuel line. There will still be fuel in the rail, so be prepared for this. Next, unbolt the four bolts that hold the rail down. Finally, wiggle the rail and pull it up.
Crank with the pump unplugged to relieve fuel pressure so that it doesn't spray everywhere.
Remove the fuel pump relay when you shut off the car. If the injectors are not leaking, the car should not attempt to sputter.
It is recommended to clean your fuel injectors every 25,000 miles.
Rough cold starts, a drop in fuel pressure, and white fuel-smelling smoke.
