Mastering Fuel Line Clip Removal: A Step-By-Step Guide

Removing fuel line clips can be a necessary step when working on a vehicle's fuel system, but it requires careful attention to detail. This process involves safely disconnecting the fuel lines to access the clips, which can be challenging due to their small size and location. Understanding the specific make and model of your vehicle is crucial, as the removal process can vary. By following a step-by-step guide tailored to your car, you can effectively remove these clips, ensuring a smooth and safe repair or maintenance process.

Identify Clips: Locate and identify the specific fuel line clips that need removal

When it comes to removing fuel line clips, the first step is crucial: identifying the specific clips that require removal. This process involves a careful inspection of your vehicle's fuel system to ensure you don't accidentally remove the wrong clips, which could lead to fuel leaks or other issues. Here's a detailed guide on how to locate and identify these clips:

Locate the Fuel Lines: Start by familiarizing yourself with the location of the fuel lines in your vehicle. These lines are typically found under the hood, running from the fuel tank to the engine. They are often protected by rubber or plastic covers to prevent damage. Use your vehicle's manual or online resources to identify the exact path of the fuel lines, as their placement can vary depending on the make and model of your car.

Inspect the Clips: Fuel line clips are small metal or plastic fasteners that secure the fuel lines to various components, such as the engine block, firewall, or other parts of the vehicle's structure. These clips are usually small and can be easily missed. Carefully inspect the fuel lines along their entire length. Look for any signs of damage, corrosion, or looseness. The clips may be visible, but they can also be hidden behind other components, so a thorough inspection is essential.

Use Visual Cues: Pay close attention to any visual cues that might indicate the presence of clips. For example, you might see small indentations or notches in the fuel line covers or engine components where the clips are attached. These visual indicators can help you pinpoint the exact locations of the clips that need removal. Additionally, feel for any protruding metal or plastic fasteners that might be holding the fuel lines in place.

Test for Looseness: Sometimes, the clips might not be visible, and you'll need to test for looseness. Gently wiggle the fuel lines at various points along their length. If you find any sections that feel loose or wobbly, it's a strong indication that the clips securing those sections need to be removed and replaced. This method is particularly useful for identifying clips that might be hidden beneath other parts.

Document the Locations: As you identify the clips that require removal, take note of their locations. You can use a small piece of tape or a temporary marker to indicate where each clip is positioned. This documentation will be essential when it's time to reattach the clips or replace them, ensuring that everything is put back together correctly.

By following these steps, you can accurately identify the specific fuel line clips that need removal, ensuring a safe and efficient repair process. Remember, taking your time and being thorough during this initial step will make the rest of the process much smoother.

Locate Fuel Line: Find the fuel line connected to the clips

To begin the process of removing fuel line clips, you must first locate the fuel line that is connected to them. This step is crucial as it ensures you are working on the correct component and prevents any accidental damage to other parts of the fuel system. Here's a detailed guide on how to find the fuel line:

Start by inspecting the vehicle's engine bay. Look for any visible fuel lines that are connected to the clips you want to remove. Fuel lines are typically made of rubber or plastic and carry gasoline or diesel from the fuel tank to the engine. They are often colored to differentiate between gasoline and diesel lines, making identification easier. Common colors include red for gasoline and blue or green for diesel.

Locate the fuel tank, which is usually positioned at the front or rear of the vehicle, depending on the engine layout. The fuel tank will have a fuel line connected to it, which then runs towards the engine. Follow this line carefully, as it may have multiple connections along its path. You might need to lift or remove some engine components to gain better access to the fuel line.

As you trace the fuel line, look for any clips or fasteners that secure it to the vehicle's body, frame, or other components. These clips are often small and can be easily missed. They are typically made of plastic or metal and may have a unique shape or marking to identify their purpose. Carefully inspect the area where the fuel line connects to the clips to ensure you are targeting the correct clips for removal.

Once you have identified the fuel line and its connections, you can proceed with the removal process, ensuring that you have the necessary tools and safety precautions in place before attempting to take off the clips. Remember, working on fuel lines requires caution to avoid fuel leaks and potential hazards.

Release Tension: Loosen and release tension from the clips using a tool

To effectively remove fuel line clips, it's crucial to start by releasing any tension they might hold. This initial step is often overlooked but is essential for a smooth and safe process. Here's a detailed guide on how to achieve this:

Identify the Clips and Their Location: Begin by locating the fuel line clips you intend to remove. These clips are typically found along the fuel lines, securing them to various components like the fuel tank, engine, or other parts of the vehicle's fuel system. Understanding the layout and identifying the specific clips you need to work on is the first step.

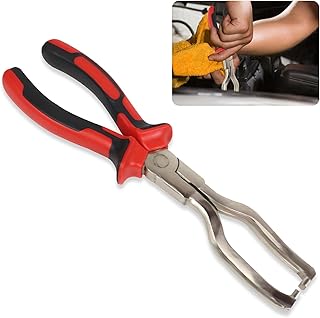

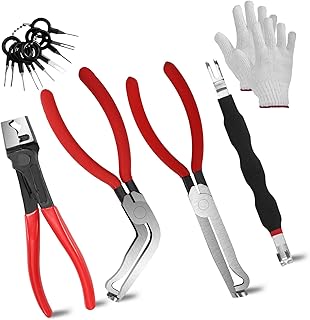

Gather the Right Tools: For this task, you'll need a specialized tool designed for releasing tension from fuel line clips. This tool is often a small, adjustable spanner or a fuel line clip release tool. It should have a comfortable grip and a mechanism to apply controlled force. Ensure you have the appropriate size and type of tool for the clips you're working with.

Apply Controlled Force: Position the tool over the fuel line clip, ensuring it is securely positioned. Apply a gentle but firm force to start loosening the clip. The goal is to release the tension without causing any damage to the fuel line or surrounding components. Be patient and use controlled movements to avoid applying excessive force.

Loosen the Clips Gradually: As you apply force, you should feel the tension being released. Gradually work your way through the clips, loosening them one by one. It's important to move slowly and steadily to ensure you don't strip or damage the threads or surfaces of the clips. If you encounter resistance, adjust your tool and try again, ensuring you're applying the right amount of pressure.

Use Leverage if Necessary: In some cases, you might need to use leverage to release stubborn clips. This can be done by positioning the tool in a way that provides additional support or by using a longer tool to increase the mechanical advantage. However, be cautious with leverage to avoid applying uneven pressure, which could lead to damage.

By following these steps, you can effectively release the tension from fuel line clips, making the removal process much smoother. Remember, patience and precision are key when working with fuel system components to ensure a safe and successful outcome.

Remove Clips: Carefully detach the clips from the fuel line

Before you begin, it's crucial to understand the specific make and model of your vehicle to ensure you're using the correct tools and techniques. However, the general process of removing fuel line clips is similar across many vehicles. Start by locating the fuel line clips, which are typically found along the fuel line, often near the engine bay or under the vehicle. These clips are small, often plastic or metal, and can be easily missed.

Using a pair of pliers or a small tool, carefully grip the clip and pull it straight off the fuel line. Be gentle but firm to avoid damaging the fuel line. It's important to note that some clips may be stubborn and require a bit of force, but be careful not to strip the clip or damage the fuel line. If the clip is difficult to remove, you may need to use a small flathead screwdriver to pry it off, being careful not to scratch the fuel line.

Once you've removed the clips, it's a good idea to clean the area where the clips were attached. This can be done with a small brush or cloth to remove any dirt or debris that may have accumulated. Cleaning the area ensures that the fuel line is free of any contaminants that could cause issues in the future.

After cleaning, inspect the fuel line for any signs of damage or wear. If you notice any issues, it's best to replace the fuel line to ensure the safety and efficiency of your vehicle. However, if the fuel line appears to be in good condition, you can proceed to reattach the clips. When reattaching the clips, ensure they are securely fastened and that the fuel line is not kinked or pinched.

Remember, the key to successfully removing fuel line clips is patience and a gentle approach. Take your time, use the right tools, and be mindful of the fuel line to avoid any potential issues. Always refer to your vehicle's manual for specific instructions and safety guidelines when working on any vehicle components.

Inspect Fuel Line: Check the fuel line for damage or leaks after clip removal

After removing the fuel line clips, it's crucial to inspect the fuel line thoroughly to ensure the process didn't introduce any issues or damage. This step is essential to maintain the integrity of the fuel system and prevent potential leaks or malfunctions. Here's a detailed guide on how to inspect the fuel line post-clip removal:

Visual Inspection: Begin by carefully examining the fuel line for any visible signs of damage. Look for cuts, tears, or punctures along the length of the line. Even small tears might allow fuel to leak, so pay close attention to the material's condition. Inspect the fuel line for any signs of distortion or kinking, as these issues can restrict fuel flow and potentially cause engine performance problems. Ensure that the fuel line is not pinched or compressed in any area, as this could lead to leaks over time.

Leak Testing: A simple yet effective method to check for leaks is to use a soapy water solution. Spray or pour a mixture of dish soap and water along the entire length of the fuel line. If there are any cracks, holes, or loose connections, you'll likely see bubbles forming, indicating a potential leak. This test is crucial as it helps identify any pre-existing damage or issues that might have been exacerbated during the clip removal process.

Pressure Testing (Optional): For a more comprehensive assessment, consider using a fuel pressure tester. This method involves connecting the tester to the fuel line and measuring the pressure. Compare the reading to the manufacturer's specifications. If the pressure is significantly lower than expected, it could indicate a blockage or a leak in the fuel line. However, this step might require professional tools and knowledge, so it's recommended for those with experience in automotive mechanics.

Document and Compare: Take detailed notes of the fuel line's condition before and after the clip removal. Compare these observations to ensure no changes or deterioration occurred. If you notice any discrepancies, it's essential to address them promptly. This documentation can also be useful if you encounter any future issues related to the fuel system.

Remember, a thorough inspection is key to maintaining a healthy fuel system. If you're unsure about any aspect of the inspection process, it's always best to consult a professional mechanic who can provide expert guidance and ensure the job is done safely and correctly.
