Ameer Randolph

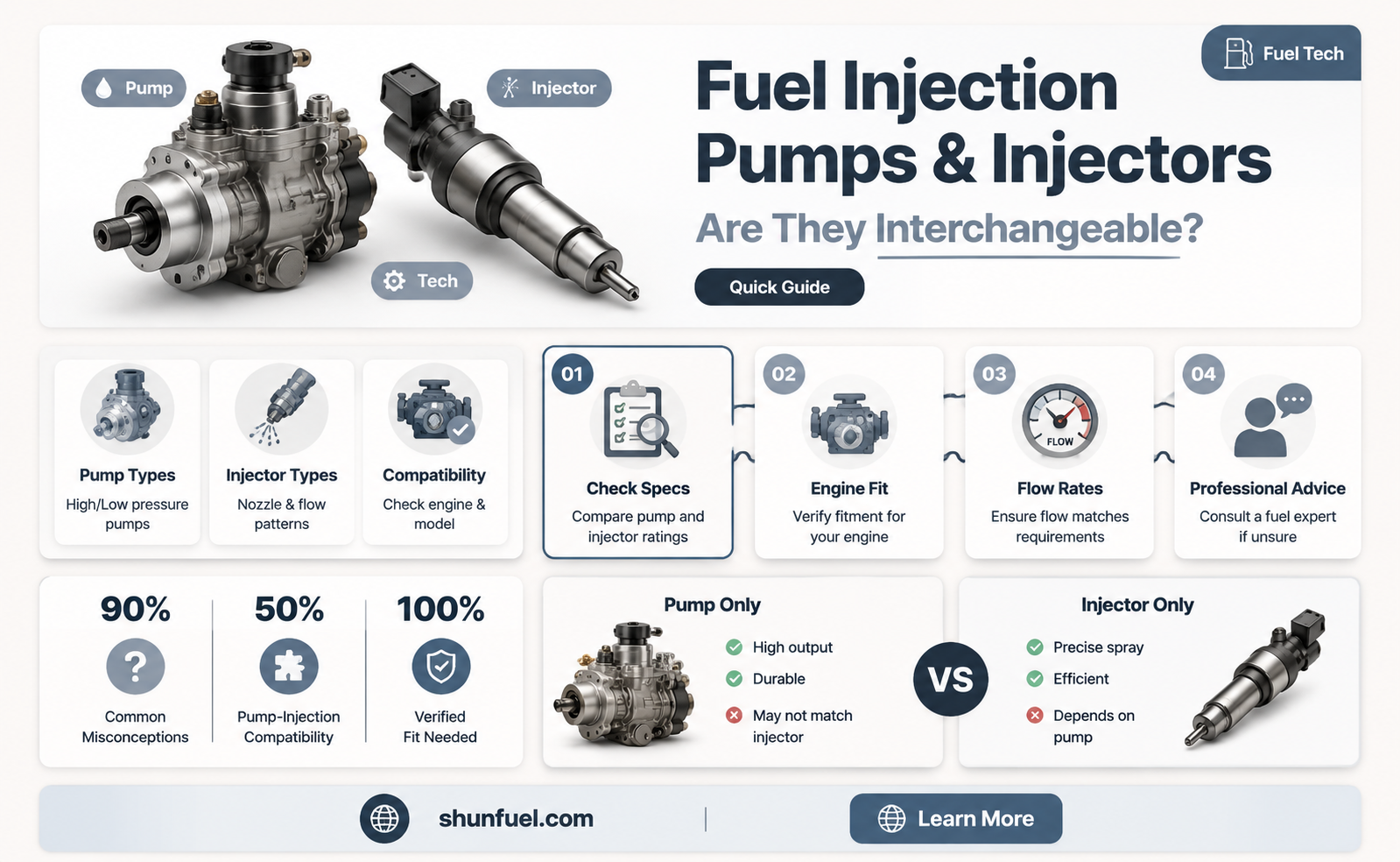

Fuel injectors and fuel pumps are two essential components of modern automobiles, particularly those powered by diesel engines. Despite having similar characteristics, they perform distinct functions during the engine's normal operating cycle. This article will explore the differences between fuel injection pumps and fuel injectors, shedding light on their unique roles in the engine's fuel supply system.
Explore related products
What You'll Learn
- Fuel injectors and fuel pumps are two crucial parts of modern cars
- Fuel injectors decrease pressure, fuel pumps increase pressure
- Fuel pumps are driven by the engine or electrically
- Injection pumps were traditionally driven indirectly from the crankshaft
- Injection pumps are being phased out for environmental reasons
Fuel injectors and fuel pumps are two crucial parts of modern cars
Fuel injectors and fuel pumps are two of the most important components of modern automobiles, particularly those with diesel engines. They have distinct functions, but they both play a critical role in the fuel supply system.
A fuel pump's primary function is to draw fuel from the tank and deliver it to the engine. They are typically located outside the fuel tank in carburetor engines, while electric fuel pumps are often mounted inside the tank in fuel-injected engines. Fuel pumps can be mechanically or electrically driven, and they are designed to supply fuel under low pressure to the fuel injection system or carburetor. The pump is connected to the camshaft and rotates at half the crankshaft speed, injecting fuel just before the top dead centre of the cylinder's compression stroke.
Fuel injection pumps, on the other hand, are responsible for increasing the pressure of the diesel engine and delivering fuel regularly and quantitatively to the fuel chamber. They are often referred to as the "heart" of a diesel engine. Fuel injectors decrease the pressure within the fuel system, in contrast to fuel pumps, which increase pressure. Fuel injectors receive a pulse from the car's computer, and their cycle is measured in milliseconds.
The history of fuel injection systems dates back to the late 19th century, with the development of the British Herbert-Akroyd oil engine in 1891, which used a "jerk pump" to dispense fuel oil at high pressure. In the early 20th century, the pre-combustion chamber was invented, making smaller engines feasible for automobiles. Higher-pressure diesel injection pumps were introduced in 1927, and the first direct-injected diesel engine for trucks was introduced in 1924.
Over time, the engine management system has evolved to combine functions like ignition, fuel delivery, timing, and cooling into a computer-operated technology, optimising engine performance and fuel efficiency. This integration of the fuel injection system allows for instant engine starts, even on cold days.
Toyota's Fuel Injector Cleaning: The Process and Benefits
You may want to see also
Explore related products
Fuel injectors decrease pressure, fuel pumps increase pressure
Fuel injectors and fuel pumps are two crucial parts of modern cars, especially those with diesel engines. They perform very different functions during the engine's normal operating cycle, despite sharing similar characteristics.
Fuel pumps pressurise fuel and send it through the fuel line and fuel injectors. They pump gasoline from the fuel tank to the engine and are responsible for distributing fuel under low pressure to the fuel injection system or the carburetor under higher pressure. Carburetor engines use low-pressure pumps located outside the fuel tank, while electric fuel pumps are usually mounted inside the fuel tank for full fuel-injected engines. The fuel pump is activated when the fuel pressure within the fuel lines drops below the prescribed level. Once that level is reached, the pump shuts off.
Fuel injectors, on the other hand, decrease the pressure within the fuel system. They spray the fuel directly into the cylinders of a diesel engine. The injector opens after receiving a pulse generated by the car's computer, with the measurement cycle for this pulse in the milliseconds range. The fuel injector's function is to atomise the pressurised fuel.
The fuel injection system can be divided into low-pressure and high-pressure sides. The low-pressure components include the fuel tank, fuel supply pump, and fuel filter, while the high-pressure side includes the high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. The low-pressure side transfers fuel from the tank to the high-pressure side.
Fuel Injector Flexibility: Using Different CC Injectors in Your Engine
You may want to see also
Explore related products
$49.95
![Bosch Fuel Injection & Engine Management: Theory of Operation, Troubleshooting and Service Using Common Tools and Equipment, High Performance Tuning, [BOSCH FUEL INJECTION & ENG -OS]](https://m.media-amazon.com/images/I/51m9vb5PBpL._AC_UY218_.jpg)
Fuel pumps are driven by the engine or electrically
Fuel pumps are a crucial part of cars today, and they can be driven by the engine or electrically. They are responsible for drawing fuel from the tank and delivering it to the engine. Modern fuel pumps can be driven either way, with each method offering unique advantages.
Mechanically-driven pumps are generally coupled to the crankshaft of an engine, the input shaft of a transmission, or the output shaft of an electric motor. They are known to be cost-effective, with a reputation for being one of the most affordable ways to provide fluid for various applications. Additionally, they can be sized to deliver more fuel than the engine consumes, ensuring the engine always has enough fuel.
On the other hand, electrically-driven pumps offer the advantage of speed and flexibility. They can be placed anywhere in the fuel system, including inside the fuel tank, as they do not require mechanical power from the engine. This independence from the engine allows for greater control over the output flow, making it possible to match the engine's demand and save power.
The choice between a mechanically-driven and an electrically-driven fuel pump depends on the specific requirements of the vehicle and its engine. While mechanically-driven pumps offer affordability and the assurance of excess fuel supply, electrically-driven pumps provide speed, flexibility, and precision in matching the engine's demand.
It is worth noting that some engines do not use any fuel pump at all. For example, a low-pressure fuel supply in carbureted engines can be achieved through a gravity feed system, where the fuel tank is mounted higher than the carburetor. This method is commonly employed in carbureted motorcycles.
The Evolution of Fuel Injection in Volkswagens
You may want to see also
Explore related products
Injection pumps were traditionally driven indirectly from the crankshaft
An injection pump is a device that pumps fuel into the cylinders of a diesel engine. Injection pumps were traditionally driven indirectly from the crankshaft by gears, chains, or a toothed belt (often the timing belt) that also drives the camshaft. This traditional setup allowed the injection pump to rotate at half the speed of the crankshaft in a conventional four-stroke diesel engine. The timing of the injection pump is critical, as the fuel must be injected very slightly before the top dead centre of the cylinder's compression stroke.
The indirect drive of the injection pump from the crankshaft provides the necessary power for the injection pump to function. By utilising gears, chains, or a toothed belt, the rotational motion of the crankshaft is transferred to the injection pump, allowing it to operate in sync with the engine. This indirect drive system also helps to reduce the speed of the injection pump relative to the crankshaft, ensuring that the fuel is injected at the precise moment required in the engine's combustion cycle.
In some modern engines, particularly gasoline engines, the injection pump belt is driven directly from the camshaft. This direct drive configuration eliminates the need for intermediate components and can provide more precise control over fuel injection timing. However, the traditional indirect drive system remains prevalent in many diesel engines.
Over time, there has been a gradual shift away from mechanical injection pumps towards electronic control units that provide better injection control and refinement. These electronic control units, or ECUs, can vary the damping of hydraulic engine mounts and offer more precise control over fuel injection timing, leading to improved performance and fuel economy. Despite these advancements, the fundamental principle of driving the injection pump indirectly from the crankshaft has been a staple of diesel engine technology for many years.
It is worth noting that while injection pumps and fuel injectors are both crucial components in modern diesel engines, they serve distinct functions. Injection pumps focus on delivering pressurised fuel to the engine, while fuel injectors atomise the pressurised fuel and release it into the combustion chamber. This distinction highlights the specialised roles played by each component in ensuring the efficient operation of diesel-powered vehicles.
Fuel Injector Failure: Engine Misfiring and Diagnosis
You may want to see also
Explore related products
Injection pumps are being phased out for environmental reasons
Injection pumps and fuel injectors are two distinct but crucial parts of diesel engines. Injection pumps deliver fuel to the cylinders of a diesel engine, while fuel injectors release the fuel into the combustion chamber.
Mechanical injection pumps are gradually being phased out to comply with international emissions directives and to increase performance and economy. The first generation of four and five-cylinder VW/Audi TDI engines used injection pumps before switching to unit injectors. These pumps were used to provide better injection control and refinement for car diesel engines as they changed from indirect injection to much more efficient but inherently less refined direct injection engines in the 1990s.
The use of electronic control units to control some functions of the rotary pump marked an intermediate stage before the switch to full electronic control. This transition allowed for better injection control and enabled engines to change from indirect injection to direct injection, which is more efficient but less refined.
The phasing out of injection pumps is part of a broader shift towards common rail diesel systems and electronic unit direct injection systems. These newer systems offer several advantages over mechanical ones, including higher pressures, finer control of injection volumes, and multiple injection stages. For example, high-pressure fuel pumps in direct-injection systems can inject more precise amounts of fuel into the combustion chamber, allowing the engine to run more efficiently.
In addition to environmental concerns, the decreasing popularity of injection pumps can also be attributed to factors such as low demand, low-profit margins, and the availability of alternative fuels. For instance, LPG (liquefied petroleum gas), once promoted as a clean and environmentally friendly fuel, is being phased out by major petrol stations due to decreasing consumer demand and the rising number of diesel variants.
Cleaning Fuel Injectors for a 2002 Jeep Grand Cherokee
You may want to see also
Frequently asked questions
An injection pump is a device that pumps fuel into the cylinders of a diesel engine. It increases the pressure of the diesel engine and delivers fuel to the fuel chamber.
A fuel injector atomizes the pressurized fuel and injects it into the combustion chamber. It decreases the pressure within the fuel system.
No, they are not the same. While both are crucial parts of diesel engines and are powered by electricity, they perform different functions.
