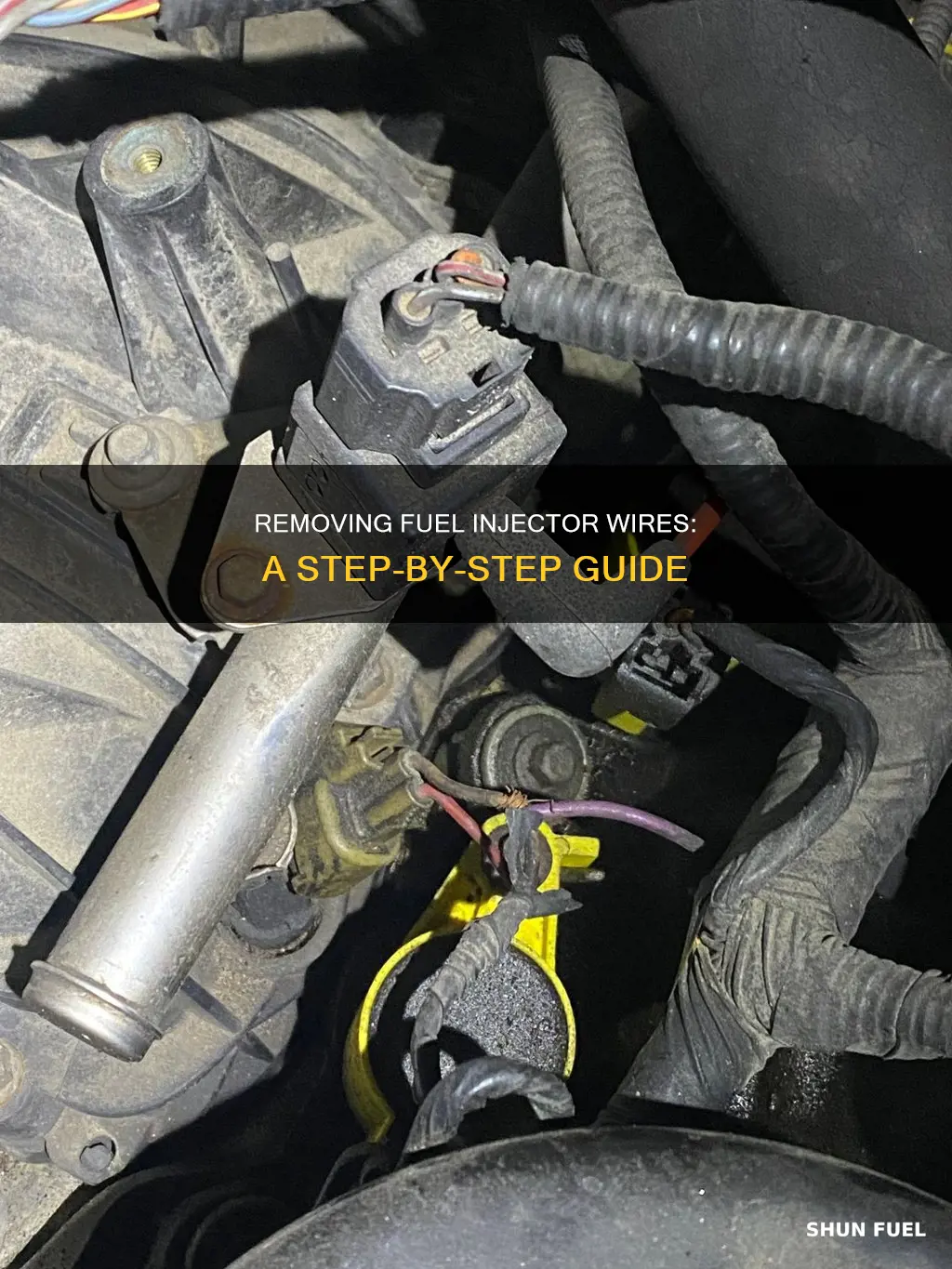

Removing a fuel injector wire is a delicate process that requires careful attention to detail. The first step is to relieve the fuel system pressure, either by locating and depressing the Schrader valve or by unplugging the fuel pump relay and letting the engine idle until it stalls. Next, detach the negative battery cable and remove any accessories or covers that may interfere with the fuel injector. Then, unplug the wiring harness from the fuel injector by pressing the lock tab and pulling the connector off. To remove the injector itself, locate the mounting screws of the fuel rail and unfasten the bolts, carefully lifting the rail and pulling the injectors from the intake manifold. It is important to place shop rags over the intake openings to prevent contamination. Finally, detach the injector from the fuel rail, being mindful of any seals, washers, or collars that may need to be stored for reattachment.
Explore related products
What You'll Learn
Remove the rail and the injectors
Removing the rail and the injectors is a delicate process that requires careful attention to avoid damage. Here is a detailed guide to help you through the process:
First, relieve the fuel system pressure. Locate the Schrader valve on the fuel rail, usually found at the start or end of the rail, and depress the inside stem with a small screwdriver, catching any fuel squirts with a shop rag. If your model does not have this valve, locate the fuel pump relay, typically found under the dashboard, along the firewall, or inside the engine compartment. Unplug the relay, start the engine, let it idle until it stalls, and then plug the relay back in.
Next, detach the negative battery cable using a wrench and remove any accessories or engine covers that may interfere with the fuel injector removal. This includes items like the air cleaner, accessory brackets, or engine cover. Ensure you have clean shop rags to place over the intake injector openings to prevent contamination or small objects from falling into the manifold.
Now, you can focus on the fuel rail and injectors. Start by unplugging the wiring harness from the fuel injector you intend to remove. Press the lock tab on the connector and pull the plastic connector away from the injector. You may need to use a small flat-tip screwdriver or probe to disengage the wire clips on the fuel injector electrical connector plugs and then disconnect the plugs.
Locate the mounting screws of the fuel rail with the injector you need to remove and unfasten the bolts using a ratchet, ratchet extension, and socket. Some engines may require disconnecting the fuel line from the fuel rail for easier removal. Grasp the fuel rail and pull it firmly upward, away from the intake manifold. This action will also bring the injectors with the rail, as they are attached to it. Be careful not to use excessive force that could deform or bend the fuel rail.
Finally, detach the injector you want to replace from the fuel rail. Depending on your vehicle model, this may be done by unscrewing or pulling it out from the fuel rail. Remember to store any seals, washers, boots, or collars that come off during this process, as you will need to reinstall them with the new injector.
Removing the rail and injectors is now complete, and you can proceed with installing a new injector and reassembling the components.
