Removing fuel injectors from an LS3 engine can be a challenging task. It is important to ensure that the engine is cold and that the battery is disconnected before beginning the process, to avoid any accidents. The fuel injectors are held in place by small clips and have an electrical connector on top, with wires running from the connectors to the fuel rail. To remove the injectors, one must first gently remove the electrical connectors and then carefully pull out each injector. This process can be messy and smelly, and it is important to be cautious of any residual fuel that may spill out. Additionally, there may be dirt or sand around the injectors, which can fall into the engine or jam the simple o-ring seal. It is recommended to clean any dirt or leaves around the rail/injector area before beginning the removal process.

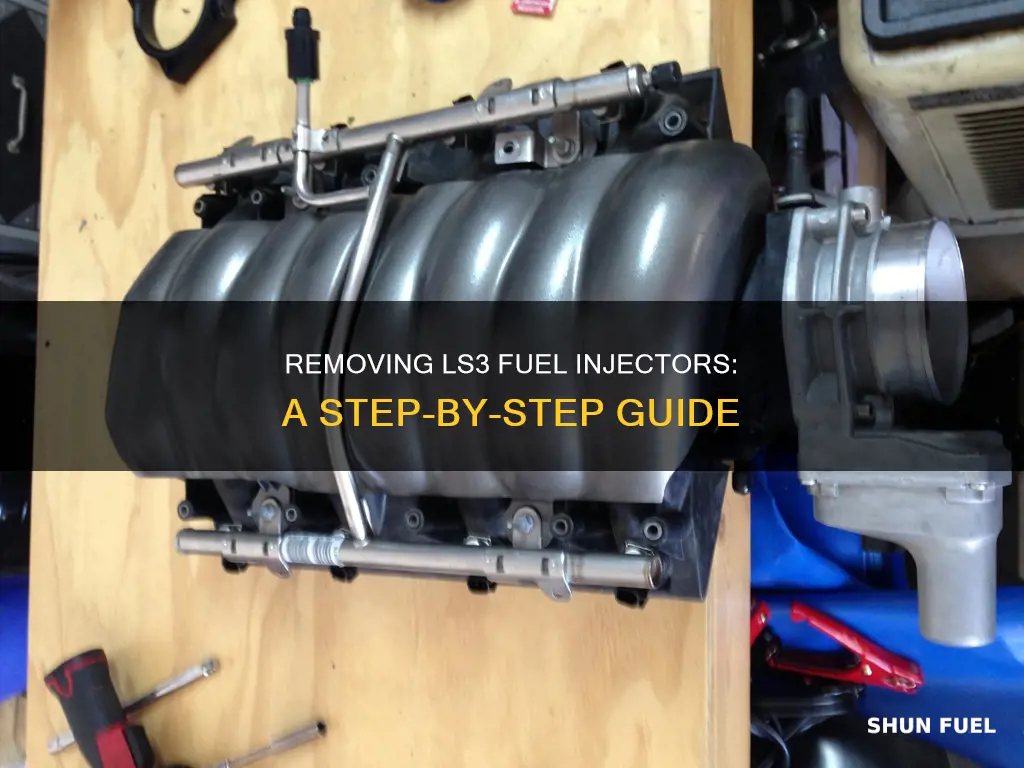

How to Remove Fuel Injectors from an LS3 Engine
| Characteristics | Values |
|---|---|
| Tools required | Common tools, possibly including a pry bar |
| Engine status | Cold |
| Battery | Disconnect |
| Fuel relay | Remove |
| Plastic shroud | Remove |
| Fuel line | May need to be removed |
| Fuel rail bolts | Remove all 4 |
| Fuel rail | Grab both sides and pull up |
| Injectors | May or may not come with the rail |
| Injector electrical connectors | Gently remove |
| Injectors | Pull out carefully |
| O-rings | May require grease to slide back in |
| Power | Turn on to check for leaks |
| Schrader valve pin depress method | Use to expel air for inspection |
Explore related products
What You'll Learn
Disconnect the battery and ensure the engine is cold
Disconnecting the battery and ensuring the engine is cold are crucial steps when removing fuel injectors from an LS3 engine. These steps are essential for safety and preventing damage to the engine and its components.
Disconnecting the battery isolates the electrical system, ensuring that no power is supplied to the fuel injectors or other components during the removal process. This step is crucial for safety, as it eliminates the risk of sparks or electrical shorts that could lead to accidents or damage to sensitive components.
Additionally, ensuring the engine is cold allows for safer handling of certain components. A cold engine indicates that the vehicle has been turned off for a sufficient period, allowing critical systems to cool down. Working on a cold engine reduces the risk of burns or injury from hot engine components. It also helps prevent damage to heat-sensitive parts, such as o-rings and seals, which can be more brittle or prone to tearing when hot.
A cold engine also makes it easier to access and handle the fuel injectors themselves. The fuel injectors and surrounding areas may accumulate dirt, leaves, or debris, which should be cleaned before removal. Working on a cold engine helps ensure that any accumulated debris is not heated to a point where it could melt or adhere to engine components, making removal more challenging.
Furthermore, a cold engine reduces the pressure in the fuel system. The fuel injection system is designed to maintain pressure for an extended period, and fuel may be injected during the removal process. A cold engine, combined with proper depressurization techniques, helps minimize the risk of fuel leaks or spills, which could pose a safety hazard and cause damage to the engine or the environment.
In conclusion, disconnecting the battery and ensuring a cold engine are vital steps when removing fuel injectors from an LS3 engine. These precautions enhance safety, protect engine components, and facilitate a smoother and more controlled removal process. By following these steps, individuals can help ensure a successful and incident-free fuel injector removal experience.
Unblocking Fuel Injectors: DIY Cleaning and Maintenance
You may want to see also
Explore related products
Remove the fuel relay and plastic shroud
To remove the fuel relay and plastic shroud, you will need to first ensure that the engine is cold and disconnect the battery to avoid any accidents. The fuel relay is usually found in the fuse box, so you can go ahead and remove that.
Next, you will need to remove the plastic shroud that covers the engine. This is standard in most modern cars and is usually secured to the engine block by small screws or clips. Be careful when removing these, as you don't want to damage the engine block. Once the screws or clips are removed, you can carefully lift the plastic shroud away from the engine.
With the plastic shroud removed, you should now be able to see the fuel rail running along the top of the engine. At this point, it is important to clean any dirt, leaves, or debris from around the rail and injector area. This is to prevent any dirt or debris from falling into the engine or causing damage.
Now, you can start to remove the fuel rail by first unscrewing the black cap on the fuel rail and then using a small tool to depress the pin in the hole, which will release the pressure. Be aware that some gas will likely come out when you do this, so have some rags or towels ready to catch any spills.
Finally, you can grab onto both sides of the fuel rail and pull up to remove it. Be cautious, as the injectors may or may not come with the rail, and you don't want to get dirt in them.
When to Replace Fuel Injectors: Maintenance Guide
You may want to see also
Explore related products
Loosen bolts and pull off the fuel rail
To loosen the bolts and pull off the fuel rail of an LS3 engine, you must first ensure that the car is off and has cooled down. Next, clean any dirt, leaves, or debris around the rail and injector area. Then, unplug the injectors and unscrew the black cap on the fuel rail.
Now, use a small tool to depress the pin in the hole and release the pressure to the rail. Gas will come out, so be cautious. You can leave the rail attached to the supply line; you do not need to decouple it from the car.
Now, remove the four bolts that hold the rail down to the manifold. Grab on both sides and pull up. You may need to use a pry bar to help lift the rail. Be careful not to bend or break anything, and ensure you do not get dirt in the injectors.
To reinstall the fuel rail, simply reverse the process. The O-rings may require some grease to slide back in. Before starting the car, check for leaks by powering on the car so the fuel pump comes up. You can use the Schrader valve pin depress method to expel any air for the inspection.
Replacing Fuel Injectors: An Easy DIY Project?
You may want to see also
Explore related products
Disconnect the electrical connectors
Disconnecting the electrical connectors is a crucial step in removing the fuel injectors from an LS3 engine. This process requires careful attention to ensure a safe and successful outcome. Here's a detailed guide on how to tackle this task:
Before beginning, ensure that the engine is turned off and has had sufficient time to cool down. Working on a hot engine can be dangerous and may lead to burns or other injuries. It is also recommended to disconnect the battery to prevent any accidental electrical activations during the process.
Now, locate the fuel injector rail, which runs along the top of the engine. In a V-type engine, there will be a rail for each bank of cylinders. The injectors are held in place within this rail by small clips, and they have electrical connectors on top. Gently remove these electrical connectors by carefully detaching the wires that run from the connectors to the fuel rail. It is important to handle this step with care to avoid any damage to the connectors or the wires.
Once the electrical connectors are safely disconnected, the fuel injectors can be accessed and removed. It is common for fuel to leak when the injectors are removed, so it is advisable to have rags or towels on hand to soak up any spillage. Additionally, some designs may require the removal of the fuel line as well as the fuel rail to fully access the injectors.
At this stage, you can proceed to physically remove the fuel injectors. They are typically held in place with small clips or copper washers, and a gentle but firm tug should dislodge them. Take special care not to drop them or cause any damage during this process.
Remember to wear appropriate protective gear, including gloves and eye protection, when handling fuel system components. It is also recommended to clean any dirt or debris from the rail/injector area before beginning the disconnection process to minimize the risk of contamination.
Cleaning Honda Civic Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Test and replace the injectors
To test and replace the fuel injectors of an LS3 engine, begin by popping the hood of your car and allowing the engine to run. Then, test each wire coming out of the fuel injectors. If you identify an injector with a power issue, make a note of it and continue to test the rest.
You can also use a diagnostic scanner, also known as an on-board diagnostics (OBD) reader, to identify bad fuel injectors. This device reads the data your vehicle's computer system stores, allowing you to spot errors and problems.
Another method is the listening test. Start the engine and let it idle. While the engine is running, place the tip of a long metal screwdriver against one of the fuel injectors. Lean in and put your ear on the handle of the screwdriver. A clicking sound indicates a functioning injector. If you don't hear anything, the injector may need to be cleaned or replaced.
If you suspect a faulty injector, you can use a test light to confirm. Keep the test light connected as you reconnect each fuel injector one by one. The pulse intensity should remain the same until you connect a faulty injector that creates too much resistance for the pulse. When the pulsing light dims as you connect one of the injectors, that injector needs to be replaced.
If you decide to replace the fuel injectors, start by cleaning any dirt, leaves, etc. around the rail/injector area. Ensure the car is off and has cooled down. Then, unplug the injectors and unscrew the black cap on the fuel rail. Use a small tool to depress the pin in the hole and release the pressure on the rail.
Next, remove the four bolts that hold the rail down to the manifold. Grab on both sides and pull up. You may need to use a pry bar, but be careful not to bend or break anything. The injectors will stay in the rails as they are held in with small clips. Pop those clips off, and the injectors will only be held in place by O-rings. Give them a gentle but firm tug, and they should come right out.
When replacing the injectors, you may need to apply some grease to the O-rings to help them slide back in. Do not start the car before checking for leaks. Power on the car so the fuel pump comes up, and use the Schrader valve pin depress method to expel any air for the inspection.
Fuel Injector Sizing: Choosing the Right Fit for Your Engine
You may want to see also
Frequently asked questions
A:
First, ensure your car is off and the engine is cold. Disconnect the battery and remove the fuel relay from the fuse box. Next, remove the plastic shroud covering the engine. Then, follow these steps:
- Clean any dirt, leaves, etc. around the rail/injector area.
- Unplug the injectors.
- Unscrew the black cap on the fuel rail.
- Use a small tool to depress the pin in the hole and release the pressure to the rail.
- Loosen the bolts holding the fuel rail in place and gently pull it off.
- Pop off the clips holding the injectors in the rail and give them a gentle but firm tug to remove them.
A:
You likely already have the required tools in your garage. These include a small tool to depress the pin in the fuel rail and a cloth to handle any residual fuel that may spill out.
A:
No, you do not need to remove the fuel line. In fact, it is recommended that you do not, as spilling fuel can be dangerous.
A:
Vaseline or grease is used to ensure the o-rings seat properly without tearing when reinstalling the fuel injectors.
A:
Yes, you can reuse the fuel injector o-rings if they are in good shape and have not suffered any tears.
