Disconnecting Ford fuel lines can be a tricky task. It is important to note that gasoline, methanol, and oxygenated fuels are toxic and flammable, so caution must be taken to keep cigarettes, sparks, open flames, and other sources of ignition away from the vehicle. There are a few methods to disconnect the fuel lines, depending on the model of the car and the type of fitting. In some cases, a quick-connect removal tool is needed, while in others, the fuel line can be disconnected by hand.

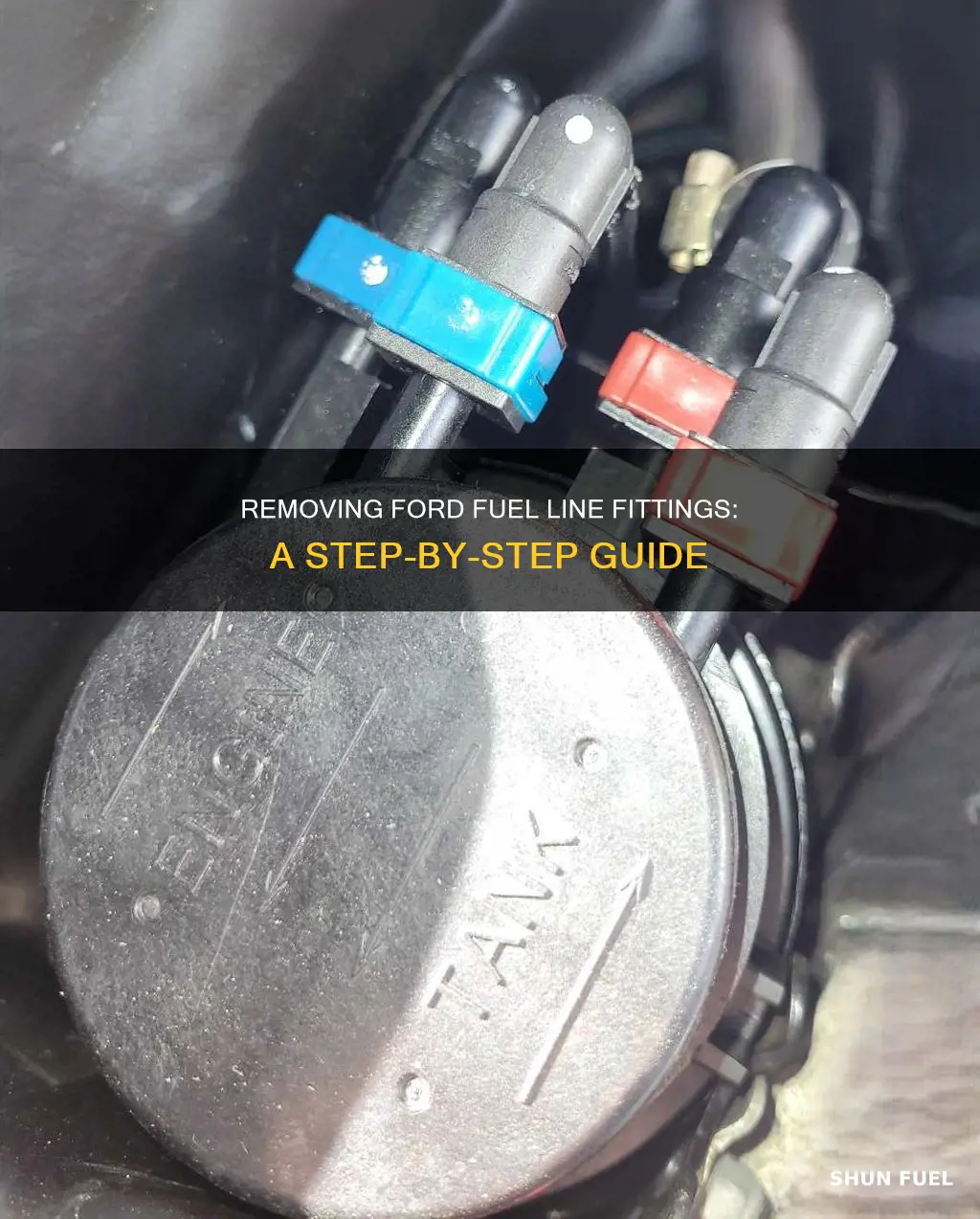

How to remove Ford fuel line fittings
| Characteristics | Values |
|---|---|
| Risk | Flammable and toxic gasoline, methanol, and oxygenated fuels must be handled appropriately. Keep away from cigarettes, sparks, open flame, and other sources of ignition. |
| Tools | A quick-connect removal tool or a plastic tube. |
| Steps | 1. Clean all dirt and grease from the fitting. 2. Spread the two clip legs about 3mm each to disengage from the fitting and pull the clip outward. 3. Grasp the fitting and hose assembly and pull away from the steel line. 4. Twist the fitting and hose assembly slightly while pulling, if the assembly sticks. 5. Inspect the hairpin clip for damage, replacing the clip if necessary. Reinstall the clip in position on the fitting. 6. Inspect the fitting and inside of the connector to ensure freedom from dirt or obstruction. 7. Install the fitting into the connector and push together until a click is heard. |
Explore related products
What You'll Learn
Disconnecting Ford fuel lines safely
Disconnecting Ford fuel lines can be a tricky and dangerous task, so it is important to proceed with caution and follow the correct steps to ensure your safety. Here is a guide to help you through the process safely:
Firstly, it is crucial to be aware of the potential risks involved when working with fuel lines. Gasoline, methanol, and oxygenated fuels are highly flammable and toxic, so ensure there are no sources of ignition nearby, such as cigarettes, sparks, or open flames.
Now, to begin disconnecting the fuel lines, start by cleaning the fitting. Remove any dirt or grease buildup to ensure a proper connection. Next, you will need to disengage the clip from the fitting. Using only your fingers and applying gentle pressure, spread the two clip legs by about 1/8 inch (3mm) and pull the clip outward. Do not use any tools for this step, as it can be done with your hands.
Once the clip is removed, grasp the fitting and hose assembly and pull it away from the steel line. If the assembly is stuck, try twisting it slightly as you pull. With the assembly removed, it is important to inspect the hairpin clip for any damage and replace it if necessary. Also, check the O-rings and replace them if there is any damage, ensuring you use specific O-rings designed for fuel systems to avoid leaks.
Finally, to reconnect the fuel lines, reinstall the clip onto the fitting and inspect the inside of the connector to ensure it is free of any dirt or obstructions. Install the fitting into the connector and push them together until you hear a click, indicating that the hairpin clip has snapped into the proper connection.
By following these steps carefully and maintaining awareness of potential hazards, you can safely disconnect and reconnect Ford fuel lines.
Honda Small Engines: Fuel Line Material
You may want to see also
Explore related products
Using a quick-connect removal tool
First, it is important to ensure that the work area is clean and free of any dirt or grease. This is crucial as debris can get packed into the connections, causing issues during the removal process. Clean the fittings thoroughly before proceeding.
Next, inspect the retaining clip, fitting end, and connector. Look for any signs of damage or wear. If the retaining clip is damaged, it may need to be replaced before proceeding. Additionally, check the O-rings for any damage and replace them if necessary with O-rings specific to the fuel system to prevent leaks.
Now, you can use the quick-connect removal tool. Align the slot on the tool with either tab on the retaining clip. This tool is designed to fit snugly around the fuel line. Once aligned, slide the tool back to unseat the garter spring on the fitting. The garter spring is located inside the fitting and holds it together, so unseating it is crucial to separating the components.
After the garter spring has been unseated, pull back on the fuel line to separate it from the fitting. Be gentle but firm, and the components should come apart easily. If the assembly sticks, you can gently twist the fuel line slightly while pulling to help release it.
Finally, inspect the components again to ensure they are free from dirt or obstruction. If everything looks clear, you can reinstall the fittings. Push the fitting into the connector until you hear a click, indicating that the hairpin clip has snapped into the proper connection.
Fuel Line Connectors: Securing Injector Rails Efficiently
You may want to see also
Explore related products
$32.22
Identifying the correct clips
First, it's important to understand the different types of connectors used in Ford fuel lines. The most common types are the push-type connector, push-and-lock style connector, pinch-type connector, and the horseshoe-type fitting. Each type has a unique method of release, so identifying the correct connector is crucial.
For push-type connectors, you may encounter versions with a push point on both sides, requiring you to push from both directions to release. Others have a push point on only one side, where you simply push it down and pull it off.
The push-and-lock style connector involves pushing it onto the fitting and then pushing the locking tab through. To remove this type, you must release the safety latch and push the connector back through.
Pinch-type connectors have retainers on each side. To disconnect, simply pinch the retainers together, and to reinstall, you can leave the retainer on the male end and slide the female fitting over it.
Horseshoe-type fittings, as the name suggests, resemble a horseshoe shape. They are held in place by a clip, and to remove them, use a screwdriver to carefully lift the horseshoe up and out.
Now, let's discuss the tools you may need for the process. Ford offers a special tool, Ford Tool T90T-9550-B or C, specifically designed for removing the retaining clips. If you don't have access to this tool, a pair of narrow 6-inch slip-jaw pliers with a jaw width of 0.2 inches or less can be used. Align the jaws of the pliers with the openings of the fitting case and compress both sides of the retaining clip simultaneously to release it.
Additionally, for horseshoe-type fittings, a screwdriver is all you need to remove the clip. Simply use the screwdriver to pry and lift the horseshoe clip out.
In some cases, you may encounter stubborn clips that seem impossible to remove without forcing them. It is important to exercise caution and avoid using excessive force or prying/leveraging as this can lead to breakage. Instead, try using penetrating fluid and a release tool, inserting it into the line to aid in removal.
By following these instructions and identifying the type of connector and clip used in your Ford fuel lines, you can safely and effectively remove the fittings without causing damage. Remember to inspect the clips and fittings for any damage or obstruction and always refer to a professional mechanic if you have any doubts or concerns.
Fuel Line Cracking: Understanding the Root Cause
You may want to see also
Explore related products
Cleaning the fitting
When cleaning the fitting of a Ford fuel line, it is important to exercise caution due to the risk of fire. Keep any sources of ignition, such as cigarettes, sparks, or open flames, away from the vehicle. The fuels used in Ford vehicles are toxic and highly flammable, so they must be handled with care.
To clean the fitting, start by removing the fuel line from the connector. This can be done by using a push connector disconnect tool or a pair of narrow 6-inch slip-jaw pliers. If using the tool, align the slot with either tab on the retaining clip and pull the line from the connector. With the pliers, align the jaws with the openings of the fitting case and compress the retaining clip. Remember to compress both sides of the clip simultaneously to release the fitting.
Once the fitting is released, carefully inspect the retaining clip, fitting end, and connector for any signs of damage. If there is any damage, replace the affected parts. Pay close attention to the O-rings and replace them if necessary, ensuring that you use specific O-rings designed for the fuel system to prevent leaks.
After inspecting and replacing any necessary parts, it's important to clean all dirt and grease from the fitting thoroughly. Use a suitable cleaning solution and a clean cloth to wipe down the fitting, ensuring that no debris or contaminants remain. This step is crucial to ensure the proper functioning and longevity of the fuel line connection.
Finally, before reassembling the fuel line, ensure that all components are dry and free of any residual cleaning solution. Refer to the appropriate Ford service manual or seek professional assistance if you're unsure about any steps or require further guidance on cleaning and maintaining your vehicle's fuel system.
Fuel Line Sizing: What Diameter Matches?
You may want to see also
Explore related products
Reinstalling the clip
Step 1: Understand the Clip Type
Before beginning the reinstallation process, it is important to identify the type of clip you are working with. Ford fuel line fittings typically use hairpin or horseshoe-type clips, but some models may have different designs, such as the blue clip found on F150 Ecoboost models. Knowing the specific clip type will help guide the reinstallation process.
Step 2: Prepare the New Clip
If you are replacing a broken clip, ensure you have the correct replacement clip. It is important to use a compatible clip designed specifically for Ford fuel line fittings. Check that the clip is not damaged and that all necessary components are present, such as the little tabs that tend to break off due to heat cycles.
Step 3: Insert the New Clip
Take the new clip and insert it into the fitting. Ensure that the clip is properly seated and aligned within the fitting. This step may vary slightly depending on the specific clip design, but the goal is to securely attach the clip to the fitting.
Step 4: Slide the Clip onto the Fuel Line
Once the clip is in place within the fitting, slide the assembly onto the fuel line. Carefully push or slide the clip and fitting onto the fuel line until you hear a definitive click. This click indicates that the clip has locked into place and is securely fastened onto the fuel line.
Additional Tips:
- When dealing with fuel lines, it is important to exercise caution and work in a well-ventilated area to prevent the inhalation of fumes.
- If you are having difficulty finding the correct replacement clip, you may be able to source one from a junkyard or a pre-owned part online.
- In some cases, you may need to consider cutting and splicing a piece of the fuel line, using hose clamps to secure the connection. However, this method should be approached with caution, and professional advice should be sought if you are unsure.
- Always refer to your Ford vehicle's manual for model-specific instructions and safety precautions.
By following these steps and staying mindful of safety precautions, you can effectively reinstall the clip for Ford fuel line fittings, ensuring a secure and proper connection.
Fixing Rusted Fuel Lines: Prevention and Maintenance Tips
You may want to see also
Frequently asked questions
Gasoline, methanol, and oxygenated fuels are toxic and flammable and must be handled appropriately. Keep cigarettes, sparks, open flames, and other sources of ignition away from the vehicle.
You may need a quick-connect removal tool, which can be bought online. However, some people have reported being able to disconnect the fuel lines without a tool.
First, clean all dirt and grease from the fitting. Then, spread the two clip legs about 1/8 in (3mm) and pull the clip outwards. Grasp the fitting and hose assembly and pull it away from the steel line.
