Disconnecting the fuel line from the fuel rail on a C5 Corvette can be a challenging task. While it is possible to perform this procedure without a specialized disconnect tool, it requires ingenuity and careful execution. The process involves manipulating the steel fingers holding the connection together and managing fuel spillage. Before beginning, it is crucial to disconnect the battery cables and take necessary safety precautions when working on any vehicle. Removing the engine from a C5 Corvette entails lifting the car, disconnecting the fuel rail covers, and addressing the fuel lines, among other intricate steps.

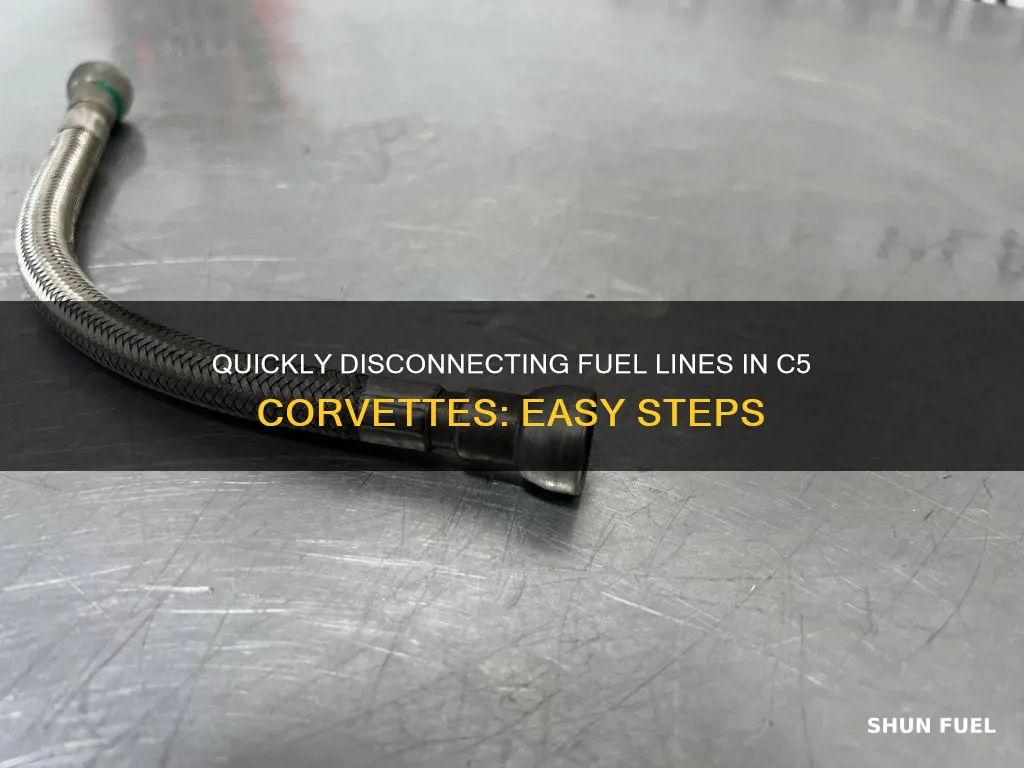

Removing the C5 Corvette Quick Disconnect Fuel Line
| Characteristics | Values |
|---|---|
| Required tools | Fuel line disconnect tool, sockets and ratchets (1/4″, 3/8″ and 1/2″ drive), flathead screwdrivers, wrenches, allen wrenches, prybar, catch pan for coolant, dolly, car ramps, jack stands, floor jack |
| First steps | Disconnect battery cables, remove wheels, pull off fuel rail covers, hook up an AC machine to recover refrigerant |
| Fuel line removal | Using the fuel line disconnect tool, disconnect the fuel lines running to the fuel rail. For older C5s with a supply and return fuel line, you may need two tool sizes: 9.5mm or 3/8. |
| Post-removal steps | Swivel lines out of the way and tie a rag around the end to prevent dripping. Disconnect AIR system hard lines and soft AIR line. |
| Additional considerations | Depressurize the fuel rail prior to disconnection, oil the tube with clean motor oil prior to reconnection, be prepared for some fuel spillage |
Explore related products
$59.99
$66.49 $75.99
What You'll Learn
Removing the engine from a C5 Corvette
Firstly, disconnect the battery cables. This is especially important as you will be working with the Powertrain Control Module (PCM), the alternator, and the underhood electrical system. You do not want these components to be live while you are working. Next, remove the shifter from the center console inside the vehicle. Once this is done, the vehicle can be put on a two-post lift.
Now you can start removing the wheels, and pulling off the fuel rail covers. Hook up an AC machine to recover the refrigerant. Place a catch pan underneath the petcock valve on the lower right side of the radiator, and open the valve to drain the coolant.
You will need to unplug various sensors, including the IAT, MAF, TPS, fuel injectors, camshaft position sensor, oil pressure sending unit sensor, MAP, coil packs, and alternator. Follow the harness from the front of the air intake and take everything off. There will also be push-pin type clips holding the harness to the fuel rail, which you should also remove.
At this point, you can start to remove the fuel lines. Depressurize the fuel rail, and be prepared for some fuel to spill. Using a screwdriver and a rag, depress the Schrader valve to release the fuel pressure. Then, using a fuel line disconnect tool, disconnect the fuel lines. Swivel them out of the way and cover the ends with a rag to prevent dripping.
Now you can disconnect the AIR system hard lines, and then the soft AIR line that runs from the driver's side manifold to the front of the car. You can then pull the whole thing off and set it aside.
With these steps completed, you can now lift the body off the engine, torque tube, transmission, and front and rear suspension units.
