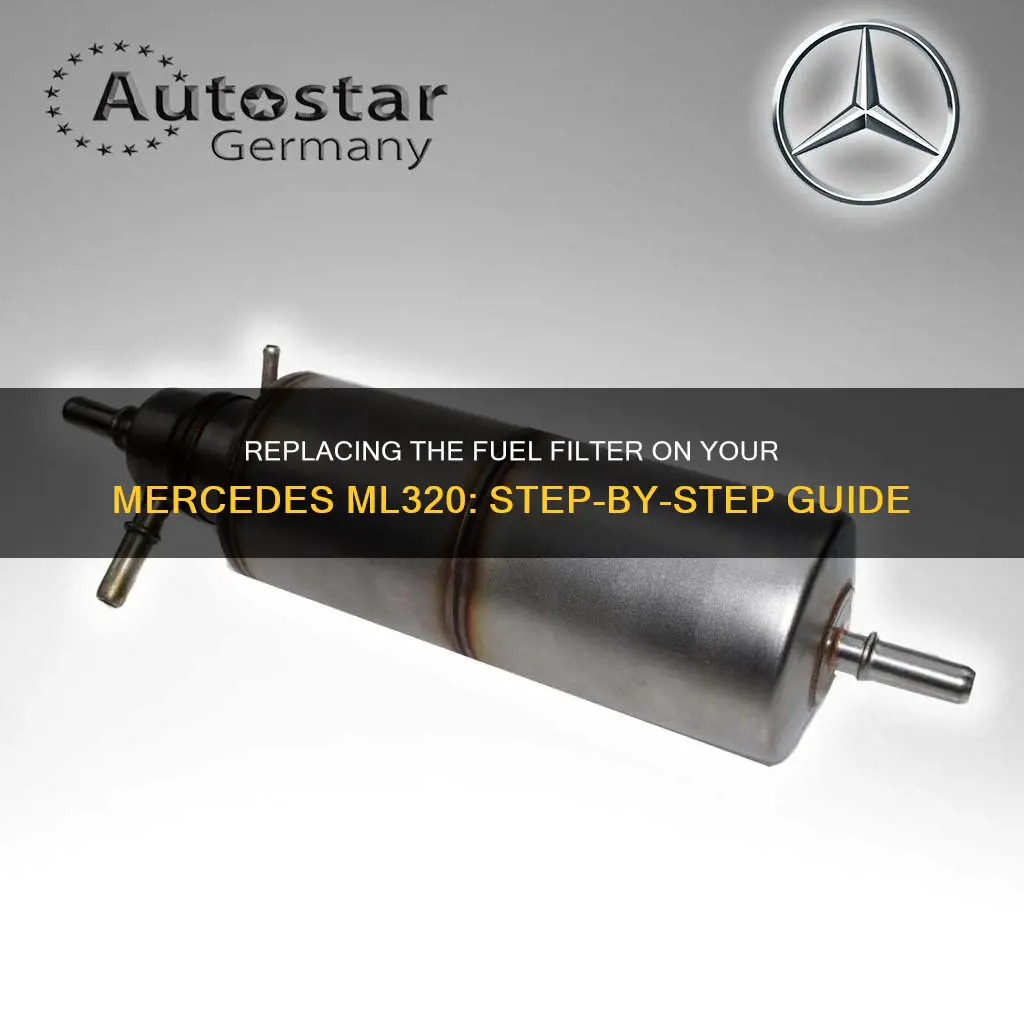

The fuel filter in a Mercedes ML320 can be tricky to remove, especially if it is an older model. The fuel filter is located on top of the chassis, just behind the left rear wheel. To access it, you will need to remove the rear wheel and the liner around the wheel well. The old fuel lines are easy to remove, but the new lines come with a different connector that snaps into place and is very hard to remove without a special tool. It is important to note that if you have the upgraded fuel filter, you will need to remove the left rear seat and the access cover to the fuel pump to install the new fuel lines.
Explore related products
What You'll Learn
Remove rear wheel and liner around the wheel well
To remove the rear wheel and liner around the wheel well of a Mercedes ML320, you will need to follow a few steps. Firstly, locate the fuel filter, which is situated on top of the chassis, just behind the left rear wheel. Once located, the next step is to remove the rear wheel. This will involve taking out the lug bolts and setting the wheel aside. With the wheel removed, you can now access the liner around the wheel well. Carefully remove this liner, exposing the fuel filter underneath.
At this point, you will need to disconnect the fuel lines from the fuel filter. This step can be a little tricky. One recommended method is to push in the release buttons (one button on one connector and two on the other) and push the connector towards the filter, then pull out. Alternatively, some people opt to use a special fuel line connector removal tool for this step.
If your ML320 is a 1998 model with the original shorter fuel filter, you will need to take additional steps. The old filter is no longer available, so you must remove the left rear seat and the access cover to the fuel pump in order to install new fuel lines. This process may also require removing the 60% seat to gain access to the fuel pump.
It is important to note that the new fuel lines come with a different connector. Once snapped into place, they are very hard to remove without a special tool. Therefore, it is crucial to carefully follow the directions before securing the new fuel lines.
Replacing the Fuel Filter in a 2002 Honda Accord
You may want to see also
Explore related products
Push in release buttons and connectors to remove fuel lines
To remove fuel lines, you will need to disconnect the fuel line connectors. This can be done by pushing in the release buttons or levers on the connectors. If the connector is stuck, you may need to apply additional pressure with a screwdriver or wrench to gently pry it apart. Be cautious to avoid damaging the fuel lines or the connector. Once the connector is released, gently pull the fuel lines apart. Use a rag or cloth to catch any spilled fuel and to clean any fuel residue from the lines. This will help prevent leaks when you reconnect the lines.
Some fuel line connectors may require a special tool to disconnect. If you are unsure about how to remove the connector or are not confident in your ability to do so, it is recommended to consult a mechanic.
It is important to take safety precautions when working with fuel lines. Park your vehicle on a level surface and engage the parking brake before beginning any work. Additionally, some fuel line connectors may be pressed or pushed on, while others may require heat or hot water for installation.
Furthermore, when replacing fuel lines, it is recommended to use ethanol-tolerant braided lines for improved durability and flow rate. The plastic tubing can also be used, as it is durable, lightweight, and can be molded around obstacles. For connector fittings, options such as Earl's push lock in black or Dorman 800-082 fittings can be considered.
Fuel Filter Installation: Dirt Bike Maintenance Guide
You may want to see also
Explore related products
Install new fuel lines and filter
To install new fuel lines and a filter for a Mercedes ML320, follow these steps:
First, ensure you have the correct parts. You will need a new fuel filter, fuel lines, and a clamp. The part numbers for the fuel lines and new fuel filter are highlighted in the PDF provided by Mercedes. Additionally, if you are changing from the shorter original filter to the longer version, you will definitely need new fuel lines.
Next, remove the rear wheel and fender liner as there isn't much room to work with. You may also need to partially move the driver's side rear seat. Once you have access to the fuel pump, remove the old fuel lines by squeezing the tab and pulling off the line. Be careful not to damage the connector.
Now, install the new fuel lines and filter. Ensure you follow the directions provided by Mercedes before snapping the new lines into place, as they will be very hard to remove without the special tool. Connect the new fuel filter/pressure regulator into the housing and tighten the securing clip to 27 inch-lbs (3 Nm). Also, connect the breather hose and fuel lines to the filter assembly.
Finally, reattach the rear wheel and fender liner, tightening the lug bolts to 110 ft-lbs (150 Nm). Start the vehicle and check for leaks.
Priming Your TDI Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Reinstall rear wheel and tighten lug bolts
To reinstall the rear wheel and tighten the lug bolts of your Mercedes ML320, follow these steps:
First, locate the fuel filter, which is situated on top of the chassis, just behind the left rear wheel. Remove the rear wheel and the liner around the wheel well. This process will expose the fuel filter and provide access for the next steps.
Next, you will need to install a new fuel filter. Ensure that you have the correct replacement part and carefully connect it to the housing. It is important to tighten the securing clip to the specified torque of 27 inch-pounds (approximately 3 Newton metres).
After installing the new fuel filter, attach the breather hose and fuel lines to the filter assembly. These connections are crucial for the proper functioning of the fuel system.
Finally, reinstall the left rear wheel. Tighten the lug bolts securely, following the recommended torque setting of 110 foot-pounds (approximately 150 Newton metres). This ensures that the wheel is safely and securely attached to the vehicle.
By carefully following these steps, you can confidently reinstall the rear wheel and tighten the lug bolts on your Mercedes ML320, ensuring a safe and reliable driving experience.
Selecting the Right Fuel Filter for Carbureted Muscle
You may want to see also
Explore related products
Start the car and check for leaks
Once you've finished installing the new fuel filter, breather hose, fuel lines, and plastic inner fender liner, and tightened the lug bolts, you can start the vehicle and check for leaks.
To do this, turn the key in the ignition and start the engine. Allow the engine to run for a few minutes, and carefully inspect the vehicle for any signs of fuel leaks. Pay close attention to the areas around the fuel filter, fuel lines, and any connections or joints.
If you notice any fuel leaks, immediately turn off the engine and re-inspect your work. Ensure that all connections are secure and that there are no cracks or defects in the fuel lines or filter.
If you cannot identify the source of the leak, it is recommended to seek the assistance of a qualified mechanic or a Mercedes-Benz service center. Do not drive the vehicle until the leak has been addressed, as fuel leaks can pose a serious safety hazard.
It is important to note that working on fuel systems can be dangerous, and it is always recommended to exercise caution and refer to a professional if you are unsure about any aspect of the process.
Cleaning Your Zuma Scooter's Fuel Filter: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter on the Mercedes ML320 is located on top of the chassis, behind the left rear wheel. To remove it, you will need to:
- Remove the rear wheel and the liner around the wheel well.
- Disconnect the fuel lines from the fuel filter by pushing in the release buttons and pulling out. You may need a special fuel line connector removal tool for this step.
- If you have the old, shorter fuel filter, you will need to remove the left rear seat and the access cover to the fuel pump to install the new fuel lines.
- Install the new fuel filter and fuel lines, ensuring that all connections are secure.
Yes, some sources recommend using a special fuel line connector removal tool to disconnect the fuel lines from the fuel filter. This tool can be purchased or borrowed. Alternatively, you can use hose pliers, but be careful not to damage the fragile plastic fittings.
You can purchase a replacement fuel filter from a Mercedes dealer or an authorized retailer. There are also aftermarket options available, such as the Mahle OEM replacement, which is available for a lower price.
The fuel filter replacement interval for your Mercedes ML320 depends on various factors such as driving conditions, fuel quality, and vehicle usage. It is recommended to refer to the owner's manual or seek advice from a qualified mechanic to determine the appropriate replacement interval for your vehicle.
