The fuel filter in a 1996 Ford Mustang GT is located on top of the fuel tank, towards the inside of the car. To remove it, you must first relieve the fuel pressure by letting the car sit for a few hours and then removing the gas cap. Next, use a removal tool to release the inner clamps inside the metal fuel lines, and pull the line away from the filter. Remove the retainer bracket/clamp and filter, and then install a new filter. Finally, push the fuel lines back onto the filter and reinstall the clips.
Explore related products
What You'll Learn
Relieve fuel pressure
To relieve fuel pressure in a 1996 Ford Mustang, you should first let the car sit for a few hours. Next, locate the Schrader valve—this is situated behind the alternator, or on the fuel rail, or on the passenger side rail towards the front of the engine. Remove the cap from the Schrader valve and press on it with a small flat-head screwdriver to relieve the pressure.
You can also relieve the pressure by unplugging the harness that goes to the reset switch in the trunk, then putting the key in the ignition and cranking it for a few seconds. This method does leave fuel in the lines, but relieves the pressure.
Locating the Fuel Filter in Your 86 Ranger
You may want to see also
Explore related products
Locate the fuel filter
To locate the fuel filter of a 1996 Ford Mustang, you must first relieve the fuel pressure. This can be done by letting the car sit for a few hours. Locate the Schrader valve behind the alternator, remove its cap, and press on it with a small flat-head screwdriver to relieve the rest of the pressure. Alternatively, you can relieve the pressure by unplugging the fuel cutoff in the trunk on the driver's side panel, right behind the brake light. Crank the car and let it run until it cuts off.

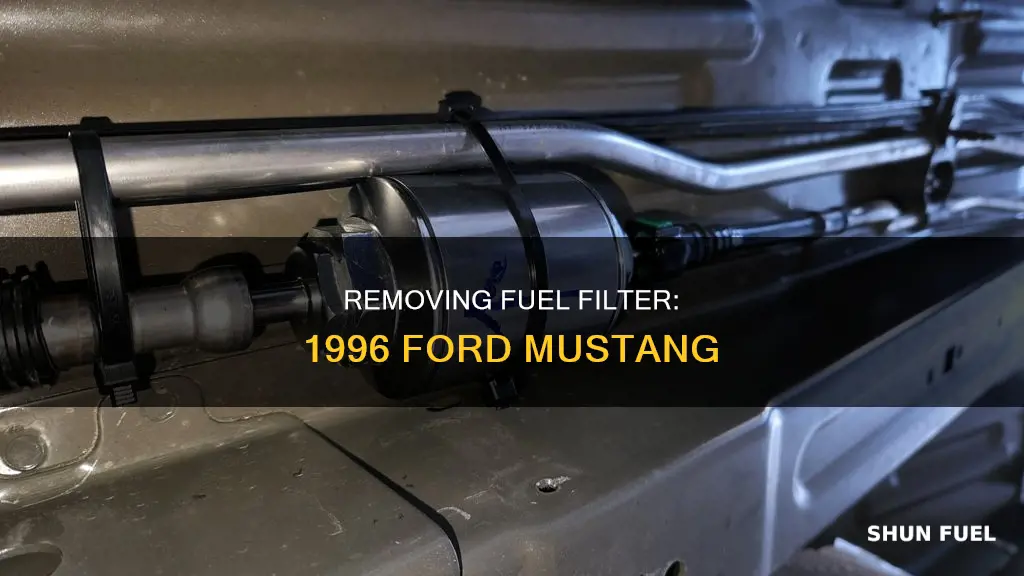

Once the pressure is relieved, you can locate the fuel filter. It is located on top of the fuel tank, towards the inside of the car. To access the filter, you will need to raise the rear of the vehicle. Place a jack in front of the differential and slowly raise the rear axle. When the car is at the desired height, place two jack stands on the rear axle and lower the car onto them to secure it. The fuel filter will be on the rear of the vehicle, on top of the tank, facing the front of the car.
Unblocking Fuel Filters: DIY Cleaning and Maintenance
You may want to see also
Explore related products
Remove the retainer bracket/clamp
To remove the retainer bracket/clamp, you will need to first relieve the fuel pressure. To do this, you can either unplug the fuel cutoff in the trunk or remove the fuel pump fuse and let the car run until it dies. Try to start it a few times to get any remaining fuel out.
Once the fuel pressure has been relieved, locate the retainer bracket/clamp. This is inside the end of the metal fuel lines. Use a removal tool to release the inner clamps. Pull the line away from the filter, straight out. Have a rag handy, as some fuel will still drain out.
Priming Diesel Fuel Filters: A Step-by-Step Guide
You may want to see also
Explore related products
Install the new filter
To install the new filter, simply follow the removal steps in reverse. First, make sure the fuel lines "click" on and install the 10mm bolt on the filter clamp. Next, reinstall the fuel line shield and install the fuel pump relay. After that, connect the negative battery terminal. Finally, crank your car on and test out your new fuel filter.
It is important to relieve fuel pressure before installing a new filter. To do this, locate the Schrader valve behind the alternator, remove its cap, and press on it with a small flat-head screwdriver to relieve the pressure. Alternatively, you can relieve the pressure by unplugging the fuel cutoff in the trunk on the driver's side panel, right behind the brake light.
When installing the new filter, have a rag handy, as some fuel may still drain. Push the fuel lines back onto the filter and reinstall the clips. Wipe everything clean and make sure there is no fuel present at the connections.
After installation, plug the electrical connector back into the cut-off switch and start the vehicle. Let it run for a minute, then check for leaks. Drive the vehicle slowly until fuel pressure is regained, as it may run a little rough for a minute or two. Recheck for leaks.
Cleaning Your Motorcycle Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Check for leaks
After replacing the fuel filter in your 1996 Ford Mustang, you should check for leaks. This is important because a fuel leak can be dangerous and cause damage to your vehicle.
First, locate the fuel filter. It is on the rear of the vehicle, on top of the fuel tank, towards the inside of the car. You will need to raise the rear of the car to access it.
Next, check the fuel filter connections. If both ends of the fuel filter connections are wet with fuel, then the leak is likely coming from one or both of the connections. There is a small O-ring inside the quick-connect fitting that goes over the fuel filter end. If the O-ring has been damaged or degraded, this could be the source of the leak.
You should also check the fuel lines for any signs of damage, such as a gash or a hole. Fuel leaks can occur if the fuel lines are not properly locked into place. Pull on the fuel lines to be sure they are secure.
If you notice any fuel leaks, it is recommended to take your vehicle to a shop for repairs. A fuel leak can be dangerous and should not be ignored.
Fuel Filter Installation: Holley's Guide
You may want to see also
Frequently asked questions
Over time, your fuel filter accumulates deposits that restrict fuel flow to the engine, which affects the performance of your car.
It is recommended that you change your fuel filter every 30,000 miles, and sometimes earlier if you feel any signs of hesitation when stepping on the gas.
You will need an 8mm socket and a flat-head screwdriver. You will also need a removal tool to release the inner clamps.
You can relieve the fuel pressure by unplugging the fuel cutoff in the trunk on the driver's side panel, right behind the brake light. Alternatively, you can remove the fuel pump fuse or the gas cap.
