Removing fuel filter clips from a Ford vehicle can be a challenging task, as many vehicle owners have expressed frustration and confusion over the process. There are different types of clips, including plastic and metal ones, and they can be located on either the fuel tank side or the engine side. Some clips have a C-shape or an O-shape, while others have fangs that need to be cleared before the clip can be removed. To remove the clips, various tools can be used, such as a fuel line release tool, pliers, or a dental pick. Breaking the clips is a common issue, and some vehicle owners have suggested replacing the factory ends with universal ends and generic clips to avoid this problem. Overall, removing Ford fuel filter clips requires patience, the right tools, and a good understanding of the specific clip type and location.
Removing Ford Fuel Filter Clips
| Characteristics | Values |
|---|---|
| Types of Clips | C-shaped, O-shaped, U-shaped, Blue Clips, Plastic Clips, Safety Clips |
| Tools | Fuel line release tool, Scissors, Dental pick, Small flat-head screwdriver, Plastic disconnect tool |
| Steps | Disconnect battery ground cable, Release fuel pressure, Disconnect fuel filter rear tube quick-release coupling, Press fuel tube quick-release coupling button, Pull fuel tube quick-release coupling, Loosen clamp, Remove fuel filter |
| Tips | Use a twisting motion to break O-rings free, Use a suitable tool to release the quick-release coupling locking clip, Push down on the safety clip to clear the fangs, Pull on the tube to ensure the fuel tube is fully seated |
| Common Issues | Clips breaking, Difficulty removing fuel lines, Inability to get a good grip on the clips |
Explore related products
What You'll Learn

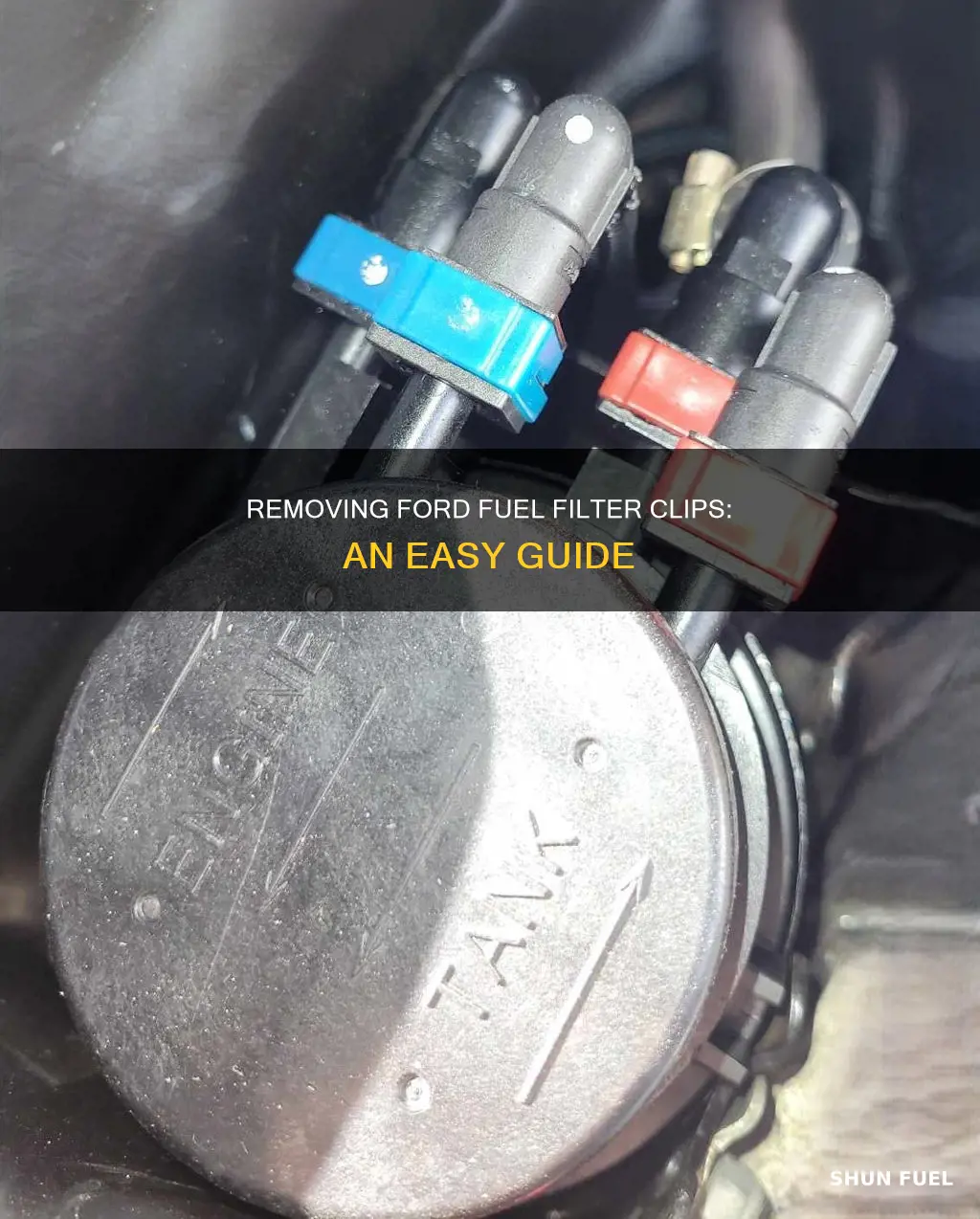

Identify the two types of clips: fuel tank and engine side
There are two types of clips on each end of the fuel filter in a Ford vehicle. One type is on the fuel tank side, while the other is on the engine side. The fuel tank side clips are considered easier to remove. They have tabs that pinch the end like fingers in the shape of a U. To remove them, identify the tabs, then shimmy each side up until they pop up and the whole clip can be slid off.
The engine side clips are considered more challenging due to their design. They feature a unique spring mechanism that closes in on the filter end, similar to the motion of your index finger and thumb squeezing around a pipe in a circle. To remove these clips, a tool is clasped around the filter end and then pushed into the space between the filter end and the line fitting. This action separates the spring and releases the pressure. You may then need to fight with it, banging it around and rotating it back and forth, before it comes off.
The clips on the fuel tank side are typically made of plastic and feature "'doors'" that can be popped open. However, some users have reported difficulty in removing these clips, despite their relatively simpler design.
The engine side clips are sometimes referred to as fangs and can be released by pushing down on the safety clip first to clear the fangs, and then popping off the clip.
Checking Diesel Fuel Filters: A Step-by-Step Guide
You may want to see also
Explore related products
Shimmy the tabs on the fuel tank side clips
To remove the fuel filter clips on a Ford vehicle, you must first identify the type of clips you are dealing with. There are two types of clips: one on the fuel tank side and the other on the engine side. The fuel tank side clips have tabs that pinch the end like fingers in the shape of a U.
To remove the fuel tank side clips, follow these steps:
- Identify the tabs: These tabs on the fuel tank side clips. These tabs will be in the shape of a U and will be pinching the end of the fuel filter.
- Shimmy each tab individually: Using a suitable tool, gently shimmy or wiggle each tab on the fuel tank side clips. Work your way around each tab, being careful not to apply too much force. This motion will help loosen the grip of the tabs on the fuel filter.
- Pop the tabs up: As you shimmy each tab, you will feel it start to loosen and pop up. Continue working on each tab until they have all popped up.
- Slide off the clip: Once all the tabs have popped up, you can now slide off the entire clip. Be gentle and slide it off smoothly to avoid any damage.
It is important to note that the engine side clips are more challenging to remove due to their design. They feature a unique spring mechanism that requires a special tool for removal. However, the fuel tank side clips, with their U-shaped tabs, are considered the easier ones to remove, and shimmying the tabs is a crucial step in this process.
Removing Fuel Filter Bolts: Strategies for Success
You may want to see also
Explore related products
Use a tool to separate the spring in the engine side clips
When removing a Ford fuel filter, there are two types of clips on each end. One type is on the fuel tank side, and the other is on the engine side. The fuel tank side clips are considered easier to remove. They have tabs that pinch the end like fingers in the shape of a U. To remove them, identify the tabs, then shimmy each side up until they've popped up and the whole clip can be slid off.
The engine side clips are more challenging due to their design. Inside the fitting ends is a spring that closes in on the filter end. To separate this spring and release the pressure, a tool must be used. It is important to note that a metal tool should not be used as it can damage the retaining spring. Instead, use the thinnest plastic tool you can find. The tool should be clasped around the filter end and then pushed into the space between the filter end and the line fitting. This will separate the spring, allowing you to pull the line off. You may need to fight with it, bang it around, or rotate it back and forth, and it may take some time and effort to remove it completely.
It is recommended to wear safety glasses when working on fuel filters as there may be fuel leakage. Additionally, ensure that the vehicle is in neutral and release the fuel pressure before beginning any work.
Some individuals have shared their experiences and provided tips for removing the engine side clips. One person suggested pushing the fuel line against the filter when installing the tool, giving the tool a twist while seating it, and then pulling the line. Another person recommended spinning the filter to ensure it's not frozen, pushing the fuel line towards the filter, and pressing the tool into the coupling. They also mentioned pulling the cutoff switch connector and starting the engine to release pressure.
Removing Diesel Suburban Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
$18.99
$8.99
Push down on safety clips to clear the fangs
To remove Ford fuel filter clips, you need to first identify the type of clip you are dealing with. There are two types of clips on each end of the fuel filter. One type is on the fuel tank side, and the other is on the engine side.
The fuel tank side clips are generally considered easier to remove. These clips have tabs that pinch the end like fingers in the shape of a U. You need to shimmy each side up until they pop up, and then you can slide the whole clip off.
The engine side clips are more challenging due to their design. These clips have a spring-like mechanism inside the fitting ends that close around the filter end. A tool is typically required to release the pressure and separate the spring.
In some cases, you may encounter safety clips with "fangs" that need to be cleared before removing the clip. To do this, push down on the safety clip first to clear the fangs, and then pop off the clip. It is important to note that the safety clips may release easily on one end away from the filter, but the end with the fangs may require more force to push down and clear.
Additionally, it is recommended to have the vehicle in neutral and positioned on a hoist when performing any fuel filter clip removal or installation. Always exercise caution and refer to the appropriate safety guidelines when working with fuel systems.
Cleaning Metal Fuel Filters: Step-by-Step Guide
You may want to see also
Explore related products
Use a fuel line disconnect tool to release the clip
When removing a Ford fuel filter, you may encounter difficulty in releasing the safety clips that hold the fuel lines in place. Ford fuel lines feature a flared end that locks into place with a retaining clip, which can be challenging to access and remove.
To effectively release the clip, it is recommended to use a fuel line disconnect tool. This specialised tool is designed to release the pressure and allow for the safe removal of the fuel line. It snaps over the line and unseats the garter spring, enabling you to pull back on the fuel line for a clean separation.
The correct use of the fuel line disconnect tool involves aligning its slot with either tab on the retaining clip. Then, by pulling the line from the connector, you can release the clip. It is crucial to ensure that both sides of the clip are compressed simultaneously to achieve a successful disengagement.
If you do not have access to a fuel line disconnect tool, there are alternative methods available. One approach is to use a small pick tool or a pocket screwdriver to carefully pry the clip outward and away from the fuel line. However, this method requires patience and caution to avoid damage.
Additionally, some Ford vehicles may have a green tab on the fuel pump line. In such cases, you can press down on the centre of the green tab with a flat-blade screwdriver while pushing the gas line forward and then pulling it backward. It is essential to maintain pressure on the tab until the line comes off.
Fuel Filter Installation Guide for Poulan Woodshark
You may want to see also
Frequently asked questions
First, push down on the safety clip to clear the fangs. Then, pop off the clip.
The fuel tank side clips are easier to remove. Shimmy each side up until they pop up and the whole clip can be slid off. The engine side clips are harder. Use a tool to separate the spring and release the pressure. Then, pull the line off.
A fuel line release tool is required to separate the fuel lines from the filter. You can purchase a plastic or metal tool.
First, relieve the fuel pressure and disconnect the clips holding the filter. Then, pull on the fuel lines. If the lines are stuck, twist the fittings to break the o-rings free.
