The Detroit Diesel DD13 engine is a powerful and reliable engine used in trucks and other heavy-duty vehicles. One of its key components is the fuel injectors, which play a critical role in the engine's fuel delivery system. Over time, these fuel injectors may need to be replaced due to wear and tear or other issues. Replacing all six fuel injectors at once is recommended to ensure optimal performance and efficiency. When removing a DD13 fuel injector, it is important to follow specific steps, such as disconnecting the electrical harness connector and checking for oil intrusion or damaged pins. Additionally, proper tools like the J-47388-A Injector Cup Nozzle Tube Remover and Installer Tool can make the process easier.
Characteristics and Values Table for Removing a DD13 Fuel Injector
| Characteristics | Values |
|---|---|
| Brand | Bosch |
| Pack Size | 6 |
| Tool | J-47388-A Injector Cup Nozzle Tube Remover and Installer Tool |
| Direction to Remove Injector Tube | Counterclockwise |
| Troubleshooting | Air locked injectors, suction side of fuel lines, missing plastic part in the middle of the fuel filter |
| Post-removal | Cap the opening or set them in a container of fuel |
| Priming | Manual pump: 300 times; ESOC primer: leave running when starting the tractor |
Explore related products
What You'll Learn
Troubleshooting DD13 injector issues
Identify the Problem
Firstly, it's important to identify the specific issue you're facing with your DD13 fuel injectors. Some common problems include random misfires, sticking injectors, and difficulty starting the engine. Check for any error codes that may provide clues about the nature of the problem.
Inspect the Fuel System
Begin by inspecting the fuel system for any signs of damage or leaks. Check the fuel supply lines, return lines, and filters for any blockages, debris, or rust accumulation, as these can impact the performance of the injectors. Look for wet fittings, which may indicate air intrusion and lead to engine stalling.
Disconnect and Inspect Components
Disconnect the rear fuel injector harness 14-pin connector and inspect both sides for oil intrusion. If oil is present, replace the under-valve cover harness and clean the engine side harness connector. Also, inspect the pins on the connector for any damage or spreading.
Test and Replace Injectors
Use appropriate tools to measure the resistance between specific pins and ground. Depending on the resistance values, you may need to replace specific fuel injectors. Refer to the relevant sections for your fuel system type (two-filter or three-filter) in the repair manual for guidance on injector removal and replacement.
Priming the System
The DD13 system requires significant priming. If using a manual pump, pump it 300 times. Alternatively, use an ESOC primer and leave it running while starting the tractor. Run the engine at an elevated idle for at least 10 minutes or idle for 20 minutes.
Preventative Measures
To maintain optimal performance and avoid future issues, consider replacing all six fuel injectors simultaneously. Bosch offers a reliable and durable set of six Detroit Diesel DD13 fuel injectors that can enhance engine performance and efficiency.
Remember to consult a qualified technician or refer to a detailed repair manual for specific instructions pertaining to your vehicle.
Fuel Injector Cleaner: Instant Fix or Not?
You may want to see also
Explore related products
Using a specialised tool to remove the injector
When removing a DD13 fuel injector, it is important to note that there are specialised tools available that can aid in the process and make it more efficient. While it is possible to remove the injector without specialised tools, they can simplify the task and reduce the risk of damage to the engine.

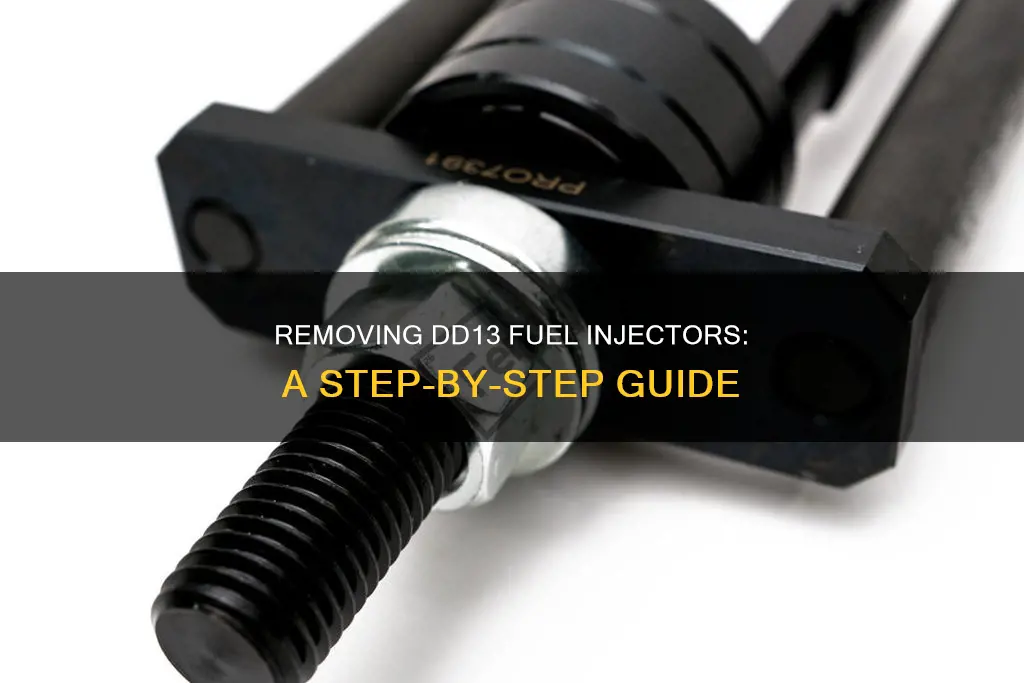

One such tool is the injector cup/tube remover and installer, which is designed specifically for the Detroit Diesel/Mercedes Benz Trucks DD13 engine. This tool allows for the safe and efficient removal and replacement of the injector cups, tubes, and nozzles. It serves as an alternative to the OEM J-47388-A W470589000700 MH064002 tool.
Another specialised tool that can be used is the high-pressure fuel line socket tool, which is also designed for the Detroit Diesel DD13 engine. This tool facilitates the removal and replacement of fuel lines, which may be necessary to access the fuel injectors.
In addition, a camshaft timing tool kit can be useful when working on a DD13 engine. This kit includes a TDC locating pin, brake adjustment tool, and a fuel line socket that can aid in the removal and replacement of fuel injectors.
When removing a DD13 fuel injector, it is important to take the necessary precautions to avoid any damage to the engine or injury to yourself. Ensure that the engine is cold before beginning the removal process, and disconnect the battery to prevent any accidental startups. Additionally, removing the fuel relay from the fuse box can be a safety precaution.
It is also important to note that high-pressure fuel systems can be dangerous, and it is recommended to take extra care when working on these systems to avoid leaks or spills. Wearing protective gear and having cloths handy can help manage any residual fuel that may spill during the process.
Understanding Diesel Injector PSI: Performance and Maintenance
You may want to see also
Explore related products
Priming the system
When it comes to priming the system, the DD13 engine requires a significant amount of priming. If you're using a manual pump, be prepared to pump it 300 times. This may seem excessive, but it's necessary for the engine. Alternatively, you can use an ESOC primer, which is a more convenient option. Start the tractor with the primer still running. Let the truck idle for at least 20 minutes, or if you prefer, run it for a minimum of 10 minutes with an elevated idle, and you can use the cruise control for this.
It's important to remember that the DD13 engine is not a self-priming system. So, if you encounter any issues with the starter stopping due to overheating and the motor not running, don't hesitate to repeat the priming procedure. This will help get things back on track.
In some cases, you may find that the injectors become airlocked. This can occur if the fuel lines have been disconnected for an extended period. To resolve this issue, you might need to replace all six injectors, as per the recommendations in Detroit's troubleshooting manual.
Additionally, it's worth noting that the DD13 injectors are quite sensitive. To prevent issues, it's advisable to use a recommended fuel cleaner before you open the fuel system. Taking this preventive measure can help ensure the smooth operation of your DD13 engine and reduce the chances of encountering problems with the injectors.
Chevron Fuel Injector Cleaner: Effective Solution or Marketing Gimmick?
You may want to see also
Explore related products
Checking for air locks
If your DD13 fuel injectors are experiencing issues, it is important to check for air locks. Air locks can occur when air enters the fuel system, causing the injectors to become locked and unable to function properly. Here are some detailed steps to help you check for and address air locks:
Firstly, inspect the OEM supply lines for any signs of air bubbles. This can be done by using a flashlight to carefully examine the lines. If you notice air bubbles, you can pinpoint the exact location of the air leak and take appropriate action. For example, you can torque a loose ferrel nut or remove and reseal the line and fitting.
Next, pay close attention to the fuel filters, as air locks can sometimes be caused by issues with the fuel filter itself. Check for any missing parts, such as a missing plastic part on the top of the filter, and replace the filter if necessary. Additionally, inspect the fuel tanks for any signs of contamination, such as metal flakes or debris, as these can also contribute to air locks and injector issues.
Furthermore, it is recommended to regularly clean your fuel system to prevent the buildup of salts and fatty deposits, which can lead to air locks and injector failure. Running a fuel system cleaner, such as Eco-Clean or Lucas fuel injector cleaner, through your fuel tanks can help prevent and resolve these issues.
Finally, if you have recently replaced the pass-through seals or fuel lines, ensure that the system is properly primed. The DD13 system requires a significant amount of priming, and an ESOC primer can be used to achieve this. Run the engine at an elevated idle for at least 10 minutes to ensure that the system is adequately primed and to potentially clear any air locks that may be present.
Repairing Fuel Leaks: Injector Pump on a 1983 Ford Diesel
You may want to see also
Explore related products
Replacing the injector
When replacing the injector on a DD13 engine, there are several steps to follow to ensure a successful installation. Firstly, it is recommended to use a trusted brand such as Bosch when choosing a new fuel injector. Bosch fuel injectors are known for their high quality and durability, ensuring optimal performance for your engine.
Before beginning the replacement process, it is important to gather the necessary tools, such as the J-47388-A Injector Cup Nozzle Tube Remover and Installer Tool, which is specifically designed for Detroit Diesel DD13 engines. This tool allows for the safe removal and replacement of the injector cups, tubes, and nozzles.
Once you have the new injector and the necessary tools, follow these steps:
- Disconnect the rear fuel injector harness 14-pin connector.
- Inspect both sides of the connector for oil intrusion. If oil is present, replace the under-valve cover harness and clean the engine side harness connector.
- If no oil is present, proceed to inspect the pins on the connector for any spread or damage. If there is spread or damage, repair as necessary.
- Measure the resistance between pin 5 on the valve cover side of the connector and ground.
- Depending on the resistance measurement, you may need to remove the rocker cover and disconnect the electrical harness connector on the fuel injector.
- Refer to the specific removal and installation procedures for your fuel system (two-filter or three-filter fuel system) as outlined in the DD13 manual.
After installing the new injector, it is important to prime the system adequately. This can be done manually by pumping 300 times or by using an ESOC primer. Run the engine at an elevated idle for at least 10 minutes or idle for 20 minutes to ensure proper priming.
Additionally, some sources recommend running the engine at max RPM with no load for a minimum of 5 minutes after the initial firing to ensure optimal performance of the new injector.
Overhauling a GMC Sierra: Fuel Injector Refresh
You may want to see also
Frequently asked questions
Some common issues with the DD13 fuel injector include no-start injector issues, random misfires, and air locks.
You can use the J-47388-A Injector Cup Nozzle Tube Remover and Installer Tool to remove and replace the injector cups, tubes, and nozzles for the DD13 engine.
It is recommended to run the fuel cleaner before opening the fuel system to prevent air locks. Additionally, consider replacing all six fuel injectors at once to ensure optimal performance.
