Removing fuel injectors from a Ford Fusion can be a challenging task. While some sources advise seeking professional help, others provide detailed instructions on how to remove the injectors. The process may involve depressurizing the fuel system, disconnecting the fuel line, and carefully removing the injectors from the fuel rail. In some cases, special tools such as mini slide hammers or an Allen wrench may be required to access and remove the injectors. It is important to note that incorrect removal can lead to further vehicle damage and create hazardous conditions.

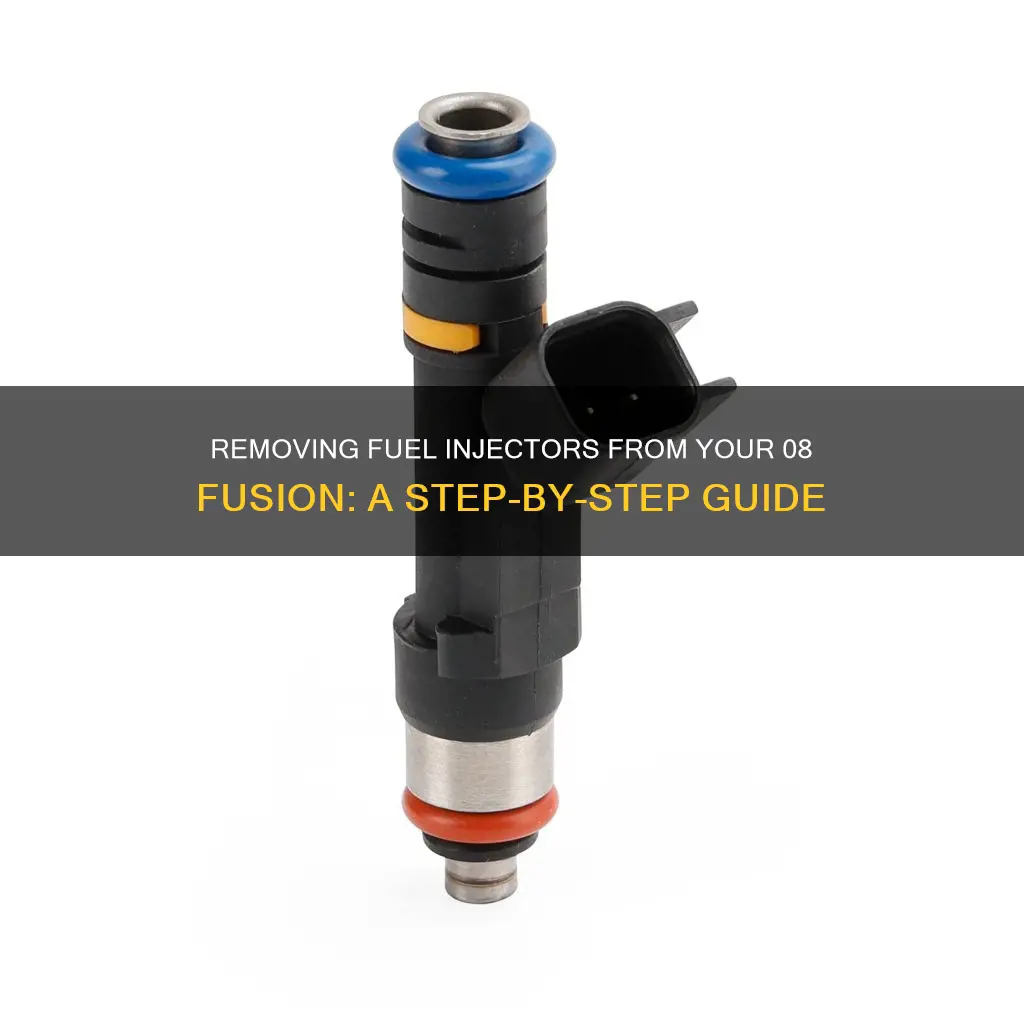

How to remove 08 fusion fuel injectors
| Characteristics | Values |
|---|---|
| Risk level | High |
| Required tools | Mini slide hammers, Allen wrench, flat-head screwdriver, pliers |
| Steps | 1. Depressurize the fuel system. 2. Remove bolts holding the fuel rail to the intake manifold. 3. Pull out the injectors. 4. Disconnect the fuel line. 5. Remove the upper and lower cowl. 6. Remove the wiring harness from the rail. |
Explore related products
What You'll Learn
Depressurise the fuel system
Depressurising the fuel system of a car is an important step before removing fuel injectors, to avoid spraying yourself with hot, highly pressurised fuel. Here is a detailed, step-by-step procedure to depressurise the fuel system of a Ford Fusion:
Firstly, locate the fuel pump relay in the Power Distribution Center (PDC). This can be found in the engine bay, right between the firewall and the Stock AirBox. There should be a covered box with a diagram inside. Pull out the white box that corresponds to the gas pump, which will cut power to the fuel system.
Next, make sure the car is level, and start the engine. It should run for about a minute before stalling. Attempt to restart the engine, but it won't run. Turn the ignition key to the OFF position. The fuel system is now depressurised.
You can check this by listening for any remaining hissing sounds coming from the fuel tank, which would indicate that pressurised fuel is still present. If the hissing has stopped, the pressure has been released.
Now, you can proceed to remove the fuel injectors. First, disconnect the battery to ensure proper precautions are taken against fire. Then, remove the two bolts holding the fuel rail to the intake manifold. Take those out and then pull out the injectors. This may take some effort, but they will come out.
It is important to note that this is a complex procedure and, as such, fuel injector replacement is best left to a professional mechanic.
Cleaning Fuel Injectors in Nissan Sentra: DIY Guide
You may want to see also
Explore related products
Remove the fuel rail
To remove the fuel rail, you must first depressurise the fuel system. Locate the fuse box between the firewall and the Stock AirBox, and pull out the white box that corresponds to the gas pump. This will cut power to the fuel system. Ensure the car is level, start it up, and let it run for a minute before it stalls.
Next, you need to remove the fuel injectors. There are two bolts that hold the fuel rail to the Intake Manifold. Take these out, and then pull the injectors out. This may take some effort, but they will come out. You may need to disconnect the fuel line, which can be done by removing a funky clip.
Now, to remove the fuel rail. Push the fuel line to the right-hand side and push back the plastic clip as you slide the pipe off. Undo the four clips that go to each injector, and then undo the two bolts that hold the fuel rail in place. Begin to wiggle the fuel rail back and forth evenly to remove it. Be careful not to break anything. Once the rail is released, there is a small black pipe underneath that can be pulled off.
Finally, take off the small metal plate that locates the injectors on the fuel rail, and remove any remaining fuel injector electrical connectors. The fuel rail should now be completely removed.
Cleaning Fuel Injectors: DIY Guide to Cleaner Injectors
You may want to see also
Explore related products
Disconnect the fuel line
Disconnecting the fuel line is a crucial step in removing fuel injectors, and it requires careful attention to detail. Here is a step-by-step guide to help you through the process:
Locate the Fuel Line and Depressurize the System: Begin by locating the fuel line, which runs between the firewall and the Stock AirBox. To depressurize the fuel system, find the covered box in this area that contains a set of fuses. Pull out the white box corresponding to the gas pump, which will cut power to the fuel system. Ensure your car is level, start it up, and let it run for a minute until it stalls, indicating that the system is depressurized.
Loosen Screws and Disconnect the Line: You will notice two bolts holding the fuel rail to the Intake Manifold. Remove these bolts, and then carefully loosen the screws on the fuel line. This will allow you to slowly release the pressure and let the fuel bleed out. Be cautious and ensure you are wearing the appropriate protective gear during this step.
Unplug the Fuel Pump: Depending on your vehicle's make and model, you may need to unplug the fuel pump, which is typically located under the back seat or in the passenger side kick panel. Alternatively, you can pull the fuse or relay for the pump and then attempt to start the car a few times to ensure the fuel system is fully depressurized.
Disconnect the Line: Finally, you can fully disconnect the fuel line. This step might take some time and effort, as there may be a unique clip or harness holding the line in place. Be patient and use the appropriate tools if needed to carefully detach the fuel line from the fuel rail and injectors.
Safety and Precautions: It is important to note that working on fuel injectors can be hazardous, and it is recommended that fuel injector replacement be left to professionals. Always exercise caution when working with fuel systems, and ensure the area is well-ventilated. Wear protective gear, including gloves and eye protection, to safeguard against any fuel spills or debris.
EFI Fuel System: Fuel Injectors Explained
You may want to see also
Explore related products
Remove the injectors with a slide hammer
Removing fuel injectors can be a challenging task, but with the right tools and guidance, it can be accomplished successfully. In this case, we will focus on using a slide hammer to remove the fuel injectors from a 2008 Fusion. Here is a step-by-step guide on how to do it:
Prepare the Vehicle:
Start by ensuring the engine is cold before beginning any work. Disconnect the battery to prevent any accidental electrical hazards. It is also recommended to remove the fuel relay from the fuse box as an additional safety precaution. Next, locate the fuel injector rail, which is typically a black rail running along the top of the engine. In some vehicles, you may need to remove a plastic shroud covering the engine to access the rail.
Accessing the Fuel Injectors:
Before attempting to remove the fuel injectors, it is essential to gain proper access to them. This may involve removing the fuel line and the fuel rail itself. Be cautious, as some residual fuel may spill during this process. Have protective gear and a cloth handy to handle any spilled fuel safely. Once the rail is exposed, you will see the injectors held in place with small clips and electrical connectors.
Using the Slide Hammer:
A slide hammer is a tool specifically designed to assist in removing fuel injectors without damaging the injector body. It is used in conjunction with a special attachment, such as the J-37281-A Injector Remover, which securely attaches to the injector. Position the slide hammer with the attachment underneath the injector, and gently try to pull it out. You may need to wiggle the injector back and forth while pulling to loosen it from the cylinder head.
Handling Stuck Injectors:
In some cases, fuel injectors can be stubborn and stuck in the cylinder head due to carbon buildup around the injector tips. If the slide hammer is unable to remove the injector, you may need to use a punch or a pair of pliers to apply additional force. However, exercise caution when using these tools to avoid damaging the injector or surrounding components.
Final Thoughts:
Removing fuel injectors with a slide hammer requires patience and careful technique. Take your time and ensure you have the correct tools for your specific vehicle. Always refer to a qualified mechanic or seek expert advice if you encounter any difficulties or have any concerns during the process.
Fuel Injector Upgrade: Stock WRX Bigger Injectors – Worth It?
You may want to see also
Explore related products
Test the fuel injectors
Testing the fuel injectors of a 2008 Ford Fusion requires some basic mechanical knowledge and a few tools. The fuel injectors are responsible for spraying atomized fuel droplets into the engine's intake manifold or combustion chamber, and issues with them can cause the engine to run poorly or not at all. Here is a step-by-step guide to testing the fuel injectors:
- Open the hood and locate the fuel injectors: Refer to the service manual for your 2008 Ford Fusion to identify their exact location. They are usually found on the intake manifold, connected by a fuel rail.
- Gather the required tools: You will need a long metal rod or a screwdriver. Ensure the metal rod is at least a foot long. If using a screwdriver, it may have a plastic or rubber handle.
- Position the rod or screwdriver: Place one end of the rod or screwdriver on the fuel injector while holding it up. Angle the tool so that you can bring your ear close to the opposite end.
- Listen for clicking: As the engine runs, listen for an audible clicking sound coming from the injector. This sound indicates that the injector is being activated.
- Repeat for each injector: Use the same method to check each fuel injector. If you find one that is not clicking, there may be an issue with the injector itself or the electronic control transmitting to the injector.
- Check for error codes: If your vehicle has an OBDII scanner and the check engine light is on, use the scanner to check for error codes related to the cylinder or injector. Replacing the faulty injector may resolve the issue. However, you may also need a professional mechanic to diagnose the vehicle's electronic control unit and fuel system.
- Conduct a visual inspection: If the issue is unclear, a technician may perform a visual inspection of the fuel delivery system. They will look for physical signs of damage or malfunction.
- Connect a computerized scanner: If the issue is still not apparent, a technician can connect a computerized scanner to read the vehicle's sensors and identify any problems. This step may involve removing the fuel injectors for bench testing.
- Test and replace as needed: Any failed components, including the fuel injectors, must be tested and replaced. Ensure to check the vehicle afterward to ensure the problem is resolved.
Fuel Injector Cost for a 2000 Grand Marquis
You may want to see also
Frequently asked questions
Removing fuel injectors is a complicated process that requires a good amount of knowledge. It is recommended that you leave it to a professional. However, if you still want to do it yourself, you will need to first depressurize the fuel system. To do this, pull out the white box that corresponds to the gas pump in the covered box between the firewall and the Stock AirBox. Then, start the car and let it run for a minute. After it stalls, your fuel system is depressurized. Next, take out the two bolts that hold the fuel rail to the Intake Manifold. You can then try to pull the injectors out.
If your fuel injector is stuck, you can use a mini slide hammer to pull it out without causing any damage to the cylinder head. Spraying WD40 where the injector goes into the head will also help to break up the corrosion around the injector base.
You will need an Allen wrench to reach in and depress the clip and a flat screwdriver to pry at the same time.
