Fuel injectors are a critical component of a vehicle's engine, controlling the flow of fuel into the combustion chamber. Over time, impurities in the fuel can cause sludge and deposits to build up, reducing engine performance and leading to potential failure. While fuel injectors cannot be rebuilt or refurbished, they can be cleaned and serviced. This process involves disassembling the injector, cleaning its components, and replacing parts such as filters, o-rings, and pintle caps. It is important to handle the injector carefully, as the internal components are delicate and can be easily damaged. Cleaning methods include using an ultrasonic cleaner or a carburetor cleaner to soak the injector overnight. This guide will provide a comprehensive overview of the steps and considerations for refurbishing a fuel injector.
How to refurbish a fuel injector
| Characteristics | Values |
|---|---|
| First Step | Obtain an injector rebuild kit. |

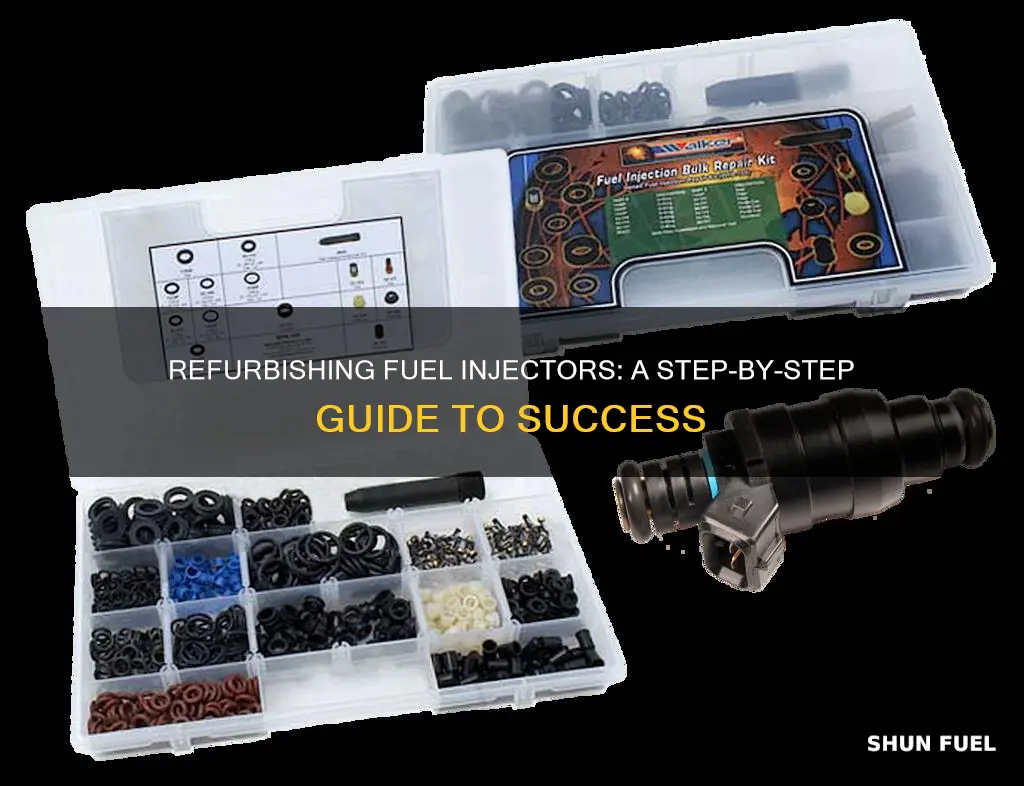

| Rebuild Kit Contents | Filter, spacer, pintle cap, and o-rings. |
| Other Requirements | Carburetor cleaner, bucket, compressed air, old injector wiring connector, battery, ultrasonic cleaner, sheet metal screw, new fuel filter, mallet, new pintle cap, and heat source. |
| Process | Disconnect the injector pump from the fuel line. Soak the injector in the cleaning solution overnight. Remove the injector from the bucket and blow it clean with compressed air. Rinse the remaining cleaning solution from the injector. Open the valve while you are blowing air through the injector. Apply power briefly to open the valve and clear the injector. Cut off the pintle cap and remove the spacer. Remove the fuel filter and replace it with a new one. Install the new pintle cap using heat. Replace the o-rings and reinstall the fuel injector. |
| Notes | Fuel injectors cannot be rebuilt or refurbished, but they can be cleaned and serviced. The internal components are delicate and can be damaged by rough handling or the wrong cleaning chemicals. |
Explore related products
What You'll Learn
Cleaning fuel injectors with an ultrasonic bath
While fuel injectors cannot be refurbished, they can be cleaned and serviced. Ultrasonic cleaning is a popular method for cleaning fuel injectors. This method is highly effective and can improve the health and performance of a vehicle. It is also quick and efficient, offering a thorough cleaning on all surfaces of the object, including the interior of the nozzles.
Ultrasonic cleaning uses ultrasonic sound waves to remove debris from the surface of an object. The process involves submerging the fuel injector in a tank of aqueous-based cleaning solution. The transducers in the tank generate ultrasonic waves, which produce cavitation bubbles. These bubbles expand and collapse with such force that they dislodge any dirt and other deposits from the surface of the dirty fuel injectors. The contaminants are then collected on a filter and removed when the tank is drained.
Ultrasonic cleaning kits are available for purchase and typically include a cleaner with a lid and basket, a supply of cleaning solution concentrate, and an instruction manual. It is important to select a kit with the right size and configuration for your needs. The cleaning process begins by filling the tank halfway with water and adding the correct amount of cleaning solution concentrate. The fuel injectors are then placed in the basket with the nozzle holes facing up. The basket is lowered into the solution and the ultrasound is activated. The ultrasound causes the cleaning solution to implode, creating millions of tiny bubbles that reach all surfaces of the injectors and loosen and carry away contaminants.
There are a few additional steps that can be taken to enhance the cleaning process. One option is to connect the electricals to the injector and place a length of clear tube over the nozzle side before immersing it in the ultrasonic cleaner. The tube is then filled halfway with alcohol, and the voltage is increased until the injector just opens. The alcohol is then blown through the injector for reverse flushing. Another option is to degas the solution before cleaning by operating the injector cleaning system for 15-20 minutes, which helps to remove entrained air and mix the solution. It is also recommended to wear protective gloves when handling the solution, as it can get hot. Once the cleaning process is complete, the injectors should be rinsed in fresh water and blow-dried with an air hose.
Sea Foam Cleans Fuel Injectors: How Effective Is It?
You may want to see also
Explore related products
Using a rebuild kit
Refurbishing a fuel injector can be a complex task, but it is possible to do it yourself with the right tools and knowledge. One of the key steps is to obtain an injector rebuild kit, which can be purchased online or from automotive stores. These kits typically include new components such as O-rings, filter baskets, and pintle caps, which are essential for the refurbishment process.
When using a rebuild kit, the first step is to carefully disassemble the fuel injector. This involves removing the injector pump from the fuel line and taking it to a clean, well-ventilated, and well-lit workspace. It is crucial to be cautious during disassembly as the internal components of the fuel injector are delicate and can be easily damaged. Once disassembled, the injector should be soaked in a carburetor cleaner overnight to remove any built-up dirt and debris.
The next step is to thoroughly clean the injector. This can be done using an ultrasonic cleaner, which uses ultrasonic waves to flush out the internal components. Alternatively, compressed air can be blown through the injector to remove any remaining cleaning solution. It is important that the valve of the injector is open during this process to ensure a thorough cleaning.
After cleaning, the new components from the rebuild kit can be installed. This includes installing new O-rings, filter baskets, and pintle caps. It is important to handle these components with care and ensure they are correctly fitted. Once the new components are in place, the fuel injector can be reinstalled in the vehicle.
Fuel Injector Count for 2003 Isuzu Rodeo Explained
You may want to see also
Explore related products
Replacing the fuel filter
Although fuel injectors cannot be refurbished, they can be cleaned and serviced. One way to clean a fuel injector is to use an ultrasonic cleaning bath with the nozzle of the injector immersed in a cleaning solution. The opening and closing of the pintle valve, combined with the cleaning solution and ultrasonic waves, clean the internal components of the fuel injectors.
To replace the fuel filter of a fuel injector, you must first run a fuel injector cleaner through the system. This will dislodge any sludge and debris in the gas tank. If you change the filter first, the new filter's lifespan will be shortened. After cleaning, you can replace the fuel filter. It is important to note that fuel injectors have built-in filters, and using a finer filter media will require more frequent changes as they will clog faster.
When replacing the fuel filter, it is recommended to use a small bench-top ultrasonic cleaner to clean the injectors during the filter replacement. You can use a fuel injector cleaner concentrate, such as Chevron Techron, in the ultrasonic cleaner tank. Additionally, it is suggested to use a small hammer to tap the new filters into place.
It is worth mentioning that some fuel injector rebuild kits are available online, which can be useful if you are on a budget. These kits typically include parts for the filter and upper seals, and it is recommended to use OEM parts when possible.
Rebuilding Chevy TPI Fuel Injector: Step-by-Step Guide
You may want to see also
Explore related products
Removing the pintle cap
To remove the pintle cap, you will need to first obtain an injector rebuild kit. This usually includes a filter, spacer, pintle cap, and o-rings. These parts will be specific to your vehicle's make, model, and year, so ensure you source the correct kit.
Once you have the kit, the first step is to remove the injector pump from the fuel line. Find a clean, well-ventilated, and well-lit workspace to lay out your tools and parts. Next, remove the O-rings at each end of the injector and soak the injector in a carburetor cleaner overnight. The following day, remove the injector from the cleaning solution and blow it clean with compressed air. Rinse any remaining solution from the injector.
Now, you can cut off the pintle cap and remove the spacer. This is a delicate process, and you must be extremely careful not to touch the pintle, as this can ruin the fuel injector.
It is important to note that the internal components of a fuel injector are very delicate and can be easily damaged by rough handling or the use of incorrect cleaning chemicals. Always take your time and work carefully.
Cleaning Fuel Injectors: What Actually Works?
You may want to see also
Explore related products
Reinstalling the fuel injector
Before beginning the reinstallation, ensure that you have thoroughly cleaned the fuel injector and inspected it for any signs of damage or debris. This can be done using an ultrasonic cleaning bath, as mentioned earlier, or with a carburetor cleaner by soaking the injector overnight and then blowing it clean with compressed air.
Now, you can begin the process of reinstalling the fuel injector:
- Carefully insert the fuel injector back into the fuel rail. Take extra care during this step, as a pinched O-ring can cause an injector leak, as mentioned by some vehicle owners.
- Reinstall the new filter basket, pintle cap, and O-rings. Ensure that the O-rings are properly lubricated and seated in their grooves to prevent leaks.
- Connect the fuel injector to the fuel lines and ensure that all connections are secure and tight.
- If applicable, reconnect the electrical connectors to the fuel injector. Ensure that the wiring is correct and secure to prevent any electrical issues.
- Once the fuel injector is installed, it is important to perform a leak test to ensure that there are no fuel leaks. This can be done by pressurizing the fuel system and checking for any signs of leaks around the injector and its connections.
By following these steps, you can successfully reinstall the fuel injector, ensuring that it is secure, properly connected, and free from leaks. It is important to take your time and be cautious during this process to avoid any damage to the fuel injector or surrounding components.
Fuel Injector Replacement: A Quick and Easy Guide
You may want to see also
Frequently asked questions
Fuel injectors cannot be refurbished, but they can be cleaned and serviced. You can either do this yourself or send it off to a fuel injector servicing company. If you want to clean it yourself, you will need to obtain a rebuild kit, which usually includes a filter, spacer, pintle cap, and o-rings. You will also need a bucket, carburettor cleaner, and compressed air.
First, you need to remove the injector pump from the fuel line and take it to a clean, well-ventilated, and well-lit workspace. Next, remove the o-rings at either end of the injector and soak it in carburettor cleaner overnight. The following day, blow the injector clean with compressed air and rinse the remaining cleaning solution. Apply power to the injector briefly to open the valve and clear it, but be careful not to apply power continuously, or you will overload it. Continue to clean the injector with an ultrasonic cleaner if you have one.
The three main causes of fuel injector failure are a burnt-out solenoid, corroded electrical contacts, or leaky seals. Over time, impurities in the fuel will cause sludge and deposits to build up in the injector, reducing engine performance and potentially causing the injector to become blocked.
Fuel injectors have very small orifices, so be careful to work in a clean environment as dust or other particles can block the injector. You can use an ultrasonic bath, such as those used for jewellery cleaning, to clean the injectors. It is also important to be careful when handling the injector, as the internal components are delicate and can be easily damaged.
