If you're experiencing issues with your 6.0L Power Stroke engine, such as hard starts, rough idling, excessive smoke, low fuel economy, or stalling, it could be due to faulty fuel injectors. Replacing the injectors can be a complex task, and it's important to take precautions to avoid engine damage. Before beginning the removal process, ensure you have the necessary tools, such as a Snap-On SDMT44O torx, and follow the steps outlined in this paragraph: mark the front or back bracket with tape, remove the bolts holding the cover, gaskets, and oil rail, and then carefully remove the keeper pins and injector plugs. Subsequently, you can slide out the injector, taking care not to drop any pins.

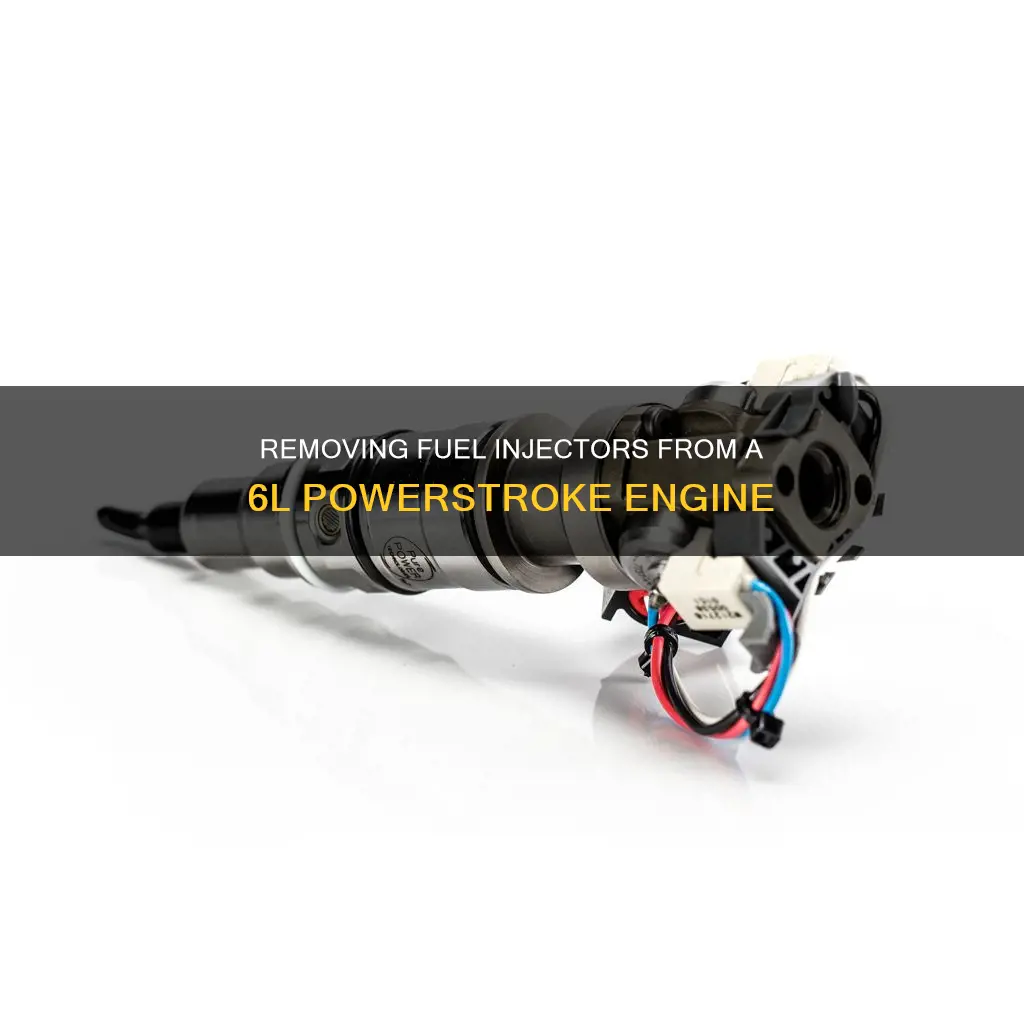

6.0L Power Stroke Fuel Injector Removal and Installation Guide
| Characteristics | Values |
|---|---|
| Symptoms of faulty fuel injectors | Hard start, rough idle, excessive smoke, low fuel economy, stalling, and overall poor performance |
| Tools required | Snap-On SDMT44O torx, shop towels, special tool 303-1115, 19 mm socket |
| Steps | 1. Disconnect and remove the high-pressure oil supply line. 2. Push the fuel injector electrical connector out of the rocker arm carrier. 3. Insert clean shop towels in the oil drain holes adjacent to each glow plug. 4. Remove the bolt, fuel injector hold-down, and fuel injector. 5. Reinstall the valve cover and all associated components. 6. Reinstall any previously removed components (air cleaner, glow plug controller, FICM, etc). 7. Refill the radiator with engine coolant through the degas tank. 8. Verify the battery condition/charge. 9. Cycle the key to the "RUN" position until the fuel pump stops running (c. 10 seconds). Repeat for a total of 3 to 5 times so that the injector fuel supply fills with diesel. |
Explore related products
$67.99
What You'll Learn
Removing the rubber safety cup
To remove the rubber safety cup, start by removing the injector nozzle. Then, lubricate the injector o-rings with clean motor oil. Next, assemble the injector hold-down bracket, which can only be installed one way, to the fuel injector. Slide the fuel injector into the injector cup in the cylinder head and start the Torx retaining bolt by hand. Torque the injector hold-down bolt to 24 ft-lbs, then snug it up slightly more to ensure the copper crush washer seals properly.
The rubber safety cup is an important component of the fuel injection system, and its removal requires careful attention to detail. It is crucial to ensure that the injector o-rings are properly lubricated and that the hold-down bracket is securely assembled before proceeding with the rest of the fuel injector removal process.
It is worth noting that the removal process may vary slightly depending on the specific make and model of the 6.0L Powerstroke engine. Different models may have slight variations in the location and accessibility of the rubber safety cup and other fuel injection components. Always refer to the appropriate service manual or seek the assistance of a qualified technician if you are unsure about any steps in the removal process.
Additionally, it is important to work with clean tools and surfaces to prevent any debris or contaminants from entering the fuel injection system. Before beginning any work on the fuel injectors, it is recommended to consult a qualified technician or a repair manual specific to your vehicle's make and model for detailed instructions and safety precautions.
By following these steps and taking the necessary precautions, you can safely and effectively remove the rubber safety cup as part of the overall process of removing the 6.0L Powerstroke fuel injectors.
Ethanol and Fuel Injectors: Gumming Up the Works?
You may want to see also
Explore related products
Disconnecting the high-pressure oil supply line
Step 1: Tape and Mark the Brackets
Use tape to mark the front or back bracket. This will help you identify the orientation of the parts during reassembly.
Step 2: Remove the Bolts and Gaskets
Remove the 12mm bolts holding the cover down. There will typically be 9 Torx 30 bolts. You can use a 1/4" wrench to loosen them, and for the bolts that are harder to reach, a socket with a T-30 and a swivel joint can be used. After removing the bolts, the cover should lift off easily. Don't forget to remove both gaskets as well; they are usually reusable.
Step 3: Remove the Oil Rail
The oil rail can be a bit tricky, especially on the passenger side. There may be an 8 mm Allen wrench nut at the back portion of the oil rail that needs to be removed. It is connected to an oil tube going into the head, so you will need to separate the two pieces. Once the nut is removed, you can take out the oil rail and then remove the other half of the tube.
Step 4: Access the Injectors
With the oil rail removed, the tops of the injectors will now be visible. There will typically be plugs going into the tops of the injector heads, and these need to be removed carefully.
Step 5: Disconnect the High-Pressure Oil Supply Line
Now, you can disconnect the high-pressure oil supply line. It is important to use the correct tool for this step to avoid damage to the fuel injector. A Bentolin High-Pressure Oil Pump HPOP Quick Disconnect Tool is specifically designed for this purpose and can speed up the removal process.
Caution:
Do not attempt to put battery voltage to the fuel injector, as this will cause damage. Additionally, do not use air tools to remove the fuel injectors, as the clip that extracts the injector may dislodge and fall into the oil drain hole.
Testing Fuel Injectors: A Comprehensive Guide
You may want to see also
Explore related products
Using a tool to avoid damaging the plastic
To remove 6.0L Power Stroke fuel injectors without damaging the plastic, you can use a range of tools. Firstly, it is important to note that you should not attempt to put battery voltage to the fuel injector, as this will cause damage.
You can use a 19 mm 12-point socket to disengage each injector electrical connector and push it through the cylinder head. You can also use OTC 6766, which is designed for this purpose. However, do not force the connector or attempt to pry it loose, as plastic pieces may fall into the cylinder head if the connector breaks.
Next, you will need to remove the injector retaining bolt. For this, you can use a T-40 Torx driver and any required extensions. An extra-long (2.5" - 3") Torx bit is ideal, but a small bit can also be taped inside the appropriately-sized socket and an extension used.
You can then use a tool like Snap-On SDMT44O torx to avoid damaging the fuel injector plastic and to avoid interference with the evaporator case.
For the 6.7L Power Stroke engines, you can use a fuel injector removal tool kit, which is made from high-quality heat-treated steel and is compatible with Ford Powerstroke Diesel (2011-2018) 6.7L F-250 F-350 F-450 F-550. This tool is simple to use and will not cause damage to your injector and other components.
Another method for removing stuck fuel injectors involves flipping the hold-down over and hitting it with a hammer, which will pull the injector out like a heel bar. This method can be faster than using a tool, and usually just takes a little tap. However, some cases may require some decent whacks with a 4-lb hammer.
Fuel Injectors: 2007 Kia Optima's Engine Secrets
You may want to see also
Explore related products
Reinstalling the valve cover
When reinstalling the valve cover, place the valve cover in position and loosely start all bolts before tightening. This allows the proper centering of the cover so that the valve cover rubber grommets seat correctly. The rocker box on the head (the part the valve cover bolts to) is made of aluminum and can be easily stripped out, so avoid starting bolts with a power tool and avoid over-torquing.
If the gasket did not come with the valve cover, you will need to clean and oil it before reinstalling. Next, place the gasket back on the valve cover. If your engine is a 2003 or early 2004 model, it will feature the "log" style high-pressure oil rail. Loosen and remove the nut (check valve) connecting the stainless steel braided oil line to the oil rail using a 24mm wrench. Then, gently push the line aside. Alternatively, the STC fitting can be released using OTC 6594.
Remove all eight bolts securing the high-pressure oil rail to the cylinder head using an 8mm socket. Be careful not to drop any hardware into the cylinder head. Gently lift the oil rail upwards and away from the cylinder head to free it from the injectors. Then, allow the oil to drain into the cylinder head. Once the oil has drained, set the oil rail aside in a clean location.
Finally, reinstall the valve cover by placing the cover in position and loosely starting all bolts before tightening.
Fuel Injectors in LS Engines: How They Work
You may want to see also
Explore related products
Removing the keeper pins
First, it is important to understand the context of the keeper pins within the fuel injector assembly. The keeper pins are located on the driver's side oil rail, which is secured by 9 T-30 bolts. To access the keeper pins, you will need to remove the oil rail. This process is made easier on the driver's side, as the oil tube can be removed in one piece.
Once the oil rail is removed, the injectors and their plugs become visible. The keeper pins are located on the plugs, with four per side. To remove the keeper pins, you will need either a needle nose or a flat-head tool. Gently pry the pins out, being extremely careful not to drop them. It is crucial to hold onto the pins securely, as losing them could lead to potential issues during reassembly.
With the keeper pins removed, you can now focus on the injector plugs. Gently pull the injector plug downwards while pushing it with a 19mm 12-point socket to remove it. At this stage, the injectors themselves are still held in place by a bolt, typically a T-45 bolt, which needs to be removed to release the injectors.
It is worth noting that some sources recommend removing the fuel rail before attempting to remove the keeper pins and injector plugs. This provides more room to work and makes it easier to disconnect the fuel injector electrical connectors. However, others suggest disconnecting the electrical connectors first and then removing the fuel rail. Either way, it is important to refer to the service manual for your specific vehicle and follow the recommended steps to ensure a safe and effective removal process.
Fuel Injector Issues: Multiple Trouble Codes, One Solution
You may want to see also
Frequently asked questions
Symptoms of a failing 6L powerstroke fuel injector include hard start, rough idle, excessive smoke, low fuel economy, stalling, and overall poor performance.
Before removing the fuel injectors, make sure to disconnect the high-pressure oil supply line and push the fuel injector electrical connector out of the rocker arm carrier.
You will need a tool like Snap-On SDMT44O torx to avoid damaging the plastic and interfering with the evaporator case. You will also need a 19mm socket to remove the fuel injector electrical connector.
After removing the fuel injectors, make sure to replace the injector o-rings and copper washer. Lubricate the new parts with clean engine oil and reinstall the valve cover and all associated components.
