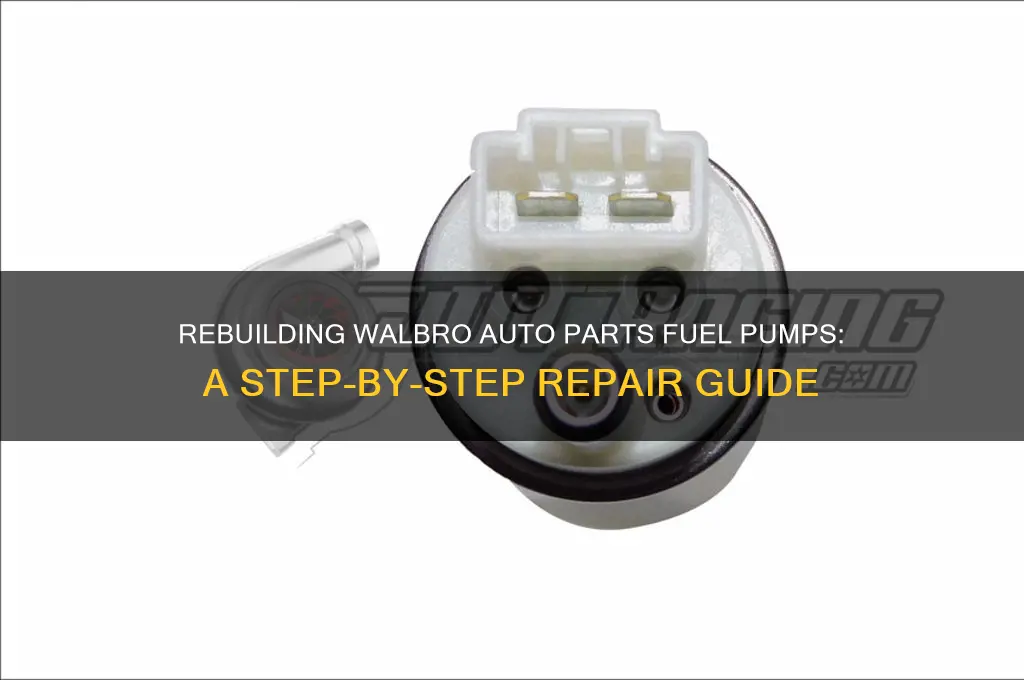

Rebuilding Walbro auto parts fuel pumps can be a cost-effective solution for maintaining optimal engine performance, especially in high-performance or aging vehicles. Walbro fuel pumps are renowned for their reliability, but over time, wear and tear can lead to reduced efficiency or failure. The rebuilding process typically involves disassembling the pump, inspecting components for damage, replacing worn parts such as diaphragms, valves, or seals, and reassembling the unit with precision. Proper cleaning and lubrication are crucial to ensure smooth operation, while testing the pump post-rebuild verifies its functionality. This DIY approach not only extends the pump’s lifespan but also saves money compared to purchasing a new unit, making it a valuable skill for automotive enthusiasts and mechanics alike.
Explore related products
What You'll Learn
- Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
- Cleaning and Maintenance: Clean internal parts, remove clogs, and ensure proper lubrication
- Replacing Faulty Parts: Identify and replace worn-out diaphragms, valves, or seals
- Reassembly and Testing: Reassemble pump, check for leaks, and test functionality before installation
- Troubleshooting Common Issues: Diagnose and fix problems like low pressure, noise, or failure to prime
Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
Before attempting to rebuild a Walbro fuel pump, the first critical step is disassembly and inspection. This process requires precision and care to avoid damaging components or compromising the pump’s functionality. Begin by securing the pump in a vice with protective jaws to prevent scratching the housing. Use a flathead screwdriver to carefully pry off the inlet and outlet ports, ensuring no debris falls into the pump mechanism. Next, remove the retaining clip or screw holding the motor assembly in place, taking note of its orientation for reassembly. With the motor exposed, inspect the armature for signs of wear, such as pitting or discoloration, which could indicate electrical arcing or overheating.
During disassembly, pay close attention to the diaphragm and valve assembly, as these components are prone to fatigue and cracking over time. Gently lift the diaphragm using a non-metallic tool to avoid punctures, and examine it for tears or deformities. Similarly, inspect the check valves for debris buildup or warping, as even minor imperfections can lead to fuel flow restrictions. A magnifying glass or jeweler’s loupe can be invaluable for identifying microscopic damage that might otherwise go unnoticed. If any component shows significant wear or damage, it should be replaced with genuine Walbro parts to ensure reliability.
The inspection phase is as crucial as the disassembly itself, as it determines the extent of the rebuild required. Look for signs of contamination, such as rust or varnish, which often result from fuel degradation or moisture intrusion. Clean all components with a solvent specifically designed for fuel systems, avoiding harsh chemicals that could degrade rubber or plastic parts. After cleaning, perform a dry run of the motor to check for smooth operation and unusual noises, which could indicate internal damage. This step not only ensures the pump’s mechanical integrity but also provides insight into potential electrical issues, such as a failing brush assembly.
A comparative analysis of the disassembled components against a new Walbro pump can highlight areas of concern. For instance, a worn impeller may show reduced blade thickness compared to a new one, directly impacting fuel delivery efficiency. Similarly, a damaged pressure regulator diaphragm can lead to inconsistent fuel pressure, causing engine performance issues. By systematically evaluating each part, you can make informed decisions about which components to replace or repair, ensuring the rebuilt pump meets OEM specifications.
In conclusion, the disassembly and inspection phase is a meticulous process that demands attention to detail and a methodical approach. By safely disassembling the pump and thoroughly inspecting each component for wear, damage, or debris, you lay the foundation for a successful rebuild. This step not only identifies potential failure points but also ensures the longevity and performance of the Walbro fuel pump, making it a critical investment of time and effort.
