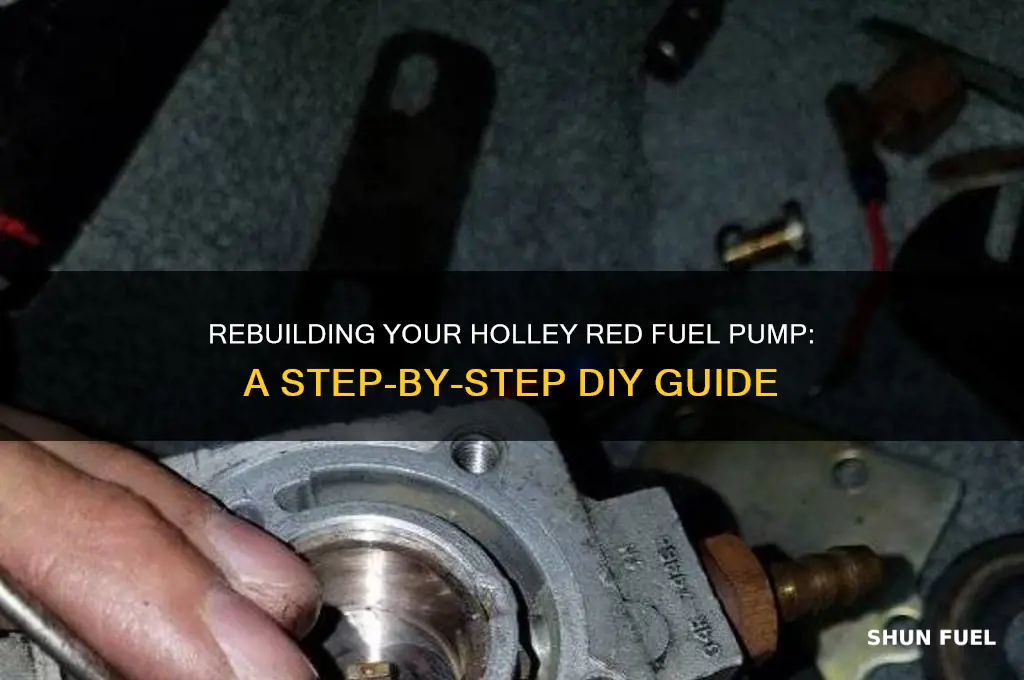

Rebuilding a Holley Red fuel pump is a rewarding task for automotive enthusiasts looking to restore or enhance their vehicle's fuel system. This process involves disassembling the pump, inspecting and replacing worn components, and reassembling it to ensure optimal performance. Key steps include removing the pump from the vehicle, cleaning all parts thoroughly, replacing the diaphragm, gaskets, and check valves, and lubricating the moving parts with a compatible oil. Properly following the Holley service manual ensures accuracy and safety, while attention to detail guarantees a reliable and efficient fuel delivery system. Whether for a classic car restoration or performance upgrade, rebuilding a Holley Red fuel pump extends its lifespan and maintains its iconic functionality.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers, wrenches, pliers, gasket scraper, new gaskets, and O-rings. |
| Disassembly Steps | Remove pump from vehicle, disassemble components (cover, diaphragm, valves). |
| Cleaning Process | Clean all parts with carburetor cleaner, remove debris and old gaskets. |
| Inspection Points | Check diaphragm for tears, inspect valves and seats for wear. |
| Replacement Parts | New diaphragm, gaskets, O-rings, and valves if damaged. |
| Reassembly Steps | Reassemble in reverse order, ensure proper seating of valves and diaphragm. |
| Testing Procedure | Test pump for leaks and proper operation before reinstallation. |
| Common Issues | Leaks, weak fuel delivery, diaphragm failure. |
| Maintenance Tips | Regularly inspect for leaks, replace worn parts promptly. |
| Safety Precautions | Work in well-ventilated area, avoid open flames, relieve fuel pressure. |
| Compatibility | Specific to Holley Red fuel pump models (verify part numbers). |
| Difficulty Level | Moderate (requires basic mechanical skills). |
| Estimated Time | 1-2 hours depending on experience and condition of pump. |
| Cost of Rebuild Kit | $20-$50 (varies by supplier and included components). |
| Alternative Solution | Replace with new pump if rebuild is not feasible or cost-effective. |
Explore related products
What You'll Learn
- Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
- Gasket and Seal Replacement: Replace worn gaskets, seals, and diaphragms to ensure leak-free operation
- Cleaning and Deburring: Clean all parts, remove burrs, and ensure smooth internal surfaces
- Reassembly and Lubrication: Reassemble pump, apply proper lubrication to moving parts
- Testing and Adjustment: Test pump for proper pressure, flow, and leaks; adjust as needed
Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
Before diving into the rebuild process, disassembly and inspection are critical steps to identify the root cause of any performance issues with your Holley Red fuel pump. This stage requires precision and care to avoid further damage to the pump’s components. Begin by placing the pump on a clean, flat surface and ensuring you have the necessary tools, such as wrenches, screwdrivers, and a catch pan for residual fuel. Safety is paramount—work in a well-ventilated area, wear protective gloves, and ensure there are no open flames or sparks nearby.
The disassembly process starts with removing the pump’s inlet and outlet fittings, which are typically secured with hex nuts. Use the appropriate wrench size and loosen these fittings carefully to avoid stripping the threads. Once removed, inspect the fittings for corrosion, cracks, or debris buildup. Next, detach the pump’s cover or housing, which may be held in place by screws or clamps. Take note of the orientation of gaskets or seals, as improper reassembly can lead to leaks. With the housing removed, you’ll gain access to the internal components, including the diaphragm, valves, and springs.
Inspection is a meticulous task that demands a keen eye. Examine the diaphragm for tears, hardening, or brittleness, as these issues can compromise fuel delivery. Check the valves and springs for wear, warping, or foreign matter that could obstruct flow. Debris, such as rust or dirt, is a common culprit for pump failure, so clean each component thoroughly using a solvent-safe cleaner and a soft brush. Pay special attention to the check valves, as even minor damage can lead to fuel backflow and reduced efficiency.
During inspection, compare worn parts to known specifications or a reference guide to determine if replacement is necessary. Holley provides detailed diagrams and part lists for their pumps, which can serve as a valuable resource. If components are beyond repair, order genuine Holley replacement parts to ensure compatibility and performance. Documenting the condition of each part with notes or photos can aid in reassembly and future troubleshooting.
In conclusion, disassembly and inspection are foundational steps in rebuilding a Holley Red fuel pump. By systematically examining each component for wear, damage, or debris, you can pinpoint the source of issues and ensure a successful rebuild. Approach this phase with patience and attention to detail, as it sets the stage for restoring your pump to optimal functionality.
