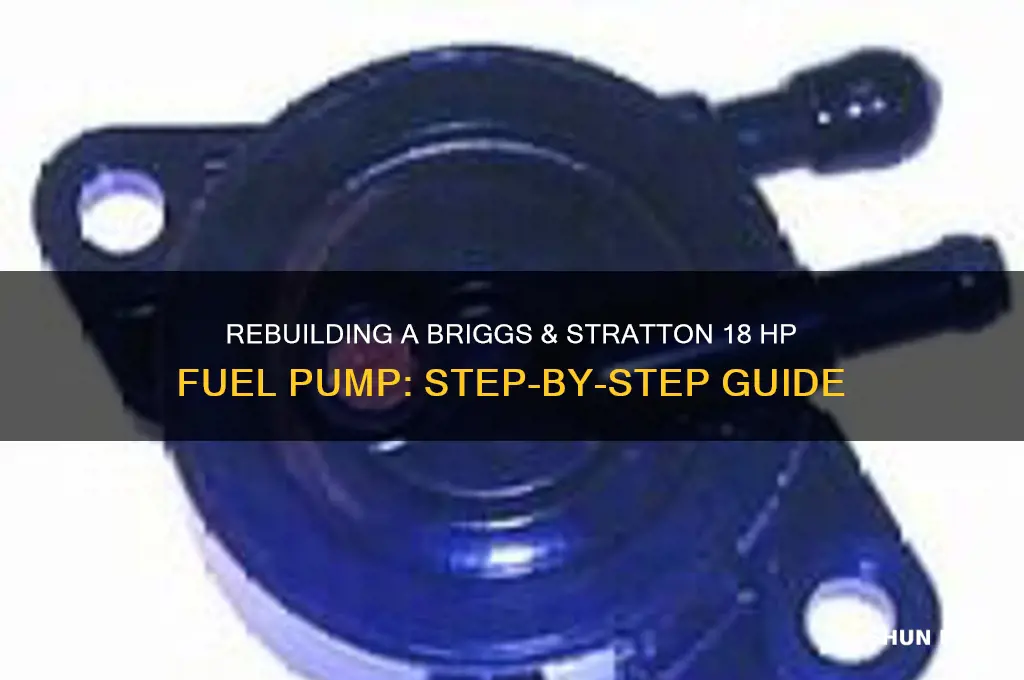

Rebuilding the fuel pump on an 18 HP Briggs & Stratton engine is a cost-effective way to restore proper fuel delivery and ensure optimal engine performance. This process involves disassembling the pump, inspecting its components for wear or damage, and replacing any faulty parts such as diaphragms, valves, or gaskets. By following a systematic approach, including cleaning the pump housing, reassembling with precision, and testing for leaks, you can extend the life of your engine and avoid the expense of a full replacement. Proper tools, a service manual, and attention to detail are essential for a successful rebuild.
| Characteristics | Values |
|---|---|
| Engine Model | Briggs & Stratton 18 HP (specific model number may vary) |
| Tools Required | Wrenches, screwdrivers, pliers, socket set, gasket scraper |
| Parts Needed | Fuel pump rebuild kit (diaphragm, gaskets, O-rings, screws) |
| Safety Precautions | Disconnect spark plug, work in well-ventilated area, wear safety gear |
| Disassembly Steps | Remove fuel lines, disconnect pump from carburetor, remove mounting bolts |
| Cleaning Process | Clean pump housing, diaphragm plate, and components with solvent |
| Inspection Points | Check diaphragm for tears, inspect valves and springs for wear |
| Reassembly Steps | Install new diaphragm, gaskets, and O-rings; reassemble pump |
| Testing Procedure | Reconnect fuel lines, check for leaks, test engine operation |
| Troubleshooting Tips | Ensure proper seating of diaphragm, check for air leaks |
| Maintenance Intervals | Inspect fuel pump during routine engine maintenance |
| Compatibility | Briggs & Stratton 18 HP engines with diaphragm-type fuel pumps |
| Difficulty Level | Intermediate (requires mechanical skills) |
| Estimated Time | 1-2 hours depending on experience |
| Cost of Rebuild Kit | $20-$50 (varies by supplier) |
| Alternative Solution | Replace fuel pump assembly if rebuild is not feasible |
| Reference Resources | Briggs & Stratton service manual, online repair videos |
Explore related products
What You'll Learn
- Disassembly Process: Safely remove fuel pump components, noting their positions for reassembly
- Cleaning Parts: Thoroughly clean all parts with solvent to remove debris and buildup
- Inspecting Components: Check diaphragms, valves, and gaskets for wear or damage
- Replacing Worn Parts: Install new diaphragms, seals, or gaskets as needed for reliability
- Reassembly & Testing: Reassemble pump, ensuring proper alignment, and test for leaks and function
Disassembly Process: Safely remove fuel pump components, noting their positions for reassembly
Before diving into the disassembly of a fuel pump on an 18 hp Briggs & Stratton engine, it’s critical to understand that precision and organization are your best tools. Fuel pumps are intricate assemblies where each component’s position and orientation matter for proper function. Begin by relieving fuel system pressure—disconnect the fuel line and run the engine until it stalls, ensuring no residual pressure remains. This step is non-negotiable for safety, as pressurized fuel can cause injury or fire. Once pressure is relieved, place a drain pan under the pump to catch any residual fuel, minimizing mess and environmental risk.
The disassembly process starts with removing the pump’s mounting bolts, typically located on the engine block or a mounting bracket. Use a torque wrench to avoid over-tightening during reassembly, noting the torque specifications for your specific model (commonly 10-15 ft-lbs for Briggs & Stratton engines). With the bolts removed, carefully lift the pump assembly, observing how the diaphragm, valves, and springs are positioned. Take photographs or sketch the arrangement of components—this visual record is invaluable for reassembly. Pay particular attention to the diaphragm’s orientation, as incorrect placement can lead to leaks or failure.
Next, disassemble the pump’s internal components methodically. Start by removing the pump cover, which often requires prying gently with a flathead screwdriver. Be cautious not to damage gaskets or seals; replace them if they show signs of wear. Extract the diaphragm and inspect it for cracks or deformities—a compromised diaphragm is a common cause of pump failure. Beneath the diaphragm, you’ll find the valve plate and springs. Use a magnetic parts tray to keep small components organized and prevent loss. Label each part’s position (e.g., “inlet valve spring” or “outlet valve plate”) to streamline reassembly.
As you work, clean each component with carburetor cleaner to remove debris or varnish buildup, which can hinder performance. Inspect the check valves for proper seating; a faulty valve will allow fuel to bypass the pump, causing poor engine performance. If the valves are stuck or damaged, replace them with OEM parts to ensure compatibility. Throughout the process, avoid using solvents on rubber components, as they can degrade the material. Instead, wipe rubber parts with a clean cloth dampened with mineral spirits.
Conclude the disassembly by evaluating the pump housing for cracks or warping. Even minor damage can compromise the pump’s ability to maintain pressure. If the housing is intact, you’re ready to proceed with inspection, repair, or replacement of individual components. By systematically disassembling the fuel pump and documenting each step, you’ll not only ensure a successful rebuild but also gain a deeper understanding of the pump’s mechanics, empowering future maintenance.
