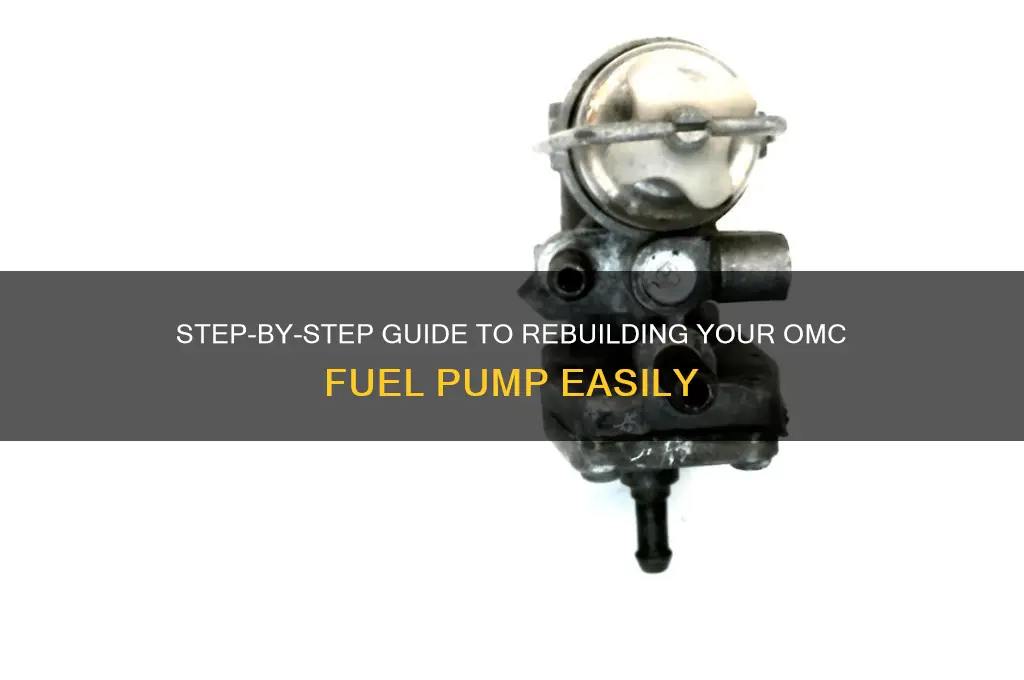

Rebuilding an OMC (Outboard Marine Corporation) fuel pump is a cost-effective alternative to replacing it entirely, especially for older or discontinued models. The process involves disassembling the pump, inspecting and replacing worn components such as diaphragms, valves, and gaskets, and then reassembling it to ensure proper functionality. Before starting, gather the necessary tools, including wrenches, screwdrivers, and a service manual specific to your OMC fuel pump model. Begin by relieving fuel system pressure and disconnecting the pump from the engine. Carefully disassemble the pump, taking note of the order and orientation of parts, and clean all components thoroughly. Replace any damaged or worn parts with genuine OMC replacements to ensure reliability. Reassemble the pump, following the manual’s instructions, and test it for leaks and proper operation before reinstalling it on the engine. This meticulous approach ensures the fuel pump operates efficiently, maintaining optimal engine performance.
| Characteristics | Values |
|---|---|
| Tools Required | Socket set, wrenches, screwdrivers, pliers, gasket scraper, cleaning solvent |
| Parts Needed | New gaskets, seals, diaphragm, check valves, filter element |
| Disassembly Steps | 1. Relieve fuel pressure 2. Disconnect fuel lines 3. Remove mounting bolts 4. Disassemble pump components |
| Cleaning Process | Use carburetor cleaner or solvent to clean all parts thoroughly |
| Inspection Points | Check for cracks, wear, or damage in diaphragm, valves, and housing |
| Reassembly Steps | 1. Replace gaskets and seals 2. Install new diaphragm and valves 3. Reassemble in reverse order of disassembly |
| Testing Procedure | Bench test the pump for proper operation before reinstallation |
| Reinstallation Tips | Ensure proper alignment and torque specifications for mounting bolts |
| Common Issues | Leaking gaskets, worn diaphragm, clogged check valves |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and relieve fuel pressure before starting |
| Compatibility | Specific to OMC (Outboard Marine Corporation) fuel pumps |
| Difficulty Level | Moderate (requires mechanical skill and attention to detail) |
| Estimated Time | 2-4 hours depending on experience and condition of the pump |
| Cost of Rebuild Kit | $20-$50 (varies by model and supplier) |
| Alternative Solution | Replace with a new fuel pump if rebuilding is not feasible |
Explore related products
What You'll Learn
- Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
- Cleaning and Preparation: Clean all parts thoroughly, prepare surfaces for reassembly or replacement
- Replacing Worn Parts: Identify and replace damaged diaphragms, seals, gaskets, or valves
- Reassembly Process: Reassemble pump in correct sequence, ensuring proper alignment and torque
- Testing and Adjustment: Test pump operation, adjust pressure and performance as needed for optimal function
Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
Before attempting to rebuild an OMC fuel pump, the first critical step is disassembly and inspection. This process requires precision and care to avoid damaging components or compromising the pump’s functionality. Begin by securing the pump in a vise with protective jaws to prevent scratching the housing. Use a wrench to loosen the pump cover, ensuring all fasteners are removed in a systematic order to avoid misalignment during reassembly. Once the cover is off, carefully lift it to expose the internal components, taking note of their orientation for later reference.
Inspection is as crucial as disassembly, as it determines the extent of wear, damage, or contamination. Start by examining the diaphragm for cracks, tears, or hardening, which can lead to fuel leaks or inefficient operation. The diaphragm should be flexible and free of brittleness; if it’s compromised, replacement is mandatory. Next, inspect the check valves for debris or wear. Use a magnifying glass to identify small particles that could obstruct fuel flow, and clean them with a solvent and soft brush if necessary. Valves with damaged seals or warped surfaces must be replaced to ensure proper fuel delivery.
Wear on the pump’s plunger and cam follower is another common issue. Run your fingers along the plunger’s surface to check for scoring or pitting, which can disrupt the pump’s ability to build pressure. Similarly, inspect the cam follower for flat spots or excessive wear, as these components directly impact the pump’s mechanical efficiency. If either part shows significant damage, sourcing OEM replacements is recommended to maintain reliability. Always compare worn parts to new ones for a clear visual reference during inspection.
Debris is a silent killer of fuel pumps, often originating from contaminated fuel or degraded internal components. After disassembly, flush the housing and all components with a high-quality carburetor cleaner to remove sludge, rust, or particulate matter. Pay special attention to narrow passages and grooves where debris tends to accumulate. A clean pump not only ensures optimal performance but also extends the lifespan of the rebuilt unit. Finish the inspection by verifying that all components are free of obstructions and ready for reassembly or replacement.
Finally, document your findings during disassembly and inspection to guide the rebuilding process. Take photos or notes of component positions, wear patterns, and areas requiring attention. This documentation serves as a roadmap for reassembly and helps troubleshoot issues that may arise later. By meticulously disassembling and inspecting the OMC fuel pump, you lay the foundation for a successful rebuild, ensuring the pump operates efficiently and reliably once back in service.
