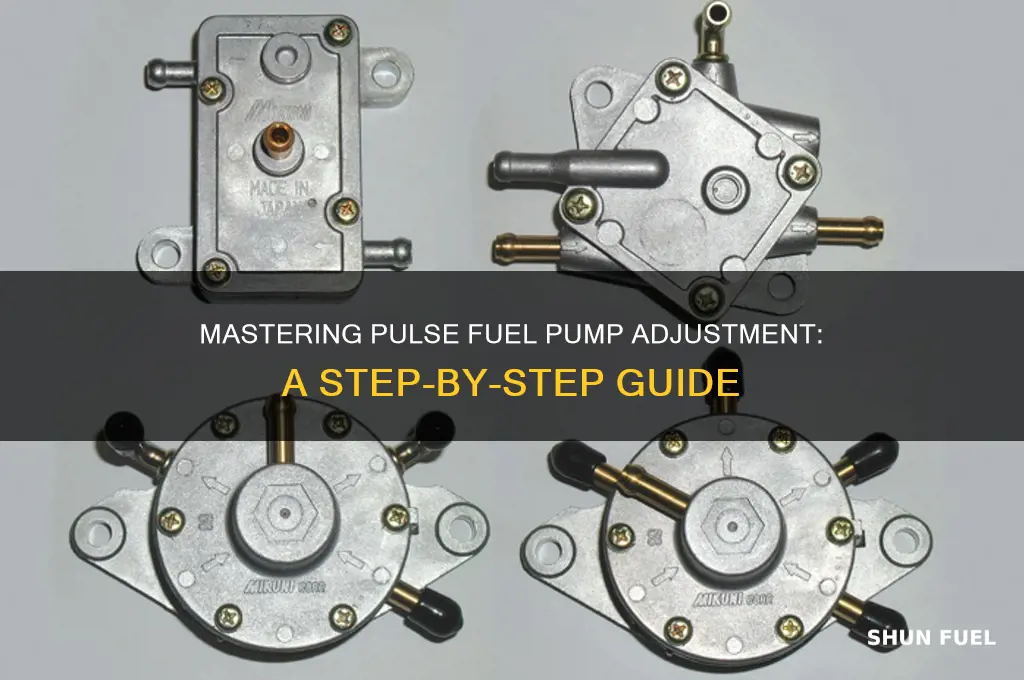

Adjusting a pulse fuel pump is a critical task for maintaining optimal fuel delivery in engines, particularly in older or carbureted systems. This process involves fine-tuning the pump’s diaphragm and linkage to ensure it operates in sync with the engine’s pulses, delivering the correct amount of fuel. Proper adjustment prevents issues like fuel starvation or over-rich mixtures, which can lead to poor performance or engine damage. The procedure typically requires basic tools and a systematic approach, including checking the pump’s mounting, verifying the diaphragm’s condition, and adjusting the linkage to achieve the correct stroke length. Understanding the pump’s mechanics and following manufacturer guidelines is essential for a successful adjustment, ensuring reliable and efficient fuel delivery.
| Characteristics | Values |
|---|---|
| Pump Type | Pulse Fuel Pump (Mechanical or Diaphragm Type) |
| Adjustment Purpose | Regulate fuel pressure and flow to the carburetor or fuel system |
| Tools Required | Screwdriver, Pressure Gauge, Wrench, Pliers |
| Adjustment Mechanism | Eccentric Arm or Adjustment Screw (varies by model) |
| Pressure Range | Typically 1-5 PSI (varies by vehicle and system requirements) |
| Adjustment Steps | 1. Locate the adjustment mechanism. 2. Connect a pressure gauge. 3. Turn the adjustment screw or eccentric arm to increase/decrease pressure. 4. Test and fine-tune until desired pressure is achieved. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and ensure the engine is off. |
| Common Issues | Over-pressurization, fuel leaks, or improper fuel delivery |
| Maintenance Frequency | Check during routine maintenance or when fuel delivery issues arise |
| Compatibility | Specific to carbureted engines or older fuel systems |
| Alternative Solutions | Replace the pump if adjustment does not resolve issues |
Explore related products
What You'll Learn
- Understanding Pump Components: Identify key parts like diaphragm, valves, and springs for precise adjustments
- Pressure Regulation Techniques: Adjust pressure settings using the regulator screw for optimal fuel delivery
- Diaphragm Inspection: Check for wear or damage; replace if necessary to ensure efficiency
- Valve Clearance Adjustment: Set proper clearance between valves and seats for smooth operation
- Testing and Fine-Tuning: Run pump, monitor performance, and tweak settings for consistent fuel flow
Understanding Pump Components: Identify key parts like diaphragm, valves, and springs for precise adjustments
The diaphragm in a pulse fuel pump is the heart of its operation, flexing with each pulse to create the necessary pressure differential. Made typically of durable materials like nitrile or neoprene, it must maintain elasticity to ensure efficient fuel transfer. Over time, this component can wear out, leading to reduced pump performance. Inspect it for cracks, tears, or thinning, and replace it if necessary. A faulty diaphragm not only compromises fuel delivery but can also cause leaks, posing a safety risk. Always ensure compatibility with the fuel type to prevent premature degradation.
Valves, both inlet and outlet, are critical for controlling fuel flow direction and preventing backflow. The inlet valve opens to allow fuel into the pump chamber, while the outlet valve ensures it exits under pressure. These valves often consist of a ball and seat mechanism, relying on precise sealing to function. If either valve becomes clogged or warped, fuel delivery will be inconsistent. Cleaning them with carburetor cleaner and a soft brush can restore functionality, but replacement may be required if damage is severe. Regular inspection, especially in systems prone to debris, can prevent unexpected failures.
Springs play a dual role in pulse fuel pumps: they return the diaphragm to its resting position and maintain valve tension. The diaphragm spring’s strength directly affects pump pressure, with weaker springs reducing output and stronger ones increasing it. Valve springs, on the other hand, ensure proper sealing without causing excessive wear. When adjusting, use a spring tester to measure tension and compare it to manufacturer specifications. Swapping springs of varying rates can fine-tune performance, but avoid extremes that could strain the pump. Always test adjustments incrementally to avoid over-stressing components.
Understanding the interplay between these parts is key to precise adjustments. For instance, a stiff diaphragm spring paired with worn valves may increase pressure but lead to leaks. Conversely, a weak spring with a clogged inlet valve will result in insufficient fuel delivery. Start by isolating each component’s condition through visual inspection and functional testing. Use a pressure gauge to measure output and compare it to baseline values. Adjust one part at a time, such as replacing the diaphragm first, then fine-tuning spring tension, and finally ensuring valves are clean and seated properly. This systematic approach ensures optimal performance without trial-and-error inefficiencies.
Practical tips include keeping a log of adjustments and component replacements for future reference. Store spare parts like diaphragms, valves, and springs in a clean, dry environment to prevent contamination. When disassembling the pump, label each part’s position to simplify reassembly. For systems exposed to ethanol-blended fuels, consider upgrading to ethanol-resistant materials for longevity. Lastly, always perform adjustments with the pump depressurized and the fuel system isolated to avoid accidents. Mastery of these components transforms pump adjustment from guesswork into a precise, repeatable process.
