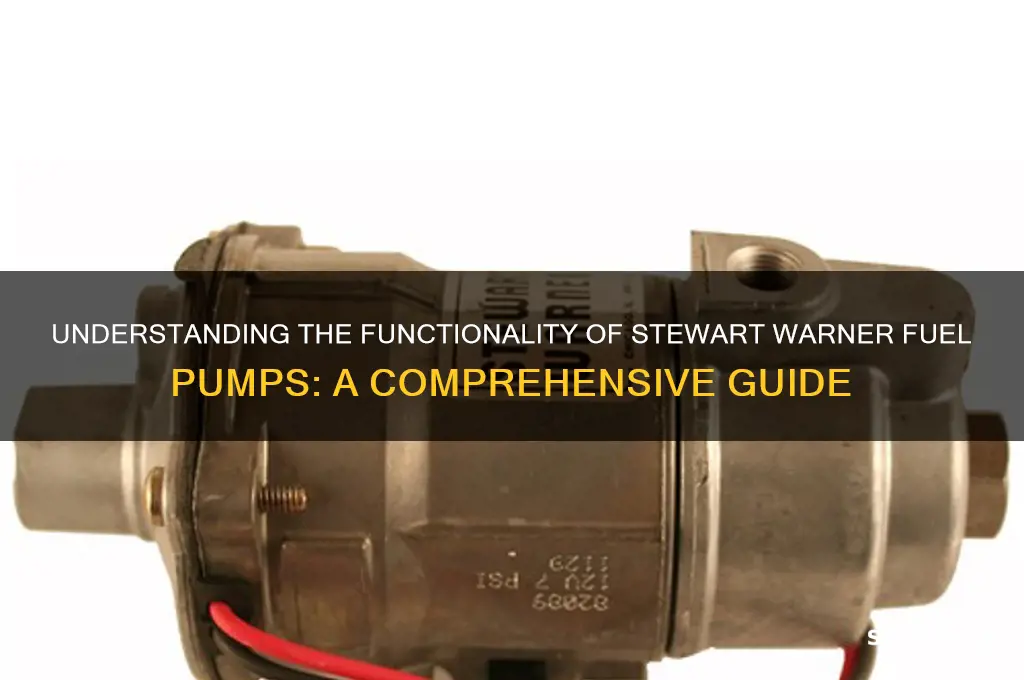

The Stewart Warner fuel pump is a crucial component in many internal combustion engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system. This mechanical pump operates by utilizing engine motion to create a vacuum, drawing fuel through a series of valves and diaphragms. As the engine runs, a camshaft-driven mechanism activates the pump, causing the diaphragm to flex and create suction, which pulls fuel into the pump chamber. The fuel is then pressurized and pushed through the outlet, ensuring a consistent and reliable supply to the engine. Understanding the inner workings of the Stewart Warner fuel pump is essential for maintaining optimal engine performance and addressing potential fuel delivery issues.
Explore related products
What You'll Learn
- Electric Motor Operation: Drives the pump mechanism to create fuel flow
- Diaphragm Function: Moves fuel through compression and expansion cycles
- Pressure Regulation: Maintains consistent fuel pressure for engine needs
- Inlet/Outlet Valves: Control fuel entry and exit in the pump
- Mounting & Installation: Ensures secure fit and proper fuel line connection
Electric Motor Operation: Drives the pump mechanism to create fuel flow
The Stewart Warner fuel pump relies on a robust electric motor to drive its pumping mechanism, ensuring a consistent and reliable fuel flow to the engine. This motor, typically a brushed DC type, is designed to operate within a specific voltage range, commonly 12V or 24V, depending on the vehicle’s electrical system. When the ignition is engaged, the motor receives power, initiating a rotational force that activates the pump’s internal components. This process is critical for maintaining optimal engine performance, as it directly influences the fuel delivery rate and pressure.
Analyzing the motor’s operation reveals its efficiency in converting electrical energy into mechanical motion. The rotor, driven by the magnetic field generated by the stator windings, spins at a controlled speed, typically between 3,000 to 6,000 RPM. This rotation is transferred to the pump’s diaphragm or impeller, creating a vacuum that draws fuel from the tank. The motor’s design includes features like thermal protection to prevent overheating during prolonged operation, ensuring longevity and reliability even in demanding conditions.
For practical application, understanding the motor’s role allows for better troubleshooting. If the pump fails to deliver fuel, check the motor’s power supply and connections first. A multimeter can verify voltage at the motor terminals, ensuring it falls within the operational range. Additionally, inspect the motor brushes for wear; excessive wear can reduce efficiency and require replacement. Regular maintenance, such as cleaning the motor housing and ensuring proper grounding, can prevent common issues like electrical shorts or reduced performance.
Comparatively, the Stewart Warner electric motor stands out for its simplicity and durability when contrasted with mechanical fuel pumps driven by the engine. Unlike mechanical pumps, which rely on engine motion and can falter at idle or low RPM, electric motors provide consistent performance regardless of engine speed. This makes them ideal for modern fuel injection systems that demand precise fuel delivery. However, their reliance on the vehicle’s electrical system means they are susceptible to battery drain or wiring faults, highlighting the need for a robust electrical setup.
In conclusion, the electric motor in a Stewart Warner fuel pump is a cornerstone of its functionality, driving the mechanism that ensures fuel reaches the engine efficiently. By understanding its operation, voltage requirements, and maintenance needs, users can maximize its lifespan and performance. Whether diagnosing issues or optimizing fuel delivery, the motor’s role is indispensable, making it a critical component in any fuel system.
Understanding Motorcycle Fuel Pumps: Function, Operation, and Maintenance Tips
You may want to see also
Explore related products
Diaphragm Function: Moves fuel through compression and expansion cycles
The diaphragm in a Stewart Warner fuel pump is the unsung hero of fuel delivery, operating through a precise dance of compression and expansion. This flexible membrane, typically made of durable materials like nitrile or neoprene, is the heart of the pump's mechanical action. When the diaphragm is drawn downward during the expansion phase, it creates a vacuum in the pump chamber, drawing fuel from the tank through the inlet valve. This process is akin to inhaling, where the pump prepares to deliver fuel to the engine. Understanding this mechanism is crucial for diagnosing issues like weak fuel flow or pump failure, as a compromised diaphragm can disrupt the entire cycle.
Consider the diaphragm's role as a rhythmic piston, but one that operates with flexibility rather than rigidity. During the compression phase, the diaphragm is pushed upward, forcing fuel out of the pump chamber and through the outlet valve toward the carburetor or fuel injection system. This cycle repeats with each revolution of the pump's drive mechanism, ensuring a steady and consistent fuel supply. For optimal performance, the diaphragm must maintain its elasticity and integrity, as wear or damage can lead to fuel leaks or insufficient pressure. Regular inspection and replacement of the diaphragm, especially in older pumps, can prevent costly engine issues.
A practical tip for maintaining diaphragm function is to monitor fuel pressure and flow rates. If pressure drops below the manufacturer’s specifications (typically 3-6 PSI for carbureted engines), it may indicate diaphragm fatigue or failure. Additionally, listen for unusual noises during pump operation, such as hissing or erratic pumping sounds, which can signal a torn or misaligned diaphragm. For DIY enthusiasts, replacing a diaphragm is a straightforward task: disconnect the pump, disassemble the housing, remove the old diaphragm, and install a new one, ensuring proper seating of valves and gaskets. Always use OEM parts for compatibility and reliability.
Comparing the diaphragm’s function to other fuel pump designs highlights its simplicity and efficiency. Unlike electric fuel pumps, which rely on motors and impellers, the Stewart Warner’s diaphragm design is driven mechanically, often by the engine’s camshaft or accessory belt. This makes it particularly suited for classic or carbureted vehicles where electrical systems are less complex. However, the diaphragm’s reliance on mechanical input means its performance is directly tied to engine speed, which can be a limitation in high-performance applications. For such cases, upgrading to an electric pump might be necessary, but for everyday driving, the diaphragm pump remains a reliable and cost-effective solution.
In conclusion, the diaphragm’s compression and expansion cycles are the cornerstone of the Stewart Warner fuel pump’s operation. By understanding this function, enthusiasts and mechanics can better maintain and troubleshoot their fuel systems. Whether you’re restoring a classic car or keeping a daily driver running smoothly, paying attention to the diaphragm’s condition ensures your vehicle’s fuel delivery remains efficient and reliable. Regular maintenance, coupled with an awareness of performance indicators, will keep this vital component functioning at its best.
Do Ford Ranger Models Require Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Pressure Regulation: Maintains consistent fuel pressure for engine needs
The Stewart Warner fuel pump's pressure regulation system is a critical component that ensures the engine receives a consistent and adequate fuel supply. This mechanism is designed to maintain a precise fuel pressure, typically between 3 and 6 psi (pounds per square inch), depending on the engine's requirements. Without this regulation, the engine's performance could suffer, leading to inefficient combustion, reduced power, or even damage.
Understanding the Pressure Regulation Process
Imagine a scenario where fuel pressure fluctuates wildly – at times, it's too high, causing excessive fuel consumption and potential engine flooding, while at other times, it's too low, resulting in a lean fuel mixture and potential engine misfires. The Stewart Warner fuel pump's pressure regulator acts as a vigilant gatekeeper, monitoring and adjusting fuel pressure to prevent these extremes. It achieves this by utilizing a diaphragm that responds to changes in fuel pressure, opening or closing a valve to maintain the desired pressure range.
Key Components and Their Functions
- Pressure Regulator Diaphragm: This flexible component is exposed to fuel pressure on one side and a spring-loaded reference pressure on the other. When fuel pressure exceeds the set point, the diaphragm deflects, opening a valve that bypasses excess fuel back to the tank.
- Adjustable Spring: In some Stewart Warner fuel pumps, an adjustable spring allows for fine-tuning of the reference pressure, enabling customization to specific engine needs. This feature is particularly useful for high-performance engines requiring precise fuel pressure control.
- Fuel Return Line: The excess fuel bypassed by the pressure regulator is routed back to the fuel tank via a dedicated return line, ensuring that the fuel system remains balanced and efficient.
Practical Considerations and Tips
When working with Stewart Warner fuel pumps, it's essential to consider the following:
- Compatibility: Ensure the fuel pump's pressure regulator is compatible with your engine's fuel injection system or carburetor. Mismatched components can lead to suboptimal performance or damage.
- Maintenance: Regularly inspect the pressure regulator and associated components for signs of wear, corrosion, or clogging. A malfunctioning regulator can cause erratic fuel pressure, affecting engine performance.
- Upgrades: For high-performance applications, consider upgrading to a fuel pump with an adjustable pressure regulator, allowing for precise tuning to match increased fuel demands.
By understanding the intricacies of the Stewart Warner fuel pump's pressure regulation system, enthusiasts and professionals alike can appreciate the importance of maintaining consistent fuel pressure for optimal engine performance. This knowledge enables informed decision-making when selecting, installing, and maintaining fuel system components, ultimately contributing to a more reliable and efficient engine.
Does the GP2200i Generator Include a Fuel Pump Feature?
You may want to see also
Explore related products
Inlet/Outlet Valves: Control fuel entry and exit in the pump
The Stewart Warner fuel pump relies on precise control of fuel flow, and this is where the inlet and outlet valves take center stage. These valves, typically made of durable materials like brass or stainless steel, act as gatekeepers, dictating when and how much fuel enters and exits the pump chamber. Imagine a one-way street for fuel: the inlet valve allows fuel to enter under low pressure from the tank, while the outlet valve permits pressurized fuel to exit towards the carburetor or fuel injection system. This unidirectional flow is crucial for maintaining consistent fuel delivery and preventing backflow, which could lead to engine performance issues.
Understanding Valve Operation:
The operation of these valves is a delicate dance of pressure differentials and spring tension. When the pump diaphragm moves downward, it creates a vacuum, causing the inlet valve to open and allow fuel to enter. As the diaphragm reverses its motion, compressing the fuel, the inlet valve closes, and the outlet valve opens, releasing the pressurized fuel. This cyclical process ensures a steady stream of fuel at the required pressure, essential for optimal engine combustion.
Material Matters:
The choice of valve material is not arbitrary. Brass, known for its corrosion resistance and machinability, is a common choice for fuel pump valves. However, in more demanding applications or for increased longevity, stainless steel valves are preferred due to their superior strength and resistance to wear. The valve seats, often made of a compatible material like Viton or Nitrile rubber, provide a tight seal, preventing fuel leakage and ensuring efficient pump operation.
Maintenance and Troubleshooting:
Regular maintenance is key to keeping these valves in top condition. Over time, dirt, debris, or varnish buildup can hinder valve movement, leading to reduced fuel flow or even pump failure. Periodic cleaning and inspection of the valves and seats are recommended, especially in older pumps or those operating in dusty environments. If you notice a drop in fuel pressure or engine performance, checking the valves for wear or debris should be a priority.
Upgrading for Performance:
For those seeking to enhance their fuel system's performance, upgrading the inlet and outlet valves can be a worthwhile consideration. High-performance valves with improved flow characteristics and more robust materials can handle increased fuel pressures and flow rates, benefiting engines with higher power outputs or modified fuel systems. However, it's crucial to ensure compatibility with the specific Stewart Warner pump model and the engine's requirements to avoid potential issues.
Bypassing W124 Fuel Pump Relay: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Mounting & Installation: Ensures secure fit and proper fuel line connection
Proper mounting and installation of a Stewart Warner fuel pump is critical to its performance and longevity. A secure fit ensures the pump operates efficiently, minimizing vibrations that can lead to premature wear or failure. The installation process begins with selecting the correct mounting location, ideally in an area with adequate ventilation and away from excessive heat sources. Use the provided mounting bracket or fabricate a custom one if necessary, ensuring it aligns with the pump’s mounting holes. Secure the pump with high-quality bolts and lock washers, tightening them to the manufacturer’s torque specifications to avoid damage or loosening over time.
Once mounted, the fuel line connection demands equal attention. Stewart Warner fuel pumps typically feature inlet and outlet ports designed for specific hose sizes, often 3/8-inch or 5/16-inch. Ensure the fuel lines are compatible and use appropriate clamps to secure them firmly. Over-tightening can damage the fittings, while under-tightening risks leaks. Apply thread sealant or Teflon tape to threaded connections to prevent fuel seepage, but avoid over-application, which can obstruct flow. Double-check all connections for tightness and inspect for leaks during initial operation.
A common mistake during installation is neglecting the pump’s orientation. Stewart Warner fuel pumps are often directional, with arrows indicating the flow direction. Installing the pump backward can result in inefficient fuel delivery or complete failure. Refer to the pump’s manual to confirm the correct orientation before finalizing the installation. Additionally, ensure the fuel lines are routed away from moving parts or hot surfaces to prevent damage or fire hazards.
For optimal performance, consider the electrical connection alongside the mechanical installation. Stewart Warner fuel pumps require a stable power supply, typically 12 volts, with a dedicated circuit and relay to handle the pump’s amperage draw. Use high-quality wiring and connectors, and ground the pump securely to the vehicle’s chassis. Poor electrical connections can cause intermittent operation or damage the pump’s internal components.
In summary, mounting and installation are not mere afterthoughts but foundational steps in ensuring a Stewart Warner fuel pump functions reliably. A secure fit minimizes vibrations, proper fuel line connections prevent leaks, and correct orientation guarantees efficient operation. By following these guidelines and paying attention to details, you can maximize the pump’s lifespan and maintain consistent fuel delivery for your vehicle or application.
Exploring the UK's Fuel Pump Network: How Many Are There?
You may want to see also
Frequently asked questions
A Stewart Warner fuel pump operates mechanically, driven by the engine's camshaft or timing gear. It uses a diaphragm and valve system to create suction, drawing fuel from the tank and delivering it to the carburetor or fuel injection system under pressure.
Stewart Warner is known for its mechanical fuel pumps, which are commonly used in carbureted engines. These pumps are reliable and designed to work with gasoline, providing consistent fuel delivery for older vehicles and classic cars.
While Stewart Warner fuel pumps are primarily designed for carbureted systems, some models can be adapted for use in fuel-injected engines. However, it’s essential to ensure the pump’s pressure and flow rate match the requirements of the fuel injection system for optimal performance.
