The LB7 Duramax engine is known for its common rail direct injection system, which offers benefits such as reduced emissions, quieter engines, and better efficiency. However, one of its major drawbacks is that its fuel injectors are prone to failure, which can be caused by internal clogs, leaks, or cracks that result in flow issues. While there are injector repair kits available, attempting to rebuild diesel fuel injectors yourself can be challenging and may lead to more problems than it solves. It is recommended to seek professional help or consider purchasing new or remanufactured injectors from reputable companies like Dieselogic, which offers rigorously tested and reliable injectors to enhance your driving experience.

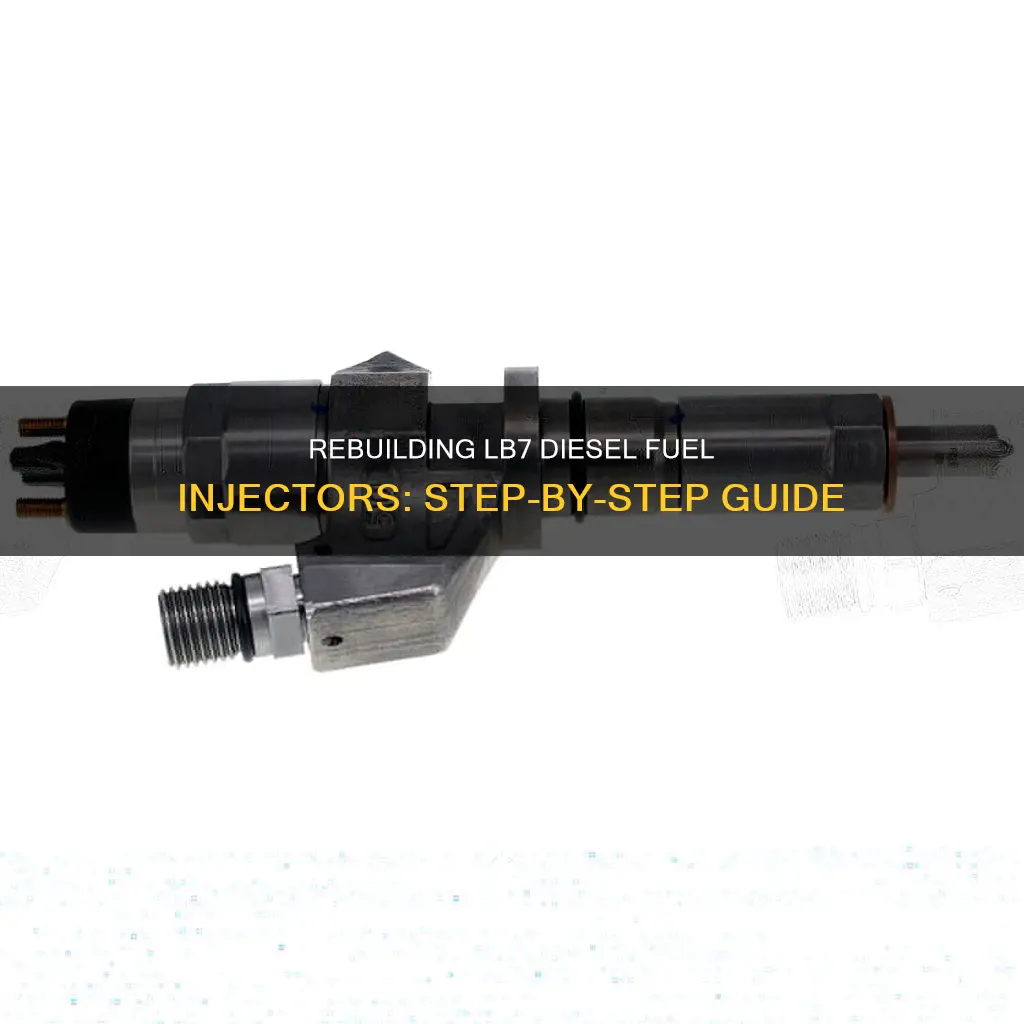

How to rebuild diesel fuel injectors LB7
| Characteristics | Values |
|---|---|
| Common issues | White smoke at idle, hazy exhaust smoke under light load, engine oil levels increasing due to fuel contamination, dripping at the nozzle, body leakage |
| Causes | Poor quality fuel, internal clogs, leaks and cracks |
| Tools | Fuel injector repair kit, wrench, new hard lines |
| Parts | Fuel filter, housing, lines, fuel injection control module (FICM), fuel rail, bolts, valve cover, injector cups, injector lines, nozzles |
| Tips | Use brand-new Bosch injectors, secure hold-downs with 37 ft-lb of torque, use gray RTV silicone for a leak-free seal, replace injector cups |
| Warnings | Rebuilding injectors is a complex process that can cause more problems than it fixes, requiring specialized tooling and tedious work |
| Alternatives | Purchase remanufactured injectors from Dieselogic, Xtreme Diesel Inc., Pensacola Diesel, or a reputable dealer |
Explore related products
What You'll Learn
The process of rebuilding diesel fuel injectors LB7
Step 1: Remove the Intake
The first step is to remove the intake to access the fuel filter, housing, and lines. This assembly needs to be removed to access the valve cover and the fuel injection control module (FICM).
Step 2: Remove Computer Hardware and Connections
Remove the necessary computer hardware and connections, such as the FICM, to expose the line from the common rail to the injector line. Ensure you only remove what is necessary to minimise the possibility of crossed hoses or lines during reassembly.
Step 3: Remove Upper and Lower Valve Covers
With the computer hardware out of the way, remove the upper and lower valve covers to access the injectors. This will expose the valvetrain and injectors for further work.
Step 4: Remove and Replace Injectors
Remove the faulty injectors and prepare to install the new or rebuilt injectors. It is recommended to use brand-new injectors from reputable brands to ensure quality and longevity. Place the new injectors in the injector cups and secure them with the specified torque settings.
Step 5: Reassembly
Begin the reassembly process, which is essentially the reverse of the disassembly. Install the fuel rail, along with any necessary new bolts. Reinstall the electrical connections and the lower valve cover. Clean and install the upper valve cover, using a suitable sealant to ensure a leak-free seal. Finally, reinstall all the remaining components that were removed during the process.
Alternative Options:
It is worth noting that injector repair kits are available for minor issues such as general wear and tear or leaks. However, for more complex issues and to ensure a reliable outcome, it is recommended to seek professional services or purchase new or remanufactured injectors from reputable companies.
Cleaning Fuel Injector Filters: DIY Guide and Tips
You may want to see also
Explore related products
Common problems with diesel fuel injectors LB7
LB7 injectors are responsible for delivering the precise amount of fuel into the engine cylinders. They are crucial for optimal engine performance, fuel efficiency, and emission control. However, they are prone to several issues, which can lead to significant problems if not addressed promptly.
One of the most common problems with LB7 injectors is premature failure due to various reasons. This can be caused by poor-quality fuel, which can contaminate the engine oil and lead to injector dripping or nozzle leakage, resulting in white smoke from the exhaust, especially noticeable at idle. Another factor contributing to premature failure is the accumulation of deposits due to operating conditions such as short runs, excessive idling, cool operating temperatures, and light engine loadings. These deposits can build up in the combustion chamber, exhaust spaces, turbocharger, and DPF filter, affecting the performance of the injectors.
Other signs that your LB7 injectors may be failing include rough idle, decreased fuel efficiency, loss of power, and excessive smoke from the exhaust. Additionally, contamination of the oil supply due to a faulty injector can also indicate potential injector problems.
To prevent issues with LB7 injectors, regular maintenance is key. This includes oil and filter changes, as well as regular inspection and cleaning of fuel filters to prevent contaminants from reaching the injectors. Using high-quality diesel fuel and additives can also improve injector performance and longevity. While some people opt for rebuilding their injectors, it is generally advised to seek professional help or purchase new injectors to ensure proper functioning and avoid further complications.
Running Water Through Fuel Injectors: Is It Possible?
You may want to see also
Explore related products
How to identify if diesel fuel injectors LB7 need rebuilding
LB7 injectors are responsible for delivering the precise amount of fuel into the engine cylinders. They play a vital role in maintaining the engine's emissions by achieving optimal combustion, resulting in lower emissions of harmful pollutants. While the LB7 injectors are designed to be durable and reliable, they are not immune to wear and tear over time.
- White smoke at idle: This is a common problem with the Duramax 6.6L LB7 engine. When an LB7 injector fails, it can dump excess fuel into the engine, often at very low speeds such as idle. As a result, the extra fuel seeps into the oiling system, filling the engine with diesel fuel, which then exits as white smoke from the exhaust.
- Hazy exhaust smoke under light load: This could indicate that there is unburned fuel in the engine, which is a sign of injector failure.
- Engine oil levels increasing: Contamination of the engine oil with diesel fuel can cause the oil level to rise. This is usually due to dripping at the nozzle or body leakage of the injector, allowing diesel fuel to mix with the engine oil.
- Rough engine sound: Even if there are no apparent issues with fuel economy, a "rough" engine sound could indicate that the injectors are not performing optimally.
- Loss of power: Failing injectors can result in a loss of power, as they are responsible for delivering the necessary fuel for engine operation.
- Poor fuel quality: Using low-quality diesel fuel can cause premature injector failure and affect the performance and longevity of the injectors.
- Lack of regular maintenance: Regular maintenance, such as oil and filter changes, and cleaning fuel filters, can help prevent contaminants from reaching the injectors and causing damage.
It is important to recognize these symptoms and take preventive measures to avoid costly repairs and maintain the performance and longevity of your vehicle.
Fuel Injector Failure: Smoke Signals and Symptoms
You may want to see also
Explore related products
Step-by-step guide to rebuilding diesel fuel injectors LB7
Rebuilding diesel fuel injectors LB7 can be a challenging task and it is recommended that you seek professional help or refer to a service manual. However, if you have specific expertise in this area, here is a step-by-step guide to help you rebuild your diesel fuel injectors LB7:
Step 1: Diagnose the problem
Typical signs of LB7 injector failure include dripping at the nozzle, causing white exhaust smoke, especially at idle. Another common issue is body leakage, which adds diesel fuel to the engine oil, causing the level to rise.
Step 2: Gather tools and replacement parts
You will need a repair kit that includes a new injector, fuel filter, lines, and other necessary tools. You can refer to online forums for recommendations on where to purchase reliable replacement parts.
Step 3: Remove the intake
Start by removing the intake, followed by the fuel filter, housing, and lines. This step is crucial to gaining access to the valve cover and the fuel injection control module (FICM).
Step 4: Remove computer hardware and electrical connections
Carefully remove the necessary computer hardware and electrical connections to expose the line from the common rail to the injector line. Ensure you only remove what is essential to minimize the risk of confusion during reassembly.
Step 5: Remove the valve covers
With the upper valve cover off, you will finally expose the LB7's valvetrain and injectors. Remove all four injectors on the passenger side of the engine.
Step 6: Install the new injectors
Place the new injectors in the injector cups and secure them with the recommended torque settings. Refer to the manufacturer's instructions for the specific torque value.
Step 7: Reassembly
Begin the reassembly process by installing the fuel rail and new bolts, if needed. Reinstall the electrical connections and the lower valve cover. Clean the upper valve cover and install it using a suitable sealant to ensure a leak-free seal.
Step 8: Test and start the engine
Once the reassembly is complete, test the engine to ensure it is functioning properly. Start the engine and check for any unusual sounds, smoke, or other issues.
It is important to note that rebuilding diesel fuel injectors LB7 is a complex task that requires mechanical knowledge and specialized tools. If you are unsure about any step or feel uncomfortable performing the repair, it is best to consult a professional mechanic to avoid further complications.
Modding Diesel Fuel Injectors: Is It Possible?
You may want to see also
Explore related products
Tips for rebuilding diesel fuel injectors LB7
Rebuilding diesel fuel injectors LB7 can be a challenging task and it is recommended that you seek professional help or get new ones. However, if you are attempting to rebuild them yourself, here are some tips to guide you through the process:
Diagnose the problem:
Before starting the rebuilding process, it is important to identify the issues with your LB7 injectors. Common problems include white smoke at idle, hazy exhaust smoke under light load, engine oil levels increasing due to fuel contamination, dripping at the nozzle, and body leakage.
Purchase a service manual:
The process of replacing LB7 injectors can be complex and vary from model to model. It is recommended to purchase a service manual specific to your vehicle's model year to guide you through the process.
Consider the risks of rebuilding:
Be aware that attempting to rebuild the injectors yourself may result in further issues. The likelihood of a DIY injector rebuild failing is quite high, and it should only be attempted by those with specific expertise. Getting a faulty injector or attempting a rebuild yourself can cause more problems than it fixes.
Use high-quality parts:
When replacing parts, opt for high-quality replacements. Poor-quality fuel and cheap parts can lead to premature injector failure. It is recommended to use brand-new Bosch injectors, as they have a reputation for durability.
Clean and test the injectors:
Before reassembling the engine, ensure that the injectors are thoroughly cleaned and tested for proper functioning. Contamination, such as rust, can affect the performance of the injectors.
Follow a step-by-step process:
The process of accessing and replacing the injectors involves multiple steps and can be time-consuming. Refer to online resources and follow a systematic approach, such as the one outlined by Xtreme Diesel Inc.'s owner, Jason Carrier, which includes removing the intake, fuel filter, housing, lines, computer hardware, and valve covers to access and replace the injectors.
Remember to exercise caution and seek professional assistance if you are unsure about any part of the process, as working with high-pressure injectors can be dangerous and challenging.
Fuel Injector Maintenance: To Clean or Not?
You may want to see also
Frequently asked questions
The biggest issue with LB7 injectors is their tendency to fail, often before the engine reaches 100,000 miles. When they fail, they can dump excess fuel into the engine, causing the engine to fill with diesel fuel. Common signs of a failing injector include white smoke at idle, hazy exhaust smoke under light load, and increasing engine oil levels due to fuel contamination.
Rebuilding LB7 injectors can be challenging and time-consuming, especially for those without specific expertise in this area. It requires specialised tooling and tedious work, and there is a high likelihood of failure. It is recommended to seek professional help or consider purchasing new or remanufactured injectors.
Before attempting to rebuild LB7 injectors, it is essential to have the right tools and knowledge. Consider purchasing a service manual for step-by-step instructions. Pay attention to small parts and ensure proper reassembly. Use a fuel injector repair kit for minor issues such as leaks and general wear and tear. For major issues, seek expert assistance or consider replacing the injectors with new or remanufactured ones.
