Rebuilding a Denso fuel injector is a task best left to professionals with the right education and experience. However, with the right tools and safety precautions, it is possible to do it yourself. Before beginning, ensure you have the necessary equipment, including a complete fuel injector rebuild kit, which typically includes O-rings, micro-basket filters, spacers, and retaining/pintle caps. It is also recommended to have an insulation tester, an Ohmeter, and a torque wrench. The first step is to check the electrical parts for any damage, followed by dismantling the injector, being careful not to lose any vital components. After cleaning the parts, they can be dried and reassembled, replacing any worn-out components as needed. Finally, the injector can be put back into its vice, and the new components should be secured with a torque wrench.

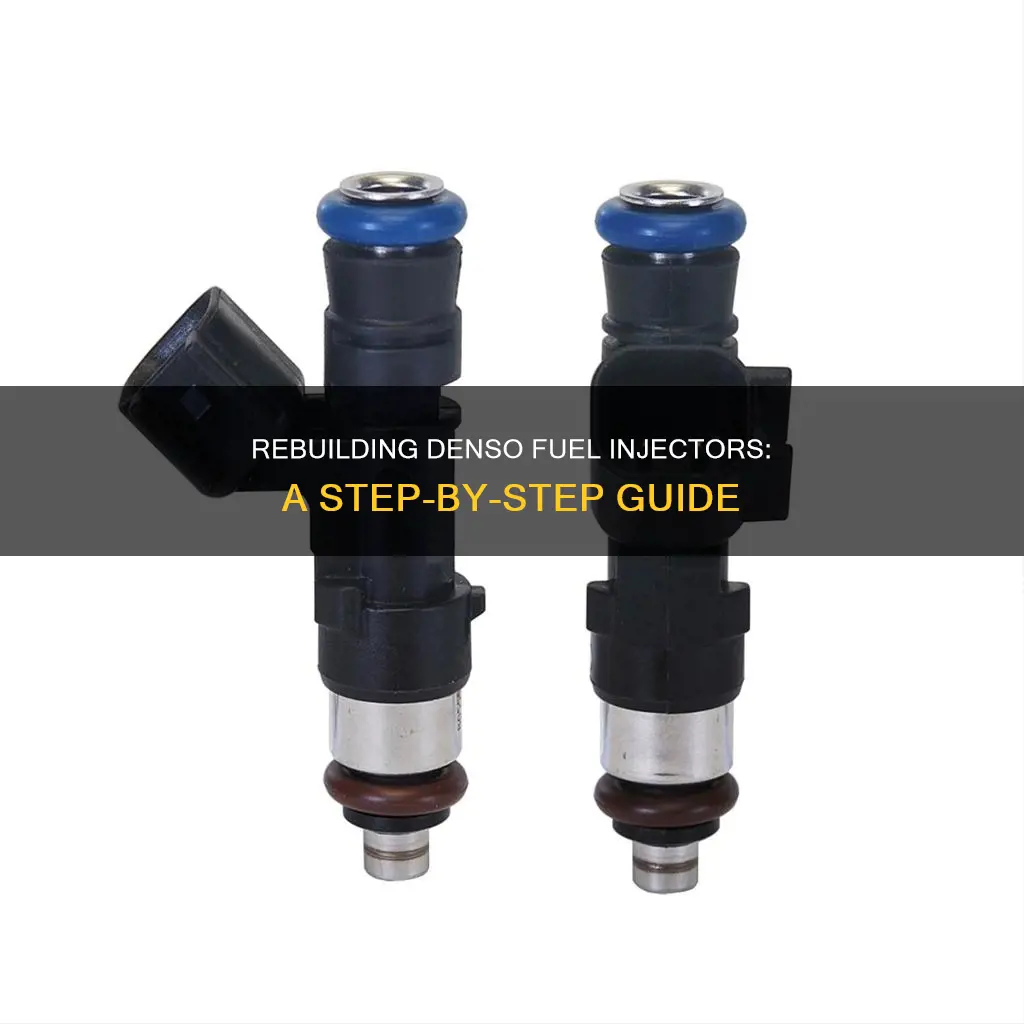

How to Rebuild a Denso Fuel Injector
| Characteristics | Values |
|---|---|
| Who can rebuild an injector? | A professional who is highly specialized in diesel injectors |
| First step | Check the electrical part and exclude potential damage in the coil/solenoid |
| Next steps | Dismantle the injector: the nozzle, the solenoid, the gasket, the ring nut, the control valve, and the butterfly |
| Cleaning | Wash the components with an ultrasound machine, except for the electric coil |
| Drying and assembling | Replace damaged or worn-out components, especially the nozzle and the control valve |
| Reassembling | Put the injector back in the vice, replace components in their seats, close the nuts with a torque wrench, and replace the old gasket |
| Final steps | Check the shims and replace if necessary, put the solenoid back on and close with the torque wrench |
| Kits | The Injector Shop 4-900 Fuel Injector Rebuild Kit for Denso Fuel Injectors, Fuel Injector Rebuild Service DIY Kit for DENSO Injectors with O-Rings, Micro/Basket Filters, and Filter Removal Tool |
Explore related products
![Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
What You'll Learn
Check the electrical parts
Checking and servicing the electrical parts of your Denso fuel injector is a crucial step in the rebuilding process. Denso fuel injectors are known for their world-class engineering and innovation in electronic fuel injection technology. To ensure optimal performance and efficiency, follow these detailed instructions:
Begin by inspecting the electrical connectors for any signs of damage, corrosion, or wear. Clean the connectors if necessary, ensuring no debris or residue is present. Look for any signs of melting or deformation, as this could indicate a more serious issue. Next, test the electrical resistance of the fuel injector using a multimeter. This will help you identify any potential issues with the electrical circuit. Compare your readings with the standard resistance values for Denso fuel injectors to determine if the injector is functioning correctly. You can find the standard resistance values in the injector's manual or by contacting the manufacturer.
If you encounter faulty or damaged electrical parts, it is essential to replace them with high-quality, compatible components. Ensure that any replacement parts are designed to meet or exceed the original equipment manufacturer (OEM) standards. This will guarantee that your rebuilt fuel injector performs at its best and maintains the superior atomization that Denso injectors are known for. Additionally, pay close attention to the O-rings and seals. Over time, these components can become worn out or damaged, leading to fuel leaks and poor engine performance. Replace them with high-quality O-rings, such as those made with FKM (Viton) material, which offer superior resistance to heat, chemicals, and oil.
To enhance the performance and longevity of your Denso fuel injector, consider investing in a rebuild kit specifically designed for Denso injectors. These kits typically include all the necessary filters, O-rings, spacers, and other components required for a complete service. By following these detailed instructions and paying close attention to the electrical components, you can ensure that your Denso fuel injector is functioning optimally, meeting rigorous emissions requirements, and delivering superior engine efficiency. Remember to consult a professional or a Denso service dealer if you encounter any complex issues during the rebuilding process.
Testing Fuel Injectors: Using Batteries to Diagnose Issues
You may want to see also
Explore related products
Dismantle the solenoid
To dismantle the solenoid of a Denso fuel injector, you will need to first remove the injector for repair. Due to the manufacturer's policy, spare parts or special tooling are not offered, so servicing will most frequently involve external cleaning, internal rinsing via the thermo-chemical method, and testing on test benches.
The key steps to dismantling the solenoid involve disassembling the solenoid and control valve, checking components for wear and damage, and measuring spindle sealing tolerance and air gap. The goal is to properly set the air gap and spindle sealing tolerance, which will affect injection delay and fuel delivery.
When dismantling, it is important to be aware of potential external and internal damage to the injector. External damage can result from improper assembly and disassembly, inconsistent practices with manufacturer recommendations, or the use of incorrect tools. Internal damage can be caused by poor fuel quality, contaminated fuel, or the use of fuels with inappropriate physicochemical properties.
After dismantling the solenoid, you will then be able to proceed with inspecting the components, assembling, and fine-tuning the injector.
Fuel Injector Maintenance: 2006 Honda CRV Edition
You may want to see also
Explore related products
Clean the components
Before beginning to rebuild a Denso fuel injector, it is important to clean all the components. Firstly, it is recommended to check the electrical parts to ensure that the potential damage is not electrical. This can be done using an insulation tester to check for electrical leakage and an Ohmmeter to measure electrical resistance.
Once the electrical parts are confirmed to be functioning correctly, the injector can be disassembled. Remove the solenoid carefully, ensuring that the valve and other shims are not lost or damaged. Take away the butterfly, checking the set screw condition, as its disassembly may cause the butterfly to deform, preventing proper closure with the valve seat.
Next, remove the gasket, the ring nut, and the control valve using the appropriate disassembly tools. It is important to check the condition of the control valve with a microscope to ensure it is not damaged, corroded, or worn. An incorrect positioning of the hemisphere will affect the entire assembly of the injector and its correct functioning, and may even cause the breakage of the valve seal.
After all the components have been extracted, they should be washed using an ultrasound machine, with the exception of the electric coil. The components should then be dried and assembled. It is important to note that, depending on the situation and condition of the injector, it may be necessary to replace damaged or worn-out components, particularly the nozzle and the control valve.
The Intricate Process of Manufacturing Fuel Injectors
You may want to see also
Explore related products
Reassemble the injector
Reassembling the injector is a delicate process and should only be performed by a professional with the right education, experience and passion.
Firstly, ensure all components are cleaned and dried thoroughly, except for the electric coil. Depending on the situation and the condition of the injector, it may be necessary to replace worn-out or damaged components. The most delicate components that are often in need of replacement are the nozzle and the control valve.
Now, put the injector back in the appropriate vice and replace the components in their seats. Start with the control valve, then the butterfly, ensuring the flat side of the hemisphere is facing towards the valve. Replace the old gasket to avoid leaks. Check the condition of the shims and replace them if necessary.
Next, put the solenoid back on and close it using a torque wrench, setting it at 25 Nm. Finally, close the nuts with the torque wrench set at 60 Nm.
It is important to note that during the reassembly, the hemisphere must be properly positioned in its seat, with the flat side facing towards the valve. This is crucial for the correct closure of the control chamber. Incorrect positioning will affect the entire assembly of the injector and its functioning, and may even cause the breakage of the valve seal.
Fuel Injector Issues: OBD2 Diagnosis and Solutions
You may want to see also
Explore related products
Replace damaged parts
When rebuilding a Denso fuel injector, it is important to replace any damaged parts with high-quality replacements. This will help restore the performance and efficiency of your fuel injectors, keeping your vehicle running at its best.
The first step is to assess the damage and identify the parts that need to be replaced. Common issues with fuel injectors include worn-out or leaking O-rings, microfilters, or seals. These issues can cause poor fuel economy, reduced engine performance, and even engine damage. It is important to use parts that are designed to meet or exceed OEM standards for form, fit, and function.
The O-rings are particularly important, as they provide a seal that prevents fuel leaks. It is recommended to use FKM (Viton) O-rings, which offer superior resistance to heat, chemicals, and oil, making them ideal for high-performance engines. The Viton O-rings are also compatible with a wide range of fluids, including acids, fuels, mineral and vegetable oils, greases, and various hydrocarbons.
Other parts that may need replacement include the microfilter baskets, upper injector grommets, and lower injector intake seal. When replacing these parts, it is important to follow the specific instructions provided by the manufacturer of the replacement parts. This will ensure that the new parts are installed correctly and function properly.
By replacing damaged parts with high-quality replacements, you can effectively rebuild your Denso fuel injector and restore its performance, efficiency, and reliability.
Opening a Fuel Injector: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The first step is to check the electrical parts for any damage or leaks.
If there is damage to the electrical parts, it is best to consult a professional diesel specialist.
If there is no damage, you can proceed to dismantle the injector, starting with the solenoid.
