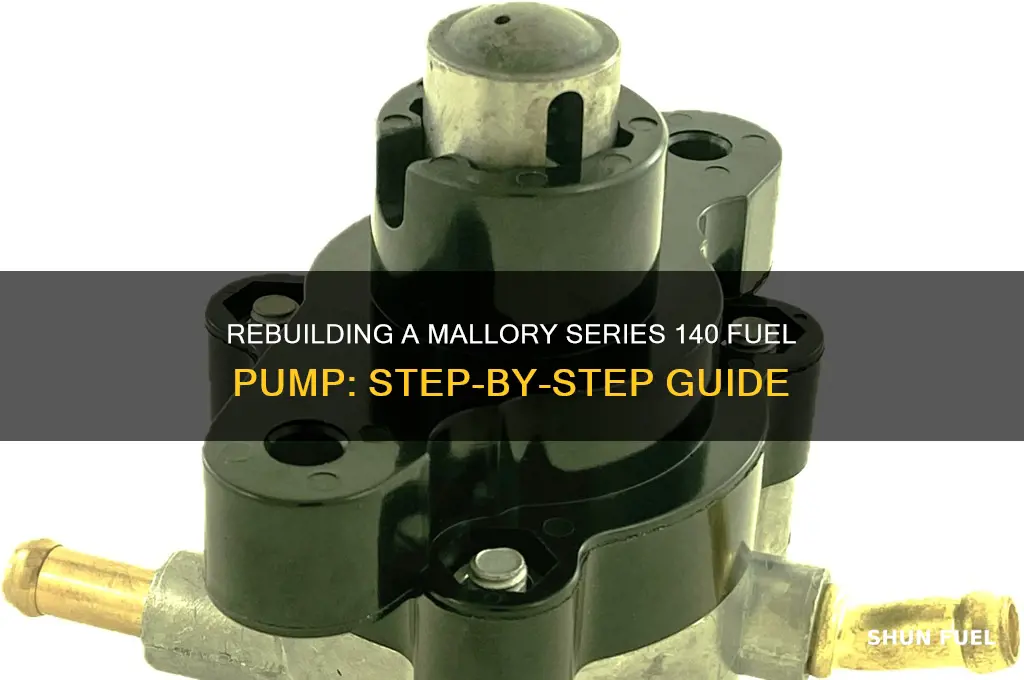

Rebuilding a Mallory Series 140 fuel pump is a straightforward yet essential task for maintaining optimal engine performance in classic or high-performance vehicles. This mechanical fuel pump, known for its reliability and efficiency, can wear over time due to constant use and exposure to fuel contaminants. The rebuild process involves disassembling the pump, inspecting and replacing worn components such as the diaphragm, valves, and gaskets, and reassembling it with precision. By following a step-by-step guide and using the correct tools, enthusiasts and mechanics can restore the pump to its original functionality, ensuring consistent fuel delivery and prolonging the life of the vehicle’s fuel system. Proper rebuilding not only saves costs compared to purchasing a new pump but also preserves the authenticity of classic engines.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Mallory Series 140 Mechanical Fuel Pump |
| Application | Carbureted engines (typically used in classic or performance vehicles) |
| Rebuild Kit Availability | Yes (includes diaphragm, valves, gaskets, and seals) |
| Tools Required | Screwdrivers, wrenches, pliers, gasket scraper, and a clean workspace |
| Disassembly Steps | 1. Remove pump from engine 2. Disconnect fuel lines 3. Remove mounting bolts 4. Disassemble pump body to access internals |
| Key Components to Inspect | Diaphragm, valves, gaskets, and seals for wear or damage |
| Cleaning Process | Use carburetor cleaner to remove debris and old fuel residue |
| Reassembly Steps | 1. Install new diaphragm and valves 2. Replace gaskets and seals 3. Reassemble pump body 4. Reinstall pump on engine |
| Testing Procedure | Prime the pump and check for leaks before reinstalling |
| Common Issues | Worn diaphragms, leaking gaskets, or clogged valves |
| Maintenance Tips | Regularly inspect for leaks and replace components as needed |
| Estimated Rebuild Time | 1-2 hours (depending on experience) |
| Cost of Rebuild Kit | $20-$50 (varies by supplier) |
| Alternative to Rebuilding | Replace with a new Mallory Series 140 fuel pump (~$100-$150) |
| Compatibility | Fits most carbureted engines with mechanical fuel pump setups |
| Performance Notes | Rebuilding can restore original fuel delivery efficiency |
Explore related products
What You'll Learn
- Disassembly Steps: Safely remove the pump, disassemble components, and inspect for wear or damage
- Cleaning Process: Clean all parts thoroughly, including diaphragm, valves, and housing, to ensure efficiency
- Replacement Parts: Identify and replace worn gaskets, diaphragms, or valves with genuine Mallory parts
- Reassembly Guide: Reassemble the pump in correct order, ensuring proper alignment and tightness of components
- Testing Procedure: Install the pump, test for leaks, and verify proper fuel delivery and pressure
Disassembly Steps: Safely remove the pump, disassemble components, and inspect for wear or damage
Before diving into the disassembly of a Mallory Series 140 fuel pump, it's crucial to understand that this process requires precision and care to avoid damage to the pump's delicate components. The first step in safely removing the pump is to disconnect the fuel lines and electrical connections, ensuring no residual pressure remains in the system. Use a wrench to loosen the fittings, but be cautious not to overtighten or strip the threads. A common mistake is neglecting to relieve the fuel pressure, which can lead to spills or accidents.
Disassembling the pump begins with removing the inlet and outlet fittings, followed by the pump cover. This exposes the internal components, including the diaphragm, valves, and springs. A systematic approach is essential here: start by carefully prying off the cover using a flathead screwdriver, taking care not to damage the gasket. Once removed, inspect the diaphragm for cracks, tears, or hardening, as these are common signs of wear. The valves and springs should also be examined for corrosion, bending, or fatigue, which can compromise the pump's efficiency.
As you proceed, compare the condition of each component against the manufacturer’s specifications or a known-good example. For instance, the diaphragm should be flexible and free of brittleness, while the springs should retain their tension. If any part shows significant wear or damage, replacement is necessary. Mallory offers specific rebuild kits for the Series 140, which include these components and ensure compatibility. Always refer to the pump’s service manual for torque specifications and assembly sequences to avoid errors.
A persuasive argument for thorough inspection during disassembly is the potential cost savings and reliability gains. By identifying worn parts early, you prevent further damage to the pump or the engine it serves. For example, a failing diaphragm can lead to fuel starvation, causing engine misfires or stalling. Similarly, worn valves may result in inefficient fuel transfer, reducing performance. Investing time in meticulous inspection now pays dividends in long-term functionality and safety.
In conclusion, the disassembly of a Mallory Series 140 fuel pump is a task that demands attention to detail and respect for the pump’s intricate design. By safely removing the pump, systematically disassembling its components, and conducting a thorough inspection, you ensure a successful rebuild. Practical tips, such as using the correct tools and referencing the service manual, further enhance the process. This approach not only extends the pump’s lifespan but also reinforces the importance of preventive maintenance in automotive systems.
