Replacing seals in a fuel furnace pump is a critical maintenance task to ensure efficient operation and prevent leaks that could lead to safety hazards or system failures. Over time, seals can degrade due to wear, heat, or exposure to fuel, compromising their ability to maintain a tight seal. To replace them, start by shutting down the furnace and allowing the system to cool completely for safety. Next, disconnect the pump from the power source and relieve any pressure in the system. Carefully disassemble the pump, following the manufacturer’s instructions, to access the seals. Remove the old seals, clean the housing thoroughly, and install the new seals, ensuring they are properly aligned and seated. Reassemble the pump, reconnect it, and test the system for leaks and proper functionality before resuming operation. Always refer to the specific model’s manual for detailed guidance and safety precautions.
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear protective gear (gloves, safety glasses); ensure furnace is turned off and cooled down; relieve pressure from the system; disconnect power supply. |
| Tools Required | Wrenches, screwdrivers, pliers, seal puller, new seals (specific to pump model), lubricant (e.g., silicone grease), cleaning solvent, rags, gasket scraper. |
| Steps to Replace Seals | 1. Drain fuel and disconnect pump from system. 2. Disassemble pump housing to access seals. 3. Remove old seals using a seal puller or gasket scraper. 4. Clean seal surfaces thoroughly with solvent. 5. Apply lubricant to new seals and install them properly. 6. Reassemble pump housing and reconnect to system. 7. Test for leaks and ensure proper operation. |

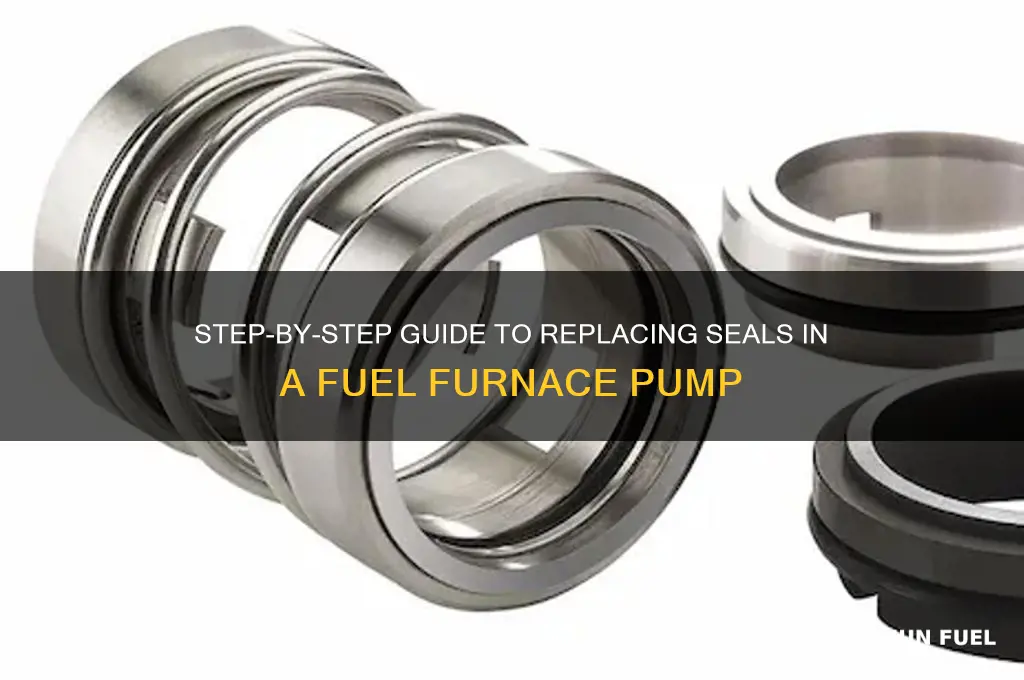

| Seal Types | Mechanical seals, lip seals, O-rings (specific to pump model). |
| Common Issues | Leaks, worn-out seals, improper installation, debris in seal area. |
| Maintenance Tips | Regularly inspect seals for wear; keep the pump and surrounding area clean; follow manufacturer’s guidelines for replacement intervals. |
| Manufacturer Guidelines | Refer to the pump’s manual for specific seal sizes, torque specifications, and installation instructions. |
| Environmental Considerations | Dispose of old seals and cleaning solvents properly; avoid spills during the process. |
| Professional Assistance | If unsure or encountering complex issues, consult a certified HVAC technician. |
Explore related products
What You'll Learn
- Gather Tools and Materials: Prepare wrenches, screwdrivers, new seals, gloves, safety goggles, and lubricant for the process
- Shut Down the System: Turn off power, relieve pressure, and ensure the furnace is completely cooled down
- Disassemble the Pump: Remove pump housing, inspect components, and carefully extract the old seals
- Install New Seals: Clean surfaces, apply lubricant, and position new seals securely in place
- Reassemble and Test: Reattach housing, restore power, and check for leaks or proper operation
Gather Tools and Materials: Prepare wrenches, screwdrivers, new seals, gloves, safety goggles, and lubricant for the process
Before diving into the intricate task of replacing seals in a fuel furnace pump, it's crucial to assemble the right tools and materials. This preparatory step is not merely about gathering items but about ensuring efficiency, safety, and precision throughout the process. Start by collecting a variety of wrenches, including adjustable and fixed sizes, to accommodate different bolts and fittings. Screwdrivers, both flathead and Phillips, are essential for removing panels and accessing internal components. The cornerstone of this repair, however, is the set of new seals, which must be compatible with your specific pump model—double-check the manufacturer’s specifications to avoid mismatches.
Safety should never be an afterthought. Gloves, preferably nitrile or latex, protect your hands from fuel residue and sharp edges, while safety goggles shield your eyes from debris or accidental splashes. Lubricant, such as silicone-based grease, is often overlooked but plays a vital role in easing seal installation and ensuring longevity. A small brush or cloth can aid in applying lubricant evenly, preventing excess buildup that could attract dirt or interfere with pump operation.
Consider the workspace itself as part of your preparation. Lay out all tools and materials in a clean, well-lit area, ideally on a tray or mat to keep them organized and within reach. If working in a confined space, a portable work light can illuminate hard-to-see areas. For those new to this task, labeling tools or creating a checklist can prevent mid-repair confusion. Remember, a cluttered workspace not only slows you down but also increases the risk of errors or accidents.
Finally, take a moment to inspect your tools and materials for wear or damage. Worn wrenches can slip, causing injury or component damage, while cracked goggles offer little protection. If your lubricant has expired or separated, its effectiveness may be compromised. Investing a few minutes in this pre-repair audit can save hours of frustration and ensure a smooth, successful seal replacement. Preparation is the foundation of any repair, and in this case, it’s the difference between a job well done and a costly mistake.
Understanding the Yamaha G1 Fuel Pump: Functionality and Operation Explained
You may want to see also
Explore related products
Shut Down the System: Turn off power, relieve pressure, and ensure the furnace is completely cooled down
Before attempting any maintenance on a fuel furnace pump, prioritizing safety is paramount. Shutting down the system is the critical first step, a non-negotiable prerequisite to prevent accidents and ensure a safe working environment. This process involves three distinct actions: turning off the power, relieving pressure, and allowing the furnace to cool completely. Each step is a crucial layer of protection, mitigating risks associated with electrical hazards, pressurized systems, and extreme temperatures.
Can a Faulty Fuel Pump Trigger a Diagnostic Trouble Code?
You may want to see also
Explore related products
Disassemble the Pump: Remove pump housing, inspect components, and carefully extract the old seals
The first step in replacing the seals in a fuel furnace pump is to disassemble the pump, a process that requires precision and care to avoid damaging internal components. Begin by securing the power supply to the furnace to ensure safety. Locate the pump housing, typically a cylindrical or rectangular casing secured with bolts or screws. Use the appropriate tools—such as a socket wrench or screwdriver—to remove these fasteners, keeping track of their positions for reassembly. Gently lift the housing, being mindful of any gaskets or O-rings that may stick or tear. This initial step sets the stage for a thorough inspection and seal replacement.
Once the housing is removed, inspect the internal components for wear, debris, or damage. Pay close attention to the impeller, shaft, and bearings, as these parts often bear the brunt of wear and tear. Use a flashlight to illuminate hard-to-see areas, and consider taking photos for reference during reassembly. If you notice excessive corrosion, cracks, or misalignment, these issues may need addressing before proceeding. This inspection not only ensures the pump’s overall health but also helps identify potential causes of seal failure, such as misalignment or contamination.
Extracting the old seals demands patience and the right tools. Seals are typically located around the shaft or within grooves, secured by pressure or retaining rings. Use a seal puller or a flat-head screwdriver to carefully pry out the seals, taking care not to scratch the shaft or surrounding surfaces. If the seals are stubborn, apply gentle heat with a hairdryer or heat gun to soften the material, but avoid overheating to prevent damage. Clean the grooves and surrounding areas with a lint-free cloth and solvent to remove old lubricant, debris, or residue, ensuring a clean surface for the new seals.
Throughout this process, prioritize safety and organization. Work in a well-ventilated area to avoid inhaling fumes from cleaning solvents, and wear gloves to protect your hands from sharp edges or chemicals. Keep removed parts and fasteners organized in labeled containers or trays to streamline reassembly. By methodically disassembling the pump, inspecting its components, and carefully extracting the old seals, you lay the groundwork for a successful seal replacement that restores the pump’s efficiency and reliability.
Step-by-Step Guide to Assembling a Fuel Pump Efficiently and Safely
You may want to see also
Explore related products
Install New Seals: Clean surfaces, apply lubricant, and position new seals securely in place
Before installing new seals in a fuel furnace pump, meticulous preparation of the surfaces is critical. Residual debris, old lubricant, or corrosion can compromise the seal’s integrity, leading to leaks or premature failure. Use a clean, lint-free cloth and a mild solvent like isopropyl alcohol to wipe down the sealing surfaces thoroughly. Avoid harsh chemicals that could degrade the seal material. Inspect the area for burrs or rough spots; lightly sanding or filing these imperfections ensures a smooth, even contact point for the new seal.
Lubrication is a step often overlooked but essential for prolonging seal life and ensuring proper function. Apply a thin, even coat of a compatible lubricant—such as silicone-based grease for high-temperature applications—to both the seal and the mating surface. Over-application can attract debris, while too little may cause friction and wear. Aim for a layer no thicker than a business card edge. For mechanical seals, focus lubricant on the dynamic surfaces where movement occurs, while static seals benefit from a light coating around the entire perimeter.
Positioning the new seal requires precision and patience. Align the seal with the groove or housing, ensuring it sits squarely without twisting or misalignment. Use a seal installation tool or a blunt, non-metallic object to gently press the seal into place, avoiding damage to its edges. For larger seals, work gradually around the circumference, pressing evenly to prevent warping. Once installed, verify the seal’s seating by lightly tugging or rotating it; it should remain firmly in place without excessive play or resistance.
A common mistake is rushing the installation process, which can lead to improper seating or damage. Take your time to double-check alignment and fit before finalizing the assembly. If the pump has multiple seals, address them one at a time, ensuring each is correctly installed before moving on. After installation, perform a dry run of the pump to confirm the seals are functioning without leaks or unusual noises. This step-by-step approach minimizes errors and maximizes the longevity of your fuel furnace pump’s sealing system.
Fuel Pump Count in a 2001 Chevy Tahoe Explained
You may want to see also
Explore related products
Reassemble and Test: Reattach housing, restore power, and check for leaks or proper operation
With the new seals in place, the final steps are critical to ensuring your fuel furnace pump operates efficiently and safely. Reassembling the pump requires precision and care to avoid damaging components or creating future issues. Begin by aligning the housing with the pump body, ensuring all mounting holes are accessible. Secure the housing using the original bolts, tightening them in a diagonal pattern to maintain even pressure. Over-tightening can warp the housing, so use a torque wrench if available, following the manufacturer’s specifications (typically 20-30 ft-lbs for smaller pumps). If torque values aren’t provided, tighten until snug, then give each bolt an additional quarter turn.
Once the housing is reattached, restore power to the pump by reconnecting the electrical supply. Before flipping the switch, double-check that all wires are properly seated and insulated to prevent short circuits. After powering up, observe the pump’s initial operation. Listen for unusual noises, such as grinding or squealing, which could indicate misalignment or debris in the system. Allow the pump to run for 5-10 minutes to stabilize, then inspect for leaks at the seal points and connections. Use a flashlight and a rag to wipe away any residual fuel, making it easier to spot drips or seepage.
Testing for proper operation involves more than just checking for leaks. Monitor the pump’s pressure gauge to ensure it reaches the manufacturer’s specified range (typically 10-20 PSI for residential furnaces). If the pressure is low, the seals may be improperly seated, or there could be air in the system. In this case, shut off the pump, bleed the system by loosening the bleed valve until a steady stream of fuel emerges, then retighten and retest. If the pressure remains low, disassemble the pump and inspect the seals for damage or misalignment.
A practical tip for leak detection is to use a soapy water solution. Apply it to suspected leak points while the pump is running; bubbles will form where fuel escapes. This method is especially useful for pinpointing small leaks that might otherwise go unnoticed. If leaks persist after rechecking the seals, consider consulting a professional, as the issue may lie in the pump’s internal components rather than the seals themselves.
In conclusion, reassembling and testing a fuel furnace pump after seal replacement is a meticulous process that demands attention to detail. By following these steps—reattaching the housing securely, restoring power cautiously, and thoroughly checking for leaks and proper operation—you can ensure the pump functions reliably and safely. Remember, a well-maintained pump not only extends the life of your furnace but also prevents costly fuel wastage and potential hazards.
Do Husqvarna Riding Mowers Have Fuel Pumps? Find Out Here
You may want to see also
Frequently asked questions
Common signs include fuel leaks around the pump, reduced pump efficiency, unusual noises during operation, or visible wear and damage to the seals during inspection.
You’ll typically need a wrench or socket set, screwdrivers, pliers, a seal puller (if necessary), and a torque wrench. Always refer to the manufacturer’s manual for specific tools.
First, disconnect power and relieve system pressure. Disassemble the pump according to the manual, carefully remove the old seals, clean the area, and install new seals with proper lubrication. Reassemble and test for leaks.
