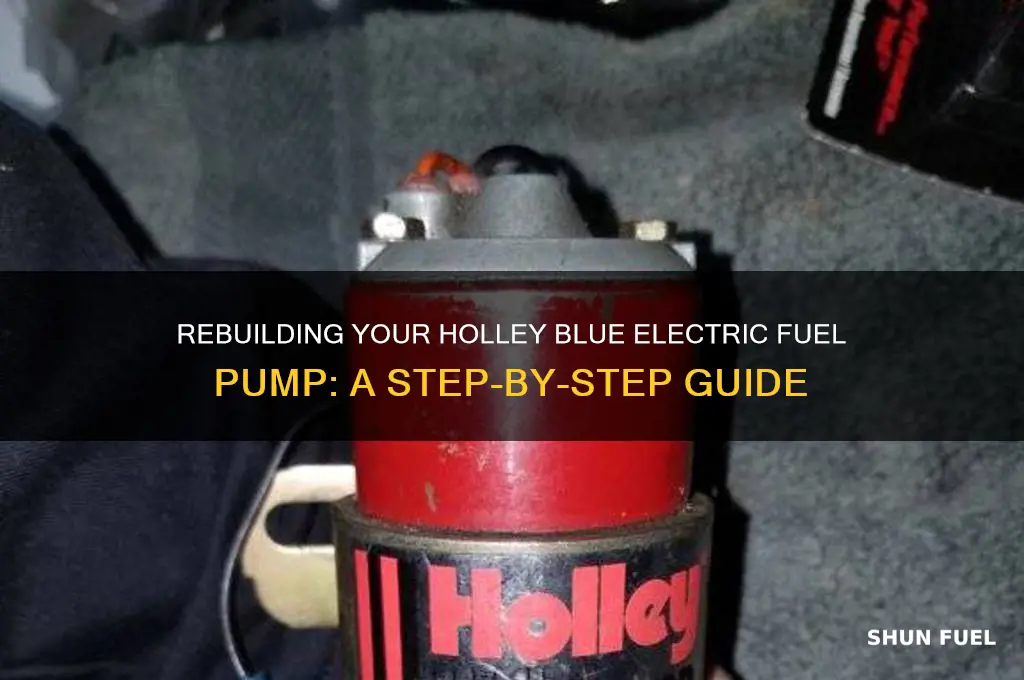

Rebuilding a Holley Blue Electric Fuel Pump is a straightforward process that can restore its efficiency and reliability, ensuring optimal fuel delivery to your engine. This task requires basic mechanical skills, a few specialized tools, and a rebuild kit specific to the Holley Blue model. The process typically involves disassembling the pump, inspecting and replacing worn components such as the diaphragm, valves, and gaskets, cleaning internal parts to remove debris, and reassembling the unit with precision. Properly following the manufacturer’s instructions and torque specifications is crucial to avoid leaks or malfunctions. By rebuilding the pump, you can save costs compared to purchasing a new one while extending the lifespan of this critical component in your fuel system.
Explore related products
What You'll Learn
- Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
- Gasket and Seal Replacement: Replace worn gaskets, O-rings, and seals to ensure leak-free operation
- Motor and Armature Check: Test motor functionality, inspect armature for damage or corrosion
- Reassembly and Lubrication: Reassemble pump, apply proper lubrication to moving parts
- Testing and Installation: Bench-test pump, install securely, verify fuel flow and pressure
Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
Before diving into the rebuild process, disassembly and inspection are critical steps to identify the root cause of any issues with your Holley Blue electric fuel pump. This phase ensures you replace only the necessary parts, saving time and money. Start by disconnecting the power supply to the pump to prevent accidental activation. Place the pump on a clean, flat surface, and gather your tools: a set of screwdrivers, pliers, and a clean cloth.
Step-by-Step Disassembly: Begin by removing the inlet and outlet fittings, taking care not to damage the O-rings. Next, unscrew the pump cover using a Phillips screwdriver. Lift the cover gently to expose the internal components, including the rotor, impeller, and check valve. Carefully remove the rotor assembly by pulling it straight out, avoiding any twisting that could misalign the components. Inspect the check valve for debris or damage, as this is a common area for clogs.
Inspection Techniques: Hold each component up to a bright light to check for cracks, warping, or excessive wear. Run your fingers along surfaces to detect rough spots or burrs that could hinder performance. Pay special attention to the impeller blades, as even minor damage can reduce fuel flow efficiency. For the rotor, ensure the magnet is securely seated and shows no signs of corrosion. If debris is present, use compressed air or a soft brush to clean the components thoroughly.
Cautions and Practical Tips: Avoid using harsh chemicals or abrasive materials during inspection, as these can damage sensitive parts. If you encounter stubborn debris, soak the components in a mild solvent like carburetor cleaner for 15–20 minutes before gently wiping them clean. Keep track of the order in which parts are removed to simplify reassembly. Take photos or notes during disassembly to document the pump’s original configuration, especially if you’re working with an older model where replacement parts may vary.
