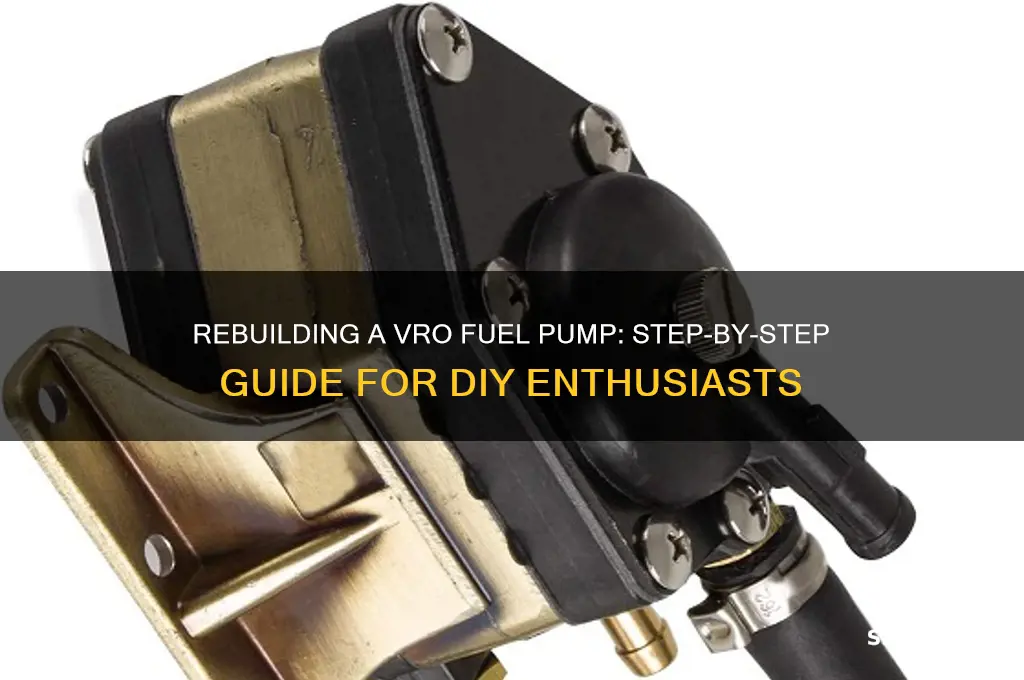

Rebuilding a VRO (Variable Ratio Oil) fuel pump is a critical task for maintaining optimal performance and efficiency in two-stroke engines, particularly in marine and small engine applications. Over time, these pumps can wear out due to debris, corrosion, or normal use, leading to inconsistent fuel-to-oil ratios and potential engine damage. The process involves disassembling the pump, inspecting its components for wear or damage, replacing worn parts such as diaphragms, seals, or check valves, and reassembling it with precision. Proper cleaning and lubrication are essential to ensure smooth operation, while recalibrating the pump to the correct ratio is crucial for engine longevity. Following a detailed guide or manufacturer’s instructions ensures accuracy, and testing the pump post-rebuild confirms it functions reliably before reinstallation.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers (various sizes), wrenches, pliers, cleaning solvent, new gaskets, O-rings, diaphragm kit (if needed), lubricant (silicone grease) |
| Safety Precautions | Work in a well-ventilated area, wear safety goggles, avoid open flames or sparks, disconnect fuel lines and relieve pressure before disassembly |
| Disassembly Steps | 1. Relieve fuel pressure, 2. Disconnect fuel lines, 3. Remove pump cover screws, 4. Lift off cover and inspect diaphragm, 5. Remove inlet and outlet valves, 6. Clean all components with solvent |
| Inspection Points | Check diaphragm for tears or wear, inspect valves for damage or debris, ensure O-rings and gaskets are intact, verify pump body for cracks |
| Replacement Parts | Diaphragm kit, O-rings, gaskets, valves (if damaged) |
| Reassembly Steps | 1. Lubricate O-rings and gaskets, 2. Install new diaphragm and valves, 3. Reattach pump cover, 4. Tighten screws evenly, 5. Reconnect fuel lines |
| Testing Procedure | Prime the pump, check for leaks, ensure proper fuel flow and pressure |
| Common Issues | Leaks, weak fuel flow, diaphragm failure, clogged valves |
| Maintenance Tips | Regularly clean fuel lines, inspect pump for wear, replace parts as needed, use clean fuel to prevent debris buildup |
| Compatibility | Specific to VRO (Variable Ratio Oiling) fuel pumps used in 2-stroke engines (e.g., outboard motors, chainsaws) |
Explore related products
What You'll Learn
- Disassembly Process: Safely remove pump components, noting their positions for accurate reassembly later
- Cleaning Parts: Thoroughly clean all parts to ensure optimal performance and longevity
- Inspecting Components: Check for wear, damage, or defects; replace faulty parts as needed
- Reassembly Steps: Follow precise instructions to reassemble the pump correctly, ensuring tight seals
- Testing the Pump: Verify functionality by testing fuel flow and pressure before reinstallation
Disassembly Process: Safely remove pump components, noting their positions for accurate reassembly later
The disassembly of a VRO (Variable Ratio Oil) fuel pump is a delicate operation that demands precision and attention to detail. Begin by ensuring the pump is depressurized and disconnected from the fuel system to eliminate any risk of spillage or injury. Using the appropriate tools, such as a wrench or socket set, carefully loosen and remove the pump’s inlet and outlet fittings. Take note of the orientation of each fitting, as their positions are critical for proper reassembly and functionality. Labeling or photographing these components before removal can serve as a visual reference, ensuring accuracy during the rebuild process.
As you proceed, focus on the pump’s internal components, starting with the diaphragm and rocker assembly. Gently pry the diaphragm cover off, being mindful not to damage the sealing gasket beneath. Inspect the diaphragm for signs of wear, such as cracks or thinning, and replace it if necessary. The rocker arm, which regulates fuel flow, should be removed next. Observe its alignment with the pump’s linkage system, as improper reassembly can lead to inefficient fuel delivery. A small mark or notation on the pump housing can help you realign it correctly later.
Next, address the pump’s metering rod and spring assembly, which control the fuel-to-oil ratio. Carefully unscrew the retaining cap and slide out the rod, taking note of its depth and position relative to the pump body. The spring’s tension is calibrated to specific ratios, so measure its free length (e.g., 1.25 inches for a 50:1 mix) and document it for reference. Mishandling or misplacing these components can compromise the pump’s accuracy, so store them in a clean, organized manner.
Throughout the disassembly, cleanliness is paramount. Wipe each component with a lint-free cloth and avoid exposing them to contaminants like dirt or grease. For pumps with adjustable settings, such as those found in marine applications, record the initial adjustment positions (e.g., a 3/4 turn for a 100:1 ratio) to ensure consistent performance post-rebuild. By methodically documenting and handling each part, you not only safeguard the pump’s integrity but also streamline the reassembly process, reducing the likelihood of errors.
Finally, consider the pump’s age and wear patterns when deciding which components to replace. Diaphragms and gaskets, for instance, are prone to degradation over time and should be replaced every 2–3 years or 300 hours of operation, depending on usage. While disassembly may seem straightforward, it is a critical step that lays the foundation for a successful rebuild. Approach it with patience and methodical care, treating each component as a piece of a complex puzzle that requires precise placement to function optimally.
Step-by-Step Guide to Replacing a Honda Accord Fuel Pump Relay
You may want to see also
Explore related products
Cleaning Parts: Thoroughly clean all parts to ensure optimal performance and longevity
Disassembled fuel pump components are often caked in varnish, gum, and debris—residues that compromise flow, clog passages, and accelerate wear. Cleaning isn’t optional; it’s the foundation of a rebuild. Use a solvent specifically designed for carburetor or fuel system cleaning, such as Berryman Chem-Dip or a similar product. Immerse parts in the solvent for 20–30 minutes, then agitate gently with a non-metallic brush to dislodge stubborn deposits. Avoid wire brushes or abrasive tools that could scratch surfaces, creating sites for future buildup. Rinse thoroughly with clean solvent or low-pressure air to ensure no residue remains.
Consider the material of each part when cleaning. Rubber diaphragms, O-rings, and seals can degrade when exposed to harsh chemicals or high heat. For these components, use a mild soap solution or a specialized rubber-safe cleaner. Inspect seals for brittleness or cracking—if they’re compromised, replace them immediately. Metal parts, on the other hand, can withstand stronger solvents but should be dried promptly to prevent oxidation. A parts washer with a built-in filtration system can streamline this process, ensuring contaminants are trapped rather than redeposited.
Ultrasonic cleaners offer a high-tech alternative for intricate parts like valves or metering needles. These devices use high-frequency sound waves to dislodge particles from microscopic crevices, achieving a level of cleanliness manual methods can’t match. Pair the ultrasonic cleaner with a carburetor-safe solvent for best results. After cleaning, inspect all passages and orifices with a bright light or magnifying glass to confirm they’re clear. Even a pinhead-sized obstruction can disrupt fuel flow, leading to erratic engine performance.
Drying parts properly is as critical as the cleaning itself. Residual moisture can dilute fuel, corrode metal, or damage internal seals. Use compressed air to blow out passages and cavities, ensuring no liquid remains trapped. For thorough drying, place parts in a well-ventilated area or use a low-heat oven (no higher than 150°F) for 15–20 minutes. Avoid open flames or high-heat sources that could warp components. Once dry, handle parts with clean gloves to prevent oil or dirt from skin transferring to the surfaces.
Finally, reassemble the pump only after confirming every part is spotless and undamaged. Contaminants left behind can negate the entire rebuild effort, leading to premature failure or poor engine operation. Think of cleaning as an investment in the pump’s longevity—a few extra minutes now can save hours of troubleshooting later. A meticulously cleaned fuel pump not only performs better but also extends the interval before the next rebuild, making it a cornerstone of preventive maintenance.
Understanding the Mechanics of a Fuel Pump Nozzle Operation
You may want to see also
Explore related products
Inspecting Components: Check for wear, damage, or defects; replace faulty parts as needed
A meticulous inspection of each component is the cornerstone of a successful VRO fuel pump rebuild. Overlooking even minor wear or damage can lead to premature failure, compromising engine performance and safety. Begin by disassembling the pump according to the manufacturer’s instructions, laying out parts in an organized manner to track their positions. Use a bright, focused light source and magnifying glass to scrutinize surfaces for cracks, corrosion, or deformities. Pay particular attention to the diaphragm, as it is prone to fatigue and tears, especially in pumps over five years old or with high operational hours. A single pinhole leak here can disrupt fuel delivery, leading to erratic engine behavior.
The inlet and outlet valves are another critical area. Inspect the valve seats for scoring or pitting, which can cause fuel leaks and reduce pump efficiency. Run your fingernail gently across the valve surfaces; any roughness indicates the need for replacement. Similarly, examine the check balls for flat spots or chips, as these imperfections can prevent proper sealing. If the pump has been exposed to ethanol-blended fuels, check for accelerated wear due to the solvent properties of ethanol, which can degrade rubber and plastic components faster than traditional gasoline.
When assessing the pump housing and cover, look for warping or damage around the mounting surfaces. Even a slight misalignment can lead to air infiltration, reducing the pump’s ability to maintain pressure. Use a straightedge or feeler gauge to verify flatness, ensuring the mating surfaces are within manufacturer tolerances (typically less than 0.002 inches). If the housing is cracked or excessively worn, replacement is non-negotiable, as repairs in this area are rarely effective or safe.
Finally, evaluate the spring tension in the pump mechanism. A weakened or broken spring will fail to actuate the diaphragm properly, leading to insufficient fuel flow. Use a spring tester to verify tension against the manufacturer’s specifications, typically ranging from 2.5 to 4.5 pounds for VRO pumps. If the spring is out of tolerance, replace it immediately. Remember, the goal is not just to restore function but to ensure reliability under the full range of operating conditions, from idle to wide-open throttle.
In summary, a systematic inspection of each component is essential for a robust rebuild. By identifying and addressing wear, damage, or defects early, you can avoid costly downstream issues and extend the pump’s service life. Always prioritize precision and thoroughness, as the fuel system’s integrity directly impacts engine performance and longevity.
Does the Mitsubishi A92 Have a Fuel Pump Fuse?
You may want to see also
Explore related products
Reassembly Steps: Follow precise instructions to reassemble the pump correctly, ensuring tight seals
Reassembling a VRO (Variable Ratio Oil) fuel pump demands precision, as even a minor misalignment can compromise its functionality. Begin by laying out all components in the order they were removed, ensuring no parts are missing or damaged. Refer to the manufacturer’s manual or a detailed diagram to confirm the correct sequence of reassembly. Each component, from the diaphragm to the inlet and outlet ports, must align perfectly to maintain the pump’s efficiency. Skipping this step or relying on memory can lead to costly errors, such as leaks or improper fuel-to-oil mixing ratios.
Tightening seals is a critical aspect of reassembly, as loose connections are a common cause of pump failure. Use a torque wrench to secure bolts and fittings to the manufacturer’s specified values—overtightening can warp components, while undertightening results in leaks. Apply a thin layer of thread sealant or Teflon tape to threaded connections, particularly those exposed to fuel or oil, to enhance sealing. Inspect O-rings and gaskets for wear; replace them if they show signs of degradation. Properly seated seals ensure the pump operates at optimal pressure, preventing fuel contamination and maintaining engine performance.
The reassembly process should include a systematic check of moving parts to ensure smooth operation. After securing all static components, manually rotate the pump’s drive shaft to verify that the diaphragm moves freely without binding. This step confirms that internal components are correctly aligned and not obstructed by debris or misaligned parts. If resistance is detected, disassemble the pump and inspect for foreign objects or misalignment before attempting reassembly again. This precautionary measure prevents premature wear and potential damage during operation.
Finally, perform a bench test before reinstalling the pump to ensure it functions as intended. Connect the pump to a fuel source and operate it at varying speeds, monitoring for leaks, unusual noises, or inconsistent fuel flow. Adjust the oil-to-fuel ratio according to the engine’s requirements, typically using the pump’s calibration screws. A successful bench test not only confirms the pump’s readiness but also saves time by identifying issues before the pump is mounted on the engine. Precision in reassembly and thorough testing are the cornerstones of a reliable VRO fuel pump rebuild.
Installing a Fuel Pump Relay in a 1995 Toyota Camry: Step-by-Step Guide
You may want to see also
Explore related products
Testing the Pump: Verify functionality by testing fuel flow and pressure before reinstallation
Before reinstalling a rebuilt VRO fuel pump, testing its functionality is crucial to ensure it operates correctly and prevents potential engine issues. This step involves verifying both fuel flow and pressure, which are critical for the pump’s performance. Begin by connecting the pump to a fuel source and a pressure gauge, ensuring all fittings are secure to avoid leaks. Activate the pump and observe the fuel flow for consistency and any signs of obstruction, such as sputtering or uneven delivery. Simultaneously, monitor the pressure gauge to confirm it reaches the manufacturer’s specified range, typically between 2.5 and 3.5 psi for most outboard engines.
A common mistake during testing is overlooking the importance of simulating real-world conditions. To achieve accurate results, run the pump at various speeds or loads, mimicking the engine’s operational demands. For example, if the pump struggles to maintain pressure under higher loads, it may indicate a faulty diaphragm or check valve, requiring further inspection. Additionally, use a clear fuel line during testing to visually inspect for air bubbles, which can disrupt fuel delivery and skew pressure readings.
For those without access to specialized tools, a DIY approach can still yield reliable results. Fill a clean container with fuel and attach it to the pump’s inlet, then run the outlet line into a graduated cylinder to measure flow rate. Compare the volume delivered per minute against the pump’s rated capacity, typically found in the engine’s service manual. While this method doesn’t measure pressure, it effectively identifies flow restrictions or blockages. Pair this with a manual pressure check using a basic gauge for a comprehensive assessment.
Finally, consider the environmental factors that can affect testing accuracy. Perform the test in a well-ventilated area, away from open flames or sparks, to mitigate safety risks. Temperature can also influence fuel viscosity and pump performance, so aim for a moderate ambient temperature, ideally between 60°F and 80°F. By meticulously testing fuel flow and pressure under controlled conditions, you ensure the rebuilt VRO pump is ready for reinstallation, minimizing the risk of failure once back in service.
How Long Does a Jeep Fuel Pump Typically Last?
You may want to see also
Frequently asked questions
To rebuild a VRO fuel pump, you will typically need a socket set, wrenches, screwdrivers, pliers, a torque wrench, and possibly a pump rebuild kit, which includes new seals, O-rings, and other wear components.
Start by relieving fuel system pressure and disconnecting the pump from the engine. Remove the mounting bolts, then carefully disassemble the pump by removing the cover, diaphragm, and internal components. Take note of the order and orientation of parts for reassembly.
Common signs include inconsistent fuel delivery, engine stalling, reduced performance, or visible leaks around the pump. If the pump is making unusual noises or failing to maintain proper pressure, it may require rebuilding or replacement.
