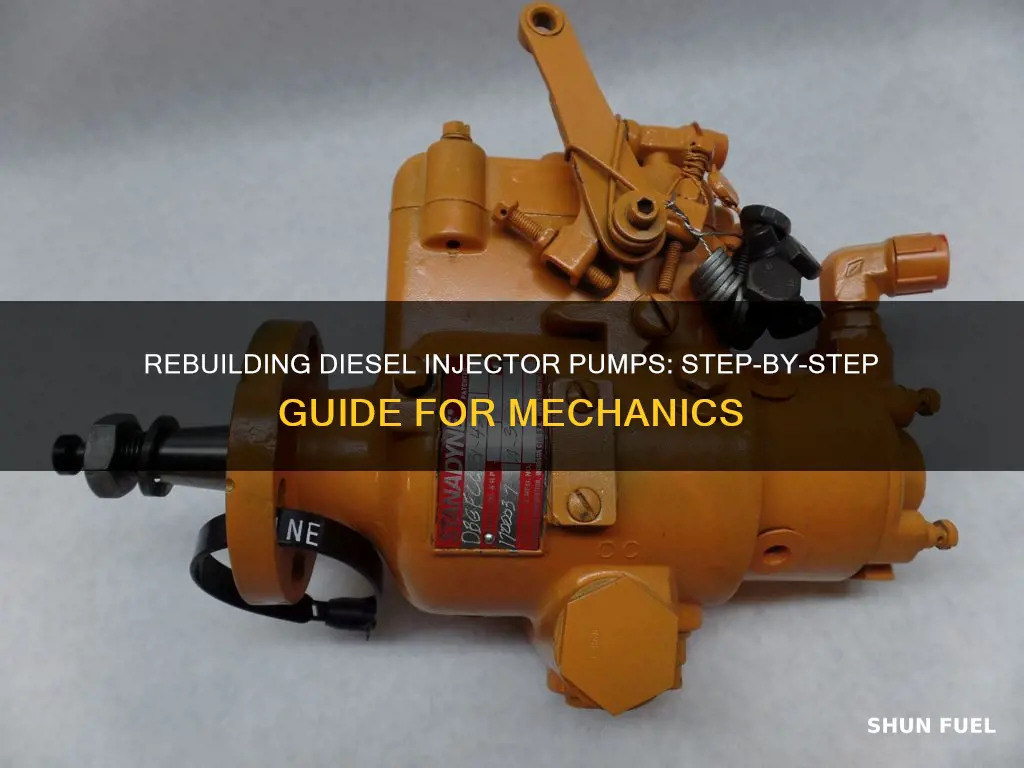

How to Rebuild a Diesel Fuel Injector Pump
| Characteristics | Values |
|---|---|
| Difficulty | Not recommended for those without a professional background |
| Rebuild kits | None available for fuel injection pumps |
| Procedure | Lengthy, multiple steps, requiring caution and attention |
| Cost | Varies depending on the part that needs to be changed |
| Common issues | Erosion, fuel contamination, inconsistent maintenance, overheating |
| Tools | Torque wrenches, pliers, wrenches, screwdrivers, calipers, ultrasonic cleaners, sealing compounds, and a fuel injection pump rebuild kit |
| Cleaning | Petrol brush, water-soluble degreaser, vacuum cleaner, brass wire brush, diesel, light-colored rags |
| Testing | Bleeding the fuel system, observing fuel injection pattern |
Explore related products
What You'll Learn
Common causes of diesel injector pump issues
The diesel injection pump is a vital component of a diesel engine's performance, ensuring the correct fuel amount is delivered at the right time. However, these pumps can fail over time and may need to be rebuilt or replaced. Here are some common causes of diesel injector pump issues:
Fuel Contamination
Dirt, water, or debris can contaminate the fuel, damaging the internal components and pump wall. This can lead to engine misfires, decreased fuel efficiency, and rough running. To prevent contamination, regularly replace the fuel filters and drain water separators, and use high-quality fuel from reputable sources.
Inconsistent or Lack of Maintenance
Regular maintenance and servicing are crucial for the long-term health of diesel injector pumps. Fuel filters should be changed frequently to avoid unforeseen pump failures. Additionally, keeping the fuel tank at least a quarter full is essential. Driving with a low fuel level can cause air to be pushed through the system instead of fuel, wearing out the fuel pump bearings and leading to inadequate fuel pressurization.
Overheating
Excessive heating can degrade the fuel pump's seals, reducing overall performance and causing leaks. Overheating can be caused by insufficient lubrication, excessive load, or inadequate cooling. It can also lead to the degradation of other components, such as the EGR system.
Erosion and Wear
The internal components of a fuel injector pump, including delivery valves, plungers, and seals, are subject to erosion and wear due to constant exposure to high-pressure fuel. This can result in poor fuel atomization, uneven combustion, black smoke emissions, rough idling, and reduced engine power. Regular testing and servicing by a qualified technician are recommended to address these issues promptly.
Faulty Timing
Problems with the timing of the fuel transfer process can lead to engine misfires and performance issues. Faulty O-rings or ball seats are often the cause of timing issues.
Diagnosing Faulty Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Tools and techniques for rebuilding
Rebuilding a diesel fuel injector pump is a complex procedure that requires a variety of tools and techniques. It is important to note that this process is not recommended for those without a professional background.
The first step in rebuilding the pump is to carefully separate it from the engine. This involves disconnecting mounting bolts, electrical connections, and fuel lines. A tidy and organised workspace is crucial to ensure the pump's integrity.
Once the pump is removed, the next step is to disassemble it. Special tools, such as torque wrenches, pliers, wrenches, screwdrivers, calipers, and sealing compounds, may be required for this step to prevent damage and ensure proper reassembly. The pump's rotor should be rinsed with clean fuel or calibrating oil, and any worn or damaged parts should be replaced. This includes hard parts like delivery valves, plungers, and seals, which are prone to deterioration over time.
After disassembly and cleaning, the pump's components should be inspected for any issues. Common causes of pump failure include erosion and wear and tear on moving parts. It is important to consult a manual for the specific injector pump to ensure that all necessary repairs and adjustments are made.
Finally, the pump can be reassembled. This involves carefully installing the components in the correct order and making any necessary adjustments, such as setting the roller-to-roller dimension within the rotor. The pump should then be tested to ensure optimal performance. This includes bleeding the fuel system, priming the fuel lines, and checking for unusual noises or leaks during engine operation.
Fuel Injector Failure: Smoke Signals and Symptoms
You may want to see also
Explore related products
Step-by-step guide to rebuilding
Note: It is not recommended to rebuild a diesel injector pump without a professional background. This is a lengthy procedure that requires caution and attention at every step.
Step 1: Disassembly
- Disconnect the pump from the engine by removing mounting bolts, electrical connections, and fuel lines.
- Clean the pump's exterior thoroughly to prevent contamination during the rebuild.
- Mark the positions of all components and store small parts securely, noting the orientation and order of disassembly.
- Inspect each part for wear, corrosion, or damage, especially delivery valves, plungers, and seals.
- Measure component tolerances and compare them to manufacturer specifications to determine if replacements are needed.
Step 2: Reassembly
- Rinse the pump's rotor with clean fuel or calibrating oil, then secure it in a holding fixture.
- Use an extractor tool to install a delivery valve, a valve spring, and a stop to the rotor bore.
- Tighten the screw within the delivery valve to the proper torque using the extractor tool.
- Remove the rotor from the fixture and submerge it in clean calibrating oil.
- Install the pumping plungers onto the rotor and test their movement.
- Reassemble the leaf spring and leaf spring screw, adding them to the rotor.
- Set the roller-to-roller dimension within the rotor by consulting the manufacturer's manual for the specific injector pump.
- Install a gasket and a cover on the injection pump, tightening the end cap and head-locking screws.
- Remove the injector pump from the holding fixture and place it into its final seal.
Step 3: Testing and Reinstallation
- Perform a bench test to evaluate the pump's performance, including fuel delivery, timing, and pressure.
- Consult the manufacturer's manual for precise adjustments to the governor, pump settings, fuel delivery rate, and timing.
- Conduct a final assessment to verify that all components are functioning correctly and have been reassembled properly.
- Reinstall the rebuilt pump onto the engine, reconnecting mounting bolts, electrical connections, and fuel lines.
- Prime the fuel system to remove air from the lines and ensure consistent fuel delivery to the injectors.
- Start the engine and listen for unusual noises or check for leaks. A successful rebuild will result in smooth engine operation.
Using Multiple Fuel Injector Cleaners: Is It Effective?
You may want to see also
Explore related products
Testing the rebuilt pump
Testing a rebuilt diesel fuel injector pump is crucial to ensure your vehicle's engine runs smoothly and efficiently. Here are the steps you can follow to test the rebuilt pump:
Locate the Fuel Rail and Attach the Fuel Pressure Gauge:
Find the fuel rail where the injectors are joined and connect the fuel pressure gauge to the fuel rail's test port.
Start the Engine and Read the Pressure:
Turn on the engine and let it run. Compare the gauge reading to the vehicle's manual specifications. Low pressure could indicate a faulty fuel pump, a clogged fuel filter, or issues with the injectors.
Prepare the Injector Tester and Connect it to the Injector:
Follow the manufacturer's instructions to set up the injector tester. Attach the tester to the first injector.
Simulate Fuel Delivery and Measure Fuel Output:
Activate the tester to simulate fuel delivery for a set period. Collect and measure the amount of fuel delivered.
Repeat for All Injectors and Analyze Results:
Repeat the above process for each injector and compare the fuel outputs. Identical outputs across all injectors indicate that they are functioning correctly.
Additional Testing Considerations:
There are other factors to consider when testing the rebuilt pump's performance, including:
- Phase Timing: Ensure precise timing for optimal fuel injection. Test the pump's timing so that fuel is delivered at the exact moment required for efficient combustion.
- High and Low Idle: Assess the pump's ability to maintain proper fuel delivery at both high and low engine RPMs to ensure a smooth and stable idle.
- Leak Testing: Perform a thorough leak test to identify any internal or external leaks that can compromise fuel pressure and engine performance.
- Fuel Delivery: Evaluate the pump's ability to deliver the correct amount of fuel at various engine speeds, from cranking to full load RPM.
- Listen for Warning Signs: Pay attention to any unusual sounds, such as sputtering when reaching top speeds, which could indicate injector misfires or insufficient fuel delivery.
- Check Engine Light: Modern vehicles often have self-diagnosing capabilities. If the check engine light comes on, use an onboard diagnostic (OBD) tool to check for specific error codes.
Remember, working on a diesel fuel injector pump can be dangerous due to the high-pressure environment. Always prioritize safety and consider seeking professional services if you're unsure about any part of the testing process.
Carb Fuel Injectors: How Do They Work?
You may want to see also
Explore related products
Troubleshooting and maintenance
Troubleshooting:
- Diagnose the Problem: Before starting any repair work, accurately diagnose the issues with your diesel injection pump. Common symptoms of a faulty pump include a loss of power, inconsistent engine performance, or black smoke from the exhaust.
- Disassemble the Pump: Carefully disassemble the injection pump following the manufacturer's guidelines or a service manual. This step requires caution as improper disassembly can lead to blockage or damage to the pump.
- Clean the Components: Use a suitable solvent or cleaner specifically designed for diesel injectors to clean each component. Remove any buildup of dirt, debris, rust, or fuel deposits. Avoid aggressive solvents that could damage the parts. Ensure your workspace is clean and free from debris to maintain the integrity of the rebuilt pump.
- Inspect and Replace Parts: During the cleaning process, you may identify worn or damaged parts. Replace these with new, high-quality components recommended by the manufacturer or a trusted specialist.
Maintenance:
- Regular Check-ups: Take your vehicle to a reputable service center for regular check-ups and maintenance. This can include cleaning or tuning up the fuel injector pump to prevent major issues.
- Fuel Filter Replacement: One of the most important maintenance tasks is regularly replacing the fuel filter. It is recommended to replace it every 40,000 miles to ensure fuel purity and smooth flow. This will help prevent fuel contaminants from blocking the fuel injection system.
- Maintain Fuel Level: Always maintain a minimum of 25% fuel in your tank. This reduces the chance of air and other contaminants from being drawn into the fuel pump, helping to keep it lubricated and functioning optimally.
- Bleeding the Fuel System: Bleeding the fuel system can help you check the status of your diesel engine injection pump. This process involves removing the injector, connecting a steel fuel line, and opening the bleeder screws to allow fuel to flow out and air to escape.
- Testing and Verification: After any maintenance or repair work, test the engine to ensure it runs smoothly and efficiently. Monitor fuel consumption and engine performance to ensure they are within normal parameters. Listen for unusual noises and check for leaks to identify any potential issues.
While rebuilding a diesel injection pump can be a complex and lengthy procedure, with proper training, patience, and access to the right tools, it can be a cost-effective alternative to pump replacement. However, if you are uncomfortable performing these tasks, it is always best to seek the help of a specialized technician or mechanic.
Fuel Injector Installation Guide for 97 F350 Trucks
You may want to see also
Frequently asked questions
Rebuilding a diesel fuel injector pump can be a cheaper alternative to replacing the pump. This is especially true if your vehicle is old and not worth much.
The most common issues with diesel fuel injector pumps are fuel contamination, inconsistent maintenance, and overheating. Fuel contamination occurs when dirt and water enter the fuel and damage the internal components and pump wall. Inconsistent maintenance, such as infrequent changes of the fuel filter, can also lead to unforeseen pump failures. Overheating degrades the pump's seals, reducing performance and causing leaks.
You can test the status of your diesel fuel injector pump by bleeding the fuel system. First, remove the injector from the engine and connect the steel fuel line to the injector. Point the injector away from the engine and fill the tank with fuel. Locate the bleeder screw at the top of the fuel filter valve and loosen it. Wait until the fuel stops flowing and no bubbles appear, then retighten the screw. Repeat this process for any other bleeder screws.
The process of rebuilding a diesel fuel injector pump involves disassembly, cleaning, inspection, and reassembly, followed by rigorous testing. It is important to note that rebuilding an injector pump is a complex and lengthy procedure that requires caution and attention to detail. It may be beneficial to consult a manual or seek professional assistance to avoid costly errors.
Yes, here are some tips:
- Clean the pump and all tools before disassembly.
- Use a variety of cleaning solutions such as petrol, water-soluble degreaser, or engine cleaner to remove dirt and grease from the pump.
- Consult a manual or seek professional help as diesel injector pumps may have unique torque specifications and manufacturer considerations.
