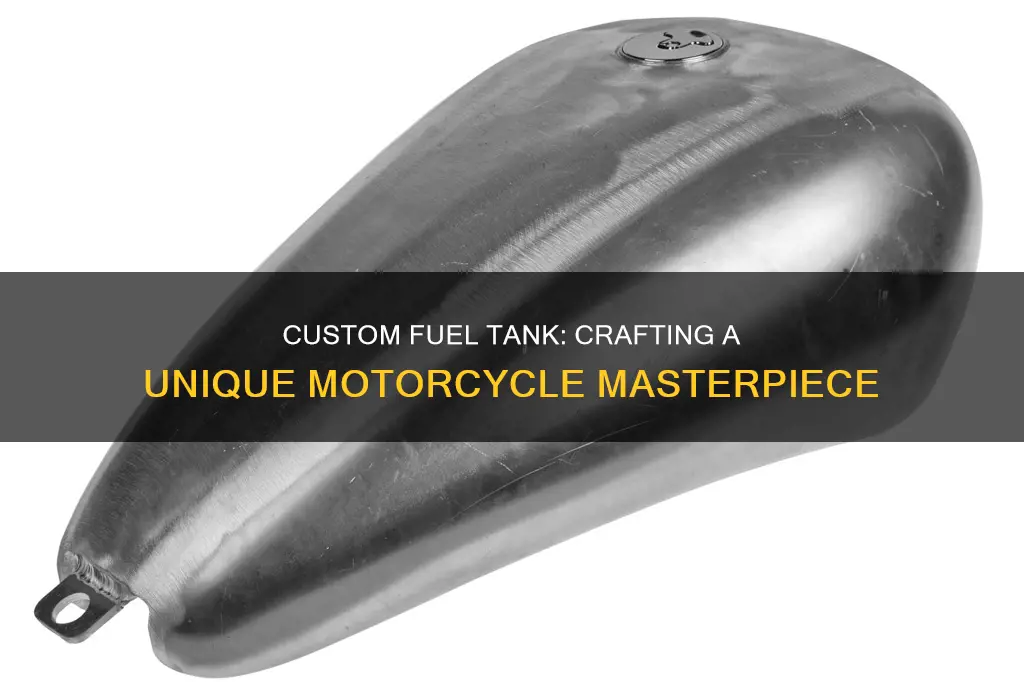

Customizing a motorcycle fuel tank can be a challenging but rewarding endeavour. Whether you're an experienced builder or a novice, the process of crafting a unique fuel tank to your desired specifications can be a satisfying project. There are various factors to consider, such as the design, capacity, and choice of materials. One can opt for handmade craftsmanship or explore the convenience of mass-produced options. The choice of materials, such as steel, aluminum, or fiberglass, will influence the construction process and the overall aesthetic of the final product. With careful planning, attention to detail, and the right tools, creating a custom motorcycle fuel tank can be an enjoyable journey towards achieving your dream bike.
Characteristics and Values of Making a Custom Motorcycle Fuel Tank
| Characteristics | Values |
|---|---|
| Materials | Steel, aluminium, copper, fiberglass |
| Tools | Shrinker/stretch machine, planishing hammer, English wheel, die grinder |
| Steps | Creating a template, tracing and cutting, drilling holes, welding, smoothing, sealing, testing |
| Parts | Filler cap and neck, threaded bung, petcock, gas filler, tunnel, tank bottom |
| Considerations | Style, capacity, function, thickness, welds, weight, cost, leaks, discolouration |
Explore related products
What You'll Learn
Choosing the right material
When it comes to choosing the right material for your custom motorcycle fuel tank, there are several options to consider. The most common materials used are steel, aluminium, and copper. However, you may also come across fiberglass as an option. Each material has its own advantages and considerations.
Steel is a durable and sturdy option for fuel tanks. It is important to consider the thickness of the steel, as this will impact the overall weight of the tank. For example, 18-gauge mild steel may be too heavy for your needs, especially if you are looking to build a lightweight bike. Thinner gauges, such as 20 or 22-gauge, can help reduce weight but may require more careful handling during the welding process to ensure airtight seals.
Aluminium is another popular choice for fuel tanks. It is a lightweight material, making it ideal for those seeking to reduce the overall weight of their motorcycle. However, welding aluminium can be more challenging than steel, and distortion may occur. If you are planning to weld aluminium, it is important to consider the level of expertise required and the potential need for specialised equipment.
Copper is also an option for fuel tanks, but it is less commonly used compared to steel and aluminium. Copper has a unique aesthetic appeal and is known for its durability. However, copper is a softer metal, and welding can result in discolouration, which may be undesirable depending on the desired finish.
Fiberglass is a less traditional option for fuel tanks but offers some advantages. Fiberglass is lightweight and can be moulded to create unique shapes. However, one of the main considerations when using fiberglass is choosing the right resin. The compatibility of the resin with the fuel is crucial, and testing may be required to ensure the integrity of the tank over time. Additionally, the fuel cap mounts and petcock bungs will need to be carefully incorporated into the design.
The choice of material will depend on various factors, including the desired style, capacity requirements, weight considerations, and your level of expertise in working with different materials. Each material has its own set of advantages and challenges, so it is important to carefully consider which one aligns best with your specific needs and goals for your custom motorcycle fuel tank project.
Draining the Toyota Avensis Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Selecting the appropriate tools
If you're working with metal, a welding machine is essential. Welding will be a significant process in joining the various tank components, and you may want to minimise welds for both aesthetic and practical reasons. A die grinder is another indispensable tool, used for refining holes and ensuring a precise fit for various parts.
For shaping and forming specific areas of the tank, a planishing hammer is a valuable tool. It delivers rapid tiny blows between two desired radiused steel heads, allowing for precise shaping. However, hearing protection is crucial when using this tool due to the associated noise levels. To achieve a smooth finish on the metal, an English wheel is the tool of choice.
Additionally, you'll need to source various components for your fuel tank, such as a filler cap and neck, a threaded bung for the gas tap or petcock, and possibly a screw-type gas filler. These can be purchased online or from specialist stores. If you're working with fibreglass, you'll need to choose the appropriate resin and consider how you'll seal the tank to prevent fuel from damaging the fibreglass or resin.
Lastly, for the actual construction process, you'll require a workbench or similar setup, along with basic workshop tools like measuring tapes, markers, and cutting tools such as angle grinders or metal cutting blades. Safety gear, including eye protection, gloves, and a respirator, is also essential when working with metal and welding.
Draining the Kubota Lawn Mower Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Cutting and shaping the metal
When it comes to cutting and shaping metal for a custom motorcycle fuel tank, there are several tools and techniques you can use. The type of metal you choose will play a significant part in how you cut and shape it. Steel, aluminium, or copper are common choices for fuel tanks.
One method is to use a shrinker/stretch machine, which can help you shrink or stretch the metal to your desired dimensions. This is useful for making precise adjustments to the size and shape of your tank. Another important tool is a planishing hammer, which allows you to shape and form very specific areas by delivering rapid tiny blows between two desired radiused steel heads. This tool can be noisy, so hearing protection is recommended.
For smoothing out the metal and creating a uniform surface, an English wheel is ideal. This tool helps you achieve a smooth, finished look for your fuel tank. Additionally, a die grinder can be used to cut and shape the metal, as well as fine-tune holes and openings. If you're working with thicker metals, a machine like a plasma cutter might be necessary to make precise cuts.
It's important to consider the thickness of your metal, as this will impact the ease of cutting and shaping. Thinner metals, like 22-gauge steel, can be more challenging to work with and may require extra care to ensure an airtight weld. On the other hand, thicker metals, such as 16-gauge steel, can provide a stronger and more durable fuel tank but will also add weight to your motorcycle.
Welding is a crucial process in assembling your fuel tank. To minimise welds and potential distortion, it's recommended to use them sparingly and only where necessary. Gas welding, for example, can cause distortion, especially with aluminium. You may need to dress out the distortion after welding to create a smooth surface. Additionally, the choice of filler material for your welds is important, as some materials can leave discolouration that becomes visible when polished.
Jettisoning Fuel Tanks in DCS: A Step-by-Step Guide for the FA-18C
You may want to see also
Explore related products
Welding the tank together
Welding is the most straightforward way to hold a motorcycle fuel tank together. To weld the tank together, you can use a planishing hammer to shape and form specific areas. For final smoothing, an English wheel is required.
Before welding, you need to decide on the material and its thickness, which will influence how the gas tank is made. Steel, aluminium, or copper are all options, each with its own considerations. For example, aluminium is not suitable for gas welding due to the risk of distortion, and mild steel should be avoided if weight is a concern.
The welding process itself involves creating templates for the bottom panels and tracing impressions to ensure a precise fit. The tunnel and tank bottoms are then tacked into place. Any necessary holes, such as for the petcock or gas filler, are drilled and welded into place.
Once all the structural work is completed, the entire tank is finish welded. It is important to minimise the number of welds to make the process easier. Additionally, the choice of welding filler material is crucial as it can affect the appearance of the welds, potentially causing discolouration that becomes more visible during polishing.
Fuel Tanks: Filling the Main Tank from External Sources
You may want to see also
Explore related products
Sealing and testing for leaks
Sealing the Tank
Before sealing, it is essential to ensure that the fuel tank is thoroughly cleaned and dried. Any residual fuel or vapors can pose a serious fire hazard during repairs. Use a safe-disposal fuel container to drain the tank and address any spills with an absorbent material like kitty litter. Once emptied, remove the fuel line by carefully depressing the clamp and easing it off.
If your tank has surface rust, address it by pouring in 1-2 quarts of acetone along with ball bearings, nuts, and bolts. Seal the fill hole with plastic wrap and a rubber band, then shake and rotate the tank to ensure the removal of rust. Drain and dry the tank afterward.
Next, you'll need to apply a suitable sealant. For a fiberglass tank, an epoxy sealer is recommended. You can find pure acetone at home improvement stores like Lowe's or Home Depot, and gas tank epoxy options are available from brands like Caswell and KBS Coatings.
Testing for Leaks
Pressure testing is a standard method for checking your custom fuel tank for leaks. This process is relatively straightforward and can be performed using a bicycle tire pump or a similar low-pressure mechanism. Be cautious not to overinflate the tank, as this can lead to damage. Aim for around 0.3 bar (1.3 bara) for half an hour, as suggested by some sources.
Seal the tank's openings, such as the filler neck, with a plug. You can use a solid piece of wood cut with a hole saw and sealed with a balloon, or a plumber's hole plug from McMaster-Carr. With the pump running, paint along the seams with a strong soapy water mixture. Leaks will be indicated by bubbles forming along the seams.
If you suspect a specific area of the tank is leaking, you can apply soapy water directly to that spot and observe for bubbles. Additionally, you can submerge the entire tank in water, which will create positive pressure, and any leaks will be visible as bubbles.
It is important to perform pressure testing before painting your custom fuel tank to ensure that your paint job is not ruined by potential leaks.
Deep Siphoning Fuel Tanks: A Comprehensive Guide
You may want to see also
Frequently asked questions
You can make a custom motorcycle fuel tank using materials such as steel, aluminium, copper, or fibreglass. The thickness of the material is important to consider, as thicker materials may be more durable but will also add weight to the bike.
Basic tools include a shrinker/stretch machine, a planishing hammer, and an English wheel for final smoothing. For cutting holes, a die grinder or hole saw can be used. A drill may also be required for certain steps.
First, decide on the design and capacity required. Then, create a template and trace it onto the chosen material, cutting it out with a die grinder. Weld the pieces together, ensuring minimal welds for a neat finish. Drill holes for the petcock and filler, and weld these into place. Finish with a final weld to complete the structure.
To prevent leaks, ensure a tight weld and consider using a thicker gauge material for the tank, as this can help create an airtight seal. Test the tank for leaks once complete by filling it with gas and observing for any signs of leakage.
