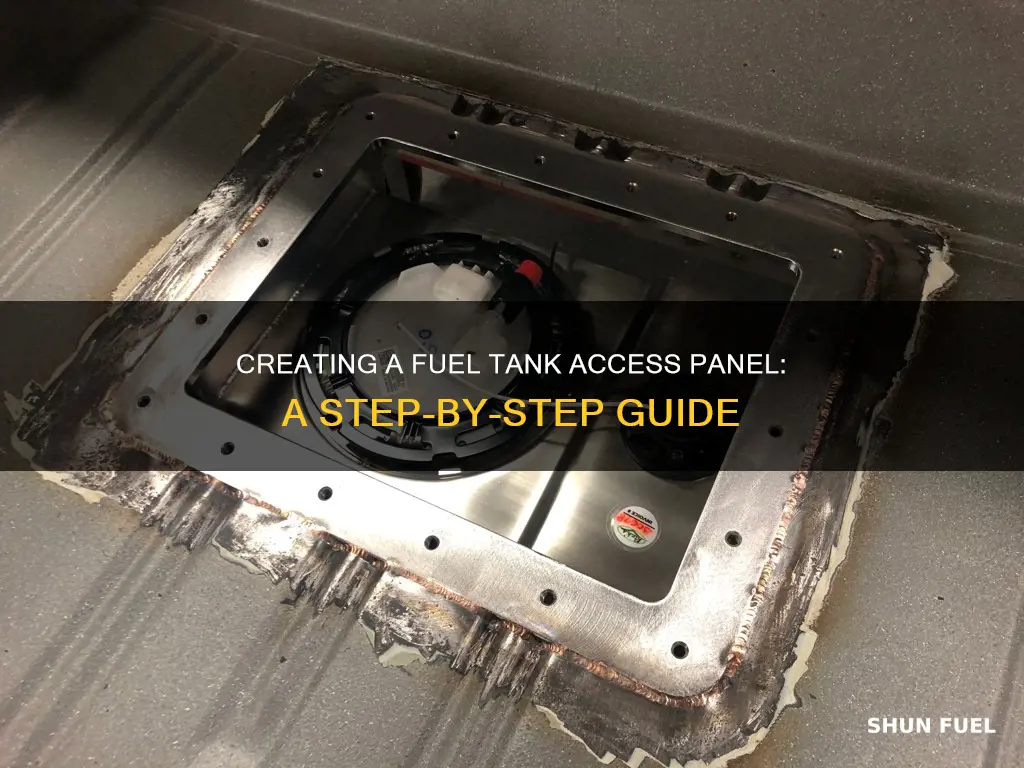

Installing a fuel tank access panel can be a tricky endeavour. It often involves cutting a hole in the floor to gain easier access to the top of the fuel tank. This can be done using a jigsaw or tin snips to minimise sparks, and then riveting in an access panel. The structural integrity of the vehicle depends on how the hatch is re-installed. Using hinges and a latch on the access panel will not provide much support, but gluing or screwing blocking to the underside of the floor around the hatch will provide more stability.
Explore related products
What You'll Learn
Cutting a hole in the floor
Planning the Cut
Before you start cutting, it is crucial to determine the exact location of the fuel tank and any other components that may be affected by the modification. Consider the size and shape of the access panel you need and ensure you have the necessary tools for cutting. If you have a corrugated sheet metal floor, the task may be more challenging, and you might need to weld or use a jig saw to cut the hole.
Making the Cut
When you are ready to cut the hole, use the appropriate tools to make a clean and precise cut. Tin snips, a Dremel tool, or a jig saw can be used, depending on the material of your floor and your personal preference. Ensure that you wear the necessary safety gear, such as eye protection and gloves, during the cutting process.
Installing the Access Panel
Once the hole is cut, you can install an access panel. You can use a simple piece of stainless steel or sheet metal held in place with screws or polyurethane. If you prefer a more finished look, you can purchase a pre-made hatch or access panel that fits the dimensions of your hole. Consider using hinges to allow easy access, and ensure that the panel is securely fastened to prevent any fuel leaks or structural issues.
Sealing and Finishing
To maintain the structural integrity of your vehicle or boat, properly sealing the access panel is crucial. You can use glue, epoxy, or blocking on the underside of the floor around the hatch and then screw or bolt it in place for added strength. If you are concerned about corrosion, you can use seam seal around the edge of the panel. Finally, test your installation to ensure that it provides easy access to your fuel tank and that it does not cause any unwanted movement or vibrations.
Maintenance and Precautions
Remember to regularly inspect your fuel tank access panel for any signs of wear or corrosion. Depending on the location of your access panel, consider using a cover or carpet to protect it from the elements and maintain its appearance. Always take the necessary safety precautions when working with fuel tanks, and ensure that you have the appropriate knowledge and skills before attempting any modifications.
Draining Your Moped's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Using a hinge and latch
If you're looking to install a fuel tank access panel using a hinge and latch, there are a few methods you can consider. Firstly, determine the location of the access panel by considering the position of the fuel tank and any surrounding structures.
Once you've identified the desired location, use a suitable tool such as a jigsaw to cut a hole in the floor or body panel. The size and shape of the hole will depend on the specific application and space constraints. Ensure that you measure and mark the cutting area accurately to avoid mistakes. After cutting the hole, you may need to bend or shape the edges of the surrounding material to create a flat surface for the access panel to sit on.
Next, choose an appropriate hinge type and size for your access panel. Consider the weight and frequency of use when selecting the hinge. Install the hinge by welding or bolting it to the support structure and the access panel. Ensure that the hinge is securely attached and aligned properly.
For the latch, you can opt for a simple locking pin, or explore more sophisticated options such as spring-loaded latches. Install the latch mechanism according to its specific instructions, ensuring it securely holds the access panel in place when closed.
Finally, consider adding additional features such as a gasket or seal to prevent corrosion and fuel leakage. You may also need to paint or treat the cut edges of the hole to prevent rust. Test the access panel to ensure it opens and closes smoothly and securely. Remember to regularly inspect and maintain the hinge and latch mechanism to keep it in good working condition.
Briggs and Stratton Fuel Tank: Venting Solutions
You may want to see also
Explore related products
Sealing the edges
Prepare the Surface:
Before sealing the edges, it is essential to clean and prepare the surface thoroughly. Make sure the area around the cut-out and the panel edges are free from any debris, grease, or residue. Use a suitable solvent or cleaner to wipe down the entire area. This step ensures that the sealing material adheres properly to the surface.
Choose the Right Sealant:
Selecting the appropriate sealant is critical for a durable and leak-proof seal. Depending on the material of your fuel tank and access panel, choose a sealant that is compatible. For metal surfaces, a polyurethane sealant or marine-grade epoxy is often recommended for its strength and resistance to fuels and chemicals. Silicone sealants are another option but may not be suitable for all fuel types. Always check the manufacturer's recommendations for compatibility and safety.
Apply the Sealant:
When applying the sealant, follow the instructions provided by the manufacturer. Typically, you will need to apply a thin, even bead of sealant along the edges of the access panel and the corresponding edges of the cut-out. Use a caulking gun or sealant applicator to ensure a controlled and precise application. Smooth out the sealant with a spatula or your finger, ensuring complete coverage.
Clamping and Curing:
To ensure a strong bond, you may need to clamp the access panel in place while the sealant cures. Follow the sealant's instructions for the recommended clamping time and pressure. During curing, maintain good ventilation and allow sufficient time for the sealant to cure completely before reassembling any components or refilling the fuel tank.
Finishing and Testing:
Once the sealant has cured, inspect the edges for any imperfections or gaps. If necessary, apply a second coat of sealant to ensure a complete seal. After the final coat has cured, test the seal by filling the fuel tank and monitoring for any leaks around the access panel. A properly sealed access panel should not exhibit any fuel leaks and will maintain the structural integrity of your vehicle.
Remember, always work in a well-ventilated area when working with sealants and fuels, and follow all safety precautions to prevent accidents.
Finding Fuel Tank Size: A Simple Guide
You may want to see also
Explore related products
Using a gas door
Planning and Tools:
Before you begin, it's important to plan the location of your access panel. Consider the placement of the fuel tank and any surrounding structures, such as a support beam, that can be utilised to attach the gas door. Additionally, ensure you have the necessary tools, which may include a Phillips screwdriver, grinder with a cut-off wheel, tin snips, a knife, and a fire extinguisher, as fuel is extremely flammable and safety precautions are crucial.
Cutting the Hole:
When cutting the hole for your gas door, precision is key. Use appropriate tools like tin snips or a Dremel to minimise sparks. Consider drilling a hole first to test the clearance and ensure you don't accidentally damage the fuel tank. Take measurements and mark the area to be cut, allowing for an overlap of material to attach the gas door securely.
Attaching the Gas Door:
You can attach the gas door in several ways. One method is to weld a "lip" or ledge around the cut-out, providing a secure resting place for the gas door. You can then use sheet metal screws or rivets to hold the door in place. Additionally, consider adding a locking pin or hinge for easy access and security.
Sealing and Finishing:
To ensure a professional finish, pay attention to sealing the edges of the access panel. Gaskets or seals can prevent leaks and protect against corrosion. You may also consider using door insulation or a foam gasket to enhance the seal. Finally, you can cover the area with carpet or astro turf, cutting a flap for easy access while maintaining an aesthetically pleasing appearance.
Maintenance and Troubleshooting:
Keep in mind that creating a fuel tank access panel is a preventative measure to make future maintenance easier. However, it's important to be cautious when working with fuel systems. Always have a fire extinguisher nearby and be prepared to deal with any potential leaks or issues that may arise during the installation process or in the future.
Leak Testing a Fuel Tank: Steps to Take
You may want to see also
Explore related products
Adding a filler plate
One way to go about this is to cut a hole in the floor to provide access to the fuel tank without dropping it. This can be done with a jig saw, tin snips, or a Dremel tool to minimise sparks. You can then add a filler plate or an access panel. This can be done by simply using a piece of stainless steel held down with polyurethane, or a more complex setup with hinges and latches.
For a more professional look, you can use a replacement panel with a toolbox door, providing a clean, original look. You can also use a spring-loaded hinge from a car, which will allow you to hinge the floor piece in and out. Another option is to use a hatch, which can seal off the pump and tank from the interior, providing easy access for wiring, connections, and plumbing.
It is important to consider the structural integrity of the vehicle when installing a filler plate, especially in boats, where the floor adds significantly to the structure. You can use blocking and screwing to reinforce the area around the hatch, and aluminium blocking can provide additional strength.
Draining 1990 Chevy Truck Fuel Tank: Step-by-Step Guide
You may want to see also
Frequently asked questions
To install a fuel tank access panel in a boat, you will need to cut a hole in the floor to access the tank. You can then install a hatch with hinges and a latch to act as a door. To maintain the structural integrity of the boat, you can glue or screw blocking to the underside of the floor around the hatch.
A fuel tank access panel allows you to access the fuel tank and its components without having to drop the tank. This can be useful for pump replacements and other maintenance tasks.
You can use a variety of materials, including sheet metal, stainless steel, polyurethane, and aluminium.
Yes, there are aftermarket products available, such as the Allstar Performance Access Panels ALL18530 from SummitRacing.com. Tanksinc.com also offers three different sizes of hinged openings for fuel tank access.
