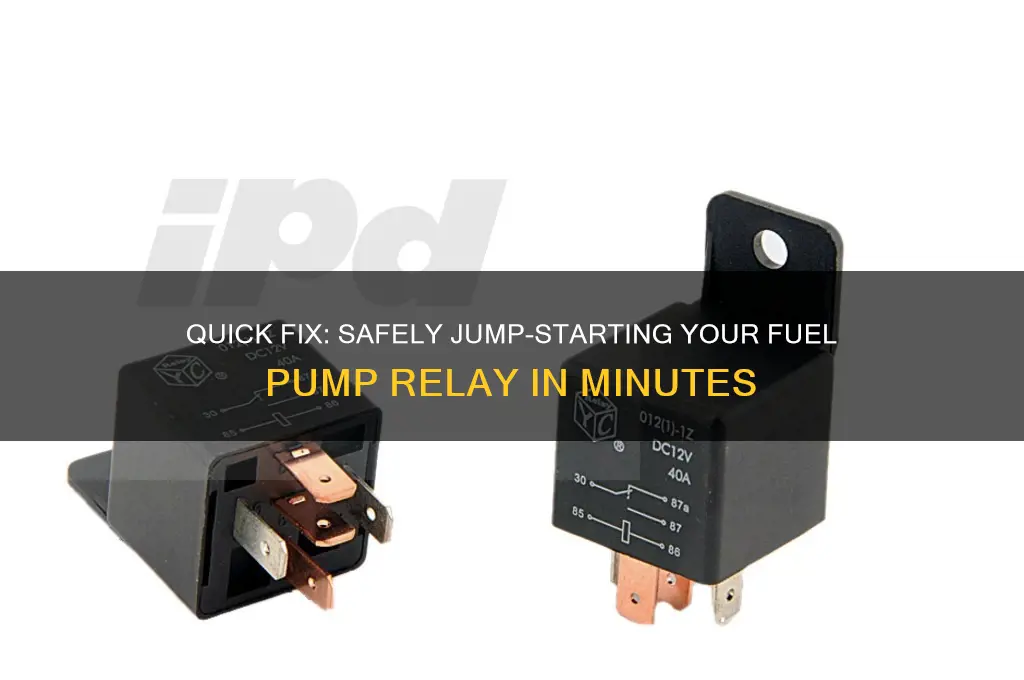

Jumping out a fuel pump relay is a troubleshooting technique used to bypass the relay and directly activate the fuel pump, which can help diagnose issues with the fuel delivery system. This method is often employed when a vehicle fails to start due to a suspected faulty relay, as it allows the fuel pump to operate independently of the relay's circuitry. By connecting the relay's power and ground terminals directly, typically using a jumper wire, you can determine if the fuel pump is functioning properly or if the relay itself is the source of the problem. However, it’s crucial to exercise caution, as improper handling of electrical components can lead to damage or safety hazards. Always consult the vehicle’s manual or a professional mechanic for guidance specific to your make and model.
| Characteristics | Values |
|---|---|
| Purpose | To bypass the fuel pump relay and directly activate the fuel pump. |
| Tools Required | Screwdriver, jumper wires, multimeter (optional). |
| Safety Precautions | Disconnect the battery, work in a well-ventilated area, avoid sparks. |
| Steps | 1. Locate the fuel pump relay in the fuse box. |
| 2. Identify the relay terminals (typically 30, 87, and 85/86). | |
| 3. Connect a jumper wire between the power (30) and output (87) terminals. | |
| 4. Apply power to the relay coil (85/86) to activate the fuel pump. | |
| Common Relay Terminals | 30 (Power), 87 (Output), 85 (Ground), 86 (Control). |
| Alternative Method | Use a fused jumper wire directly from the battery to the fuel pump. |
| Risks | Potential damage to the fuel pump or electrical system if done incorrectly. |
| Applications | Troubleshooting fuel pump issues, testing fuel pump functionality. |
| Vehicle Compatibility | Varies by make and model; consult vehicle manual or diagram. |
| Professional Advice | Recommended for experienced individuals; consult a mechanic if unsure. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the fuse box
- Test for Power: Use a multimeter to check for voltage at the relay
- Bypass the Relay: Connect the battery directly to the fuel pump temporarily
- Replace the Relay: Swap the faulty relay with a new one of the same type
- Diagnose Issues: Check for blown fuses, bad grounds, or wiring faults
Locate the Relay: Identify the fuel pump relay's position in the fuse box
The fuel pump relay is a critical component in your vehicle's fuel system, acting as a switch that controls power to the fuel pump. Locating it within the fuse box is the first step in any troubleshooting or maintenance task involving the relay. Most modern vehicles house the fuse box under the hood or dashboard, often near the battery or steering column. Start by consulting your vehicle’s manual, which typically includes a diagram labeling the fuse box layout. If the manual is unavailable, online forums or automotive databases specific to your make and model can provide accurate guidance.
Once you’ve identified the fuse box, open it to reveal a grid of relays and fuses. Relays are usually larger than fuses and often have a distinct shape, such as a rectangle or square with multiple pins. The fuel pump relay is commonly labeled with abbreviations like "FP," "F/P," or "FUEL." If labels are unclear or missing, compare the relays’ sizes and positions to the diagram in your manual or online resource. Some vehicles use a standardized color-coding system, where the fuel pump relay might be a specific color like blue or green.
For hands-on identification, use a multimeter to test for continuity or power flow. With the ignition on, probe the relay’s terminals to identify the one receiving power from the battery and the one sending power to the fuel pump. This method requires basic electrical knowledge but ensures accuracy, especially in older vehicles where labeling may have faded or been removed. Always disconnect the battery before handling electrical components to prevent short circuits.
Practical tips include taking a photo of the fuse box layout before removing any components, as this aids in reassembly. If the relay is difficult to access, use a flashlight and a small tool like a flathead screwdriver to carefully pry it out. Avoid forcing components, as this can damage the fuse box. Once located, the fuel pump relay can be tested, replaced, or jumped as needed, ensuring your vehicle’s fuel system operates reliably.
Exploring the 96 F150's Fuel Pump Driver Module: Fact or Fiction?
You may want to see also
Explore related products
Test for Power: Use a multimeter to check for voltage at the relay
Before attempting to jump a fuel pump relay, it's crucial to verify that the issue lies with the relay itself and not the power supply. A multimeter becomes your trusted ally in this diagnostic step, allowing you to pinpoint the problem with precision. By checking for voltage at the relay, you can determine if the relay is receiving the necessary power to function. This test is a fundamental step in troubleshooting fuel pump issues, as it helps you avoid unnecessary replacements and focus on the actual cause of the problem.
To perform this test, you'll need a digital multimeter with a voltage setting, capable of measuring up to at least 12V DC. Start by locating the fuel pump relay in your vehicle's fuse box or relay panel. Consult your vehicle's manual or online resources to identify the correct relay, as its position may vary depending on the make and model. Once located, carefully remove the relay from its slot, taking note of its orientation for proper reinstallation. With the relay removed, you'll expose the relay socket, which typically has four or five pins.
Set your multimeter to the DC voltage setting, usually denoted by a V with a straight line above it, and select a range above 12V to ensure accurate readings. Touch the multimeter's black probe to a good ground, such as a clean metal surface on the engine block or a battery negative terminal. Then, touch the red probe to each of the relay socket's pins, one at a time, while observing the multimeter reading. You should see a voltage reading on the pin that corresponds to the power supply, typically around 12V. If no voltage is present, the issue may lie with the power supply circuit, and further investigation is necessary.
A common mistake when performing this test is to assume that the absence of voltage on one pin indicates a faulty relay. However, it's essential to check all pins, as some relays may have multiple power supply pins or additional control pins. Moreover, be cautious when handling the multimeter probes, as accidental short circuits can damage the vehicle's electrical system. Always maintain a firm grip on the probes and avoid touching adjacent pins or components. By following these steps and exercising caution, you can confidently test for power at the fuel pump relay and make informed decisions about the next steps in your troubleshooting process.
Bad Fuel Pump Relay: The Hidden Cause of No Spark?
You may want to see also
Explore related products
Bypass the Relay: Connect the battery directly to the fuel pump temporarily
In certain diagnostic scenarios, bypassing the fuel pump relay by connecting the battery directly to the fuel pump can quickly determine if the pump itself is functional. This method is straightforward: disconnect the fuel pump connector, attach a fused wire from the positive battery terminal to the pump’s power pin, and ground the pump’s ground pin to the chassis or negative battery terminal. If the pump runs, the relay or wiring is likely at fault; if not, the pump may be defective. Always use a fuse (e.g., 10–15 amps) in the positive wire to prevent a short circuit, and ensure the ignition is off during connection to avoid accidental engine starts.
While this technique is effective for troubleshooting, it carries risks if not executed carefully. Direct battery power bypasses the relay’s safety features, such as current regulation and timed operation, which can lead to overheating or damage if the pump runs continuously. Additionally, fuel pumps are designed to operate intermittently, not under constant power. Limit the test duration to 5–10 seconds to avoid strain on the pump motor. Always wear safety goggles and work in a well-ventilated area to mitigate fuel vapor hazards.
Comparatively, this method is more direct than using a test light or multimeter to check relay functionality, but it’s also more invasive. It’s ideal when other diagnostic steps have failed or when time is critical. For instance, if a vehicle won’t start and you suspect a bad relay, this bypass can isolate the issue within minutes. However, it’s not a long-term solution—relays are essential for controlling pump operation based on engine demand, and their absence can lead to inefficiency or failure.
Practically, this approach requires basic tools: a fused jumper wire, pliers, and a wrench to disconnect the pump connector. Identify the correct pins on the fuel pump connector using a wiring diagram or service manual, as misconnecting wires can damage components. After testing, reconnect the original wiring and address the root cause—whether replacing the relay, repairing wiring, or installing a new pump. This temporary bypass is a diagnostic tool, not a repair, and should be followed by a proper fix to restore the system’s integrity.
Understanding the DA 40's Fuel System: Number of Pumps Explained
You may want to see also
Explore related products
Replace the Relay: Swap the faulty relay with a new one of the same type
Identifying a faulty fuel pump relay can be a critical step in troubleshooting vehicle performance issues. Once you've confirmed the relay is the culprit, replacing it with a new one of the same type is often the most straightforward solution. This process involves locating the relay, typically found in the fuse box under the hood or near the driver's side dashboard, and swapping it out. Ensure the replacement relay matches the specifications of the original, including the pin configuration and amperage rating, to avoid compatibility issues.
From an analytical perspective, the fuel pump relay acts as a switch, controlling the power supply to the fuel pump. When it fails, the pump may not receive power, leading to engine stalling or failure to start. By replacing the relay, you restore this critical function, ensuring the fuel system operates as intended. It’s essential to verify the relay’s failure before replacement, using a multimeter to test for continuity or swapping it temporarily with a similar relay from another circuit to confirm the diagnosis.
Instructively, the replacement process is relatively simple but requires attention to detail. Start by disconnecting the car battery to prevent electrical shorts. Locate the faulty relay by consulting the vehicle’s manual or identifying it via the diagram on the fuse box cover. Pull the relay straight out of its socket, noting its orientation for proper installation of the new one. Insert the replacement relay firmly, ensuring it clicks into place. Reconnect the battery and test the vehicle to confirm the issue is resolved.
Persuasively, opting to replace the relay yourself can save both time and money compared to a professional repair. While the process is accessible for most DIY enthusiasts, it’s crucial to approach it with confidence and the right tools. A misstep, such as installing the wrong relay type or damaging the socket, can exacerbate the problem. If unsure, consult a mechanic or refer to online tutorials specific to your vehicle model for added guidance.
Comparatively, while some may consider bypassing the relay as a temporary fix, this method is risky and not recommended. Bypassing involves directly connecting the fuel pump to the battery, which can lead to overloading or continuous pump operation, draining the battery. Replacing the relay, on the other hand, addresses the root cause without compromising safety or system integrity. It’s a permanent, reliable solution that aligns with the vehicle’s original design.
Descriptively, the act of swapping the relay is a tactile, hands-on task that bridges the gap between theory and practice. The relay itself is a small, unassuming component, often no larger than a matchbox, yet its role is pivotal. As you handle the old and new relays, you’ll notice their sturdy construction, designed to withstand the rigors of the engine bay. The satisfaction of hearing the engine roar back to life after a successful replacement is a testament to the importance of this tiny but mighty part.
How to Prime a Fuel Pump: Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Diagnose Issues: Check for blown fuses, bad grounds, or wiring faults
Before attempting to jump out a fuel pump relay, it's crucial to diagnose underlying issues that might be causing the fuel pump to malfunction. A systematic approach to checking for blown fuses, bad grounds, or wiring faults can save time and prevent unnecessary repairs. Start by locating the fuse box, typically found under the dashboard or in the engine compartment, and consult your vehicle’s manual to identify the fuse associated with the fuel pump. Visually inspect the fuse for signs of damage, such as a broken filament or discoloration. If the fuse appears intact, use a multimeter to test for continuity, ensuring it’s not blown. A blown fuse is a common culprit and often indicates an electrical overload or short circuit elsewhere in the system.
Bad grounds are another frequent issue that can mimic fuel pump failure. A poor ground connection disrupts the electrical circuit, preventing the fuel pump from receiving adequate power. To diagnose this, trace the grounding wire from the fuel pump to its connection point, usually on the vehicle’s chassis. Clean both the wire terminal and the grounding surface with a wire brush to remove corrosion or rust. Use a multimeter to test the resistance between the ground point and the battery negative terminal; a reading above 0.1 ohms suggests a poor ground. If the ground is faulty, secure the connection with a new bolt or grounding strap to ensure a stable electrical path.
Wiring faults, such as frayed or damaged wires, can also cause fuel pump issues. Inspect the wiring harness leading to the fuel pump for signs of wear, melting, or rodent damage. Pay close attention to areas where wires pass through tight spaces or near heat sources. If you suspect a wiring fault, perform a continuity test using a multimeter to check for breaks or shorts in the circuit. For in-depth testing, use a wiring diagram to isolate specific segments of the harness. Repair or replace damaged wires as needed, ensuring proper insulation and routing to prevent future issues.
When diagnosing these issues, always prioritize safety by disconnecting the battery before working on the electrical system. Keep a log of your findings, as patterns can reveal systemic problems, such as recurring fuse blows or frequent ground failures. Addressing these root causes not only resolves immediate fuel pump issues but also prevents potential long-term damage to the vehicle’s electrical system. By methodically checking fuses, grounds, and wiring, you can determine whether jumping out the fuel pump relay is a viable solution or if deeper repairs are necessary.
Understanding the Mechanics of a Fuel Pump Nozzle Operation
You may want to see also
Frequently asked questions
A fuel pump relay is an electrical switch that controls power to the fuel pump. Jumping it bypasses the relay to test if the fuel pump is functioning or if the relay is faulty.
The fuel pump relay is typically found in the fuse box under the hood or inside the cabin. Refer to your vehicle’s manual or search online for its specific location.
You’ll need a jumper wire or a piece of insulated wire, a screwdriver to remove the relay, and optionally a multimeter to test for power.
If done incorrectly, jumping the relay can cause electrical issues or damage the fuel pump. Always follow proper procedures and consult a professional if unsure.
Remove the relay, identify the power and fuel pump terminals, and connect them with a jumper wire. Turn the ignition to the "on" position and listen for the fuel pump to activate. If it works, the relay may be faulty.
