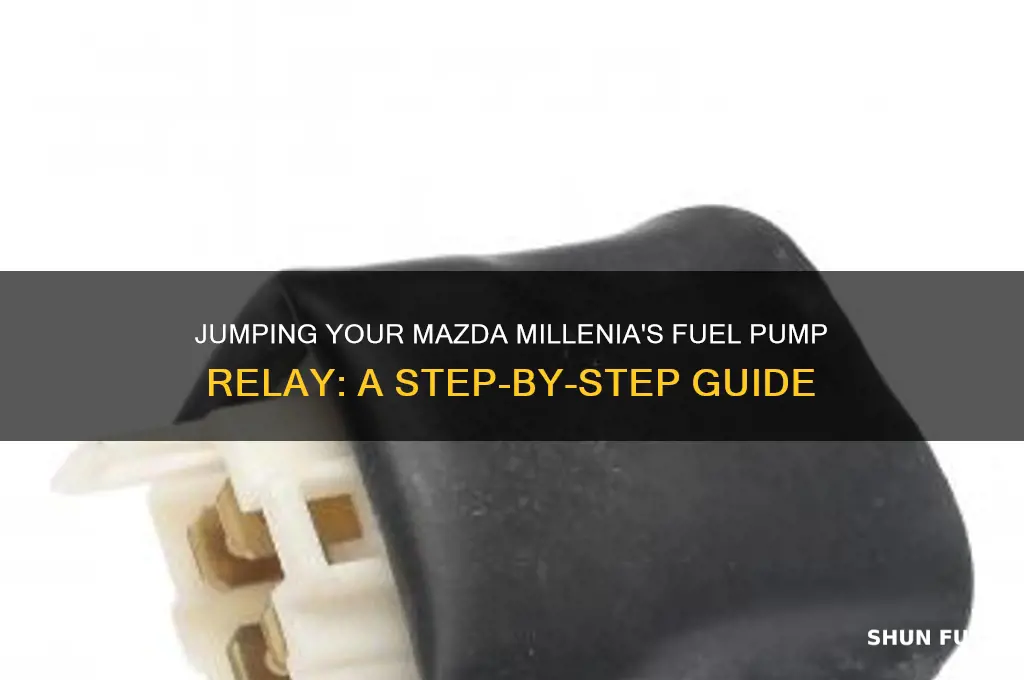

Jumping the fuel pump relay on a Mazda Millenia is a troubleshooting technique often used to diagnose fuel pump issues or temporarily bypass a faulty relay. The fuel pump relay is a crucial component that controls power delivery to the fuel pump, ensuring proper fuel supply to the engine. If the relay fails, the engine may not start or run inconsistently. To jump the relay, locate the fuel pump relay in the fuse box, typically found in the engine bay. Identify the relay’s terminals, specifically the power input and output pins. Using a jumper wire or a small screwdriver, connect the power source directly to the fuel pump’s power terminal, bypassing the relay. This method allows the fuel pump to operate independently of the relay, helping determine if the relay is the source of the problem. However, this is a temporary fix, and replacing the faulty relay is recommended for a permanent solution. Always exercise caution when working with electrical components to avoid damage or injury.
| Characteristics | Values |
|---|---|
| Vehicle Model | Mazda Millenia |
| Purpose | To bypass or jump the fuel pump relay to test fuel pump functionality |
| Tools Required | Pliers, jumper wires, or a screwdriver |
| Relay Location | Typically found in the engine bay fuse box or under the dashboard |
| Relay Pin Identification | Refer to the vehicle's manual or diagram for pinout (usually 30, 87, 85) |
| Jumper Wire Connection | Connect power source (e.g., battery positive) to the fuel pump pin (87) |
| Power Source | Use the battery positive terminal or a fused power source |
| Safety Precautions | Ensure ignition is off; avoid short circuits |
| Testing Procedure | Turn ignition to "ON" and listen for fuel pump activation |
| Common Symptoms of Relay Failure | No start, engine cranks but doesn’t start, fuel pump inoperative |
| Permanent Fix | Replace the faulty fuel pump relay with a new one |
| Notes | Jumping the relay is a temporary solution for diagnostic purposes only |
Explore related products
What You'll Learn
Locate the fuel pump relay in the fuse box under the hood
The fuel pump relay in a Mazda Millenia is a critical component, ensuring your engine receives the necessary fuel for operation. Locating this relay is the first step in any troubleshooting or jumping procedure. Under the hood of your Mazda Millenia, you'll find the fuse box, typically situated near the battery or along the inner fender. This box houses various fuses and relays, including the fuel pump relay, which is often labeled for easy identification.
Identification and Access:
To begin, open the hood and secure it in place. The fuse box is usually a rectangular or square-shaped unit with a removable cover. Remove the cover to reveal the array of fuses and relays. Look for a diagram or label inside the cover or on the box itself, which should indicate the position of the fuel pump relay. In most Mazda Millenia models, the fuel pump relay is a small, rectangular component with four or five pins. It might be black or colored, depending on the year and model.
Practical Tips for Locating the Relay:
If you're having trouble finding the fuel pump relay, consider the following: Check the owner's manual, which often includes a detailed diagram of the fuse box layout. Online resources and forums specific to Mazda Millenia can also provide visual guides and tips from fellow owners. In some cases, the relay might be located in a separate relay box near the main fuse box. If you're still unsure, consult a professional mechanic or a Mazda dealership for accurate guidance.
Why Locating the Relay is Crucial:
Understanding the fuel pump relay's location is essential for several reasons. Firstly, it allows you to quickly respond to a potential fuel pump issue, such as a faulty relay, which could cause starting problems or engine stalling. By knowing its position, you can efficiently test, replace, or jump the relay, ensuring your vehicle's fuel system operates optimally. Moreover, this knowledge empowers you to perform basic maintenance and troubleshooting, potentially saving time and money on repairs.
A Step-by-Step Approach:
- Prepare Your Tools: Before starting, gather a few basic tools, such as a screwdriver or a fuse puller, to safely remove the fuse box cover.
- Locate the Fuse Box: Identify the fuse box under the hood, typically near the battery, and remove the cover to access the relays and fuses.
- Identify the Fuel Pump Relay: Refer to the diagram or labels to find the specific relay. It's often located near other engine-related relays.
- Understand the Relay's Function: The fuel pump relay acts as a switch, controlling power to the fuel pump. When the ignition is turned on, it engages the fuel pump to deliver fuel to the engine.
- Proceed with Caution: Once located, you can proceed with testing or jumping the relay, but always exercise caution when working with electrical components to avoid any potential hazards.
Bypassing Nissan Pickup Fuel Pump Relay: A Step-by-Step Guide
You may want to see also
Explore related products
Identify the correct relay pins for jumping the circuit
Jumping the fuel pump relay on a Mazda Millenia requires precision in identifying the correct relay pins to ensure the circuit functions as intended. The fuel pump relay is typically located in the fuse box under the hood, and its pins are labeled according to their function. Before proceeding, consult the vehicle’s service manual or a reliable online resource specific to your Mazda Millenia’s year and model to confirm the exact pin configuration. Misidentifying pins can lead to electrical damage or failure to activate the fuel pump.
Analyzing the relay’s layout is crucial. Most fuel pump relays have four or five pins, with common designations such as 30 (battery power), 87 (load/fuel pump), 85 (ground), and 86 (control signal). To jump the circuit, you’ll typically connect pins 30 and 87, bypassing the relay’s internal switch. Use a multimeter to verify voltage at pin 30, ensuring it’s receiving power from the battery. If pin 87 shows no voltage, the relay may be faulty, and jumping these pins will directly power the fuel pump. Always double-check pin numbers, as variations exist across different Mazda Millenia models.
A persuasive argument for accuracy in pin identification is the potential risk of short circuits or damage to the fuel pump. For instance, connecting the wrong pins could send excessive voltage to the pump, causing it to burn out. To avoid this, use a test light or multimeter to confirm pin functions before jumping. If unsure, trace the wires from the relay to their components—the thicker wire typically leads to the fuel pump (pin 87), while the thinner wire connects to the control module (pin 86). This method ensures you’re working with the correct pins.
Comparatively, jumping the fuel pump relay on a Mazda Millenia differs from other vehicles due to its unique pin configuration and relay design. Unlike some models where pins 85 and 86 are interchangeable, the Millenia’s relay requires precise identification of power and load pins. For example, on a 1995-2002 Millenia, pin 30 is often the power source, and pin 87 controls the fuel pump. In contrast, newer models may have additional safety features, requiring a different approach. Always adapt your method to the specific vehicle’s design.
Instructively, here’s a step-by-step guide to identifying and jumping the correct relay pins: First, locate the fuel pump relay in the fuse box and remove it. Second, inspect the relay’s underside for pin labels or refer to the manual. Third, use a multimeter to test pin 30 for battery voltage (typically 12V). Fourth, connect a jumper wire between pins 30 and 87, ensuring a secure fit. Fifth, start the vehicle to confirm the fuel pump activates. If successful, the engine should crank and run momentarily. Always exercise caution and disconnect the jumper wire after testing to prevent continuous fuel pump operation.
Fixing Faulty Fuel Pumps: Expert Tips for Reliable Engine Performance
You may want to see also
Explore related products
Use a jumper wire to connect the power and ground pins
Jumping the fuel pump relay on a Mazda Millenia using a jumper wire is a straightforward method to test whether the fuel pump is functioning properly. The key lies in connecting the power and ground pins of the relay to bypass the normal circuit and force the pump to activate. This technique is particularly useful when diagnosing fuel delivery issues, as it isolates the pump from other potential electrical faults. By directly linking these two pins, you create a continuous circuit that should engage the pump, provided the fuse and pump itself are in good condition.
To execute this, locate the fuel pump relay in the fuse box, typically found under the hood or near the driver’s side dashboard. Identify the power and ground pins, which are usually labeled on the relay’s housing or in the vehicle’s manual. The power pin is the one that receives voltage from the battery, while the ground pin connects to the chassis or negative terminal. Using a jumper wire with insulated ends, carefully connect these two pins, ensuring the wire is securely attached and does not touch any other terminals to avoid short circuits.
While this method is effective, it’s crucial to exercise caution. Always disconnect the battery before working with electrical components to prevent accidental shocks or damage. Additionally, avoid leaving the jumper wire connected for extended periods, as this can drain the battery or cause overheating. This technique is a diagnostic tool, not a permanent fix, and should only be used to confirm whether the fuel pump is operational.
Comparatively, jumping the relay is simpler than replacing the entire unit or tracing complex wiring issues. It’s a quick, cost-effective way to narrow down the problem, especially if you suspect the relay itself is faulty. However, if the pump fails to activate even after jumping the relay, the issue may lie with the pump, fuse, or wiring harness, necessitating further investigation.
In practice, this method is a valuable skill for DIY mechanics or car owners troubleshooting fuel system problems. It requires minimal tools—just a jumper wire and basic knowledge of relay pinouts. By mastering this technique, you can save time and money, avoiding unnecessary part replacements or professional diagnostics. Always follow up with a thorough inspection to address the root cause of the issue, ensuring your Mazda Millenia runs smoothly and reliably.
Does an Inline Fuel Pump Create Vacuum? Exploring the Mechanics
You may want to see also
Explore related products
Test the fuel pump operation after jumping the relay
After jumping the fuel pump relay on your Mazda Millenia, it’s critical to verify the fuel pump is functioning correctly. This step ensures your efforts have addressed the issue and that the vehicle is safe to operate. Start by turning the ignition to the "ON" position without starting the engine. Listen carefully near the fuel tank for a faint humming sound, which indicates the pump is primed and operational. If no sound is heard, the pump may still be faulty, or the relay jump was unsuccessful.
To further test the fuel pump, use a fuel pressure gauge to measure the system’s output. Connect the gauge to the Schrader valve on the fuel rail, typically located near the engine. With the ignition on, the gauge should read between 30 and 60 psi, depending on your Mazda Millenia’s specifications. If pressure is low or nonexistent, the pump may be weak or clogged, requiring further diagnosis. Always release fuel system pressure before disconnecting the gauge to avoid injury.
Another practical method is to check for fuel delivery at the injectors. Remove the fuel line at the injector rail and place a container beneath it. Have an assistant crank the engine briefly while you observe for fuel flow. If fuel sprays into the container, the pump is delivering fuel as expected. If not, the issue may lie with the pump, filter, or lines. Ensure the fuel line is securely reconnected afterward to prevent leaks.
Comparatively, testing the pump’s operation post-jump is akin to confirming a diagnosis in medicine—it validates your repair approach. If the pump fails this test, consider inspecting the fuel filter for clogs or checking the pump’s electrical connections for corrosion. A failed test doesn’t necessarily mean the pump is irreparable; sometimes, a thorough cleaning or minor adjustment resolves the issue.
In conclusion, testing the fuel pump operation after jumping the relay is a non-negotiable step in troubleshooting your Mazda Millenia’s fuel system. Whether through auditory checks, pressure measurements, or visual inspections, this process ensures your vehicle is ready for the road. Always prioritize safety by working in a well-ventilated area and avoiding open flames when handling fuel systems.
Fuel Pump Push Rod: Essential or Optional for Your Engine?
You may want to see also
Explore related products
Verify fuel pressure and resolve any underlying relay issues
Fuel pressure is a critical diagnostic metric when troubleshooting a Mazda Millenia’s fuel pump relay issues. Low or inconsistent pressure can indicate a failing pump, clogged filter, or faulty relay. To verify pressure, connect a gauge to the fuel rail’s test port (typically near the engine bay’s firewall) and compare readings to the manufacturer’s specifications—usually 30–60 psi for this model. If pressure falls short, the relay may not be delivering consistent power to the pump, necessitating further investigation into the relay’s condition or wiring integrity.
Resolving underlying relay issues begins with understanding its role: the fuel pump relay acts as a switch, routing battery power to the pump when the ignition is engaged. A common failure point is the relay’s internal contacts burning out or the coil failing to activate. To test, swap the fuel pump relay with a similar one (e.g., the AC relay) and check if the pump engages. If it does, the original relay is faulty. However, if the issue persists, inspect the relay’s wiring harness for corrosion, loose connections, or voltage drops using a multimeter.
Jumping the relay as a temporary diagnostic step can isolate whether the pump itself is operational. Locate the relay in the under-hood fuse box, identify the power and ground pins (typically pins 30 and 87), and bridge them with a fused jumper wire. If the pump runs, the relay or its circuit is at fault. If not, the pump or its wiring may be defective. Always use a fuse (10–15 amps) in the jumper to prevent electrical damage.
While jumping the relay provides immediate feedback, it’s a temporary measure. Long-term solutions include replacing the relay with an OEM part, cleaning or repairing corroded terminals, and ensuring the pump’s ground connection is secure. For persistent issues, consult a wiring diagram to trace the circuit and identify hidden faults. Addressing these root causes ensures reliable fuel delivery and prevents recurrence.
Practical tips: Always disconnect the battery before working on electrical systems to avoid short circuits. Use a fuel pressure gauge rated for gasoline systems, and release pressure safely before disconnecting the gauge. Keep a relay puller tool handy for easy removal, and label relays to avoid confusion during swaps. By systematically verifying pressure and addressing relay issues, you’ll restore the Mazda Millenia’s fuel system to optimal performance.
