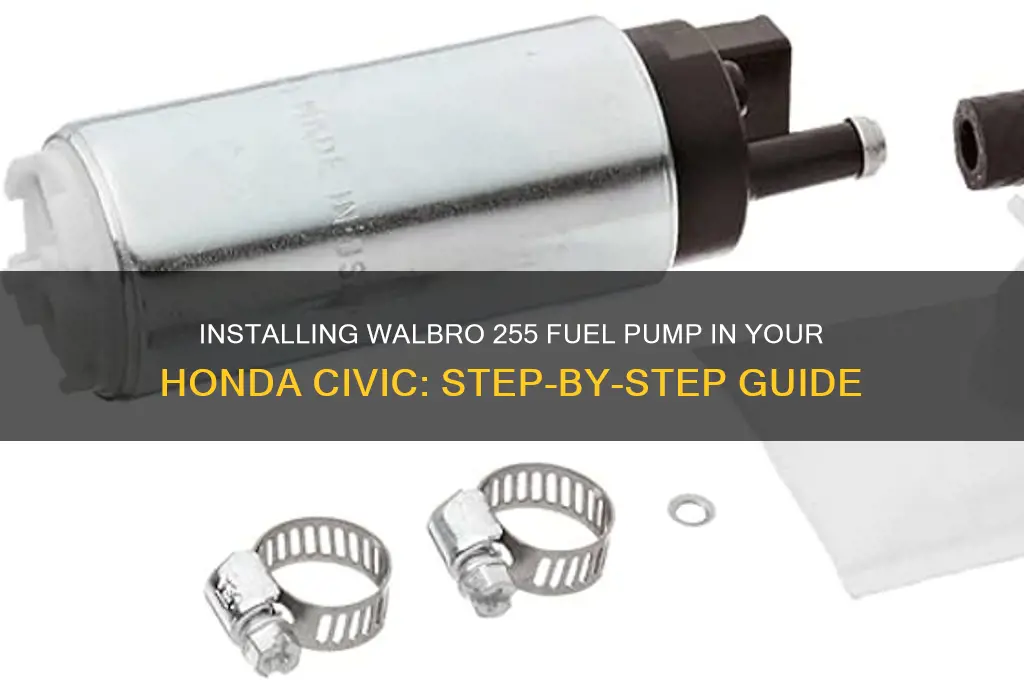

Installing a Walbro 255 fuel pump in a Honda Civic is a popular upgrade for enthusiasts seeking improved fuel delivery and performance, especially in turbocharged or high-horsepower applications. This process involves removing the factory fuel pump, preparing the new Walbro unit, and ensuring proper installation to maintain fuel system efficiency and reliability. Key steps include disconnecting the battery, accessing the fuel tank, replacing the pump and filter assembly, and verifying electrical connections. Proper grounding and wiring are critical to prevent issues like fuel pump failure or erratic performance. With the right tools and attention to detail, this upgrade can significantly enhance your Civic's fuel system capabilities.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | Honda Civic (specific years may vary, typically 1992-2000 models) |
| Fuel Pump Model | Walbro 255 (Part Number: F20000141 or equivalent) |
| Tools Required | Socket set, wrenches, screwdrivers, wire strippers, crimping tool, pliers |
| Additional Parts | Fuel pump relay, fuel filter, hose clamps, electrical connectors |
| Installation Time | 2-4 hours (depending on experience) |
| Difficulty Level | Intermediate to Advanced |
| Fuel Pump Location | Inside the fuel tank (requires tank removal) |
| Wiring Setup | Requires splicing into existing fuel pump wiring harness |
| Grounding | Ensure proper grounding of the fuel pump to the vehicle chassis |
| Fuel Pressure Regulator | May need adjustment or replacement depending on setup |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure |
| Testing | Test fuel pump operation before reinstalling the fuel tank |
| Post-Installation | Check for leaks, ensure proper fuel flow, and reset ECU if necessary |
| Notes | Follow manufacturer instructions and consult a repair manual if needed |
