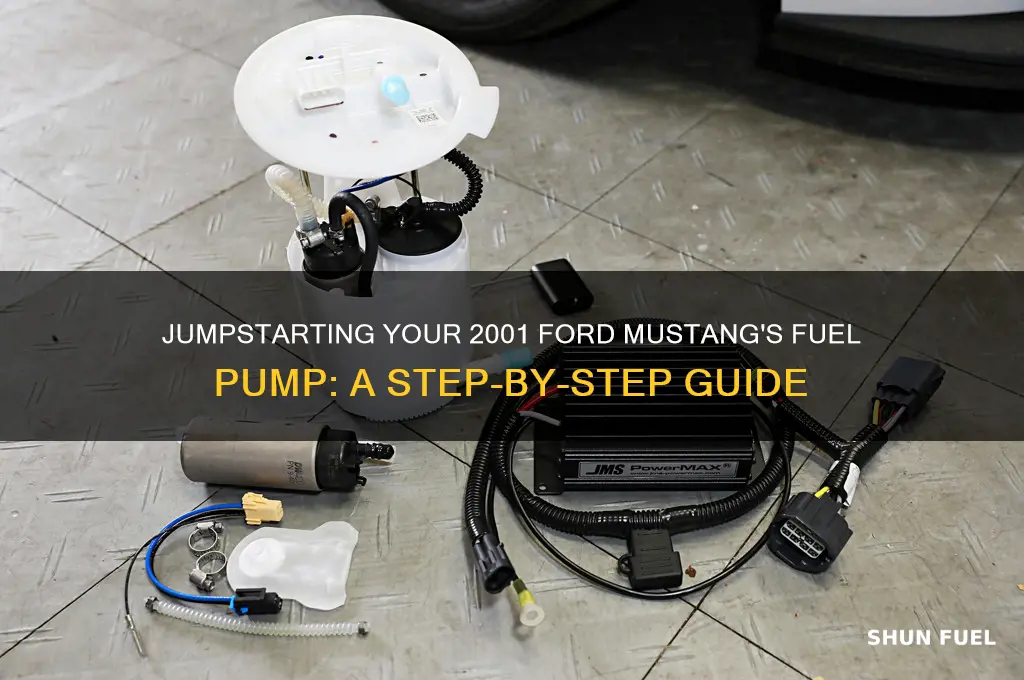

Jump-starting a fuel pump on a 2001 Ford Mustang can be a useful skill if you suspect the pump has failed or is not receiving power. This process involves bypassing the fuel pump relay or directly applying power to the pump to test its functionality. Before attempting this, ensure the vehicle is in a safe location, the ignition is off, and you have the necessary tools, such as a multimeter and jumper wires. Start by locating the fuel pump relay in the fuse box, typically under the hood or near the driver’s side kick panel. If the relay is accessible, you can use a jumper wire to connect the power and ground terminals of the fuel pump connector to the battery, ensuring the pump receives power. Alternatively, you can use a fused jumper wire to directly power the fuel pump from the battery. Always exercise caution when working with electrical systems to avoid short circuits or damage. If the pump operates, the issue may be with the relay or wiring; if it doesn’t, the pump itself may need replacement.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2001 Ford Mustang |
| Fuel Pump Location | Behind the driver's side rear seat, under the carpet |
| Tools Required | Screwdriver, wire strippers, jumper wires, multimeter (optional) |
| Power Source for Jump | Battery or external power source |
| Fuel Pump Relay Location | Under the hood, in the power distribution box |
| Wiring Colors (Typical) | Dark Green/Yellow (Power), Black (Ground), Light Green/Purple (Signal) |
| Jumping Method | Connect power directly to fuel pump wires bypassing the relay |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks |
| Testing Procedure | Listen for fuel pump hum when power is applied |
| Common Issues | Faulty fuel pump relay, corroded wiring, blown fuse |
| Fuse Location | Fuse box under the dash or in the engine bay (check manual) |
| Diagnostic Codes | P0230, P0231 (Fuel Pump Circuit issues) |
| Professional Assistance | Recommended if unsure or if issues persist after jumping |
| Alternative Solution | Replace fuel pump relay or fuel pump if jumping doesn't work |
Explore related products
What You'll Learn
- Locate Fuel Pump Relay: Identify relay panel, find fuel pump relay, and prepare for jumping
- Use Jumper Wire: Connect jumper wire to relay terminals to bypass the fuel pump circuit
- Safety Precautions: Ensure ignition is off, avoid sparks, and work in a well-ventilated area
- Test for Power: Verify power delivery to the fuel pump after jumping the relay
- Diagnose Issues: Check for fuel pump operation and potential electrical faults post-jumping
Locate Fuel Pump Relay: Identify relay panel, find fuel pump relay, and prepare for jumping
The 2001 Ford Mustang’s fuel pump relay is a critical component in the vehicle’s electrical system, acting as a switch that controls power to the fuel pump. Without it functioning properly, your engine may not receive the necessary fuel to start or run efficiently. Locating this relay is the first step in diagnosing or jumping the fuel pump circuit. Start by identifying the relay panel, typically found under the dashboard on the driver’s side or in the engine bay fuse box. Consult your owner’s manual for the exact location, as Ford often provides a diagram labeling each relay and fuse. Once you’ve located the panel, carefully remove the cover to expose the relays.
Finding the fuel pump relay requires a bit of detective work. Relays in the 2001 Mustang are often labeled, but if yours isn’t, look for a relay with four or five pins and a distinctive clicking sound when the ignition is turned on. You can also cross-reference the relay’s position with the diagram in your manual. If you’re still unsure, test each relay by swapping it with another of the same type in the panel. If the fuel pump engages when the ignition is on, you’ve found the correct relay. This process ensures you’re working on the right component before attempting to jump it.
Preparing to jump the fuel pump relay involves gathering the right tools and understanding the procedure. You’ll need a jumper wire or a small piece of insulated wire with exposed ends. Ensure the ignition is off before proceeding to avoid electrical hazards. Locate the two pins on the relay that correspond to the fuel pump’s power supply and ground. Typically, these are the pins that carry the primary current. Use the jumper wire to connect these pins directly, bypassing the relay’s internal switch. This temporarily forces power to the fuel pump, allowing you to test if the pump itself is functional.
While jumping the fuel pump relay is a useful diagnostic step, it’s important to exercise caution. This method should only be used temporarily to test the pump, as bypassing the relay can overload the circuit or cause damage if left connected. Always disconnect the jumper wire after testing. If the pump operates correctly when jumped, the relay is likely faulty and needs replacement. If the pump still doesn’t work, the issue may lie elsewhere, such as a bad pump, clogged fuel filter, or wiring problem. Understanding these steps ensures you approach the task systematically and safely.
Sealing Fuel Pump Housing on a 1997 Camaro Z28: DIY Guide
You may want to see also
Explore related products
Use Jumper Wire: Connect jumper wire to relay terminals to bypass the fuel pump circuit
Jumping a fuel pump on a 2001 Ford Mustang using a jumper wire is a targeted solution for diagnosing or temporarily bypassing a suspected relay failure. This method involves connecting a jumper wire directly to the relay terminals to activate the fuel pump independently of the relay’s control. It’s a diagnostic technique often used when the pump isn’t engaging, and the relay is the suspected culprit. Before attempting this, ensure the ignition is off, and the vehicle is in a safe, well-ventilated area to minimize fire risk.
Steps to Execute the Jumper Wire Method:
- Locate the Fuel Pump Relay: In a 2001 Ford Mustang, the fuel pump relay is typically found in the under-hood fuse/relay box. Consult the owner’s manual or a repair guide to identify the correct relay.
- Identify the Relay Terminals: The fuel pump relay usually has four terminals. Focus on the power input (pin 87) and the output to the fuel pump (pin 30). These are the terminals you’ll jumper.
- Prepare the Jumper Wire: Use a fused jumper wire (10–15 gauge) with a 10–15 amp inline fuse for safety. Strip both ends of the wire to expose the conductors.
- Connect the Jumper Wire: With the ignition off, connect one end of the jumper wire to pin 87 (power input) and the other end to pin 30 (pump output). Ensure a secure connection.
- Activate the Ignition: Turn the ignition to the "on" position (not start). The fuel pump should engage, indicating the circuit is bypassed successfully.
Cautions and Considerations:
This method is strictly diagnostic and not a permanent fix. Running the pump without the relay’s control can lead to overheating or damage if left engaged for extended periods. Always monitor the pump’s operation and limit testing to short durations. If the pump activates, the relay is likely faulty; replace it promptly. If the pump doesn’t engage, the issue may lie elsewhere, such as a failed pump, wiring fault, or blown fuse.
Practical Tips:
Carry a pre-wired jumper with alligator clips for quick connections. Label the relay terminals beforehand to avoid confusion. If unsure about terminal identification, use a multimeter to verify power and ground. Always disconnect the jumper wire before starting the engine to prevent overloading the circuit.
By mastering this technique, you gain a powerful tool for troubleshooting fuel system issues on your 2001 Ford Mustang, saving time and potential misdiagnosis. However, remember that bypassing components is a temporary measure—always address the root cause to ensure long-term reliability.
Understanding the Durability and Vulnerability of Fuel Pumps in Vehicles
You may want to see also
Explore related products
Safety Precautions: Ensure ignition is off, avoid sparks, and work in a well-ventilated area
Before attempting to jump a fuel pump on a 2001 Ford Mustang, prioritize safety to prevent accidents and ensure a smooth process. Start by confirming the ignition is completely off. This simple step eliminates the risk of electrical surges that could damage the fuel pump or other components. Even a momentary activation of the ignition system can send unexpected power to the fuel pump, potentially causing it to run dry or overheat. Double-check that the key is removed from the ignition or, if using a push-button start, ensure the vehicle is in the "off" position.
Next, eliminate any potential sources of sparks. Fuel systems operate under pressure and contain flammable vapors, making them highly susceptible to ignition. Avoid using tools that could generate static electricity, such as metal-on-metal contact, and keep all open flames or smoking materials far from the work area. Even a small spark can ignite fuel vapors, leading to a dangerous fire. If working in a garage, ensure all power tools are unplugged, and consider using insulated tools to minimize the risk of accidental sparks.
Working in a well-ventilated area is equally critical. Fuel vapors are heavier than air and can accumulate in enclosed spaces, creating a hazardous environment. Open all doors, windows, or garage doors to allow fresh air to circulate. If outdoors, choose a location away from buildings or vehicles to prevent vapor buildup. A well-ventilated area not only reduces the risk of fire but also ensures you avoid inhaling harmful fumes, which can cause dizziness or headaches.
Lastly, consider wearing appropriate personal protective equipment (PPE). Safety goggles and nitrile gloves can protect against fuel spills or splashes, which are common when working with fuel systems. While not directly related to sparks or ventilation, PPE adds an extra layer of safety, ensuring you’re prepared for any unexpected mishaps. By adhering to these precautions—turning off the ignition, avoiding sparks, and working in a well-ventilated area—you create a safer environment for tackling the task of jumping a fuel pump on your 2001 Ford Mustang.
Locate Your 2001 Toyota Tundra's Fuel Pump ECM: A Step-by-Step Guide
You may want to see also
Explore related products
Test for Power: Verify power delivery to the fuel pump after jumping the relay
After jumping the fuel pump relay on your 2001 Ford Mustang, the critical next step is to confirm that power is actually reaching the fuel pump. This verification ensures your troubleshooting efforts are on the right track and helps isolate the issue if the pump still isn’t functioning. Start by locating the fuel pump connector, typically found near the fuel tank or in the rear passenger side of the vehicle. Use a multimeter set to the voltage setting (DC volts) to test for power at the connector. With the ignition in the "on" position, probe the positive wire (usually pink or pink/black) and compare the reading to the vehicle’s battery voltage. If the voltage matches, power is being delivered correctly. If not, the issue may lie in the wiring, fuse, or relay itself.
Analyzing the power delivery process reveals a common oversight: assuming the relay jump automatically fixes the problem. While jumping the relay bypasses the control circuit, it doesn’t guarantee power reaches the pump if there’s a break or corrosion in the wiring harness. For instance, moisture or age-related wear can degrade connections, especially in older vehicles like the 2001 Mustang. A practical tip is to inspect the wiring for visible damage and clean the connector terminals with electrical contact cleaner before testing. This simple step can save hours of unnecessary diagnosis.
Persuasively, testing for power isn’t just a diagnostic step—it’s a safeguard against misdiagnosis. Without verifying power delivery, you might mistakenly replace the fuel pump, only to discover the issue was in the wiring. This test is quick, requires minimal tools (a multimeter and basic knowledge of wire colors), and provides definitive feedback. For example, if the multimeter reads 0 volts, the problem is likely upstream of the pump, whereas a reading of 12 volts indicates the pump itself may be faulty. This clarity ensures you address the root cause, not just the symptoms.
Comparatively, testing power delivery on a 2001 Mustang differs from newer models due to its simpler electrical system. Unlike modern vehicles with complex CAN bus networks, the 2001 Mustang’s fuel pump circuit is relatively straightforward, making it easier to isolate issues. However, this simplicity also means there’s less built-in diagnostics, placing greater reliance on manual testing. For instance, newer Fords might have a fuel pump driver module that requires specialized tools to test, whereas the 2001 model’s relay-based system can be diagnosed with basic equipment.
Descriptively, imagine the fuel pump connector as the lifeline between your Mustang’s electrical system and its fuel delivery mechanism. When you jump the relay, you’re essentially forcing power through this lifeline, but without testing, you’re operating blindly. Picture the multimeter as your eyes, confirming the electrical current flows as it should. A steady voltage reading is like a green light, signaling all systems are go. Conversely, a fluctuating or absent reading is a red flag, demanding further investigation. This visual approach transforms a technical task into an intuitive process, making it accessible even to novice DIYers.
Diagnosing a Faulty Fuel Pump: Step-by-Step Testing Guide
You may want to see also
Explore related products
Diagnose Issues: Check for fuel pump operation and potential electrical faults post-jumping
After jumping the fuel pump on your 2001 Ford Mustang, it’s critical to verify that the pump is functioning correctly and to rule out any underlying electrical issues. Start by listening for the fuel pump’s priming cycle when you turn the ignition to the "on" position but before starting the engine. A healthy pump should produce a faint humming sound for 2–3 seconds, indicating it’s pressurizing the fuel system. If you hear nothing, the issue may lie in the pump itself, the relay, or the wiring harness.
Next, test for electrical faults by checking the fuel pump relay and fuse. Locate the relay in the under-hood fuse box (consult your manual for the exact position) and swap it with a similar relay to see if the pump activates. If the pump works with the replacement relay, the original relay is faulty. Inspect the fuel pump fuse (typically a 20-amp fuse) for signs of blowing or corrosion. A blown fuse suggests a short circuit or excessive current draw, which could stem from a failing pump or damaged wiring.
To further diagnose electrical issues, use a multimeter to test voltage at the fuel pump connector. With the ignition on, the connector should show battery voltage (around 12 volts) at one pin and a good ground at another. If voltage is absent, trace the wiring back to the relay or fuse for breaks or corrosion. If voltage is present but the pump doesn’t run, the pump itself may be defective.
Finally, consider the fuel pressure regulator and filter as potential culprits. A clogged filter or failing regulator can mimic fuel pump issues by restricting flow or causing inconsistent pressure. Use a fuel pressure gauge to check for proper pressure (typically 30–60 psi, depending on the engine). If pressure is low or erratic, inspect these components before condemning the pump.
By systematically checking these elements, you’ll not only confirm the fuel pump’s operation but also identify and address any electrical faults that could resurface later. This approach ensures a thorough diagnosis and prevents unnecessary part replacements.
Choosing the Right PSI Fuel Pump for Your Carburetor Setup
You may want to see also
Frequently asked questions
The fuel pump is located inside the fuel tank, which is accessible from underneath the vehicle. You’ll need to remove the rear seat or access panel to reach the fuel pump relay and wiring.
Yes, you can jump the fuel pump by connecting a fused wire from the battery positive terminal to the fuel pump’s power wire at the connector. Ensure the ignition is on before attempting this.
You’ll need a 12V test light or multimeter, a fused jumper wire, and basic hand tools to access the fuel pump connector and relay.
Turn the ignition to the "on" position and listen for the fuel pump’s hum. You can also use a fuel pressure gauge to check for proper pressure at the fuel rail.
If jumping the pump doesn’t work, check for issues like a faulty fuel pump relay, blown fuse, or a bad fuel pump. Consider consulting a professional mechanic for further diagnosis.
