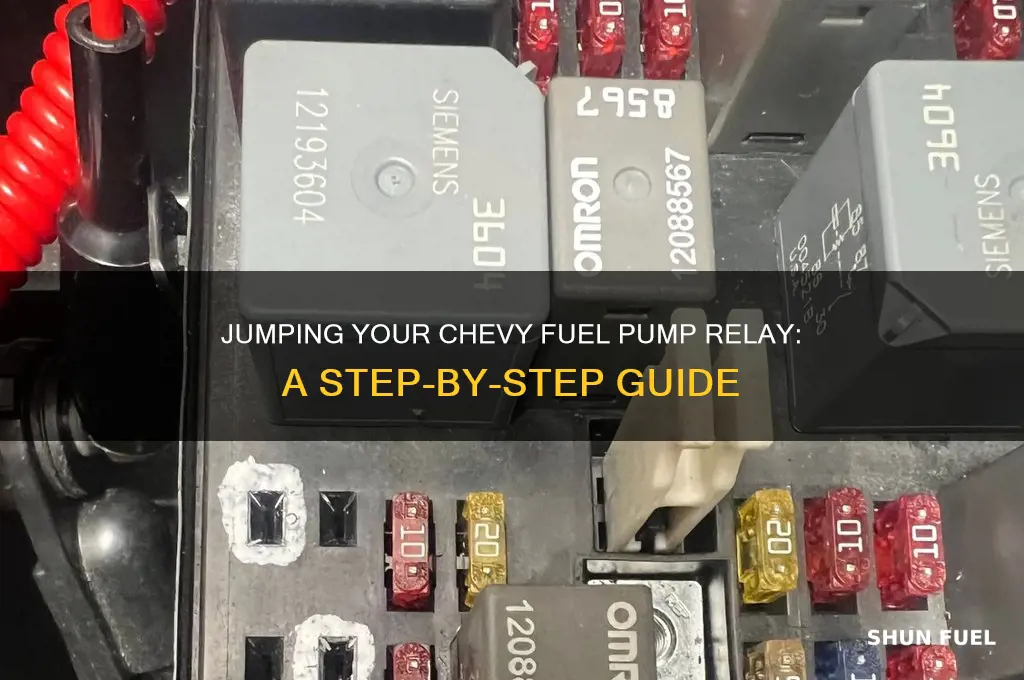

Jumping a Chevy fuel pump relay can be a useful troubleshooting step if you suspect the relay is faulty and causing issues with your vehicle's fuel delivery system. The fuel pump relay is responsible for controlling power to the fuel pump, ensuring it operates only when the engine is running. To jump the relay, locate it in the under-hood fuse box, typically labeled as FUEL PUMP or FP. Using a jumper wire or a small screwdriver, connect the two largest terminals on the relay, usually numbered 30 and 87. This bypasses the relay, allowing power to flow directly to the fuel pump. If the engine starts and runs properly after jumping the relay, it indicates the relay is likely defective and needs replacement. Always exercise caution when working with electrical components, and consult your vehicle’s manual for specific relay locations and safety guidelines.
| Characteristics | Values |
|---|---|
| Purpose | To bypass the fuel pump relay and directly power the fuel pump for testing or troubleshooting. |
| Tools Required | Screwdriver, jumper wires, multimeter (optional). |
| Location of Relay | Typically found in the underhood fuse/relay box. |
| Relay Terminals | 30 (constant power), 87 (output to fuel pump), 85 (ground), 86 (control). |
| Jumper Method | Connect terminal 30 to terminal 87 using a jumper wire. |
| Power Source | Ensure constant power is available at terminal 30. |
| Safety Precautions | Disconnect the battery before starting, avoid sparks near fuel lines. |
| Testing | After jumping, listen for the fuel pump to activate (humming sound). |
| Duration | Only jump the relay for a few seconds to avoid damage or fire risk. |
| Common Chevy Models | Applies to most Chevrolet models with a fuel pump relay (e.g., Silverado, Impala, Malibu). |
| Alternative Method | Use a fused jumper wire for added safety. |
| Diagnostic Use | Helps determine if the fuel pump, relay, or wiring is faulty. |
| Professional Advice | Consult a mechanic if unsure or if the issue persists. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay in the under-hood fuse/relay box
- Test for Power: Use a multimeter to check for voltage at the relay terminals
- Bypass the Relay: Connect the battery and fuel pump wires directly to jump the relay
- Inspect Connections: Ensure all wires and connectors are secure and free of corrosion
- Replace if Faulty: Swap the relay with a known good one if jumping fails
Locate the Relay: Identify the fuel pump relay in the under-hood fuse/relay box
The fuel pump relay in a Chevy is typically housed in the under-hood fuse/relay box, a centralized hub for critical electrical components. This box is often located near the battery or along the firewall, though its exact position varies by model and year. Identifying the correct relay is crucial, as jumping the wrong one can lead to electrical issues or damage. Start by consulting your vehicle’s manual or a reliable online resource to pinpoint the fuel pump relay’s location within the box. Most fuse/relay boxes have a diagram on the lid or cover, labeling each component, which simplifies the process.
Once you’ve located the under-hood fuse/relay box, open it carefully to access the relays inside. Relays are usually rectangular or square-shaped modules with multiple pins, distinguishable from fuses by their size and design. The fuel pump relay is often labeled with a code or symbol, such as "FUEL" or "FP," though this varies by Chevy model. If the box lacks a diagram or clear labeling, compare the relays to identify the one with the highest amperage rating, as the fuel pump relay typically requires more power. Alternatively, use a multimeter to test for continuity or voltage drop, ensuring you’re working with the correct component.
Jumping the fuel pump relay requires understanding its function: it acts as a switch, allowing power to flow to the fuel pump when the ignition is on. To locate it, focus on relays near the fuel system or engine management components in the fuse/relay box. If you’re unsure, trace the wiring harness from the fuel pump to the box, as it often connects directly to the relay. In some Chevy models, the fuel pump relay may be integrated with other systems, so verify its standalone function before proceeding. Precision in identification ensures a safe and effective jump.
Practical tips for locating the relay include using a flashlight to inspect the box in low-light conditions and wearing gloves to avoid injury from sharp edges or hot components. If the relay is difficult to access, consider using a tool like needle-nose pliers to carefully extract it. Always double-check your identification before attempting to jump the relay, as mistakes can lead to short circuits or system malfunctions. By methodically locating the fuel pump relay in the under-hood fuse/relay box, you’ll be well-prepared to proceed with the jumping process, ensuring your Chevy’s fuel system operates as intended.
Bypassing the Fuel Pump on a 1995 Dodge Dakota: A DIY Guide
You may want to see also
Explore related products
Test for Power: Use a multimeter to check for voltage at the relay terminals
Before attempting to jump a Chevy fuel pump relay, it's crucial to verify whether the issue lies with the relay itself or the power supply. A multimeter becomes your diagnostic ally in this scenario, allowing you to pinpoint the problem accurately. By checking for voltage at the relay terminals, you can determine if the relay is receiving the necessary power to function. This step is essential because a lack of voltage could indicate a faulty wiring harness, a blown fuse, or an issue with the battery, rather than a defective relay.
To begin testing for power, locate the fuel pump relay in your Chevy’s fuse box, typically found under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for the exact location. Once identified, set your multimeter to the DC voltage setting, usually marked as "V" with a straight line, and ensure it’s within the appropriate range (0-20V is often sufficient). Connect the multimeter’s black probe to a good ground, such as the battery’s negative terminal, and touch the red probe to each of the relay’s terminals. With the ignition in the "ON" position, you should see voltage readings at specific terminals, typically the power input (pin 85 or 86) and ground (pin 87). If no voltage is detected, the issue likely lies upstream, such as a blown fuse or a faulty ignition switch.
A common mistake when testing relay terminals is misinterpreting the voltage readings. For instance, the power terminal (pin 85 or 86) should show battery voltage (around 12V) with the ignition on, while the ground terminal (pin 87) should remain at 0V until the relay is activated. If the relay coil terminals (pins 30 and 87a) show no voltage, the problem may be with the relay’s control circuit, such as a faulty fuel pump switch or PCM signal. Always cross-reference your findings with a wiring diagram specific to your Chevy model for accuracy.
Safety is paramount when working with electrical systems. Ensure the vehicle is off and the keys are removed before handling the multimeter probes to avoid short circuits. Additionally, wear insulated gloves and avoid touching multiple terminals simultaneously. If you’re unsure about any step, consult a professional mechanic to prevent damage to your vehicle’s electrical system.
In conclusion, testing for power at the fuel pump relay terminals using a multimeter is a critical diagnostic step that can save time and prevent unnecessary part replacements. By understanding voltage patterns and following safety precautions, you can accurately identify whether the relay is receiving power and narrow down the root cause of your Chevy’s fuel pump issues. This methodical approach ensures you address the problem effectively, whether it’s a simple fuse replacement or a more complex electrical repair.
Exploring the 96 F150's Fuel Pump Driver Module: Fact or Fiction?
You may want to see also
Explore related products
Bypass the Relay: Connect the battery and fuel pump wires directly to jump the relay
Jumping a Chevy fuel pump relay by bypassing it entirely is a direct, albeit temporary, solution to diagnose or address a faulty relay. This method involves connecting the battery and fuel pump wires directly, effectively cutting the relay out of the circuit. It’s a straightforward approach that can quickly determine if the relay is the root of your fuel pump issues. However, it’s crucial to understand that this is not a long-term fix, as it bypasses safety features and can lead to overheating or damage if left in place.
To execute this bypass, start by locating the fuel pump relay in your Chevy’s fuse box, typically found under the hood or near the driver’s side dashboard. Identify the relay’s terminals, specifically the power input (usually connected to the battery) and the output that feeds the fuel pump. Using a jumper wire or a piece of insulated wire, connect the battery’s positive terminal directly to the fuel pump’s power wire. Ensure the ignition is off during this process to avoid accidental activation. Once connected, turn the ignition to the "on" position and listen for the fuel pump to engage. If the pump runs, the relay is likely faulty.
While this method is effective for diagnostics, it comes with significant risks. Bypassing the relay eliminates the current-limiting function, which can cause the fuel pump to draw excessive power, potentially burning out the pump or wiring. Additionally, the relay often includes a fuse or circuit breaker to protect against short circuits, which this bypass ignores. Therefore, this technique should only be used temporarily and with caution, ideally as a last resort when testing for relay failure.
For those considering this approach, it’s essential to have a basic understanding of automotive electrical systems. Always use insulated tools and wear safety gear to prevent shocks or short circuits. After confirming the relay’s fault, replace it promptly to restore the vehicle’s safety and functionality. This bypass is a diagnostic tool, not a repair, and should be treated as such to avoid further complications.
Do Husqvarna Riding Mowers Have Fuel Pumps? Find Out Here
You may want to see also
Explore related products
Inspect Connections: Ensure all wires and connectors are secure and free of corrosion
Loose or corroded connections are a silent killer of fuel pump relays, often masqueraging as more complex electrical issues. Before resorting to jumping the relay, a thorough inspection of the wiring harness and connectors is crucial. Think of it as a doctor checking a patient's vitals before prescribing medication.
A visual inspection is your first line of defense. Look for frayed wires, cracked insulation, or signs of heat damage around the fuel pump relay and its associated connectors. Pay close attention to areas where wires bend or rub against other components, as these are prime locations for wear and tear.
Corrosion, often hidden beneath a seemingly clean surface, can disrupt the flow of electricity just as effectively as a severed wire. Use a bright light and a magnifying glass if necessary to inspect connector pins for greenish or white deposits. Gently probe the pins with a small, non-metallic tool to check for looseness. Even slight movement can indicate a weak connection.
A multimeter becomes your diagnostic ally here. Set it to measure resistance (ohms) and check the continuity between the relay's terminals and the corresponding wires. A high resistance reading or no continuity suggests a problem with the connection.
Addressing corrosion requires a delicate touch. Use a contact cleaner specifically designed for electrical systems to dissolve the corrosive buildup. Avoid harsh chemicals or abrasive tools that could damage the delicate connector pins. After cleaning, apply a thin layer of dielectric grease to protect against future corrosion.
Remember, a secure and corrosion-free connection ensures optimal electrical flow, allowing the fuel pump relay to function properly. This simple yet crucial step can save you time, money, and frustration by preventing unnecessary repairs and ensuring your Chevy's fuel system operates reliably.
Are Sparta Fuel Pumps Reliable? A Comprehensive Review and Analysis
You may want to see also
Explore related products
Replace if Faulty: Swap the relay with a known good one if jumping fails
Jumping a Chevy fuel pump relay is a quick diagnostic step, but if the engine still doesn’t start, the relay itself may be faulty. In such cases, swapping it with a known good relay is the next logical step. This method eliminates guesswork by isolating the relay as the potential issue. Begin by locating the fuel pump relay in the under-hood fuse box—typically labeled in the owner’s manual or on the fuse box cover. Use a relay puller tool or pliers to carefully remove the suspect relay, ensuring not to damage the surrounding components.
A comparative approach highlights the importance of using a known good relay for testing. Borrow one from another vehicle with the same make and model, or use a spare relay if available. Ensure the replacement relay matches the pin configuration and specifications of the original. Mismatched relays can cause further issues, such as incorrect voltage or current flow, potentially damaging the fuel pump or wiring. This step is both diagnostic and corrective, saving time and preventing unnecessary part replacements.
Persuasively, replacing a faulty relay is a cost-effective solution compared to replacing the entire fuel pump or wiring harness. Relays are inexpensive and widely available at auto parts stores. If the engine starts after swapping relays, the diagnosis is confirmed, and you’ve avoided unnecessary repairs. However, if the issue persists, the problem may lie elsewhere, such as a faulty fuel pump, clogged fuel filter, or wiring issue. This method narrows down the root cause efficiently.
Practically, always test the new relay before reinstalling it. Use a multimeter to check for continuity across the relay’s terminals, ensuring it functions as expected. Once confirmed, reinstall the relay securely, ensuring it clicks into place. Start the vehicle to verify the repair. If successful, label the faulty relay for replacement and dispose of it properly. This systematic approach ensures a thorough diagnosis and a reliable fix, restoring your Chevy’s fuel system functionality.
Understanding the Fuel Pump System in a 1991 GMC Sonoma
You may want to see also
Frequently asked questions
The Chevy fuel pump relay is an electrical switch that controls power to the fuel pump. Jumping it bypasses the relay to test if the fuel pump is functioning or if the relay itself is faulty.
The fuel pump relay is typically found in the under-hood fuse/relay box. Refer to your vehicle’s manual or look for a diagram on the box lid to identify the correct relay.
You’ll need a screwdriver or pry tool to remove the relay, a piece of wire (or a paperclip), and optionally a multimeter to test for power.
Remove the relay, identify the power and ground terminals (usually pins 30 and 87), and connect them using a wire. Turn the ignition to the "ON" position to activate the fuel pump temporarily. Always exercise caution to avoid electrical shorts.
