Nylon Fuel Line Repair: A Step-By-Step Guide To Installation

Installing a nylon fuel line repair kit is a straightforward process that can help you quickly and effectively fix any damage to your fuel lines. This guide will walk you through the steps to ensure a successful repair, helping you get your vehicle back on the road safely and efficiently. By following these instructions, you can save time and money, as well as ensure the longevity of your vehicle's fuel system.

Prepare the Vehicle: Ensure the car is parked, and the engine is cool before starting the repair

Before you begin the process of repairing your fuel line with a nylon repair kit, it is crucial to prioritize safety and ensure that the vehicle is in a secure and controlled environment. Start by parking your car in a well-ventilated area, preferably outdoors, to avoid any potential hazards associated with fuel fumes. This simple step is often overlooked but is essential for your safety and the success of the repair.

Once the vehicle is parked, allow sufficient time for the engine to cool down. Working on a hot engine can be extremely dangerous and may cause severe burns. The engine should be turned off for at least 30 minutes to an hour to ensure it has cooled down to a safe temperature. This cooling period is vital as it prevents any potential accidents and allows you to handle the fuel lines and components without risk.

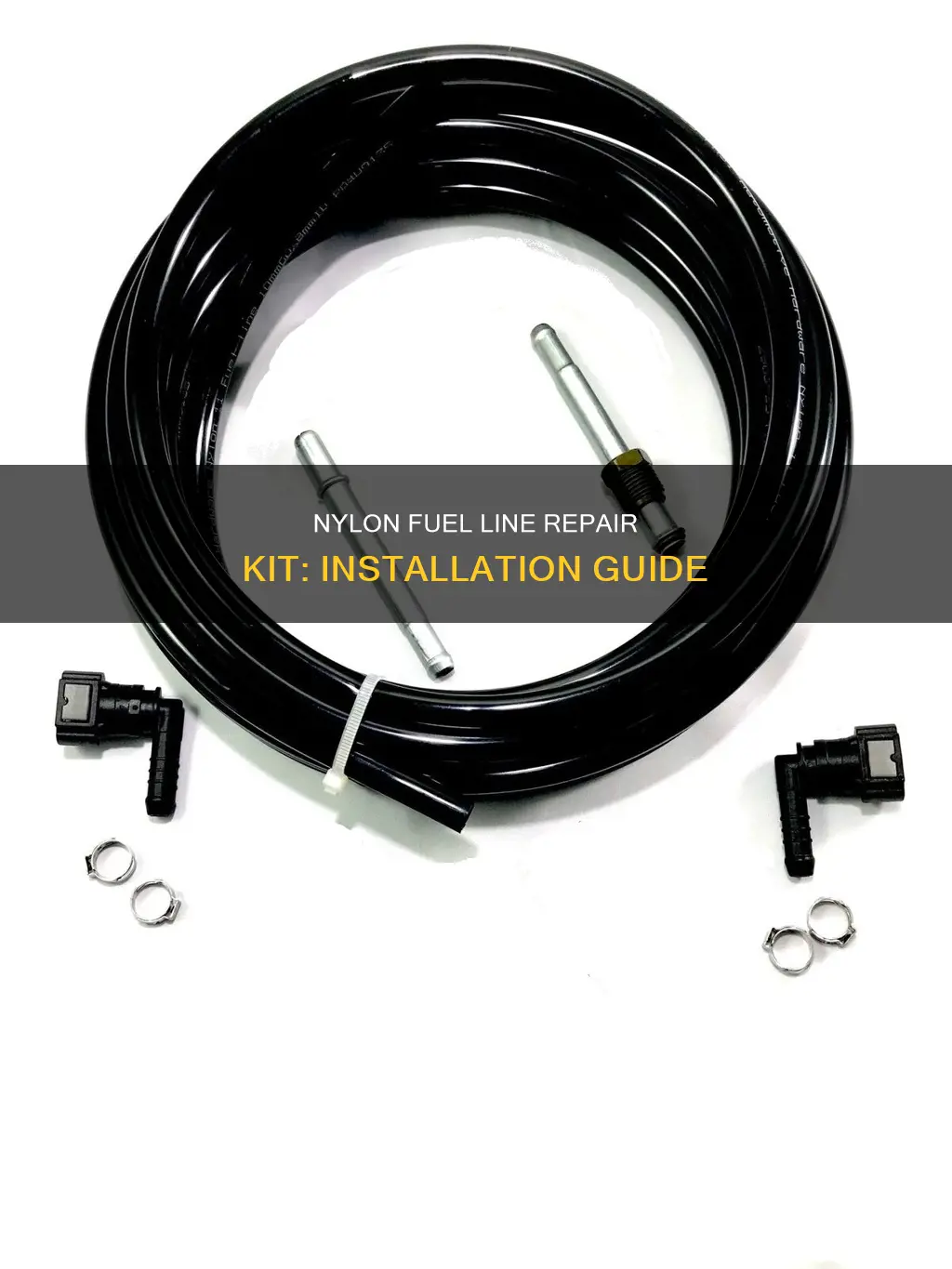

While waiting for the engine to cool, gather all the necessary tools and materials for the repair. This includes the nylon fuel line repair kit, which typically consists of a replacement fuel line, fittings, and any additional hardware required. Having all the components ready will streamline the repair process and ensure you have everything needed to complete the job efficiently.

Additionally, it is a good practice to wear protective gear, such as gloves and safety goggles, to safeguard your hands and eyes from any potential fuel spills or debris. This simple precaution can prevent minor injuries and keep your workspace clean and organized.

By taking the time to properly prepare your vehicle and create a safe working environment, you are setting the foundation for a successful fuel line repair. These initial steps are often overlooked but are critical to ensuring a safe and effective repair process.

Remove the Old Line: Carefully disconnect and remove the damaged fuel line

When it comes to replacing a damaged fuel line, the first step is to carefully remove the old, compromised line. This process requires patience and a systematic approach to ensure you don't cause further damage or spill any fuel. Here's a step-by-step guide to help you through this phase of the repair:

Locate the Fuel Line: Start by identifying the damaged fuel line. It is typically a flexible tube that connects the fuel tank to the engine or the fuel pump. The line may be visible under the vehicle or require some lifting of panels or trim to access it.

Disconnect the Fuel Line: Once you've located the line, you'll need to disconnect it from its attachments. This might involve removing screws, clips, or brackets that hold the line in place. Be gentle and take your time to avoid snapping any components. You may also need to release any fuel pressure to prevent spills. This could be done by locating a fuel pressure relief valve, often found near the fuel tank, and opening it carefully.

Remove the Line: After disconnecting the fuel line from its attachments and sources of power, you can now physically remove the old line. Slide it out of its housing, being mindful of any sharp edges or corners that could damage surrounding components. If the line is stuck, you may need to use a gentle lubricant to ease it out. Ensure you keep track of any clips or fasteners that secure the line to prevent them from getting lost.

Prepare the New Line: As you remove the old line, have your new nylon fuel line repair kit ready. This kit should include the new line, any necessary clips or fasteners, and possibly a fuel filter. Inspect the new line for any visible defects and ensure it is the correct size and type for your vehicle.

Install the New Line: Now, carefully insert the new fuel line into its designated position, ensuring it is routed correctly and securely attached to the fuel tank and engine/pump connections. Reattach any clips or fasteners, making sure they are tight and secure.

By following these steps, you'll be able to efficiently remove the damaged fuel line and prepare for the installation of the new repair kit, ensuring a successful and safe fuel line replacement.

Clean the Hoses: Rinse and inspect the hoses for any debris or damage

Before you begin the installation process of a nylon fuel line repair kit, it's crucial to ensure that the existing fuel lines are in good condition. Cleaning and inspecting the hoses is an essential step to guarantee a successful repair. Start by removing the fuel lines from the vehicle, taking care not to force them to avoid any damage. Once removed, rinse the hoses thoroughly with water to eliminate any dirt, grime, or debris that may have accumulated over time. Use a gentle stream of water to wash away any stubborn buildup, ensuring that you reach all areas of the hose. Pay close attention to the connections and fittings, as these areas can often accumulate the most dirt.

After rinsing, give the hoses a thorough inspection. Check for any signs of wear and tear, such as cracks, punctures, or frayed areas. Look for any visible damage, including holes or tears, as these could be potential weak points that need reinforcement. Inspect the interior of the hoses as well; ensure there are no internal debris or contaminants that could affect the fuel flow. If you notice any significant damage, it might be necessary to replace the affected hose section before proceeding with the repair kit installation.

During this inspection, also check for any signs of corrosion or oxidation, especially around the fittings and bends. These areas can be prone to rust, which can compromise the integrity of the fuel lines. If corrosion is present, consider using a mild acid cleaner to remove it, ensuring that you rinse the hoses thoroughly afterward to prevent any chemical residue from affecting the fuel quality.

Remember, the goal of this step is to create a clean and safe environment for the repair kit. By thoroughly rinsing and inspecting the hoses, you'll be able to identify any issues that need addressing before the installation, ensuring a more efficient and effective repair process.

Install the Repair Kit: Follow the kit instructions to attach the new nylon fuel line

Before you begin the installation process, it's crucial to read and understand the instructions provided with your nylon fuel line repair kit. Each kit may have specific steps and requirements, so following these guidelines is essential for a successful repair. Typically, the kit will include a new nylon fuel line, various fittings, and detailed instructions.

Start by laying out all the components on a clean, well-lit work area. Identify the old fuel line that needs to be replaced and locate the corresponding sections of the new nylon line. Compare the dimensions and ensure they match the damaged areas. This initial inspection will help you understand the repair process and ensure you have the right parts.

Now, follow the kit instructions step by step. The process usually involves cleaning the fuel line and removing any old fittings or damaged sections. Use a suitable solvent to clean the area, ensuring no debris or contaminants remain. Then, carefully cut the new nylon fuel line to the appropriate length, using a sharp, clean blade. Take note of any specific cutting techniques or measurements mentioned in the instructions.

Next, you'll attach the new fittings to the fuel line. This may involve threading, clamping, or using specialized connectors provided in the kit. Ensure a tight and secure connection at each joint. Follow the manufacturer's recommendations for torque specifications if provided. It's important to double-check your connections to avoid any potential leaks.

Once all the fittings are in place, inspect the entire assembly for any signs of leakage. Test the fuel line by applying slight pressure and checking for any drips or bubbles. If everything is secure and there are no leaks, your repair is complete. Remember, proper installation and adherence to the kit instructions are key to a successful and long-lasting repair.

Test and Secure: Check for leaks, then reattach any clamps or fittings

Before you reattach any clamps or fittings, it's crucial to ensure that the repair is secure and leak-free. This step is essential to prevent any potential issues down the line. Here's a detailed guide on how to test and secure your nylon fuel line repair:

Step 1: Visual Inspection

Start by visually inspecting the repaired area. Check for any visible signs of damage, cracks, or deformities in the nylon fuel line. Ensure that all fittings and clamps are properly aligned and seated correctly. Look for any signs of corrosion or debris that might have accumulated during the repair process.

Step 2: Leak Test

The most critical part of the process is to test for leaks. Here's how:

• Soak Test: Fill the fuel line with a small amount of fuel or a suitable liquid like water or a leak detection fluid. Soak the line for a few minutes to allow the liquid to circulate. Then, check for any signs of leakage around the clamps and fittings.
• Pressure Test: If you have access to a fuel pump and a pressure gauge, you can perform a pressure test. Connect the pump to the fuel line and gradually increase the pressure. Monitor the gauge for any drops in pressure, indicating a potential leak.
• Bubble Test: For a more visual approach, use a bubble detector or soapy water. Apply a thin layer of soapy water or a bubble detector around the clamps and fittings. If bubbles appear, it indicates a leak.

Step 3: Reattach Clamps and Fittings

Once you've confirmed that there are no leaks, it's time to reattach the clamps and fittings securely.

• Ensure that all clamps are tightened evenly and securely. Use a wrench or a clamp tool to apply the correct amount of force without over-tightening.
• Check that all fittings are properly aligned and seated. Make sure there are no gaps or misalignments that could lead to future issues.
• Consider using thread seal tape or pipe compound on any threads to ensure a tight seal.

Step 4: Final Check

After reattaching the clamps and fittings, give the fuel line a final inspection. Ensure that there are no visible signs of damage or movement in the line. Start the engine and listen for any unusual noises, especially hissing or whistling sounds, which could indicate a leak. If everything checks out, your nylon fuel line repair is secure and ready for use.

Remember, proper testing and securing of the repair are vital to ensure the longevity and reliability of your fuel system. Always follow the manufacturer's guidelines and recommendations for your specific fuel line repair kit.
