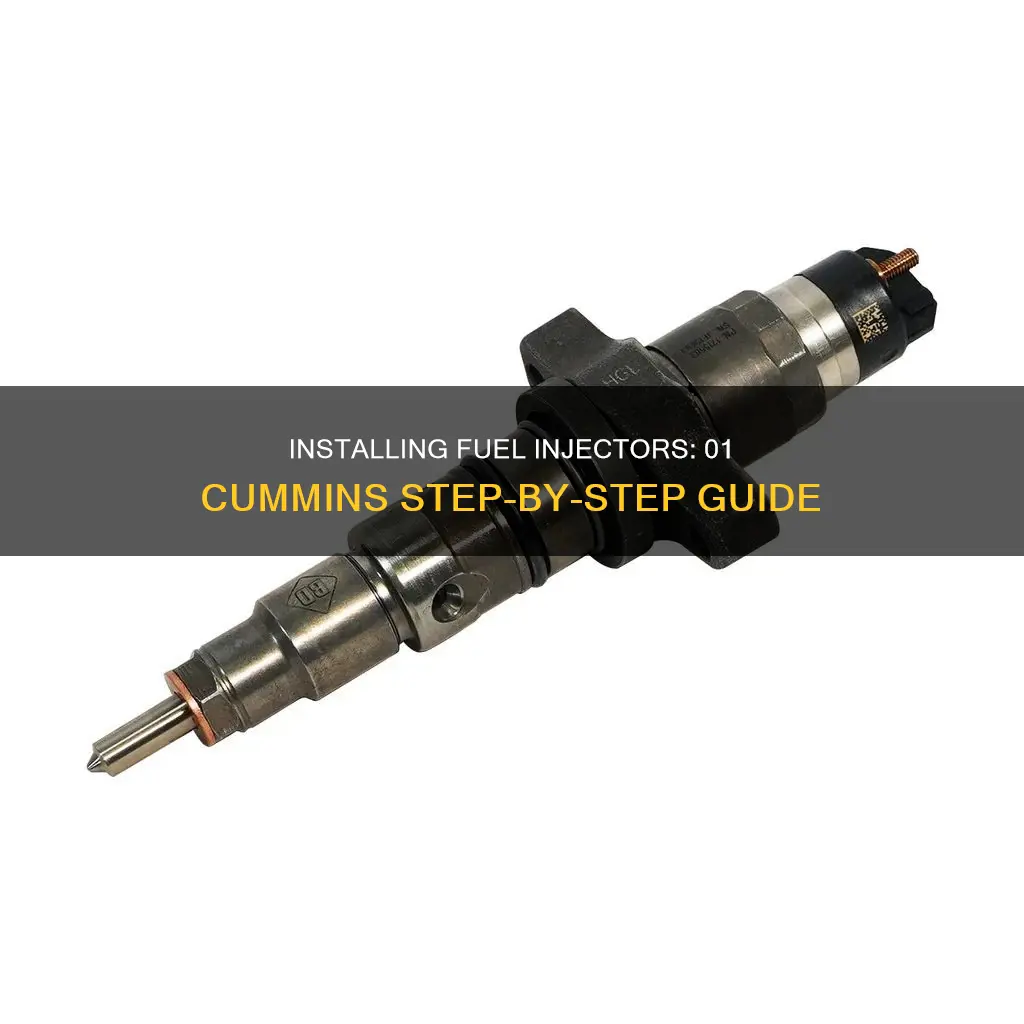

Installing fuel injectors on a 2001 Cummins engine is a complex process with many steps. It is important to be aware of the potential dangers of fuel leaks and to take precautions to avoid damage to the engine. The process involves disconnecting and reconnecting many components, such as the negative battery cables, high-pressure fuel lines, and connector tubes. Special tools are required for some steps, such as the high-pressure connector removal tool #9015. The injector itself must be carefully cleaned and lubricated before installation, and the correct torque must be applied to the bolts and nuts to avoid damage and fuel leaks.
| Characteristics | Values |
|---|---|
| Fuel Injector Removal | Disconnect both negative battery cables from both batteries. Remove the injector out of the cylinder head. |
| Fuel Injector Cleaning | Clean the injector bore with a brush and a shop towel. Clean the tip of the injector with clean diesel fuel and a soft brush. |
| Fuel Injector Installation | Install the injector hold-down clamp bolts. Lubricate the O-rings with engine oil. Position the injector into the cylinder head bore. Press the injector into the cylinder head with finger pressure only. |
| Torque | Torque the injector hold-down bolts to 89 inch-pounds. Torque the connector tube to 37 foot-pounds. Torque the injector wire connector nuts to 11 inch-pounds. |
Explore related products
What You'll Learn
Clean the injector bore and cylinder head bore
To clean the injector bore and cylinder head bore of a 01 Cummins, you should first remove the injector. Then, clean the injector bore with a brush, such as the special Cummins wire brush tool or an equivalent. You can also use a shop towel on the brush to pick up any remaining soot or debris in the bore.
It is not recommended to blow into the bore of the injector hole, as this may force debris into the combustion chamber. Instead, blow out the bore hole with compressed air.
Next, clean the tip of the injector with clean diesel fuel and a soft brush. Any carbon build-up should be removed. Check the connector tube for any debris or corrosion from contaminants in the fuel. Tap the tube on a piece of white paper to dislodge and inspect for any debris.
Finally, inspect the injector and connector tube end for any damage as detailed in the service manual.
Cleaning Evinrude Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Remove the injector
To remove the injector from a 2001 Cummins, you must first disconnect the negative battery cables from both batteries. Cover and isolate the ends of the cables. Then, remove the necessary high-pressure fuel line connecting the fuel injector rail to the high-pressure connector.
Next, remove the connector retainer by unthreading the nut(s) from the cylinder head. Use a special high-pressure connector removal tool to remove the high-pressure connector(s) from the cylinder head. Thread the tool onto the connector tube and use it to pry the connector tube(s) from the cylinder head.
Loosen the bolts on the back of the head that hold the bracket in place just behind the last injector line. Remove the bolt from the rear fuel line holder. Remove the fuel line hold-down brackets.
Remove the rear engine lift bracket bolts and bracket. Remove the MAP sensor from the intake.
Remove the nuts holding the high-pressure connector tubes. Thread a Miller 9015 connector tube puller into the connector tube and pry/pull the tube straight out.
Remove the bolts holding the exhaust rocker arms.
Inspect the injector and connector tube end for any damage. Remove and discard the copper seal ring and clean the tip of any carbon with clean diesel fuel and a soft brush. Clean the injector bore in the head and blow it out with compressed air.
Finally, carefully pry the injector out.
Cleaning Dirty Fuel Injectors: DIY Guide and Tips
You may want to see also
Explore related products
Install a new shim and O-ring
Installing a new shim and O-ring is a crucial step in ensuring the fuel injector functions correctly and does not leak. Here is a detailed guide on how to do this:
Firstly, you must measure the thickness of the injector shim. The shim thickness should be 1.5mm or 0.060 inches. This measurement is important to ensure the correct fit. Once you have the correct shim, it is time to install it. Place the new shim at the bottom of the injector. Apply a light coating of clean engine oil to the shim. This will help keep the shim in place during installation and prevent it from moving.
Next, you will install the new O-ring. The O-ring is a critical seal that prevents fuel leaks. Apply a small amount of clean engine oil to the O-ring before installation. This will lubricate it and ensure a tight seal. Now, carefully position the injector into the cylinder head bore. Ensure that the injector tip does not touch the sides of the bore. Use only finger pressure to press the fuel injector into the cylinder head.
At this point, you should also note the fuel inlet hole or port on the side of the fuel injector. This must be correctly aligned and positioned towards the intake manifold. These steps will ensure a proper seal and prevent fuel leaks, which can be dangerous and cause engine damage.
Cleaning Fuel Injectors: Seafoam Solution for Your Car
You may want to see also
Explore related products
Reinstall the injector
When reinstalling the injector, it is important to ensure that the injector and connector tube end are not damaged. Remove and discard the old copper seal ring, and clean the tip of any carbon with clean diesel fuel and a soft brush. The connector tube must be free of any deformation, or it will not seal properly when reinstalled. Tap the tube on a piece of white paper to dislodge and inspect for any debris, and also look for any corrosion from contaminants in the fuel.
Next, clean the injector bore in the head and blow it out. If everything has been inspected, cleaned, and replaced, it is time to reinstall the injector. Replace the O-ring on the injector and lubricate it with some engine oil. Carefully align the injector in the injector bore.
Then, install the fuel injector hold-down clamp bolts. Do a preliminary tightening of these bolts to 5 N.m (44 in. lbs.) torque. After tightening, relieve bolt torque, but leave both bolts threaded in place. If required, assemble the O-ring to the injector fuel supply connector. Lubricate the connector bore and thread, and install the fuel supply connector into the cylinder head by engaging the locator into the groove and pushing to engage the O-ring.
Install the fuel supply connector nut (fitting) into the cylinder head. Do a preliminary tightening to 15 N.m (11 ft. lbs.) torque. Perform final tightening of the fuel injector mounting clamp bolts to 10 N.m (89 in. lbs.) torque. Connect the injector solenoid wires and nuts to the top of the injectors. Tighten the connector nuts to 1.25 Nm (11 in. lbs.). Be very careful not to over-tighten these nuts as damage to the fuel injector may occur.
Fuel Injector Cleaner: Worth the Cost?
You may want to see also
Explore related products
Tighten bolts and nuts
When tightening bolts and nuts during the installation of fuel injectors on a 01 Cummins, it is important to be cautious and precise to avoid damage and ensure proper sealing. Here are the steps and guidelines for tightening the relevant bolts and nuts:
- Fuel Injector Hold-Down Clamp Bolts: Start by performing a preliminary tightening of the fuel injector hold-down clamp bolts. This preliminary step ensures that the fuel injector is properly seated and centered. The recommended torque for this preliminary tightening is 5 N·m (44 in. lbs.). After achieving this torque, relieve the bolt torque, but leave both bolts threaded in place.
- Fuel Supply Connector: Install the fuel supply connector into the cylinder head. Align the locator into the groove and push to engage the O-ring. Then, install the fuel supply connector nut (also known as the fitting) into the cylinder head. Perform a preliminary tightening of this nut to 15 N·m (11 ft. lbs.) torque.
- Fuel Injector Mounting Clamp Bolts: After the preliminary steps, it's time to perform the final tightening of the fuel injector mounting clamp bolts. Torque these bolts to 10 N·m (89 in. lbs.).
- Injector Solenoid Wires and Nuts: Connect the injector solenoid wires and nuts to the top of the injectors. Carefully tighten the connector nuts to 1.25 Nm (11 in. lbs.). Be cautious not to over-tighten these nuts, as it can lead to damage to the fuel injector.
- Drain Manifold Fitting Screws (Bolts): When working with the drain manifold, tighten the fitting screws (bolts) at the injectors to 7 ft. lbs. torque.
- Drain Manifold Holdown Clamp Screws (Bolts): Similarly, tighten the drain manifold holdown clamp screws (bolts) to 10 ft. lbs. torque.
- Engine Lifting Bracket Bolts: If necessary, install the engine lifting bracket. Tighten the two bolts to 77 N·m (57 ft. lbs.) torque.
- Connector Tube: Tighten the connector tube to 37 ft. lbs. Ensure that the connector tube is not deformed, as this will affect the seal.
- Injector Hold-Down Bolts: Tighten the injector hold-down bolts alternately to 89 in. lbs.
- Injector Wire Connector Nuts: Carefully tighten the injector wire connector nuts to 11 in. lbs. Avoid over-tightening.
- Rocker Arm: Install the rocker arm and torque to 27 ft. lbs.
- Fuel Line Fittings: Install the fuel lines, being cautious not to bend them. Tighten the fuel line fittings using a back-up wrench on the connector tube nut to 22 ft. lbs.
- Fuel Line Hold-Down Brackets: Install the fuel line hold-down brackets and torque to 18 ft. lbs.
Remember, proper torque and sealing are critical to avoid high-pressure fuel leaks and potential damage to the fuel injector and other components. Always refer to the service manual and torque specifications for your specific vehicle and fuel injector system.
Fuel Injector Seals: Are They Included?
You may want to see also
Frequently asked questions
You will need a 0-100 inch lb torque wrench and a 0-100 foot lbs torque wrench. You will also need a Miller 9015 connector tube puller or an equivalent tool to remove the high-pressure connector tubes.
First, disconnect the negative battery cables from both batteries. Then, remove the necessary high-pressure fuel line connecting the fuel injector rail to the high-pressure connector. Remove the connector retainer and the high-pressure connector from the cylinder head.
Clean the bore with a special Cummins wire brush tool or an equivalent brush. Then, blow out the bore hole with compressed air.
Measure the thickness of the injector shim and install a new one with the correct thickness to the bottom of the injector. Apply a light coating of clean engine oil to the washer to keep it in place during installation.
First, clean the injector bore in the head and blow it out. Then, replace the O-ring on the injector and lube it with engine oil. Position the injector into the cylinder head bore, being careful not to let the injector tip touch the sides of the bore. Press the fuel injector into the cylinder head with finger pressure only.
