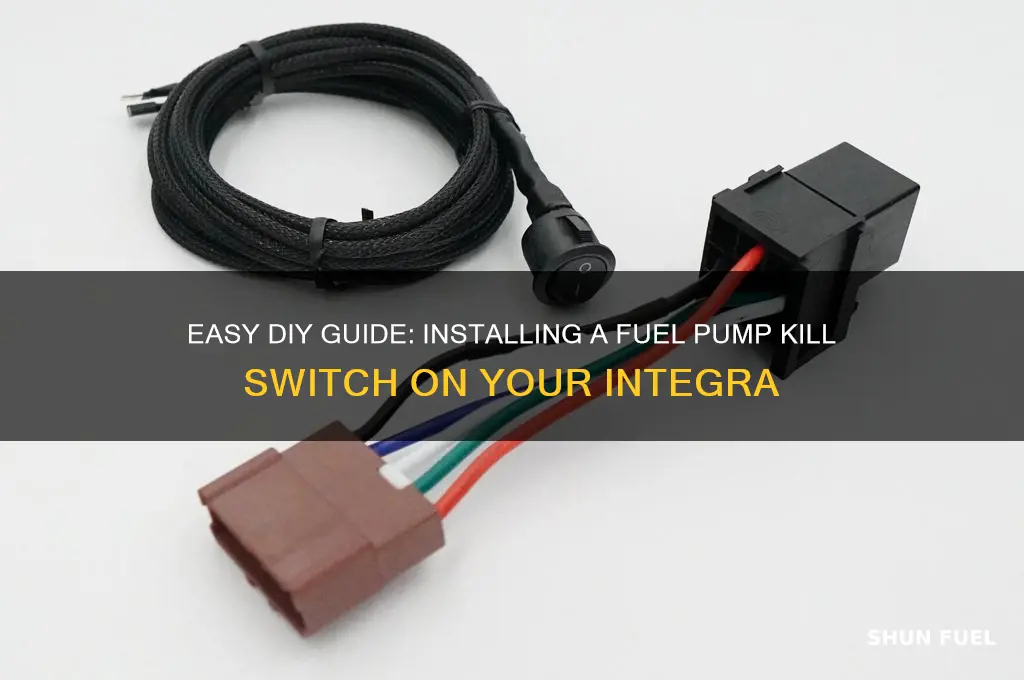

Installing a fuel pump kill switch in a Honda Integra is a practical modification for enhancing vehicle security or for use in racing applications. This switch allows you to quickly cut off the fuel pump, preventing the engine from running, which can deter theft or serve as a safety measure during high-performance driving. The process involves locating the fuel pump wiring harness, typically found in the trunk or under the rear seat, and splicing in the kill switch. Ensure you disconnect the battery before starting to avoid electrical hazards. Use a relay or a simple toggle switch, depending on your preference, and connect it in series with the fuel pump’s power wire. Properly insulate all connections and secure the switch in an accessible location. Testing the setup is crucial to confirm functionality before relying on it for security or safety purposes. Always consult a professional if you’re unsure about any step to ensure the modification is done correctly and safely.
| Characteristics | Values |
|---|---|
| Vehicle Model | Honda Integra (specific model year may vary) |
| Purpose | To install a fuel pump kill switch for security or racing purposes |
| Tools Required | Wire cutters, wire strippers, crimping tool, electrical tape, soldering iron (optional), multimeter |
| Materials | Fuel pump kill switch, 12-gauge wire, wire connectors, heat shrink tubing, fuse holder (optional) |
| Location | Fuel pump wiring harness, typically near the fuel tank or under the rear seat |
| Wiring | Identify the fuel pump wire (usually pink or pink/black) and ground wire; connect the kill switch in series with the fuel pump circuit |
| Safety | Disconnect the battery before starting; ensure proper grounding to prevent electrical hazards |
| Testing | Use a multimeter to verify continuity and proper functioning of the kill switch |
| Legal Compliance | Check local laws regarding modifications; some regions may prohibit or restrict kill switches |
| Difficulty Level | Intermediate; requires basic electrical knowledge and wiring skills |
| Time Required | 1-2 hours, depending on experience and vehicle accessibility |
| Cost | $20-$50 (depending on the quality of the kill switch and materials) |
| Additional Tips | Consider adding a fuse in the kill switch circuit for added safety; label wires for easier reinstallation |
Explore related products
What You'll Learn
- Gather Tools & Parts: Wire cutters, crimpers, switch, fuse tap, connectors, wire, electrical tape, and a fuel pump kill switch
- Locate Fuel Pump Wire: Identify the fuel pump wire in the engine bay or interior harness using a wiring diagram
- Install Switch Inline: Cut the fuel pump wire, connect the switch inline using waterproof connectors
- Mount the Switch: Secure the switch in a convenient, accessible location, ensuring it’s out of the way
- Test the System: Verify the switch functions by turning it on/off and checking the fuel pump operation
Gather Tools & Parts: Wire cutters, crimpers, switch, fuse tap, connectors, wire, electrical tape, and a fuel pump kill switch
Before diving into the installation of a fuel pump kill switch for your Integra, it’s crucial to assemble the right tools and parts. This step ensures efficiency, safety, and a professional finish. Start with wire cutters and crimpers, essential for trimming and connecting wires securely. A switch acts as the control mechanism, allowing you to activate or deactivate the fuel pump as needed. A fuse tap is vital for integrating the kill switch into your vehicle’s existing electrical system without splicing factory wires. Connectors and wire provide the necessary links between components, while electrical tape ensures insulation and protection against shorts. Finally, the fuel pump kill switch itself is the centerpiece, designed to interrupt power to the fuel pump when engaged.
Analyzing the role of each tool reveals their interconnected importance. Wire cutters and crimpers, for instance, are not interchangeable—cutters ensure clean wire ends, while crimpers create reliable connections. The fuse tap simplifies installation by tapping into an existing fuse slot, reducing the risk of damaging factory wiring. Connectors and wire must match the gauge and type specified for your Integra’s electrical system to avoid overheating or failure. Electrical tape, though simple, is indispensable for wrapping exposed connections and preventing accidental grounding. Each component plays a specific role, and omitting any one could compromise the functionality or safety of the kill switch.
From a practical standpoint, sourcing high-quality parts is as critical as having the right tools. Opt for a switch rated for automotive use, capable of handling the current draw of your fuel pump. Ensure the fuse tap is compatible with your Integra’s fuse box design. When selecting wire, choose a gauge that matches or exceeds the original wiring to maintain efficiency. For connectors, consider weatherproof options if your installation will be exposed to moisture. While electrical tape is a temporary solution, it’s a quick fix for securing connections during testing before applying a more permanent solution like heat shrink tubing.
A comparative look at DIY versus professional installations highlights the value of proper tools. Professionals use specialized equipment like wire strippers and heat guns, but for most enthusiasts, the listed tools suffice. The key difference lies in precision and experience. For example, improperly crimped connections can lead to intermittent issues, while over-tightening a fuse tap might damage the fuse box. By investing time in gathering the right tools and understanding their use, you bridge the gap between amateur and professional results, ensuring a reliable and safe installation.
In conclusion, gathering the correct tools and parts is the foundation of a successful fuel pump kill switch installation. Each item—from wire cutters to the kill switch itself—serves a distinct purpose, contributing to the overall functionality and safety of the system. By prioritizing quality, compatibility, and proper usage, you not only streamline the installation process but also enhance the longevity and reliability of your Integra’s modified electrical system. Treat this step as a checklist, ensuring nothing is overlooked before proceeding to the next phase of the project.
Understanding Diesel Fuel Transfer Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Locate Fuel Pump Wire: Identify the fuel pump wire in the engine bay or interior harness using a wiring diagram
The fuel pump wire is your gateway to installing a kill switch, but finding it can feel like a game of hide-and-seek in a spaghetti factory. Your first weapon is a wiring diagram specific to your Integra's year and model. These diagrams, often found in factory service manuals or online forums, are the Rosetta Stone of automotive electrical systems. They'll show you the exact color, gauge, and location of the wire leading from the fuel pump relay to the pump itself, usually a thick, multi-colored wire designed to handle the pump's high current draw.
Without a diagram, you're essentially blindfolded, relying on trial and error, which can lead to frustration and potentially damaging your vehicle's electrical system.
Once armed with your diagram, it's time to play detective in your engine bay. Trace the wire from the fuel pump relay, typically located near the battery or fuse box, following its path along the harness. Look for a wire that matches the diagram's description, often a thick, black or red wire with a stripe or specific color combination. Remember, the fuel pump wire needs to be accessible for your kill switch installation, so avoid wires buried deep within the harness or encased in hard-to-reach areas.
If you're unsure, use a multimeter to test for continuity between the suspected wire and the fuel pump connector. This ensures you've found the correct wire before making any modifications.
While the engine bay is the most common location, don't forget to check the interior harness if your diagram indicates the wire runs through the cabin. This is less common but not unheard of, especially in older vehicles. Be patient and methodical in your search, as rushing can lead to mistakes. Remember, you're dealing with a critical component of your vehicle's fuel system, so accuracy is paramount.
Finally, once you've positively identified the fuel pump wire, mark it clearly with tape or a label to avoid confusion during the kill switch installation. This simple step can save you time and frustration later, ensuring a smooth and successful project. Remember, a little preparation and attention to detail go a long way when working with your vehicle's electrical system.
BMW 325 Fuel System: Does It Feature Dual Fuel Pumps?
You may want to see also
Explore related products
Install Switch Inline: Cut the fuel pump wire, connect the switch inline using waterproof connectors
Installing a fuel pump kill switch inline is a straightforward yet critical modification for enhancing vehicle security or racing applications. The process begins with identifying the fuel pump wire, typically located between the fuel pump relay and the pump itself. Use a wiring diagram specific to your Honda Integra model to ensure accuracy. Once identified, cut the wire cleanly, stripping about half an inch of insulation from each end. This step is irreversible, so double-check your work before proceeding.
Connecting the switch inline requires waterproof connectors to protect against moisture and corrosion, especially in under-vehicle environments. Crimp or solder the connectors securely to the exposed wires, ensuring a tight fit. The kill switch should be wired in series, meaning the circuit is complete only when the switch is engaged. Use heat shrink tubing to insulate the connections, applying heat evenly to seal the tubing and provide additional protection. This method not only ensures reliability but also maintains the integrity of the vehicle’s electrical system.
While the process is simple, precision is key. Poorly crimped connectors or exposed wires can lead to electrical shorts or fuel system failures. Test the switch before reassembling components by toggling it on and off while monitoring the fuel pump’s operation. If the pump activates only when the switch is on, the installation is successful. For added safety, mount the switch in a concealed location, such as under the dashboard, to deter tampering.
Comparing this method to other kill switch installations, the inline approach offers a direct and effective solution without the need for additional relays or complex wiring. It’s particularly suited for applications where simplicity and reliability are paramount. However, it’s essential to consider local regulations, as some jurisdictions may restrict modifications to fuel systems. Always consult a professional if you’re unsure about any step in the process.
In conclusion, installing a fuel pump kill switch inline by cutting the fuel pump wire and using waterproof connectors is a practical and secure modification. With careful planning and execution, this method ensures a reliable kill switch that enhances vehicle control and security. Whether for racing or theft prevention, this approach balances simplicity with effectiveness, making it a popular choice among Integra enthusiasts.
Optimal Fuel Pump Strainer Tightness: A Crucial Maintenance Guide
You may want to see also
Explore related products
Mount the Switch: Secure the switch in a convenient, accessible location, ensuring it’s out of the way
Choosing the right spot for your fuel pump kill switch is a balance between accessibility and stealth. You want it within arm’s reach when you’re in the driver’s seat, but not so obvious that it screams “kill switch” to potential thieves. The ideal location is under the dashboard, near the steering column, or tucked behind a removable panel. Avoid placing it directly above the pedals or in areas prone to moisture, as this could compromise functionality. Think like a tactician: the switch should be easy for you to flip but difficult for others to find.
Now, let’s talk mounting. Use a sturdy bracket or a piece of metal sheeting to secure the switch. Drill holes in the bracket to match the switch’s mounting points, then fasten it with screws or bolts. If you’re working with a plastic interior panel, reinforce the area with a metal plate to prevent cracking under pressure. For added durability, apply a bead of silicone sealant around the edges to protect against vibrations and minor impacts. Remember, a loose switch is a useless switch—ensure it’s tight enough to stay put but not so tight that you strip the threads.
Consider the wiring when mounting the switch. Route the wires neatly, using zip ties or electrical tape to secure them along existing harnesses. Keep the wires away from hot surfaces like the exhaust manifold or moving parts like the steering linkage. If the switch requires a ground connection, attach it to a clean, unpainted metal surface for optimal conductivity. A poorly routed wire can lead to shorts or disconnections, defeating the purpose of the kill switch entirely.
Finally, test the switch’s accessibility before finalizing the mount. Sit in the driver’s seat and simulate flipping the switch in an emergency. Can you reach it without contorting your body? Does it feel secure, or does it wobble? If adjustments are needed, make them now. A well-mounted kill switch isn’t just a security feature—it’s peace of mind. When done right, it blends seamlessly into your Integra’s interior, ready to act as your silent guardian.
Does the Crank Sensor Control the Fuel Pump? Explained
You may want to see also
Explore related products
Test the System: Verify the switch functions by turning it on/off and checking the fuel pump operation
Once the fuel pump kill switch is installed in your Integra, the critical next step is to ensure it functions as intended. This isn’t just a formality—it’s a safety and performance check that confirms your vehicle’s fuel system responds correctly to the switch’s activation. Testing the system involves a straightforward process: toggle the switch on and off while monitoring the fuel pump’s operation. Start with the ignition off and the switch in the "on" position. Turn the key to the "on" position (without starting the engine) and listen for the fuel pump’s priming hum, which typically lasts 2-3 seconds. If the pump activates, the switch is allowing power to flow as expected.
Next, flip the kill switch to the "off" position and repeat the process. With the ignition on, the fuel pump should remain silent, indicating the switch has successfully cut power to the pump. This test verifies the switch’s ability to both enable and disable the fuel system, a dual functionality crucial for anti-theft or emergency shutdown purposes. If the pump operates when the switch is off, recheck the wiring for shorts or incorrect connections.
A practical tip: use a fuel pressure gauge or a multimeter to confirm the pump’s operation if auditory cues aren’t clear. Connect the gauge to the fuel rail or use the multimeter to test voltage at the pump’s connector when the switch is toggled. This provides objective data to validate the switch’s performance.
Comparatively, testing the kill switch is akin to checking a circuit breaker in your home. Just as you’d flip the breaker to ensure it cuts power to a specific circuit, the kill switch test confirms it isolates the fuel pump from the electrical system. This analogy underscores the switch’s role as a simple yet effective control mechanism.
In conclusion, testing the fuel pump kill switch isn’t optional—it’s a mandatory step to ensure reliability and safety. By systematically verifying its functionality, you guarantee the switch will perform when needed, whether to deter theft or shut down the engine in an emergency. Treat this test as the final seal of approval before relying on the system in real-world scenarios.
Bypassing a Bad Fuel Pump: Quick Fixes and Safety Tips
You may want to see also
Frequently asked questions
A fuel pump kill switch is a safety device that cuts power to the fuel pump, stopping the engine. It’s often installed for security, racing, or theft prevention purposes.
Install the switch in a discreet, easily accessible location, such as under the dashboard or in the center console, to ensure it’s hidden but convenient to use.
You’ll need a fuel pump kill switch, wire cutters/strippers, electrical tape, a multimeter, and basic hand tools like screwdrivers and pliers.
Locate the fuel pump wire in the factory wiring harness, typically near the fuel pump relay. Cut the wire, connect one end to the switch, and the other end to the switch’s output terminal.
If done incorrectly, it could void the warranty or cause electrical problems. Always consult your vehicle’s manual and consider professional installation if unsure.
