Rajan Wilcox
Installing a fuel pump in a 2002 Jeep Liberty requires careful preparation and attention to detail. Begin by ensuring the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage. Disconnect the negative battery terminal to prevent electrical accidents, then relieve the fuel system pressure using the Schrader valve on the fuel rail. Next, locate the fuel tank access panel beneath the rear seat, remove it, and disconnect the electrical connector and fuel lines from the old pump. Carefully lower the fuel pump assembly out of the tank, install the new pump, and reattach the lines and connector. Finally, reassemble the access panel, reconnect the battery, and test the system for leaks before starting the engine. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Jeep Liberty |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Socket set, wrenches, screwdriver, jack, jack stands, safety goggles |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access Fuel Pump | 1. Drain fuel tank 2. Remove rear seat 3. Access fuel pump module 4. Disconnect electrical connectors and fuel lines |
| Fuel Pump Replacement | Replace old pump with new one, ensure proper sealing |
| Reassembly | Reinstall fuel pump module, reconnect fuel lines and electrical connectors |
| Post-Installation | Reconnect battery, check for leaks, test fuel pump operation |
| Estimated Time | 2-4 hours depending on experience |
| Difficulty Level | Moderate to Difficult |
| Special Notes | Ensure compatibility of replacement fuel pump with 2002 Jeep Liberty |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, safety gloves, and safety goggles
- Locate Fuel Tank: Access tank from under vehicle, ensure proper jack stands and safety precautions
- Remove Old Pump: Disconnect battery, relieve fuel pressure, lower tank, and detach pump assembly
- Install New Pump: Attach new pump, secure locking ring, reconnect electrical and fuel lines
- Test and Reassemble: Reinstall tank, reconnect battery, check for leaks, and test vehicle operation
Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, safety gloves, and safety goggles
Before diving into the installation of a fuel pump in a 2002 Jeep Liberty, it's crucial to assemble the right tools and materials to ensure a smooth and safe process. A socket set, for instance, is indispensable for removing bolts and fasteners that secure the fuel tank and pump assembly. Opt for a metric set, as most Jeep Liberty components are designed with metric measurements. Ensure the set includes a variety of sizes to accommodate different bolt heads, typically ranging from 8mm to 19mm.
Wrenches complement the socket set by providing additional leverage and access to tight spaces. Include both open-end and box-end wrenches in your toolkit, focusing on sizes that match the socket set. A screwdriver, preferably a flathead and Phillips head, is essential for prying, adjusting, and removing smaller components. While the fuel pump installation may not require extensive screwdriver use, having one on hand prevents unnecessary delays.
The centerpiece of this project is the new fuel pump, specifically designed for a 2002 Jeep Liberty. Verify compatibility by cross-referencing the part number with your vehicle’s specifications. Opt for an OEM (Original Equipment Manufacturer) or high-quality aftermarket pump to ensure reliability and longevity. Inspect the pump for any defects or damage before installation, as a faulty unit can lead to costly repairs down the line.
Safety should never be an afterthought. Safety gloves, such as nitrile or latex, protect your hands from fuel, debris, and sharp edges during the installation. Nitrile gloves are particularly recommended for their resistance to chemicals and punctures. Pair these with safety goggles to shield your eyes from fuel splashes, dust, and other hazards. This combination not only safeguards your well-being but also ensures you can focus on the task without distractions.
Organizing your tools and materials beforehand streamlines the installation process. Lay out everything on a clean, flat surface in the order of use, starting with the socket set and wrenches for tank removal, followed by the screwdriver and new fuel pump. Keep safety gear within easy reach to put on before handling fuel-related components. By preparing meticulously, you minimize the risk of errors and maximize efficiency, turning a potentially daunting task into a manageable DIY project.
Efficiently Powering Your Fuel Pump: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products

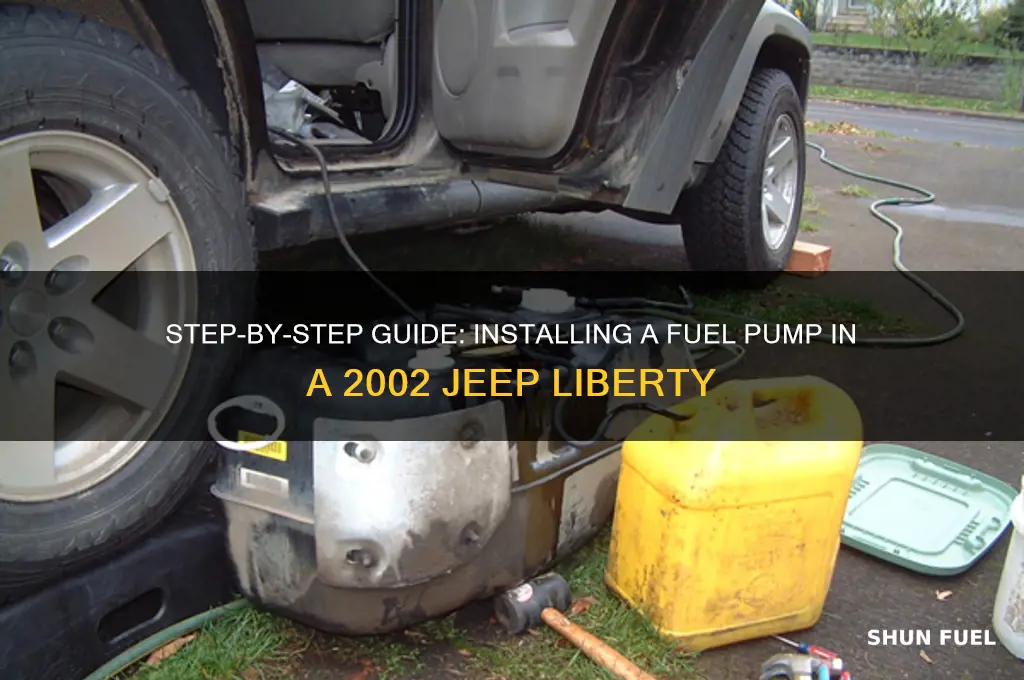

Locate Fuel Tank: Access tank from under vehicle, ensure proper jack stands and safety precautions
The fuel tank in a 2002 Jeep Liberty is located beneath the vehicle, typically near the rear axle. Accessing it requires working from underneath, which immediately underscores the importance of safety and proper vehicle support. Before you begin, ensure the vehicle is on a flat, stable surface and securely lifted using a hydraulic jack and supported by jack stands rated for the Jeep’s weight. Never rely solely on the jack, as it can fail under prolonged stress. Position the stands directly under the manufacturer-recommended lift points, usually along the rocker panels or pinch welds, to prevent damage to the undercarriage.
Once the vehicle is safely elevated, locate the fuel tank by tracing the fuel lines from the engine bay to their termination point. The tank is a large, rectangular metal or plastic container, often protected by a skid plate or heat shield. Remove any shielding using appropriate tools—typically a socket wrench or screwdriver—to expose the tank’s access points. Be cautious of sharp edges and debris accumulated around the tank, as these can pose injury risks or interfere with your work.
Safety precautions are non-negotiable when working on a fuel system. Start by relieving the fuel pressure to minimize the risk of accidental ignition or spillage. Disconnect the negative battery terminal to prevent electrical shorts. Wear safety goggles and nitrile gloves to protect against fuel exposure, which can irritate skin and eyes. Work in a well-ventilated area to avoid inhaling fumes, and keep a fire extinguisher nearby as a precautionary measure.
After accessing the tank, inspect the surrounding area for signs of corrosion, leaks, or damage. Address any issues before proceeding with the fuel pump installation, as compromised components can lead to future failures. For example, replace rusted straps or damaged lines to ensure the tank remains securely mounted. This step not only safeguards the new pump but also extends the overall lifespan of the fuel system.
In summary, locating and accessing the fuel tank in a 2002 Jeep Liberty demands precision, safety, and attention to detail. Proper vehicle support, systematic disassembly, and adherence to safety protocols are critical to completing the task without incident. By taking these precautions, you create a stable and secure environment for installing the fuel pump, ensuring both your safety and the vehicle’s integrity.
Signs Your Fuel Pump is Failing: Symptoms and Solutions
You may want to see also
Explore related products
Remove Old Pump: Disconnect battery, relieve fuel pressure, lower tank, and detach pump assembly
Before tackling the fuel pump replacement in your 2002 Jeep Liberty, prioritize safety and precision. Begin by disconnecting the battery to eliminate any risk of electrical sparks near fuel vapors. This critical first step ensures a secure working environment, allowing you to proceed without the threat of accidental ignition. With the battery disconnected, you’ve effectively neutralized the electrical system, setting the stage for the next phase of the process.
Relieving fuel pressure is the next essential task, as it prevents fuel from spraying or leaking during the removal process. Locate the Schrader valve on the fuel rail, typically near the engine bay, and use a pressure gauge or a small tool to depress it. This releases the pressure in the fuel system, making it safer to handle the fuel lines and tank. Failure to relieve pressure can result in fuel spills or difficulty detaching components, so take your time to ensure this step is done thoroughly.
Lowering the fuel tank is a labor-intensive but necessary step to access the pump assembly. Start by relieving the tank’s weight by supporting it with a jack or a secure stand. Carefully remove the retaining straps or bolts that hold the tank in place, then slowly lower it until you can access the pump assembly. Be cautious not to damage fuel lines or electrical connectors during this process. Working with a helper can make this step smoother, as the tank’s weight and awkward shape can be challenging to manage solo.
Detaching the pump assembly requires attention to detail to avoid damaging surrounding components. Disconnect the electrical connector and fuel lines, taking note of their positions for reassembly. Some lines may have clips or retaining mechanisms that need to be carefully released. Once all connections are detached, remove the pump assembly from the tank. Inspect the old pump for signs of wear or damage, as this can provide insights into the cause of failure and help prevent future issues. With the old pump removed, you’ve successfully completed the first major phase of the fuel pump replacement process.
JZX90 vs JZX100: Fuel Pump Hanger Compatibility Explained
You may want to see also
Explore related products
Install New Pump: Attach new pump, secure locking ring, reconnect electrical and fuel lines
The heart of the fuel pump installation process lies in the precise attachment of the new pump, ensuring it integrates seamlessly with your 2002 Jeep Liberty's fuel system. Begin by carefully aligning the new pump with the mounting bracket, taking note of any specific orientation requirements outlined in your vehicle's manual or the pump manufacturer's instructions. A proper fit is crucial to prevent leaks and ensure optimal performance.
Securing the locking ring is a critical step that demands attention to detail. This component holds the pump assembly in place, and a loose or improperly installed ring can lead to catastrophic failures. Use a suitable tool, such as a locking ring tool or a pair of sturdy pliers, to tighten the ring evenly. Over-tightening can damage the ring or the pump, so apply force gradually and stop when you feel resistance. A secure locking ring should not move when gently tugged, indicating a successful installation.
Reconnecting the electrical and fuel lines is a delicate process that requires patience and precision. Start with the electrical connections, ensuring the wiring harness plugs securely into the new pump. Check for any damaged wires or connectors, as these can cause intermittent issues or complete system failures. Next, reattach the fuel lines, being mindful of their orientation and the type of connectors used. Quick-connect fittings are common in modern vehicles, but older models might require more traditional methods. Apply a small amount of clean engine oil to the O-rings or seals to ensure a tight, leak-free connection.
A comparative analysis of this process reveals that while the steps may seem straightforward, the devil is in the details. Each connection and attachment must be executed with care to avoid common pitfalls. For instance, a loose electrical connection can lead to voltage drops, affecting the pump's performance, while a fuel line leak can be both dangerous and environmentally harmful. By following these steps meticulously, you not only ensure the longevity of your new fuel pump but also contribute to the overall reliability and safety of your Jeep Liberty.
In practice, consider the following tips: always work with clean hands and tools to prevent contamination of fuel system components. If you encounter resistance when attaching lines or connectors, double-check their alignment and orientation rather than forcing them, as this can cause damage. After installation, it's advisable to perform a thorough inspection, checking for any signs of leaks or loose connections before starting the engine. This proactive approach can save you from potential headaches down the road.
2004 Z06 Fuel Pump HP Capacity: What’s the Limit?
You may want to see also
Explore related products
Test and Reassemble: Reinstall tank, reconnect battery, check for leaks, and test vehicle operation
With the fuel pump installed, the final steps are critical to ensure your 2002 Jeep Liberty operates safely and efficiently. Reassembling the system requires precision and attention to detail to avoid leaks and electrical issues. Start by carefully reinstalling the fuel tank, ensuring all mounting bolts are tightened to the manufacturer’s torque specifications—typically 20-25 ft-lbs for this model. Misalignment or overtightening can damage the tank or seals, leading to costly repairs.
Next, reconnect the battery, but pause before starting the engine. A common oversight is skipping the leak check, which can result in fuel spills or fire hazards. Use a spray bottle with soapy water to inspect all fuel lines and connections. Apply pressure to the system by turning the ignition to the "on" position (without starting the engine) and observe for bubbles, which indicate leaks. Address any issues immediately—even minor leaks can escalate quickly under operating conditions.
Once the system is confirmed leak-free, start the vehicle and monitor its performance. Listen for unusual noises from the fuel tank area, which could signal improper installation or a faulty pump. Check the fuel pressure gauge (if available) to ensure it reads within the specified range for the 2002 Jeep Liberty, typically 48-55 psi. If the engine stalls or runs rough, recheck electrical connections and fuel lines for obstructions or damage.
Finally, take the vehicle for a short test drive to assess acceleration, idling, and overall responsiveness. Pay attention to hesitation or surging, which may indicate air in the fuel lines or a malfunctioning pump. If everything operates smoothly, you’ve successfully completed the installation. However, if issues persist, consult a professional mechanic to diagnose and resolve the problem. This meticulous approach ensures not only functionality but also safety, safeguarding both your vehicle and its occupants.
Why Your Fuel Pump Beeps: Causes, Solutions, and When to Worry
You may want to see also
Frequently asked questions
You will need a jack and jack stands, a wrench set, screwdrivers, a fuel line disconnect tool, a new fuel pump module, and safety equipment like gloves and safety goggles.
The fuel pump is located inside the fuel tank, which is situated underneath the vehicle, near the rear passenger side.
Yes, it’s recommended to drain as much fuel as possible from the tank to avoid spills and make the installation process safer and easier.
First, safely raise the vehicle using a jack and secure it on jack stands. Then, locate and remove the fuel tank straps, carefully lower the tank, and disconnect the electrical and fuel lines before removing the pump.
Yes, work in a well-ventilated area, avoid open flames or sparks, disconnect the battery to prevent accidental ignition, and wear protective gear like gloves and safety goggles.
