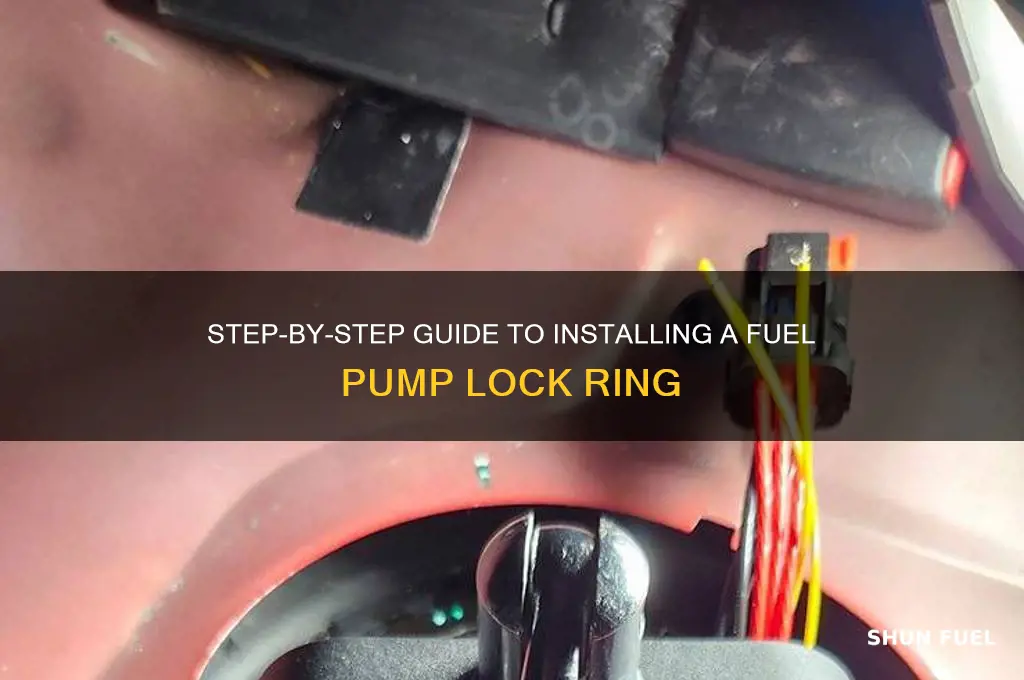

Installing a fuel pump lock ring is a critical step in securing the fuel pump assembly within the fuel tank, ensuring a leak-free and safe operation of your vehicle. This process typically involves accessing the fuel tank, removing the old lock ring if present, and carefully aligning and tightening the new lock ring to the specified torque. Proper installation is essential to prevent fuel leaks, maintain system pressure, and avoid potential hazards. Whether you're replacing a faulty fuel pump or performing routine maintenance, understanding the correct procedure for installing a fuel pump lock ring is key to a successful and safe repair. Always refer to your vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Pliers, screwdriver, wrench, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Vehicle Compatibility | Varies by make and model; check vehicle manual or parts catalog |
| Lock Ring Type | Typically a snap-ring or threaded lock ring |
| Installation Location | Fuel tank, near the fuel pump module |
| Steps | 1. Relieve fuel pressure 2. Disconnect battery 3. Access fuel pump 4. Remove old lock ring 5. Install new lock ring 6. Reassemble components |
| Torque Specifications | Follow manufacturer’s torque specifications (if applicable) |
| Common Issues | Lock ring breakage, misalignment, over-tightening |
| Replacement Frequency | Only when damaged or during fuel pump replacement |
| Material | Typically metal (steel or aluminum) |
| Cost | $5–$20 (varies by brand and vehicle) |
| DIY Difficulty Level | Moderate (requires mechanical skill and caution) |
| Professional Assistance | Recommended if unsure or for complex fuel systems |
| Environmental Considerations | Dispose of old parts and fuel residue properly |
| Post-Installation Check | Inspect for leaks, ensure proper fuel pump operation |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect pliers, screwdriver, new lock ring, safety gloves, and clean cloth
- Locate Fuel Pump: Identify the fuel pump assembly in the fuel tank
- Remove Old Lock Ring: Use pliers to carefully detach the existing lock ring
- Install New Lock Ring: Align and secure the new lock ring onto the fuel pump
- Verify Secure Fit: Ensure the lock ring is tight and properly seated
Gather Tools and Materials: Collect pliers, screwdriver, new lock ring, safety gloves, and clean cloth
Before diving into the installation of a fuel pump lock ring, it’s crucial to assemble the right tools and materials. This step is often overlooked, but it’s the foundation of a smooth and safe repair. Start by gathering pliers, a screwdriver, a new lock ring, safety gloves, and a clean cloth. Each item serves a specific purpose: the pliers provide grip for removing or securing components, the screwdriver aids in accessing the fuel pump module, the new lock ring ensures a secure fit, safety gloves protect your hands from fuel exposure, and the clean cloth helps wipe away debris or spills. Skipping this preparation can lead to frustration, delays, or even accidents, so take the time to collect everything before you begin.
From an analytical perspective, the tools and materials listed aren’t arbitrary—they’re tailored to the task’s demands. Pliers, for instance, are essential for gripping the lock ring without damaging it, especially if it’s corroded or stuck. A flathead or Phillips screwdriver (depending on your vehicle) is needed to remove the fuel pump access panel or module cover. Safety gloves are non-negotiable due to the flammable nature of fuel, and a clean cloth minimizes the risk of contamination or fire hazards. The new lock ring, of course, is the star of the show, ensuring the fuel pump remains securely in place. This curated list reflects the balance between precision, safety, and efficiency required for the job.
Persuasively speaking, investing in high-quality tools and materials upfront can save you time and money in the long run. Cheap pliers might slip and damage the lock ring, while subpar gloves could tear, exposing your skin to fuel. Similarly, using an incorrect or worn-out lock ring can lead to leaks, which are both dangerous and costly to fix. Think of this step as a small insurance policy for your repair. It’s not just about having the items—it’s about ensuring they’re in good condition and suited to the task. For example, nitrile safety gloves offer better chemical resistance than latex, making them a smarter choice for fuel-related work.
Comparatively, gathering tools for a fuel pump lock ring installation is akin to preparing for a surgical procedure—every instrument has a role, and precision matters. Just as a surgeon wouldn’t operate without a scalpel, you shouldn’t attempt this repair without the right tools. Unlike simpler tasks like changing a tire, this job involves working with flammable liquids and delicate components. For instance, while a standard screwdriver might suffice, a magnetic-tipped one can make retrieving dropped screws easier in tight spaces. Similarly, a cloth isn’t just for cleaning—it can also be used to catch drips or protect surrounding areas. The parallels to professional work highlight why preparation is key.
Descriptively, imagine your workspace as a well-organized station where every tool has its place. The pliers sit within arm’s reach, their jaws slightly open, ready to clamp onto the lock ring. The screwdriver leans against the edge of the workbench, its handle worn from years of use but still reliable. The new lock ring rests in its packaging, gleaming with the promise of a secure seal. Safety gloves hang nearby, their bright color a reminder of the hazards involved. A clean cloth is folded neatly, waiting to wipe away any residue or spills. This setup isn’t just functional—it’s a visual cue that you’re prepared, focused, and ready to tackle the task with confidence.
