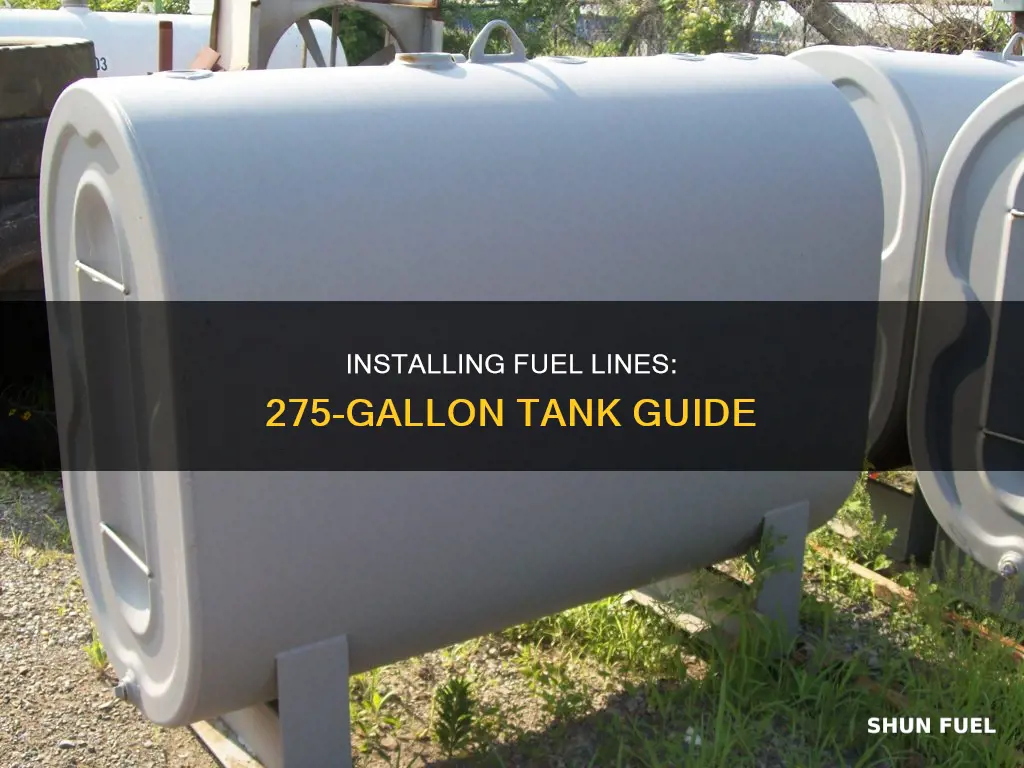

Installing fuel lines in a 275-gallon tank is a complex process that requires careful planning and execution. The process involves removing the existing tank and fuel lines, positioning the new tank, and connecting the fuel lines to the appropriate appliances. It is important to ensure that the tank is levelled and properly secured to avoid any damage or leaks. The fuel lines should be connected overhead to ensure safety, and it is recommended to use swing joints to reduce stress on the bung welds during filling. Additionally, the fill and vent pipes should be properly installed, with the fill pipe at least 3 feet above the grade and the vent pipe 6 inches above the grade. Proper testing and inspection are also crucial to ensure the system's functionality and safety.
Explore related products
What You'll Learn
Placement of the tank
When it comes to the placement of your 275-gallon tank, there are several factors to consider. Firstly, decide on the type of tank that best suits your needs. The most common type is the 275-gallon vertical oil tank, which is typically used for home heating oil. This type of tank is usually filled to a maximum of about 250 gallons to allow for expansion. If you require a tank for low-clearance installations, such as under decks or in crawl spaces, consider a 275-gallon horizontal (flat) tank. These tanks are less common but are still relatively frequently used in certain applications.
Another factor influencing tank placement is the available space. Measure the dimensions of the area where you plan to install the tank to ensure it can accommodate the tank's size. A standard 275-gallon tank typically measures around 48 inches in length, 40 inches in width, and 46 inches in height, with some models reaching up to 52 inches in height. Ensure that the equipment you use to move and place the tank can safely handle its weight, which can be almost 2,500 pounds when full.
Additionally, consider the tank's proximity to other components of your system. For example, it is recommended to keep the oil line piping tucked under the tank and secure the filter sturdily to an adjacent wall. If you're installing a basement tank, consider air testing it once it's in place to ensure its integrity. It's also a good idea to have someone present while the first delivery is pumped into the tank.
Finally, if you're installing the tank in a basement, as mentioned in some forums, you may want to consider the type of wall construction. Single-walled tanks are commonly used, but some individuals opt for double-walled tanks or containment tubs for added security. Consult with professionals to determine the best course of action for your specific circumstances.
Connecting Fuel Lines: Kicker Motor Installation Guide
You may want to see also
Explore related products
Removing the old tank
Firstly, it is important to temporarily shut down the home's oil-fired hot water tank and furnace. This will ensure that the oil supply is stopped and no oil leaks occur during the removal process. The next step is to remove the existing tank's fill and vent pipes. This involves detaching the pipes that supply oil to the tank and allow air to escape. It is crucial to use proper tools and techniques to avoid any damage to the surrounding area.
After detaching the pipes, the next step is to extract the remaining fuel from the old tank. This can be done using an oil pump, which is often equipped in trucks used by professionals. The oil is then pumped into a holding tank, ensuring that it can be safely stored until it is ready to be placed into the new tank. To facilitate this process, a hole may be cut in the top of the existing tank to fit the fuel hose, allowing for efficient extraction of the fuel.
Once the fuel has been removed, the physical removal of the old tank can begin. This may involve carefully lifting or moving the tank, depending on its size and location. It is important to ensure that the area where the tank was located is cleaned and prepared for the installation of the new tank. This includes inspecting the space for any signs of damage or corrosion that may have occurred due to the previous tank.
In some cases, the old tank may need to be cut into pieces for easier removal, especially if it is being disposed of. This is a delicate process and should be done with the appropriate safety gear and procedures to avoid any accidents or injuries. Overall, removing the old tank requires careful planning and execution to ensure the safety of those involved and to prevent any environmental hazards.
Mustang Fuel Pump: Return Line Models Explored
You may want to see also
Explore related products
Installing the fuel lines
Installing fuel lines in a 275-gallon tank is a complex process and should be done by a professional. Here is a step-by-step guide on how to install fuel lines in a 275-gallon tank:
First, ensure that the tank is placed in an area where it can be visually inspected from all sides and is not obstructed by household activities. The tank should also be levelled and set to slope 1/4" per foot down or away from the bottom outlet. The oil lines are piped from the top of the tank, so a plug must be installed in the tank's bottom outlet. The tank feet should be assembled and installed, with bottom flanges to form the tank support and avoid damage to the oil tank tub.
Next, the fuel lines can be installed. The product supply lines should be a minimum of 3/8" outside diameter copper tubing, with 1/2" tubing recommended. When installing the piping, it is important to use fuel oil-tight tubing and joints to prevent leaks. A shut-off valve, ideally a steel ball valve or gate valve, should be located close to the tank shell to allow the fuel supply to be shut off in case of an emergency. The fill pipe should be 3 feet above grade, with the vent pipe 6 inches above grade. Swing joints are recommended to reduce stress on the bung welds as the tank settles during filling.
Finally, the system should be tested to ensure proper performance. This includes testing the furnace and water heater if applicable. It is recommended to have someone at the tank while the first delivery is pumping in to monitor for any issues.
Fuel Line Materials: Plastic vs. Other Options for Trucks
You may want to see also
Explore related products
Testing the tank
Air Testing
Before placing the tank into its final position, it is a good practice to air test it. This is done by pressuring the tank to 3 psi for 24 hours. This test helps identify any potential leaks in the tank, ensuring that it is airtight and ready for fuel filling.
Visual Inspection
It is important to ensure that your tank is easily accessible for visual inspections. Keep the area around the tank clear, providing a minimum separation of 2 inches (50 mm) from surrounding objects. This clearance is crucial for regular maintenance and inspections.
Fuel Line Connections
Once the tank is in place, you can proceed with the fuel line connections. Ensure that the fuel lines are installed overhead for safety. Use copper tubing with an outside diameter of no less than 3/8 inch (10 mm) for the product supply lines. Burying fuel lines is not recommended due to the risk of concrete corroding the copper and causing leaks. However, if burying is necessary for line safety, use corrosion-resistant tubing and ensure that its ends protrude at least 2 inches (50 mm) above the concrete.
Fill and Vent Piping
The fill pipe should be made of 2-inch (50 mm) schedule 40 black steel and positioned 3 feet (900 mm) above the grade. The vent pipe should be 6 inches (150 mm) above the grade. Ensure that all threaded joints in the fill and vent piping are fuel oil-tight, using joint compounds that conform to standards like CAN/ULC-S642-M.
Final Testing
After completing the fuel line and piping connections, it's time to fill the tank and test its performance. Pump oil into the new tank and carefully monitor the furnace and water heater's performance. Ensure that the tank, furnace, and water heater are all functioning properly and that there are no leaks in the system.
Remember to follow local regulations and guidelines for oil tank installations and always seek professional assistance if you are unsure about any aspect of the testing process.
Latest USCG Fuel Line Requirements: SAE Standards Explained
You may want to see also
Explore related products
$11.99
$4.41
Maintenance and safety
When installing a 275-gallon fuel tank, it is crucial to comply with local regulations and safety standards. In the United States, for example, the Underwriters Laboratories (UL) have developed industry standards for the units and their installation. These standards cover various aspects, including the materials used in construction, the size of the tank, the required pressure tests, the location of the drainage valve, and proper labeling. Adhering to these standards helps ensure the safe and proper installation of the fuel tank.
The placement of the tank is another important factor in maintenance and safety. The tank should be placed in an area where it is protected from normal household activities and vehicle traffic. It should also be easily accessible for visual inspection from all sides. Proper spacing should be maintained between the fuel tank and other objects, such as propane cylinders or property lines. Additionally, the fill and vent piping should be considered. Swing joints are recommended to reduce stress on the bung welds, and the oil line piping should be tucked under the tank and secured to an adjacent wall.
To prevent leaks and spills, it is crucial to ensure that all connections are fuel oil-tight. This includes using appropriate joint compounds and tapes that conform to standards such as CAN/ULC-S642-M. A shut-off valve, preferably a steel ball valve or gate valve, should also be installed in the product piping connections. Burying product piping is generally not recommended due to the risk of concrete corroding copper lines. However, if burying is necessary for line safety from traffic, corrosion-resistant tubing should be used, with its ends protruding above the concrete.
Finally, it is important to monitor the fuel level in the tank and plan for refilling or replacement. Most residential oil heating systems consume around 4-7 gallons of fuel per day during winter, so a 275-gallon tank may last approximately 39-69 days. Regularly checking the fuel gauge and monitoring usage patterns can help prevent unexpected shortages. Additionally, keeping the tank clean is important for maintenance and performance. Depending on the type of tank and storage conditions, experts recommend cleaning the tank at least once every five years.
Inspecting Your Push Mower's Fuel Line: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Here is a list of steps to install fuel lines in a 275-gallon tank:
- Remove the existing tank's fill and vent pipes.
- Cut a hole in the existing tank to fit the fuel hose and pump the oil into a holding tank.
- Place the new tank and ensure it is levelled and set to slope 1/4" per foot down from the bottom outlet.
- Install a plug in the new tank's bottom outlet.
- Assemble and install the tank feet.
- Run the fuel lines from the new tank to the water heater and furnace, ensuring they are installed overhead.
- Pump the oil into the new tank and test the connected appliances.
Here are some key safety precautions:
- Ensure the tank is placed in an area where it is not likely to be affected by normal household activities and can be visually inspected from all sides.
- Maintain a minimum separation of 5 feet (1.5 m) from property lines.
- Use copper tubing with an outside diameter of at least 3/8 inches (10 mm) for product supply lines.
- Install a shut-off valve in the product piping connections to control the fuel supply.
- Avoid burying product piping as concrete can corrode copper lines.
- Ensure all connections in copper piping and tubing are fuel oil-tight.
Here are some best practices and considerations:
- Use a reputable tank brand such as Roth or Granby.
- Connect fuel lines to the water heater using a Tiger Loop de-aerator to ensure a constant oil supply.
- Connect the fill and vent piping with swing joints to reduce stress on the bung welds.
- Pitch the tank towards the bottom port to reduce condensation and moisture accumulation.
- Keep the oil line piping tucked under the tank and secure the filter to an adjacent wall.
- Consider installing a remote read-out oil tank level gauge for easy inspection.
