If you're experiencing issues with your 2006 F-250 Diesel, you may need to install new fuel injectors. Fuel injectors can wear out over time due to a variety of factors, including high mileage, internal mechanical failures, poor-quality diesel, or contaminated fuel. Symptoms of a failing fuel injector include difficulty starting the engine, rough idling, loss of power, and frequent misfires. To install new fuel injectors, you'll need to follow a procedure that involves cycling the key to the RUN position, cranking the engine, and checking for oil leaks. Additionally, you'll need specific tools and parts, such as a T-40 Torx driver, injector seal kits, and fuel injector O-ring kits.

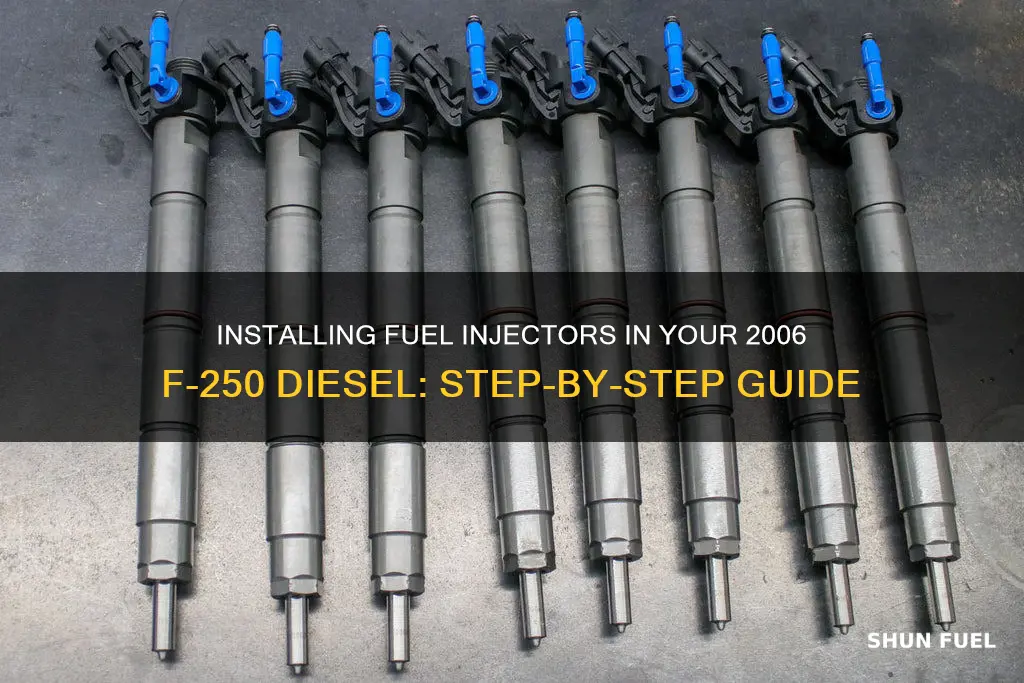

How to Install Fuel Injectors in a 2006 F-250 Diesel
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford F-250 Super Duty |
| Engine | 6.0L Power Stroke |
| Fuel Injector Seal/O-Ring Kit | Services 8 Injectors; includes steel snap rings, injector D-rings, upper and lower injector O-rings, copper crush washers, outer and inner injector harness O-rings |
| Fuel Injector Removal Tools | T-40 Torx driver, injector hold-down bracket, small pick |
| Fuel Injector Installation Procedure | Cycle key to "RUN" for 10 seconds, repeat 3-5 times; crank engine for 10 seconds, cool for 1-2 minutes, repeat until engine starts; drive truck to purge air from high-pressure oil system |
| Fuel Injector Replacement Interval | 150,000 - 200,000 miles; replace all 8 injectors simultaneously to reduce labor cost and time |
| Fuel Injector Failure Symptoms | Rough idle, loss of power, misfires, difficulty starting, strong fuel smell, hard start, excessive smoke, low fuel economy, stalling |
| Fuel Injector Failure Causes | Contaminated fuel, poor-quality diesel fuel, lack of routine maintenance (e.g. old fuel filters, engine oil, oil filters) |
Explore related products
What You'll Learn
- Diagnose the problem: A failed fuel injector will be obvious, with symptoms like hard start, rough idle, and stalling
- Prepare the engine: Cycle the key to the RUN position to fill the injector fuel supply with diesel
- Remove the injector retaining bolt: Use a T-40 Torx driver and any required extensions
- Take out the injector: Hold the injector, injector hold-down bracket, and T-40 Torx bolt, then slide the injector out of the injector cup
- Reinstall new injectors: Replace all 8 injectors at once to reduce labour cost and time
Diagnose the problem: A failed fuel injector will be obvious, with symptoms like hard start, rough idle, and stalling
A failed fuel injector will be obvious, with symptoms like hard start, rough idle, and stalling. A dirty or malfunctioning fuel injector can cause a variety of issues with your engine's internal combustion processes. Fuel injectors deliver gas to the appropriate cylinders, and when they don't do this job, your engine won't receive the right combination of air and fuel. This will affect the engine's ability to generate combustion, which is necessary for it to operate.
A failing fuel injector will cause your engine to have a rough idle. This is because the injectors cannot deliver the right amount of fuel to the engine, causing the engine to stutter and judder as it misses revolutions. Usually, an engine generates a smooth, even purr or rumble when idling. However, if one cylinder has a failing injector, idling will become particularly difficult for the engine, and it may stall when you slow down and pause in idle.
You may also notice that the needle on your dashboard's RPM gauge is behaving erratically, with the RPMs becoming erratic as the malfunctioning injector unbalances the fuel-air mixture and causes misfiring. Additionally, the check engine light on your dashboard may be illuminated, indicating that the fuel injector is dirty or malfunctioning and supplying too little or too much fuel to the engine.
Other symptoms of a failing fuel injector include hard starting, excessive smoke, low fuel economy, and overall poor performance. Owners of vehicles with 6.0L Power Stroke engines may begin to experience symptoms of injector trouble between 150,000 and 200,000 miles, with most issues arising at the early end of that spectrum.
Testing Fuel Injector Circuits: A Step-by-Step Guide
You may want to see also
Explore related products
Prepare the engine: Cycle the key to the RUN position to fill the injector fuel supply with diesel
Before installing the fuel injectors in your 2006 F-250 diesel, it is important to prepare the engine properly to ensure safe and efficient fuel injection. Here is a detailed guide on how to prepare the engine by cycling the key to the "RUN" position to fill the injector fuel supply with diesel:
First, locate the ignition key and insert it into the vehicle's ignition. Turn the key to the "RUN" position, but do not start the engine. You will need to cycle the key to this position multiple times as part of the process of filling the injector fuel supply with diesel.
Once the key is in the "RUN" position, you will hear the fuel pump activate. Allow the fuel pump to run for approximately 10 seconds. This step will initiate the flow of diesel fuel from the tank to the injector supply.
Repeat the process of cycling the key to the "RUN" position and running the fuel pump for 10 seconds. It is recommended to do this cycle a total of 3 to 5 times. With each cycle, the injector fuel supply will become more filled with diesel.
During this process, keep an ear out for any unusual noises that may indicate a problem with the fuel pump or the engine. If you notice any issues, such as strange noises or errors, stop the process and consult a mechanic or a professional for further guidance.
After completing the recommended number of cycles, you can proceed to the next steps of cranking the engine and following the subsequent procedures as outlined in the repair manual for your 2006 F-250 diesel. Remember to exercise caution and refer to the specific instructions provided for your vehicle model to ensure a safe and successful fuel injector installation.
Fuel Injector Coding: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Remove the injector retaining bolt: Use a T-40 Torx driver and any required extensions
To remove the injector retaining bolt, you will need a T-40 Torx driver and any required extensions. It is recommended to use an extra-long (2.5" - 3") Torx bit, but if you only have a small bit, you can tape it inside an appropriately-sized socket and use an extension.
With your chosen tool, insert it into the injector retaining bolt and begin to unscrew it. You may need to use a fair amount of force to break the bolt free, as they can be quite tight. Once the bolt is removed, set it aside in a safe place, so you can access it easily later.
At this point, you should be holding the injector, injector hold-down bracket, and the T-40 Torx bolt. Carefully slide the injector up and out of the injector cup, being careful not to drop the bracket or bolt into the cylinder head. It is important to secure all three items at once to reduce the chances of anything falling into the cylinder head, which could cause issues later on.
Now that the injector is removed, you can continue with the rest of the process, such as verifying the removal of the copper washer and lubricating the injector o-rings.
Repairing Fuel Injectors in a Honda Civic: Cost and Maintenance
You may want to see also
Explore related products
Take out the injector: Hold the injector, injector hold-down bracket, and T-40 Torx bolt, then slide the injector out of the injector cup
To take out the injector, you will need to hold the injector, the injector hold-down bracket, and the T-40 Torx bolt. With these three components secured, you can then slide the injector out of the injector cup. It is important to hold all three items simultaneously to prevent accidentally dropping the bracket or bolt into the cylinder head.
Before beginning this process, you will need to have removed the injector retaining bolt using a T-40 Torx driver and any necessary extensions. An extra-long (2.5" - 3") Torx bit is ideal for this task, although a small bit can also be taped inside a suitably-sized socket and combined with an extension.
Once you have removed the injector, check that the copper washer on its tip has come away with it. If it remains in the injector cup, use a small pick to retrieve it. You should also remove the rubber safety cup from the injector nozzle at this stage.
Now that the injector has been successfully removed, you can proceed to lubricate the injector o-rings with clean motor oil.
Fuel Injector Cleaner: Can It Cause Smoke?
You may want to see also
Explore related products
Reinstall new injectors: Replace all 8 injectors at once to reduce labour cost and time
To reinstall new injectors and reduce labour costs and time, it is recommended to replace all eight injectors in your 2006 F-250 diesel at once. This is because injector life is typically in the 150,000 to 200,000-mile range, and if one high-mileage injector fails, the others are likely to follow suit soon after.
- Cycle the key to the "RUN" position for about 10 seconds, repeating this process 3 to 5 times to fill the injector fuel supply with diesel.
- Crank the engine for 10 seconds and then let the starter cool for 1 to 2 minutes. Repeat this cycle until the engine starts. It may take 5 to 10 cranking cycles, which is normal as the engine refills the high-pressure oil rails.
- The engine will run rough initially. Check for oil leaks and let the engine idle for 3 to 5 minutes. Then, take a short drive and check for leaks again.
- Prepare the following tools and items: an extra-long (2.5" - 3") T-40 Torx driver and any required extensions, clean motor oil, and a new injector O-ring kit (which includes steel snap rings, injector D-rings, injector O-rings, copper washers, and injector harness O-rings).
- Remove the injector retaining bolt using the T-40 Torx driver. It is recommended to use an extra-long Torx bit, but a small bit can also be taped inside a socket and an extension can be used.
- Hold the injector, injector hold-down bracket, and T-40 Torx bolt together as you slide the injector out of the injector cup. This prevents dropping the bracket or bolt into the cylinder head.
- Check and retrieve the copper washer on the injector tip. If it is still in the injector cup, use a small pick to remove it.
- Take out the rubber safety cup from the injector nozzle.
- Lubricate the injector O-rings with clean motor oil.
- Install the new injector by reversing the removal process. Ensure that the copper washer is in place and the O-rings are lubricated.
- Repeat these steps for all eight injectors, verifying that each injector is secure and functioning properly before moving on to the next.
By following these steps, you can efficiently replace all eight injectors in your 2006 F-250 diesel, reducing labour costs and time associated with individual injector replacements.
